SpeTool · S05001 · Steel body

36-inch 4-Way Panel Clamp

£188.07 GBPper pack

Give wider glue-ups the support they need. Keep boards aligned while you bring the joints together.

Not sure which size? Compare the range →
Maximum panel width 36 in / 914 mm
Stock thickness ¼–3 in / 6.4–76.2 mm

For cabinet panels, wider cutting boards and small tabletops within 36 inches.

2 clamp(s) included per pack

Shipping and any applicable taxes or duties are shown at checkout.

▶ Watch the setup demonstration

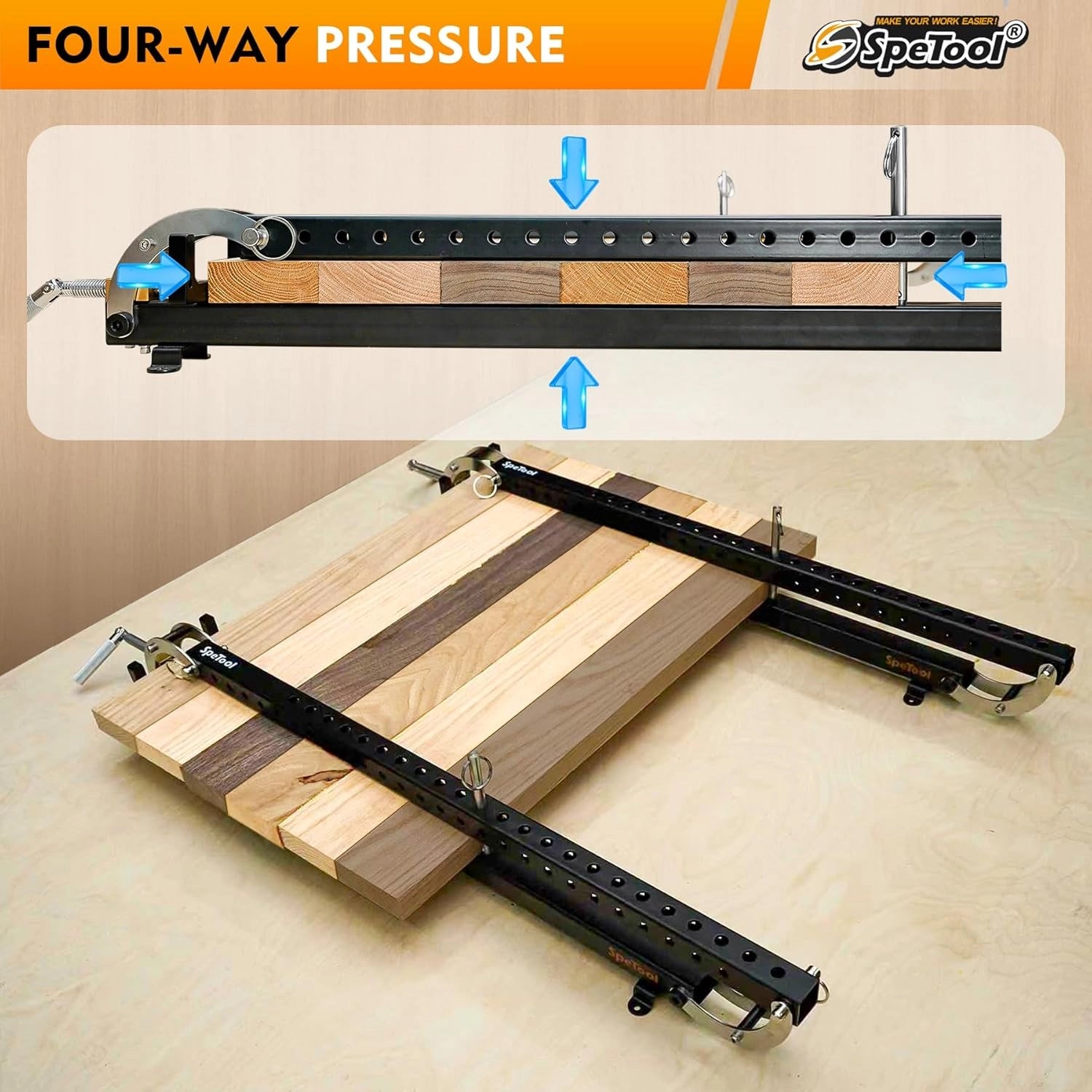

Four-way pressure

Close the joints. Keep boards aligned.

Side-to-side clamping helps bring board edges together. Top-and-bottom pressure helps keep the panel aligned during glue-up.

Four arrows show side-to-side and top-and-bottom pressure on a panel glue-up.
Pressure mechanism illustration. Body material, clamp length and capacity vary by model.

Bring edges together

Side-to-side pressure helps close the joints between properly prepared boards.

Keep boards aligned

Top-and-bottom pressure helps limit boards lifting out of alignment as you tighten.

Start with prepared stock

Use straight, square edges and dry-fit first. Clamping does not replace flattening or jointing warped stock.

Watch the setup demonstration →

Measure before you choose

Choose by panel width. Plan by panel length.

The size refers to the maximum clamping width across the boards. It is not the length of the finished panel.

  1. Measure the assembled width

    Lay out the boards edge to edge. Choose a clamp with enough capacity for the full width of your glue-up.

  2. Check the stock thickness

    Confirm your boards fall within the thickness range shown here. Dry-fit the complete setup before applying glue.

  3. Support the full panel length

    Use enough clamp positions for your panel length, stock and glue requirements. A pack count is not a guarantee that it suits every project.

S05001Capacity at a glance
Side view: maximum panel width between clamping contact points and stock thickness between the bars.A measures the panel across its glued-up width, between the clamping contact points. B measures board thickness between the upper and lower bars. AB
AMaximum panel width
36 in / 914 mm
BStock thickness
¼–3 in / 6.4–76.2 mm
Capacity schematic, not to scale. A is panel width, not overall tool length. Actual hardware details vary by model.

Diagram explains measurement only; it is not to scale. Metric equivalents are rounded. Check fit before applying glue.

See the setup

From loose boards to a supported glue-up.

See how the clamp supports the boards as pressure is applied. Start with straight, properly prepared stock.

Demonstration filmed with the 24-inch S05002. The same video is shared across the series; dimensions, pack options and setup requirements depend on the model.

Support board alignment

Vertical support helps manage board movement while lateral pressure brings the glue joints together.

Prepare before the glue

A dry run lets you check capacity, board contact and clamp placement while adjustments are easy.

Build on good preparation

Clamping does not replace jointed edges and flat stock. Check alignment as you tighten, without forcing the mechanism.

One series. Four capacities.

Match the clamp to the work you build.

Start with the widest panel you plan to glue. Then check stock thickness and the pack options available for your destination.

S05003

16 inch

Maximum panel width
16 in / 406 mm
Stock thickness
¼–2¼ in / 6.4–57.2 mm
Body material
Aluminum body

For smaller cutting boards, box panels and narrow glue-ups within 16 inches.

VIEW S05003 →

S05002

24 inch

Maximum panel width
24 in / 610 mm
Stock thickness
¼–3 in / 6.4–76.2 mm
Body material
Steel body

For cutting boards, cabinet doors and everyday panels within 24 inches.

VIEW S05002 →

S05001 · Viewing

36 inch

Maximum panel width
36 in / 914 mm
Stock thickness
¼–3 in / 6.4–76.2 mm
Body material
Steel body

For cabinet panels, wider cutting boards and small tabletops within 36 inches.

Choose pack & quantity

S05004

48 inch

Maximum panel width
48 in / 1219 mm
Stock thickness
¼–3 in / 6.4–76.2 mm
Body material
Steel body

For broad tabletops and large panels within 48 inches, with suitable bench support.

No matching regional listing available.

Product links follow your selected country. Pack options, prices and availability come from each regional product. Other destinations may have a smaller selection.

Before and after your purchase

A few useful answers before glue-up.

What arrives in the box?

The pack selector above states the number of clamps included. Quantity means packs: two packs of a two-clamp option contain four clamps. Wood, glue and the workbench shown in demonstrations are not included.

Need help with a part or setup?

Keep your order number and model code handy. Send a clear photo of the complete clamp and a close-up of the affected part so the support team can identify the correct version.

Contact SpeTool →
Does the size mean panel width or panel length?

It means maximum clamping width across the assembled boards. The length of your panel determines how many clamp positions and supports you need.

S05001: 36 in / 914 mm
What stock thickness does this model accept?

Use boards within the thickness range shown below for this model. Measure the stock after milling and dry-fit the complete setup before applying glue.

S05001: ¼–3 in / 6.4–76.2 mm
How many clamps should I use?

That depends on panel length, stock stiffness, joint preparation and the adhesive instructions. Dry-fit first and check that pressure and support are adequate along the entire glue-up. Do not assume one pair is suitable for every project.

How many clamps are in a pack, and can I order one or three?

Pack options for this regional listing:

  • 1-clamp pack — Sold out. Quantity 1 = 1 clamp; quantity 2 = 2 clamps.
  • 2-clamp pack — Available. Quantity 1 = 2 clamps; quantity 2 = 4 clamps.

The 1-clamp pack is currently sold out. The available 2-clamp packs provide even numbers of clamps, so a single clamp or a total of three clamps cannot currently be ordered from this listing.

Will these clamps flatten warped boards?

They help support alignment during glue-up, but they do not replace milling or flattening. Prepare straight, flat stock and properly fitting joints before you begin.

What if a handle, bracket or foot is damaged or loose?

Stop using the affected clamp and contact support with your model, order number and photos. Do not force a bent part straight or overtighten to compensate for movement. The team will confirm the next step and part compatibility.

What if a clamp seems to be missing from my package?

Compare the contents with the pack option on your order and inspect the packaging carefully. If the count still does not match, keep the packaging and send support a photo of the contents and shipping label.

What are the shipping and return terms?

Availability and delivery options depend on your destination and the item selected. Check the current shipping and returns policies below for the applicable terms; checkout confirms the shipping charges.

What is the clamp body made from?

Body material refers to the main clamp structure, not every fastener or component. Check the model information below when comparing the series.

S05001: Steel body
