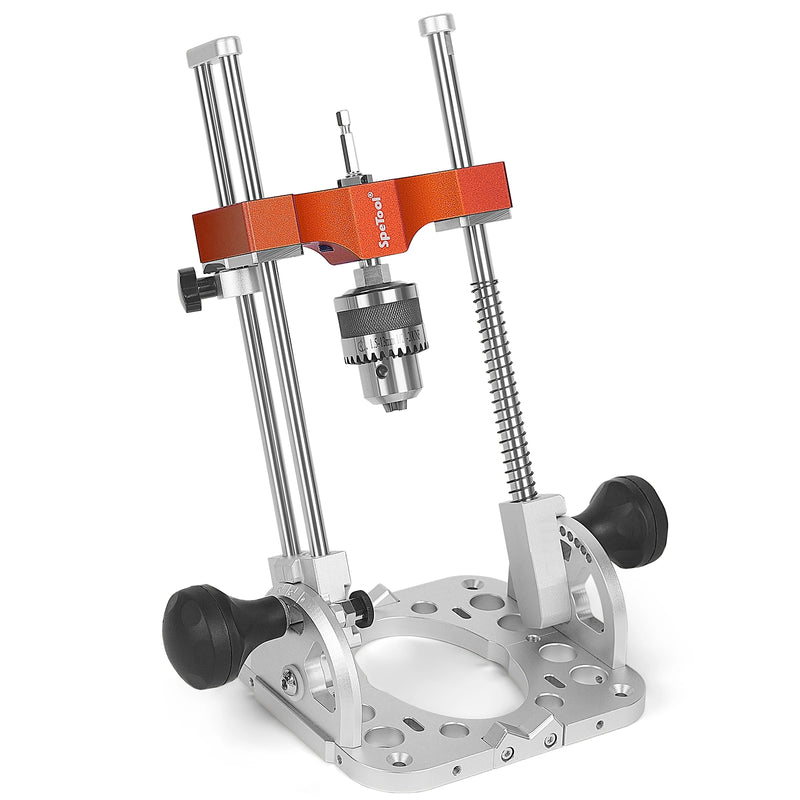

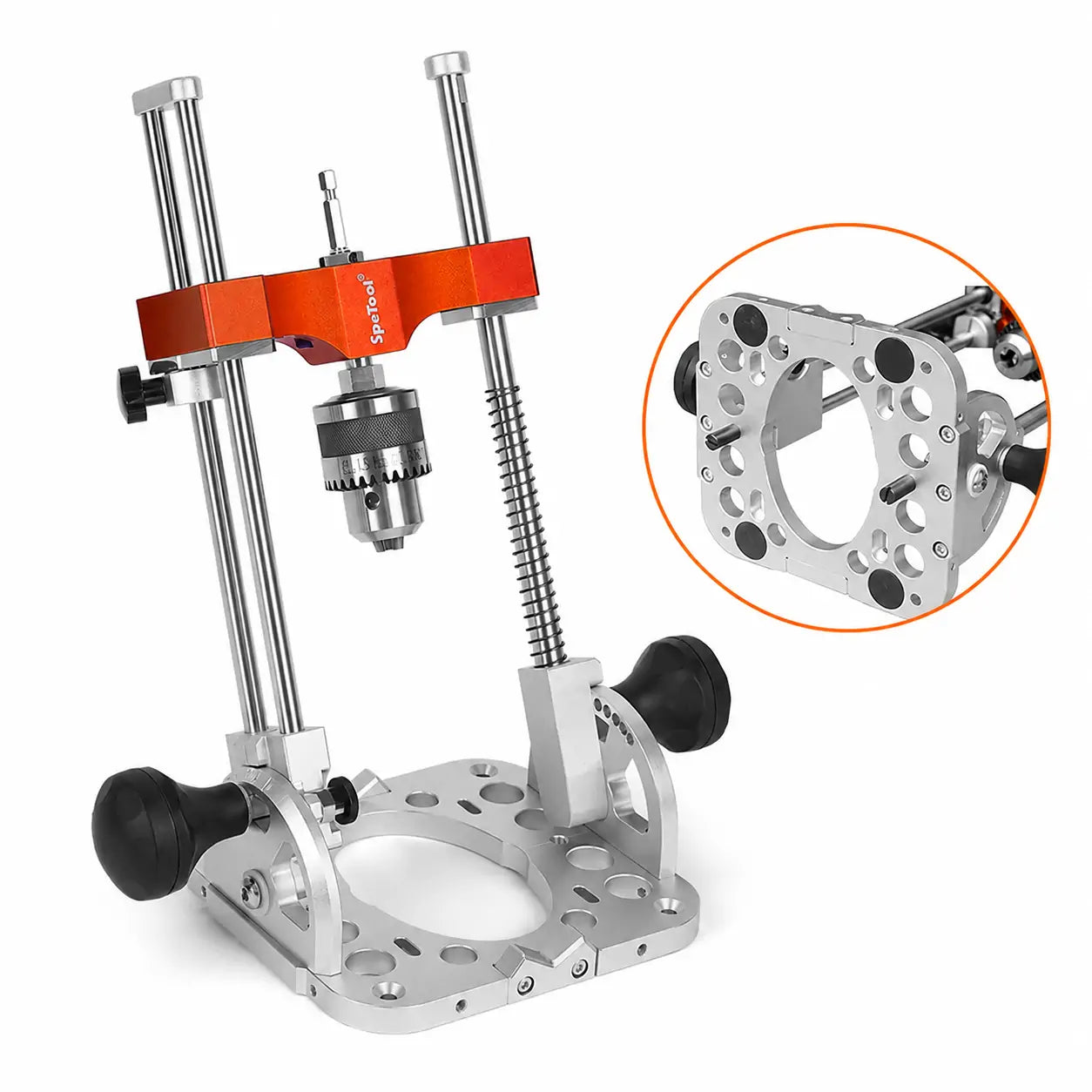

SpeTool UK S04001 Portable Drill Guide – Turn Your Hand Drill Into a Precision Drill Press

The SpeTool S04001 Portable Drill Guide helps you drill straighter, smoother, and more accurately than a hand drill alone. Featuring a 0°–60° adjustable angle system, linear ball bearing guides, and an ultra-precise 0.004" runout chuck, it delivers drill press-level control wherever your project takes you.

✅ Drill Straighter Holes Every Time
✅ Reduce Bit Wandering & Wobble
✅ Create Accurate Angled Holes
✅ Stay Stable Under Pressure
✅ Portable Precision for Any Jobsite

£244.93 GBP
Sold out
Bundle & Save 50% on the Fence

Add the S04001 Drill Guide to your cart first to qualify for 50% OFF the Fence

SpeTool UK S04002 Drill Fence – All-Aluminum Edge Cutting Guide for Portable Drill Guide, 256 mm Max from Edge, Ideal for Precise Row Hole Drilling
SpeTool UK S04002 Drill Fence – All-Aluminum Edge Cutting Guide for Portable Drill Guide, 256 mm Max from Edge, Ideal for Precise Row Hole Drilling
£39.33 GBP
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Enthusiast Approved

Katlyn Schaos

This SpeTool portable drill press is a great new addition to the shop. It's high quality and offers a much more precise vertical drilling experience than my feeble human body can manage 😅
Local delivery
Free shipping
90-day Refund
365-Day Warranty

Drill Press Accuracy Without the Size or Cost
Tired of crooked holes, wandering drill bits, or bulky drill presses taking up valuable shop space?
The SpeTool S04001 Portable Drill Guide transforms your handheld drill into a precision drilling solution. Whether you're building furniture, installing hardware, drilling dowel holes, or working on-site, it provides the control and accuracy needed to create clean, repeatable holes with confidence.
Perfect for woodworkers, DIYers, contractors, and makers who want professional results without investing in a full-size drill press.

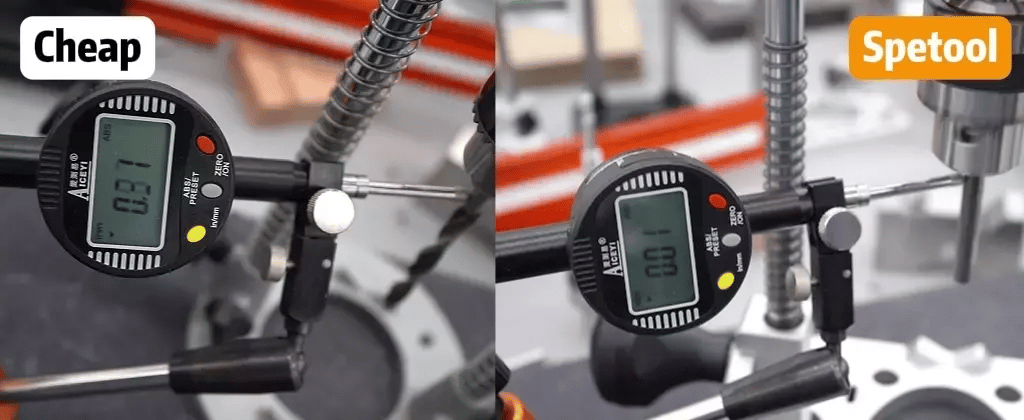

✔ 0.004" Precision Chuck

Reduce bit wobble and improve hole accuracy.

The all-metal chuck delivers exceptional precision with an average radial runout of only 0.004", helping create cleaner holes and more accurate drilling results.

✔ Linear Ball Bearing Guide System

Enjoy smoother drilling with less effort.

Unlike traditional friction-based guide systems, linear ball bearings allow smooth vertical movement without sticking or binding.

  • Smooth operation
  • Consistent drilling pressure
  • No lubrication required

✔ Adjustable 0°–60° Drilling Angles

Create accurate angled holes with confidence.

The integrated angle scale allows precise drilling from 0° to 60°, while locking positions every 7.5° improve repeatability.

Perfect for:

  • Furniture joinery
  • Stair components
  • Custom woodworking projects
  • Angled installations

✔ Triple Guide Rod Design

Improve stability and drilling control.

Three guide rods help resist drill torque and reduce unwanted movement during operation, resulting in cleaner and more consistent holes.

✔ Built-In V-Groove Base

Easily drill centered holes in round materials.

The integrated V-block securely supports:

  • Dowels
  • Pipe
  • Tubing
  • Cylindrical stock

without additional jigs or fixtures.

✔ Heavy-Duty Aluminum Construction

Built for years of workshop use.

The anodized aluminum base provides a rigid foundation for both vertical and angled drilling applications.

Perfect for projects where drilling accuracy matters:

✔ Furniture Building

✔ Cabinet Installation

✔ Dowel Joinery

✔ Hardware Mounting

✔ Woodworking Projects

✔ Pipe & Tube Drilling

✔ DIY Home Improvements

✔ On-Site Repair Work

Stop Fighting With Crooked Holes

Hand drills are portable, but they can be difficult to control accurately.

The S04001 helps solve common drilling frustrations:

✓ Drill straighter holes

✓ Maintain consistent angles

✓ Reduce bit wandering

✓ Improve repeatability

✓ Achieve cleaner project results

✓ Bring drill press accuracy to the jobsite

Instead of struggling to keep a drill perfectly aligned by hand, you can focus on the project itself.

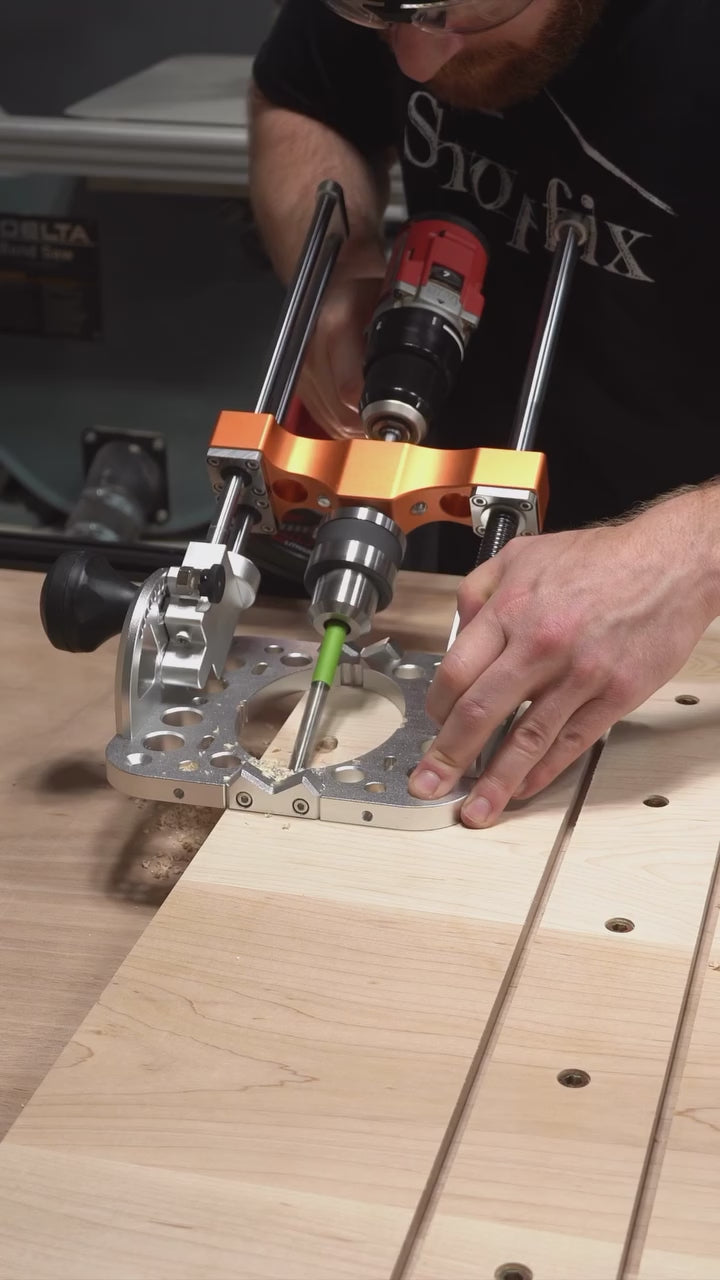

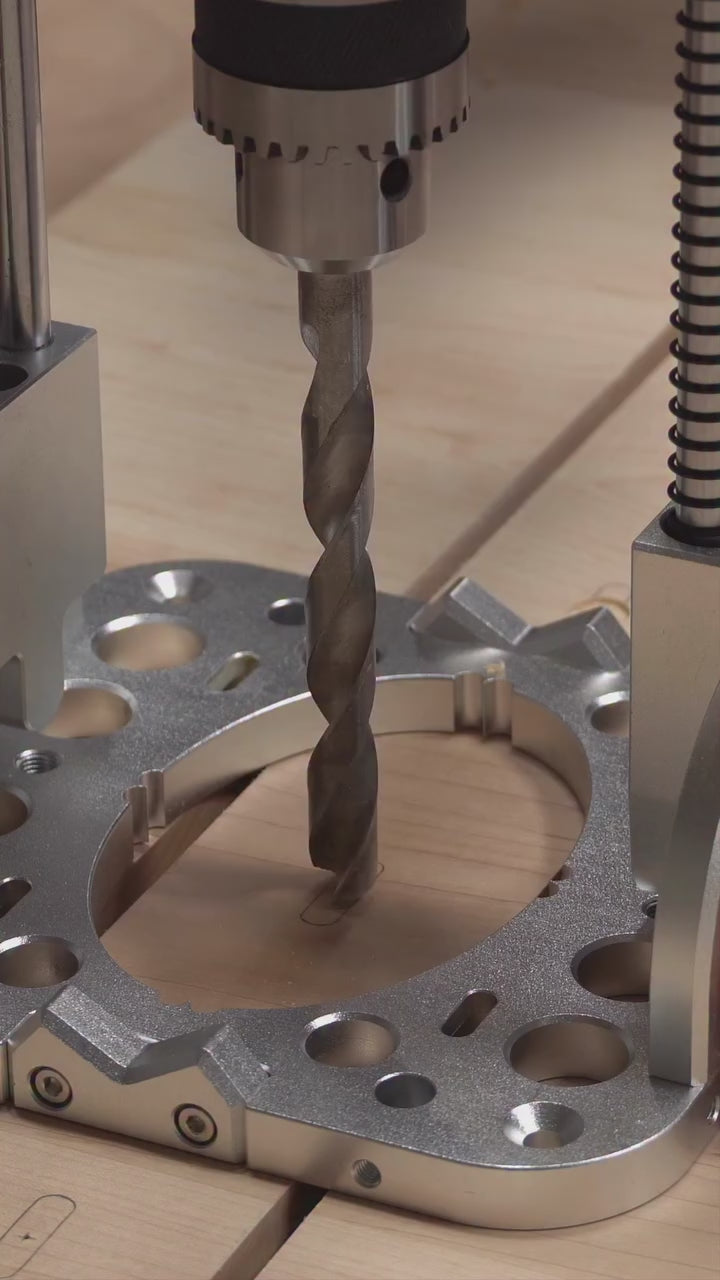

Step 1
Secure your hand drill in the 1/2" precision chuck.
Step 2
Set your desired drilling angle between 0° and 60°.
Step 3
Position the guide on your workpiece.
Step 4
Use the smooth linear bearing system to lower the drill with precision and control.
Step 5
Create clean, accurate holes with improved consistency and repeatability.

⚠️Designed for use with most standard hand drills.
⚠️Always secure the workpiece before drilling.
⚠️For best accuracy, use sharp drill bits and apply consistent drilling pressure.
⚠️Compatible with both flat and cylindrical materials.
⚠️Patent protected in certain jurisdictions.

Product Specifications

Feature Specification
Model Number S04001
Construction All-Metal Design
Base Material Anodized Aluminum Alloy
Chuck Capacity 1.5–13 mm
Hex Shank 8mm
Radial Runout Average 0.004"
Angle Adjustment 0°–60°
Angle Locking Positions Every 7.5°
Height Adjustment Range 24–214 mm
Guide System Linear Ball Bearings
Guide Rods 3
Built-In V-Block Yes
Center Positioning Pins Yes
Product Size 309 × 170 × 360.5 mm
Product Weight 8.36 lb (3.79 kg)
Suitable For Wood, Plastic, Soft Metals, Pipes & Dowels

Product Specifications

Feature Specification
Model Number S04001
Construction All-Metal Design
Base Material Anodized Aluminum Alloy
Chuck Capacity 1.5–13 mm
Hex Shank 8mm
Radial Runout Average 0.004"
Angle Adjustment 0°–60°
Angle Locking Positions Every 7.5°
Height Adjustment Range 24–214 mm
Guide System Linear Ball Bearings
Guide Rods 3
Built-In V-Block Yes
Center Positioning Pins Yes
Product Size 309 × 170 × 360.5 mm
Product Weight 8.36 lb (3.79 kg)
Suitable For Wood, Plastic, Soft Metals, Pipes & Dowels
User Manual Download

Rated 4.7

⭐⭐⭐⭐⭐

More Control. Better Accuracy.

Lock your drilling depth, secure precise angles, center round materials, and achieve repeatable results with confidence.

The depth stopper allows you to drill to the same depth again and again.

Dual removable center pins enable you to easily create centered holes in materials without having to stop and readjust multiple times.

The double locks can be achieved every 7.5° to ensure angle stability.

The built-in V shape block allows the hand drill press to compatible with both flat and cylindrical work-pieces.

Built Around Real Woodworking Problems

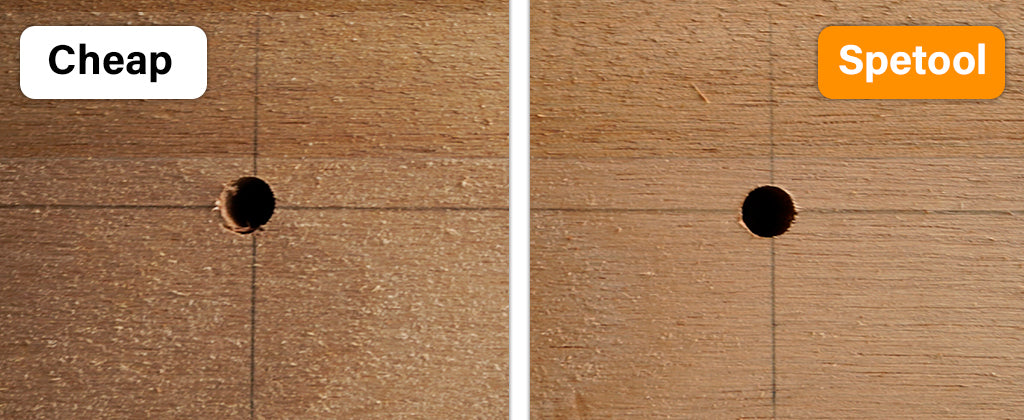

Create straighter, cleaner holes with improved alignment and control.

Adjust from 0°–60° and lock your angle with confidence.

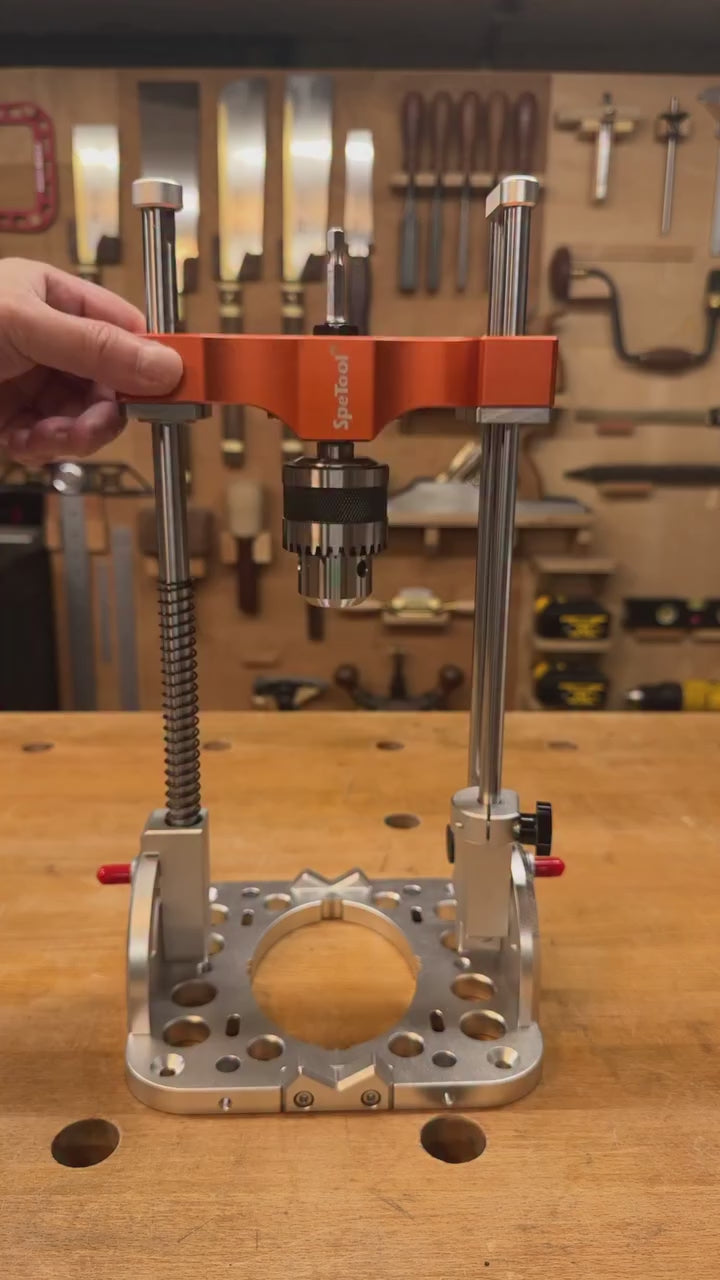

The 3-rod design helps improve stability and drilling accuracy.

The integrated V-block supports both flat and round materials.

Get drill press-like control without sacrificing portability.

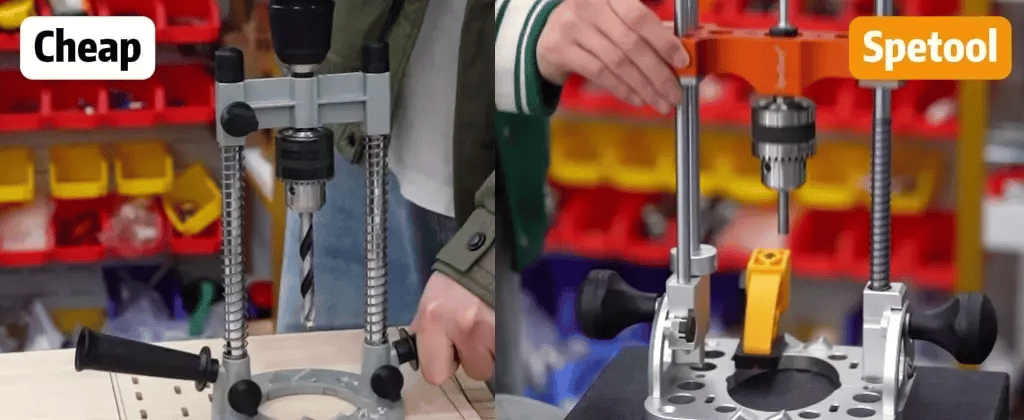

Why Is It Worth It?

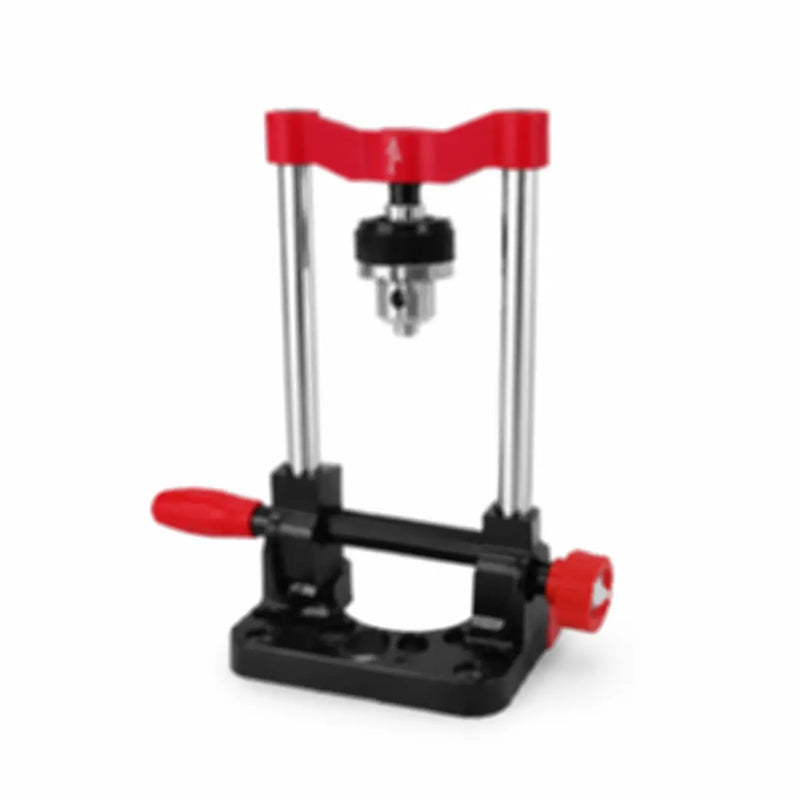

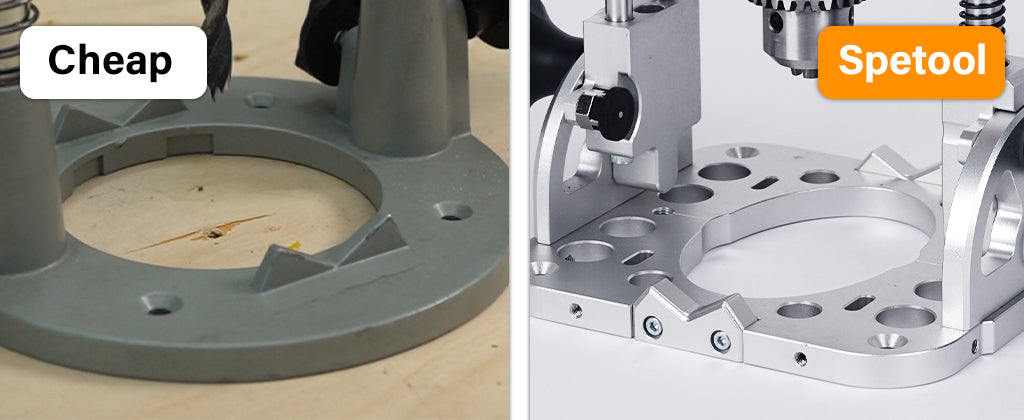

✖ Plastic or low-grade materials. Not built to last.✔ All-metal construction. Built for durability and long-term use.
✖ Bushings wear over time. Causes looseness and inaccuracy.✔ Linear ball bearings. Smooth, precise, and maintenance-free.
✖ Less stable when drilling. Prone to wobble and movement.✔ 3 guide rods for maximum stability. Steady, rigid, and accurate every time.
✖ Limited angle control. Hard to adjust and lock.✔ 0°–60° angle adjustment. Lock every 7.5° for repeatable accuracy.
✖ Struggles with larger projects. Not designed for demanding work.✔ Built for serious woodworking. Handles demanding projects with confidence.
✖ More friction. Harder to control, affects accuracy.✔ Ultra-smooth operation. Effortless drilling with consistent results.
❌ Buy Cheap. Buy Twice.✅ Buy Once. Drill Accurately for Years.

Who Is This Really For?

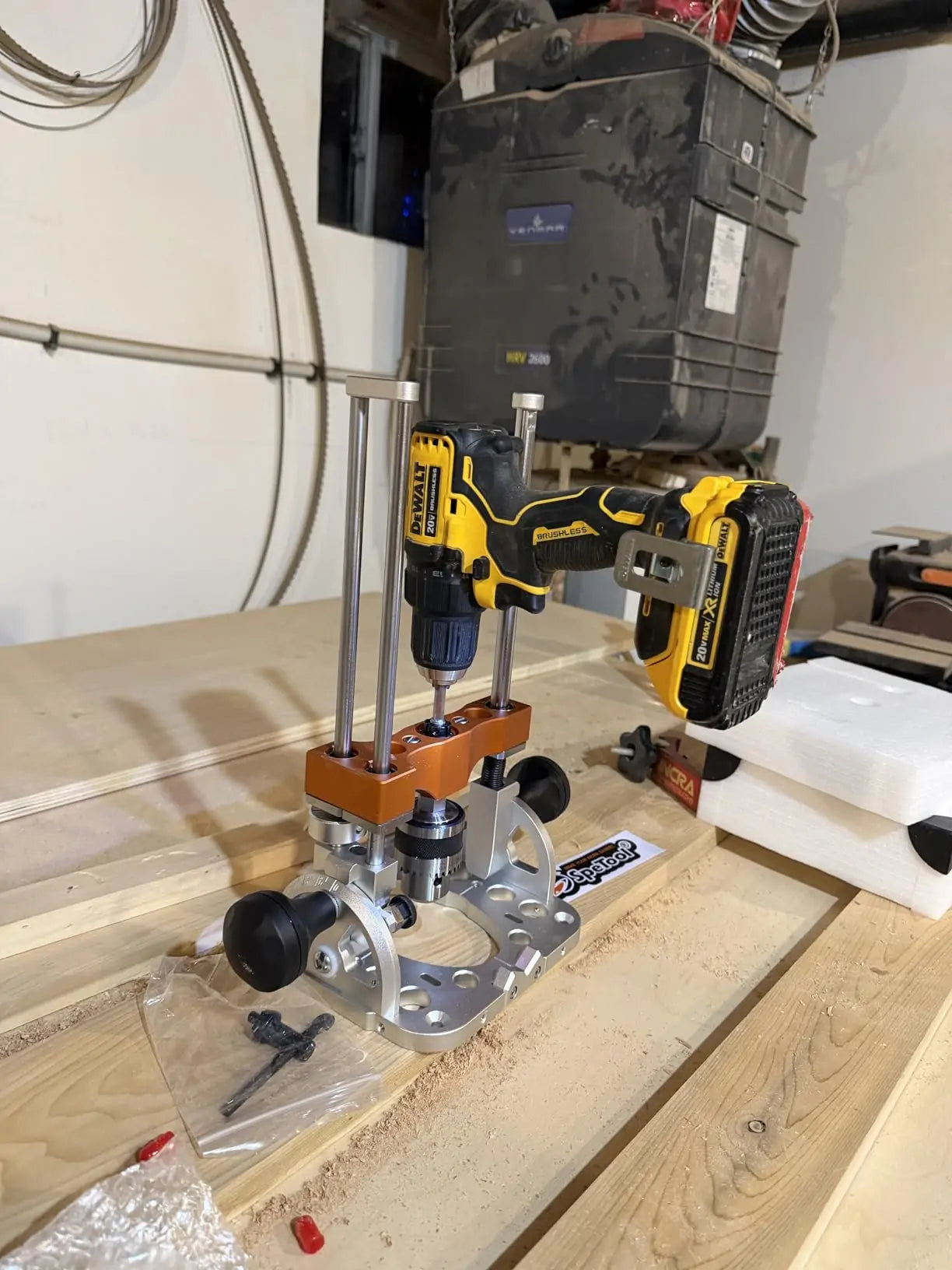

Real SpeTool Users Share Their Results

Precision When You Need It Most

I initially bought this for a one off project that demanded precision. It is superbly designed, substantial and will last for many years to come. After much research I decided that the spetool drill guide was the one for me. It did not disapoint . Now that I own one I am sure I can find many more uses for it. Depending on the exact nature of your occupation and the type of work where it is neither practical nor possible to take the stock to a drill press. Then a portable drill guide may be the solution to your problems. If that is the case then I would highly recommend that the spetool drill guide should be on your shortlist. If not at the very top of it.

ADD TO CART

Save Up. Get the Right Tool the First Time.

I had a cheap drill press that never drilled straight holes and often found myself drilling freehand instead. Like many people, I tried the cheaper option first and was constantly frustrated.

Others say it's not cheap—and they're right. But I prefer quality over cheap. During a recent project that required a lot of precise, repeatable holes for threaded inserts, I finally decided I'd had enough of mistakes and wasted time.

It may not be the most-used tool in my shop, but it will see far more use than any drill press ever did.

Save up and get the right tool the first time. Seriously.

ADD TO CART

Customers are saying

4.92 ★ (1250)
Verified

Frequently Asked Questions

A drill press provides excellent accuracy, but it also requires dedicated workshop space and can be difficult to transport.

The SpeTool Drill Guide offers a practical alternative for woodworkers who want improved drilling precision without investing in a bulky machine. It can be used both in the workshop and on-site, making it ideal for hobbyists, DIYers, and tradespeople alike.

For many woodworking and DIY applications, yes.

While a floor-standing drill press remains ideal for heavy-duty workshop production, the SpeTool Drill Guide offers much of the accuracy and control of a drill press in a portable format that's easier to store and transport.

It's especially useful for site work, furniture assembly, cabinetry, and home workshops where space is limited.

Yes.

The guided drilling mechanism keeps the drill aligned throughout the drilling process, helping reduce bit wandering that commonly occurs when drilling freehand.

This is particularly helpful when starting holes in hardwood, plywood, MDF, or laminated materials.

Absolutely.

The guide can be adjusted from 0° to 60°, allowing you to drill repeatable angled holes for furniture projects, stair components, framing applications, and custom joinery.

Locking positions every 7.5° provide additional stability during drilling.

Yes.

Many users find it easier to achieve accurate drilling results with a drill guide than by drilling freehand.

It helps reduce common beginner mistakes such as:

  • Crooked holes
  • Misaligned hardware
  • Inconsistent drilling angles
  • Off-centre drilling
