SpeTool UK W04024 SC Spiral Plunge 1/16" Dia x 1/4" Shank x 1/2" Cutting Length 2" Long 2 Flute Down-Cut Router Bit
A down cut bits push chips downward, delivering smooth top surfaces with minimal tear-out — ideal for plywood, hardwood, and laminated boards. Made from solid carbide for durability and precision, they’re perfect for joinery, grooves, and clean-edge cuts where surface finish matters most.
Excellent For Cutting:
- MDF/HDF
- Plywood
- Melamine
- Laminate
- Softwood/Hardwood
- Veneered Plywood

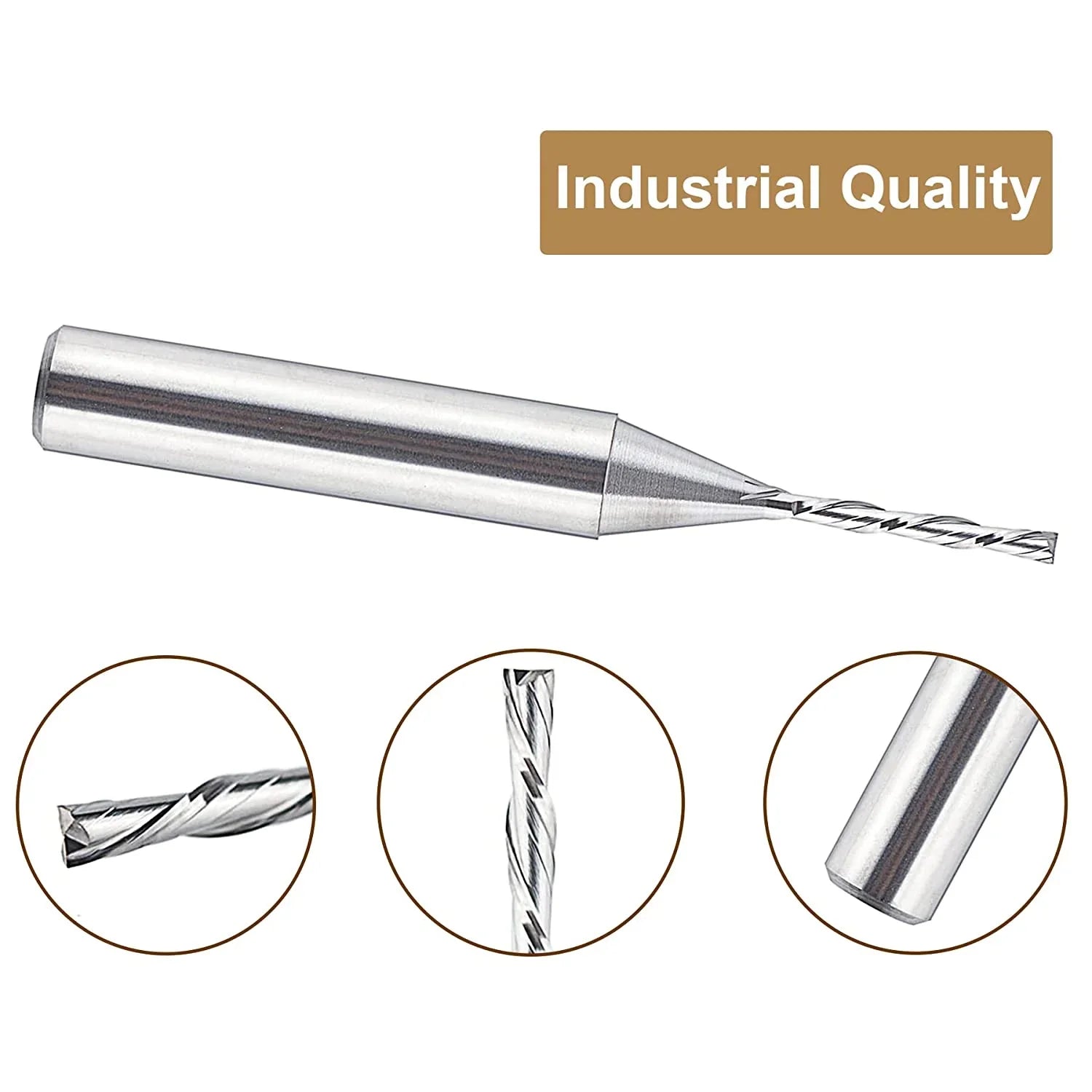

TOOL SPECS: Solid carbide, down cut spiral with 1/16" cutting diameter, 1/4" shank, 1/2" cutting length, and 2" overall length for use in routers with a 1/4" collet.
Quantity:
Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.
Ready to Cut Like Never Before?
Similar Size
| Part No. |
Cutting Dia. |
Cutting Height (B) |
Shank Dia. |
Overall Length |
Flute |
Coating | Rec. RPM |
|---|---|---|---|---|---|---|---|
| SP-D6-H6-D | 6mm | 24mm | 6mm | 60mm | 2 | 14,000 | |
| SP-D8-H8-D | 8mm | 32mm | 8mm | 75mm | 2 | 14,000 | |
| W04002 | 1/2" | 1-1/4" | 1/2" | 3" | 2 | 15,000 | |
| W04004 | 1/4" | 1" | 1/4" | 2-1/2" | 2 | 18,000 | |
| *W04004-SPE-X | 1/4" | 1" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
| W04006 | 1/8" | 1/2" | 1/4" | 2" | 2 | 18,000 | |
| *W04006-SPE-X | 1/8" | 1/2" | 1/4" | 2" | 2 | TAC | 18,000 |
| W04011 | 1/2" | 2" | 1/2" | 4" | 2 | 15,000 | |
| W04013 | 1/4" | 1-1/4" | 1/4" | 3" | 2 | 18,000 | |
| *W04013-SPE-X | 1/4" | 1-1/4" | 1/4" | 3" | 2 | TAC | 18,000 |
| W04018 | 1/8" | 1" | 1/4" | 3" | 2 | 18,000 | |
| *W04018-SPE-X | 1/8" | 1" | 1/4" | 3" | 2 | TAC | 18,000 |
*Customized sizes are acceptable
CNC Feed/Speed (PDF)
| Products Type |
Products Type |
|---|---|
| Spriral Router Bits | Download |
| 2D & 3D Tapered Router Bits | Download |
| V Groove Router Bits | Download |
| O-Flute Router Bits | Download |
| Spoilboard Surfacing Router Bits | Download |
| Bowl & Tray Router Bits | Download |
| Aluminum & Metal Router Bits | Download |
Fusion 360 & Vectric & Carveco & Carbide 3D .tools file
|
Software |
Tool File |
|
Fusion 360 Tools File(Updated To 20251015) |
|
|
Vectric Tools File (Updated To 20251015) |
|
|
Carveco Tools File(Updated To 20251028) |
|
|
Carbide 3D Tools File(Updated To 20251028) |
Frequently Asked Questions

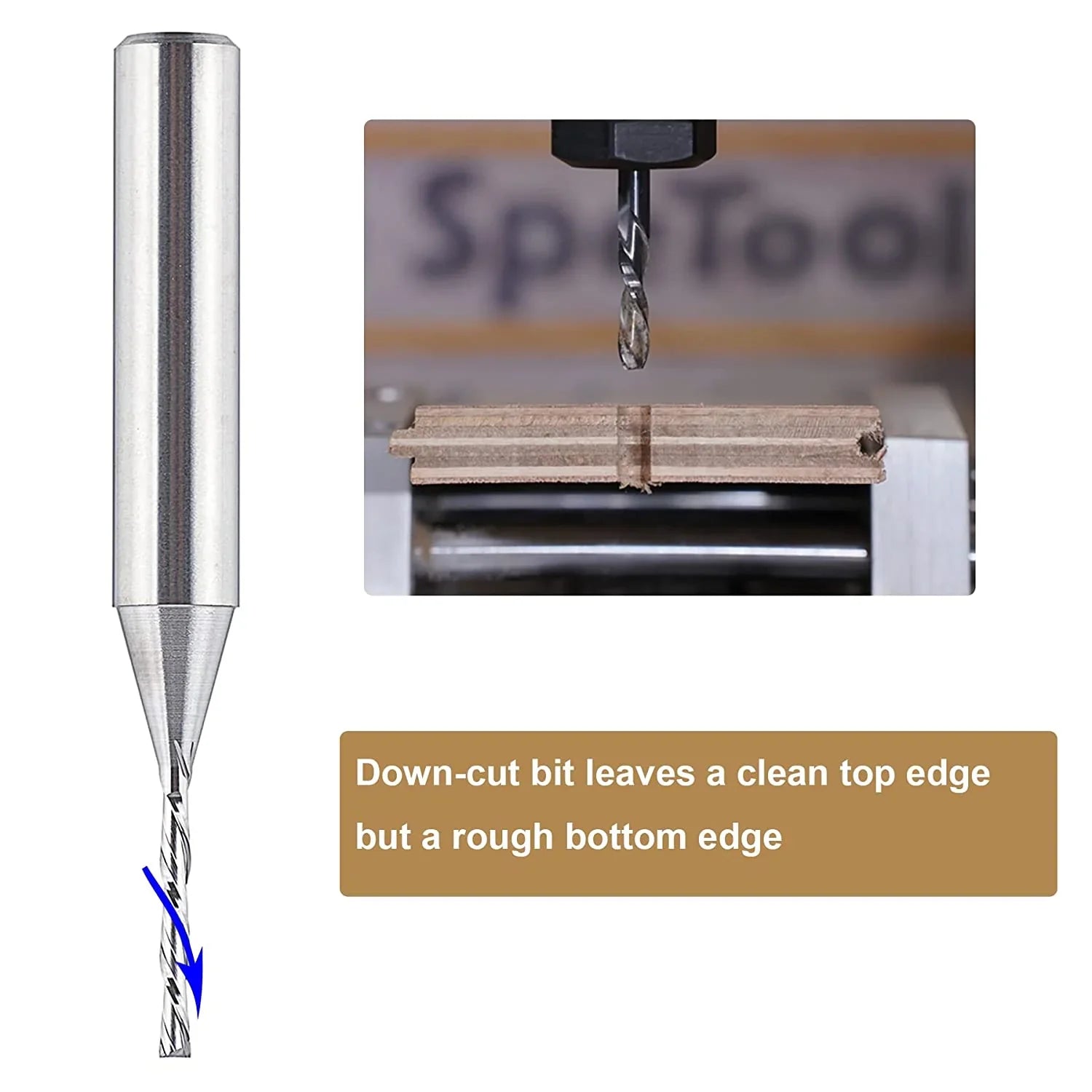

A bit designed to push chips downward, resulting in a clean top surface with minimal tear-out.
- Down-cut: smooth top surface, rougher bottom
- Up-cut: clean bottom edge, risk of top tear-out
- Straight: general-purpose, less chip evacuation efficiency
Plywood, laminates, veneer, and finish-grade panels where a clean top surface is crucial.
When the top surface will be visible and needs to be perfectly clean (e.g., dados, grooves, or templates).
Not ideal. Downward chip compression can cause clogging and heat buildup in deep cuts.
They can if chip evacuation is poor. Use multiple shallow passes and proper feed rate to avoid it.
Make shallow passes and avoid pushing the bit too fast. Ensure your router is powerful enough.
Yes, especially when the template is on the top surface — it helps prevent tear-out along the template edge.
You can, but remember the chip direction will push back toward the workpiece, so dust collection and safety are key.
Poor chip ejection on deep cuts. Not ideal for cutting all the way through thick material.
