DIY Router Table Build: Using the SpeTool Installation Templates

Building your own router table is a milestone for any serious woodworker. It offers the flexibility to customize your workspace while saving money compared to high-end commercial units. However, the biggest challenge is achieving professional precision, particularly when mounting the router table insert plate with lift. This is where the SpeTool installation templates become a game-changer.

Table of Contents

• The Importance of Precision in a Router Lift System
• Key Features of the SpeTool Universal Router Lift
• Step-by-Step Guide: Using the SpeTool Installation Template
• Performance and Maintenance
• Final Thoughts: Is the SpeTool Router Table Setup Right for You?

The Importance of Precision in a Router Lift System

In woodworking, even a fraction of a millimeter can be the difference between a perfect joint and a piece of scrap wood. When you install a router table lift system, the plate must be perfectly flush with the tabletop to ensure smooth stock feeding. Using a SpeTool router lift installation template removes the guesswork, allowing you to route a perfectly sized recess for your SpeTool Router Lift.

According to Router Table standards, stability and flatness are the most critical factors for safety and accuracy. The spetool router table approach focuses on these pillars by providing heavy-duty aluminum components and precise height adjustment tools.

Key Features of the SpeTool Universal Router Lift

The SpeTool Router Lift (P01002) is a universal router lift designed to accommodate a wide range of motor diameters. Here is why it stands out for DIYers:

• Unique Compatibility: Fits 1.25 HP, 2.25 HP, and 3.25 HP routers (diameters from 2-9/16" to 4-1/4").
• All-Aluminum Durability: The 3/8" solid outer insert plate with lift is scratch-resistant and built for long-term heavy use.
• Precision Height Control: With a 20-TPI screw and zeroing index ring, you can achieve an accuracy of 0.001 inch.
• Dust Collection Ready: Includes a built-in interface compatible with SpeTool dust collectors.

Step-by-Step Guide: Using the SpeTool Installation Template

Installing your router lift system is straightforward when you follow these steps:

1. Prepare Your Tabletop

Ensure your tabletop is made of a stable material like MDF or Baltic Birch plywood. Mark the center point where you want your router bit to emerge.

2. Align the Template

Place the SpeTool installation template (9-1/4" x 11-3/4") over your center mark. Secure it using double-sided woodworking tape or clamps. This template ensures that the router table insert plate with lift fits snugly without any play.

3. Route the Recess

Using a flush-trim bit or a template guide bushing, route the perimeter of the template. Set your depth exactly to the thickness of the SpeTool plate (3/8"). Many woodworkers in a recent spetool router lift review mentioned that taking shallow passes yields the cleanest results.

4. Cut the Internal Clearance

Once the ledge is created, cut out the center area to allow room for the router motor and the lift mechanism. Finally, drop in your lift and secure it using the leveling screws.

Performance and Maintenance

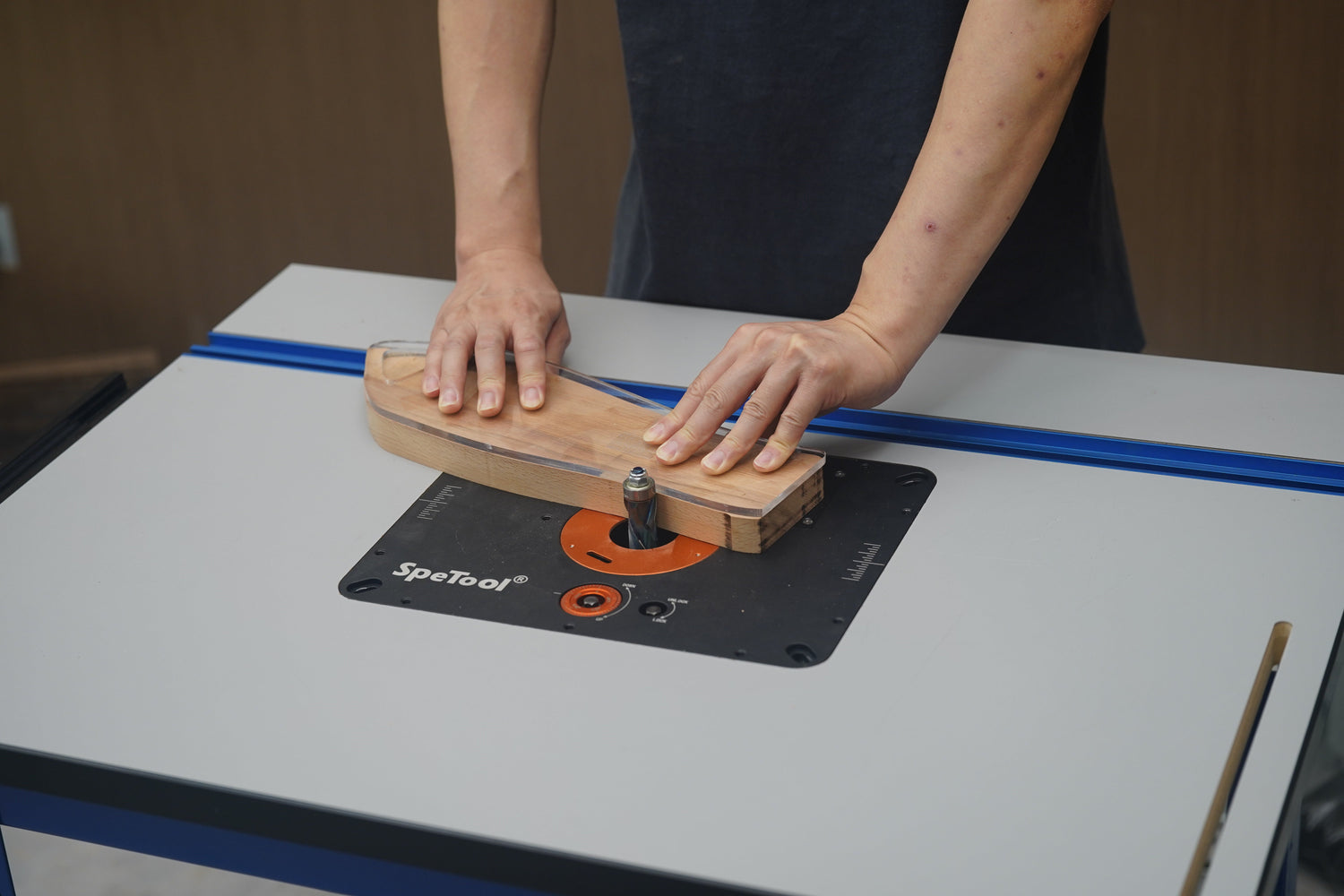

One of the best parts of the spetool router table experience is the ability to operate entirely on the table. You can change router bits from above without ever reaching under the table, which is a major time-saver. The double-sealed linear bearings on the guide poles ensure the motion remains smooth even after months of use. For further reading on shop-built solutions, check out Wood Magazine's guide to custom router tables.

Final Thoughts: Is the SpeTool Router Table Setup Right for You?

If you are a DIYer looking for a professional-grade router table lift system without the professional-grade price tag, the SpeTool P01002 is an excellent choice. Its all-aluminum construction, precision height adjustment, and inclusive installation templates make it the bridge between a box of parts and a high-performance workshop tool.

Ready to upgrade your shop? Check out the SpeTool Router Lift Kit here and start your DIY build with the confidence of 0.001" precision.
