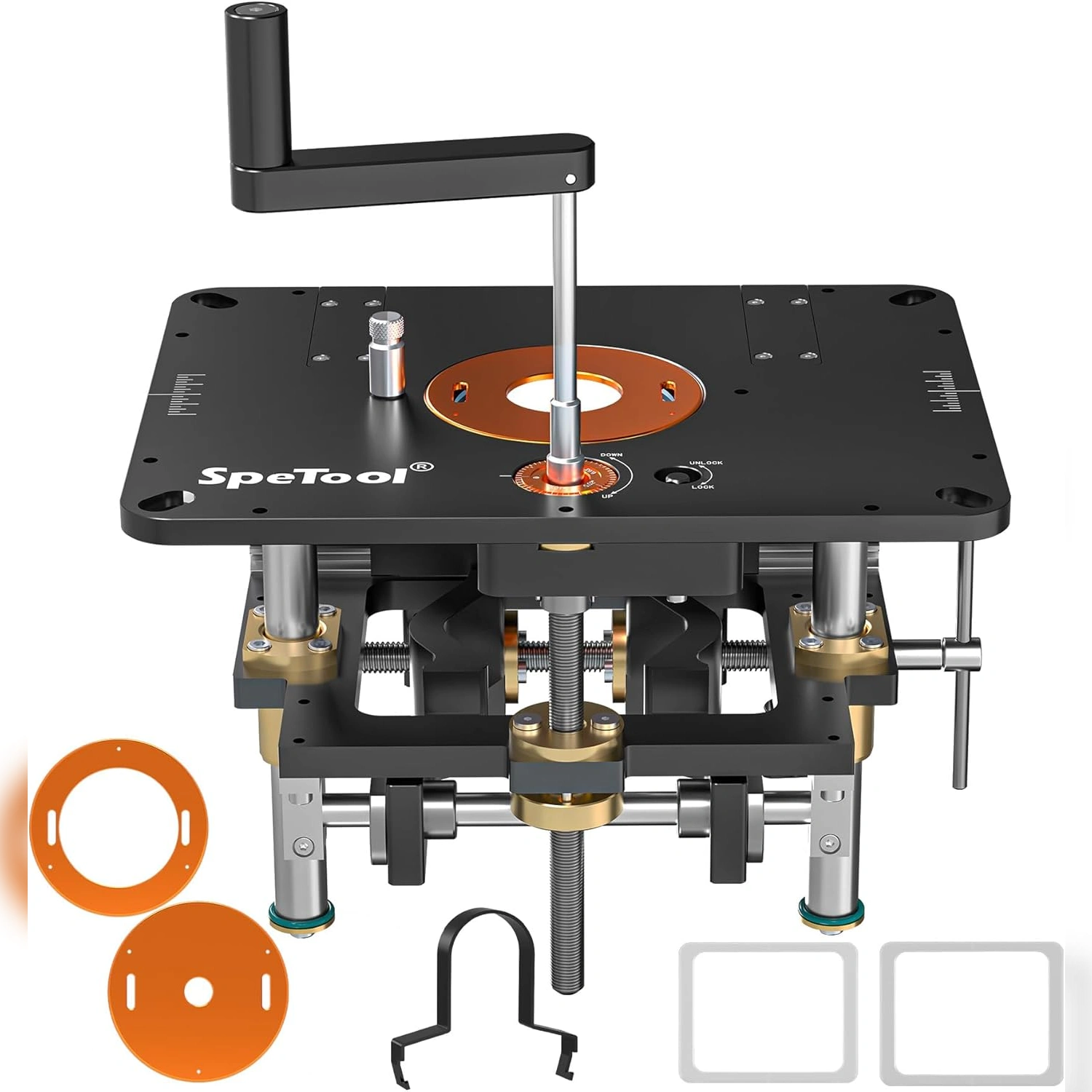

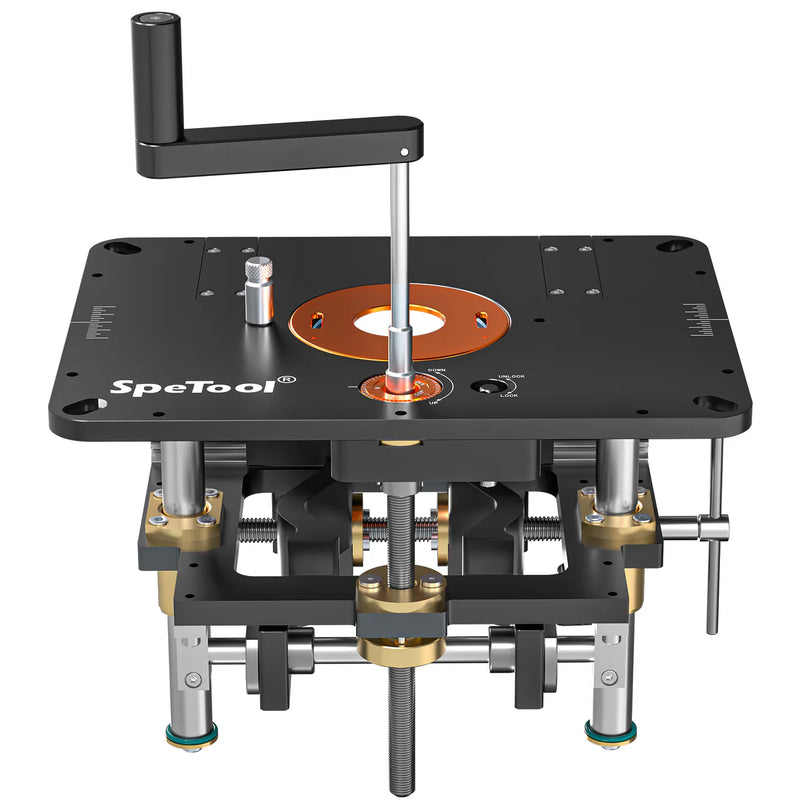

SpeTool P01002 Router Lift is a professional-grade router lift system designed to deliver precise, repeatable height control for router table applications. Built for both DIY and professional workshops, it allows woodworkers to fine-tune routing depth with micro-level accuracy—without removing the router from the table.
SpeTool P01002 Router Lift
Ideal Use Cases
Precision depth adjustment for router table operations
Fine joinery, dadoes, grooves, and edge profiling
Frequent bit changes without removing the router
DIY router table builds and retrofits
Small shops and professional woodworkers seeking repeatable accuracy
The Problem It Solves
Problem: Traditional router table setups often require removing the router to adjust height, leading to poor accuracy, wasted time, and inconsistent results. Many router lifts only fit limited router models or lack sufficient lift range and rigidity.
Solution: The SpeTool P01002 Router Lift offers a universally compatible, all-aluminum lifting system with micro-precision control. Its smooth vertical travel, vibration-resistant locking, and wide lift range allow users to dial in exact cutting depth quickly and safely—directly from above the table.
How It Works

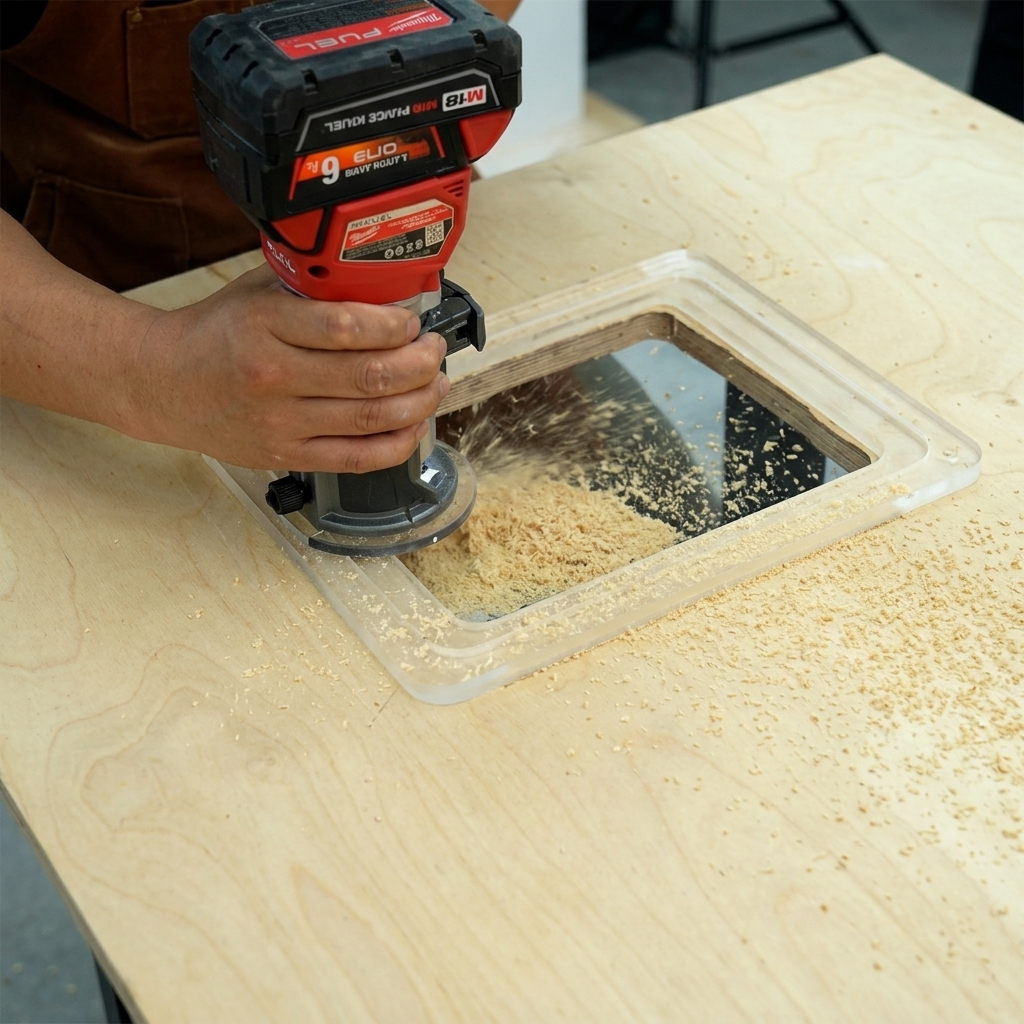

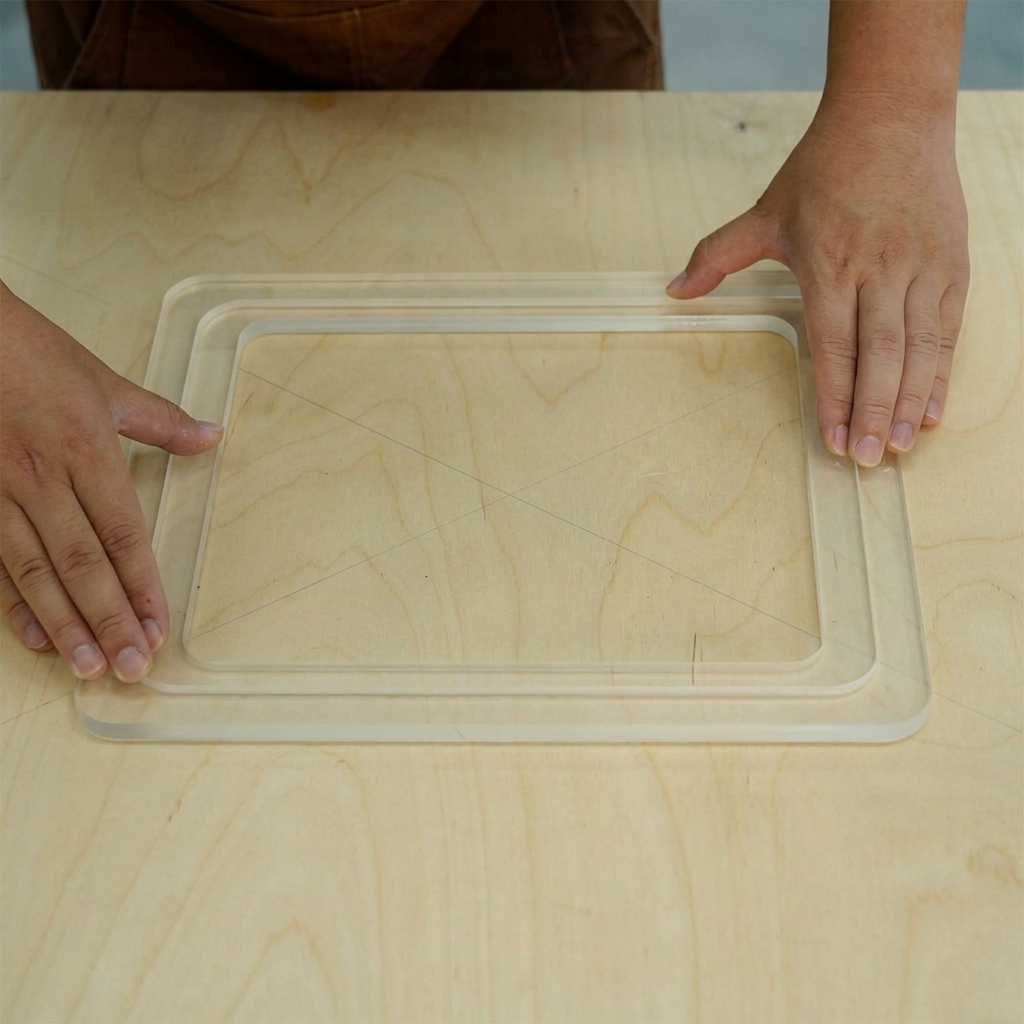

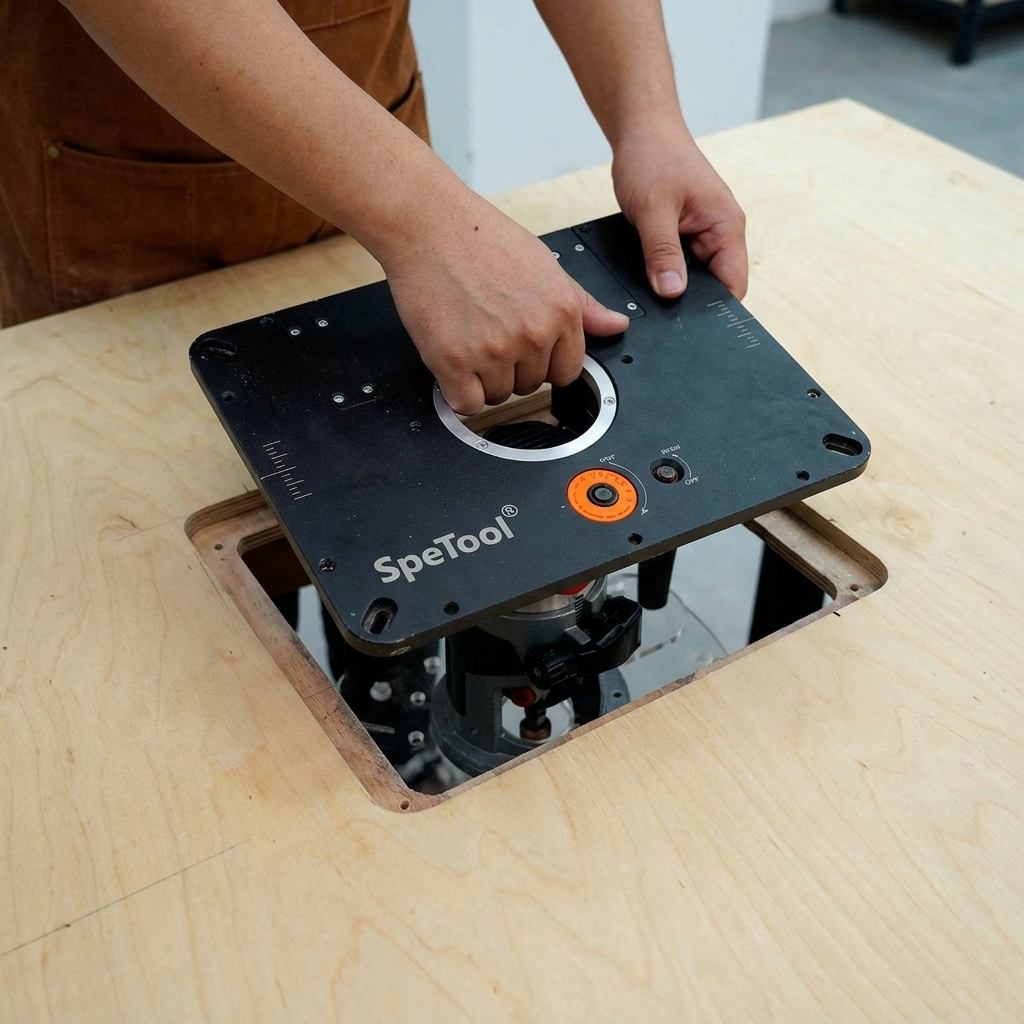

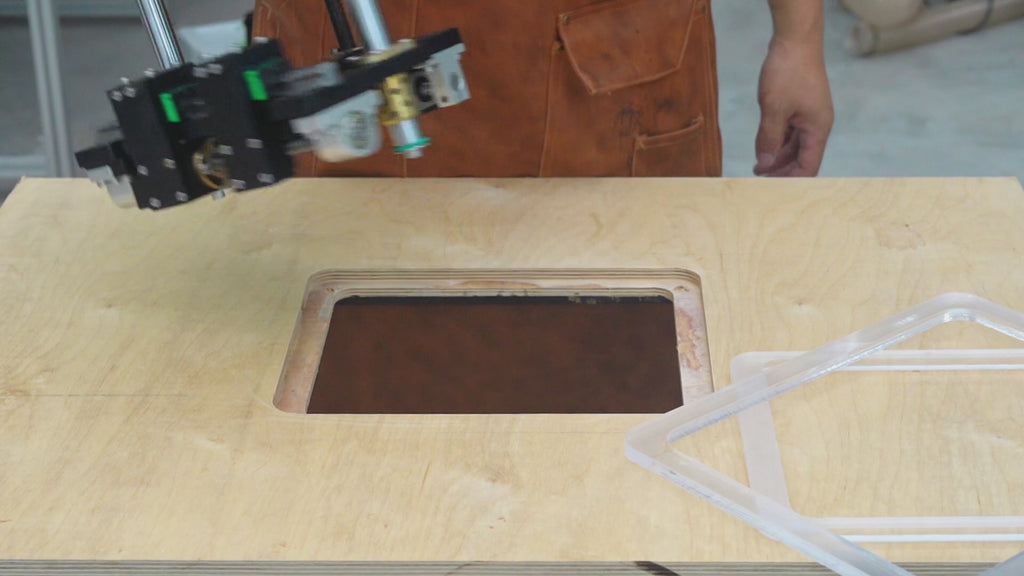

Install the router lift into your router table using the included DIY template.
Secure your router using the infinitely adjustable clamping system (no adapters required).
Adjust height from above the table using the precision lead screw.
Lock the position to prevent vibration drift during cutting.
Change bits directly on the table and continue working without removing the router.
Pro Tip: Zero the index ring after setting your bit height—this allows ultra-fast, repeatable micro-adjustments for joinery and production runs.
User-Friendly Design Highlights
Above-the-table height adjustment
Tool-free router compatibility across multiple sizes
Smooth, backlash-free lifting mechanism
Direct bit changes without disassembly
Integrated dust collection interface

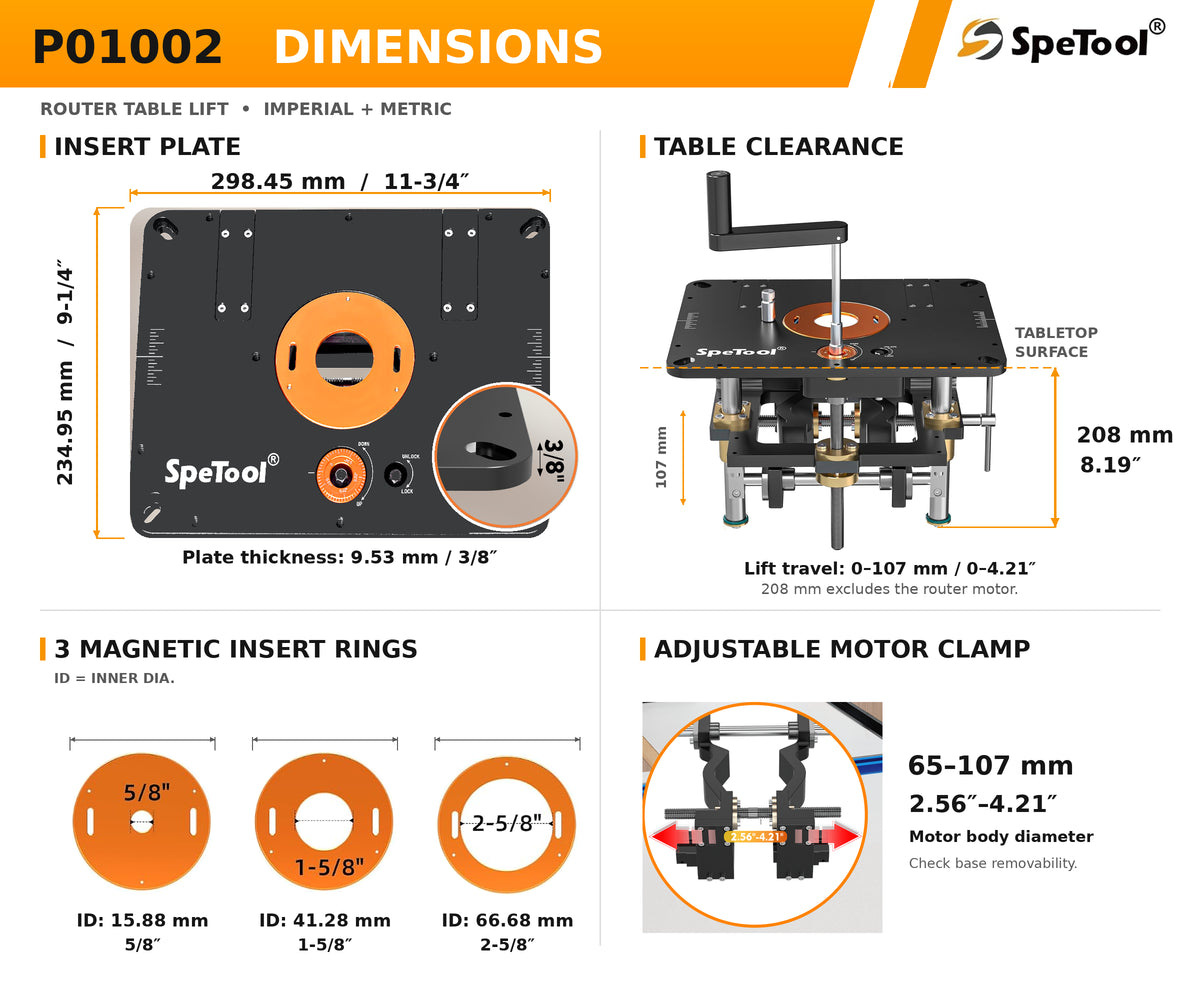

Technical Specifications
Parameter
Specification
Router Compatibility
2.56"–4.21" (65–107mm) diameter routers
Height Adjustment Range
4.21" (107mm)
Adjustment Precision
0.001" per increment
Lead Screw
20 TPI (0.05" per full rotation)
Insert Plate Size
9-1/4" × 11-3/4"
Insert Plate Thickness
3/8" solid aluminum
Material
Hard anodized 6061 aluminum
Guide System
Dual guide poles with sealed linear bearings
Dust Collection
Built-in interface (SpeTool P01003 compatible)
Primary Application
Router table height control & precision routing
Why Choose SpeTool P01002 Router Lift
Key Advantages
Universal Compatibility: Fits nearly all popular routers without adapters
Higher Lift Range: 107mm travel offers more flexibility than standard lifts
All-Aluminum Construction: No flex, no deformation, long-term accuracy
DIY Friendly: Retrofit most router tables with included templates
Cleaner Workflow: Integrated dust collection keeps the work surface clear
Summary
The SpeTool P01002 Router Lift is a precision-focused solution for woodworkers who demand accuracy, efficiency, and flexibility from their router table. With universal router compatibility, micro-adjustable height control, and rugged all-aluminum construction, it transforms any router table into a professional-grade workstation—without the complexity or limitations of traditional systems.
SpeTool P01002 Router Lift
How to customize the router table?
Frequently Asked Questions
The lift allows precision adjustments down to 0.001”, with each rotation moving the router by 0.05” (1.27mm). It’s perfect for fine, repeatable cuts.
Absolutely. The double-sealed linear guide poles allow smooth vertical motion, so you can change bits directly on the table.

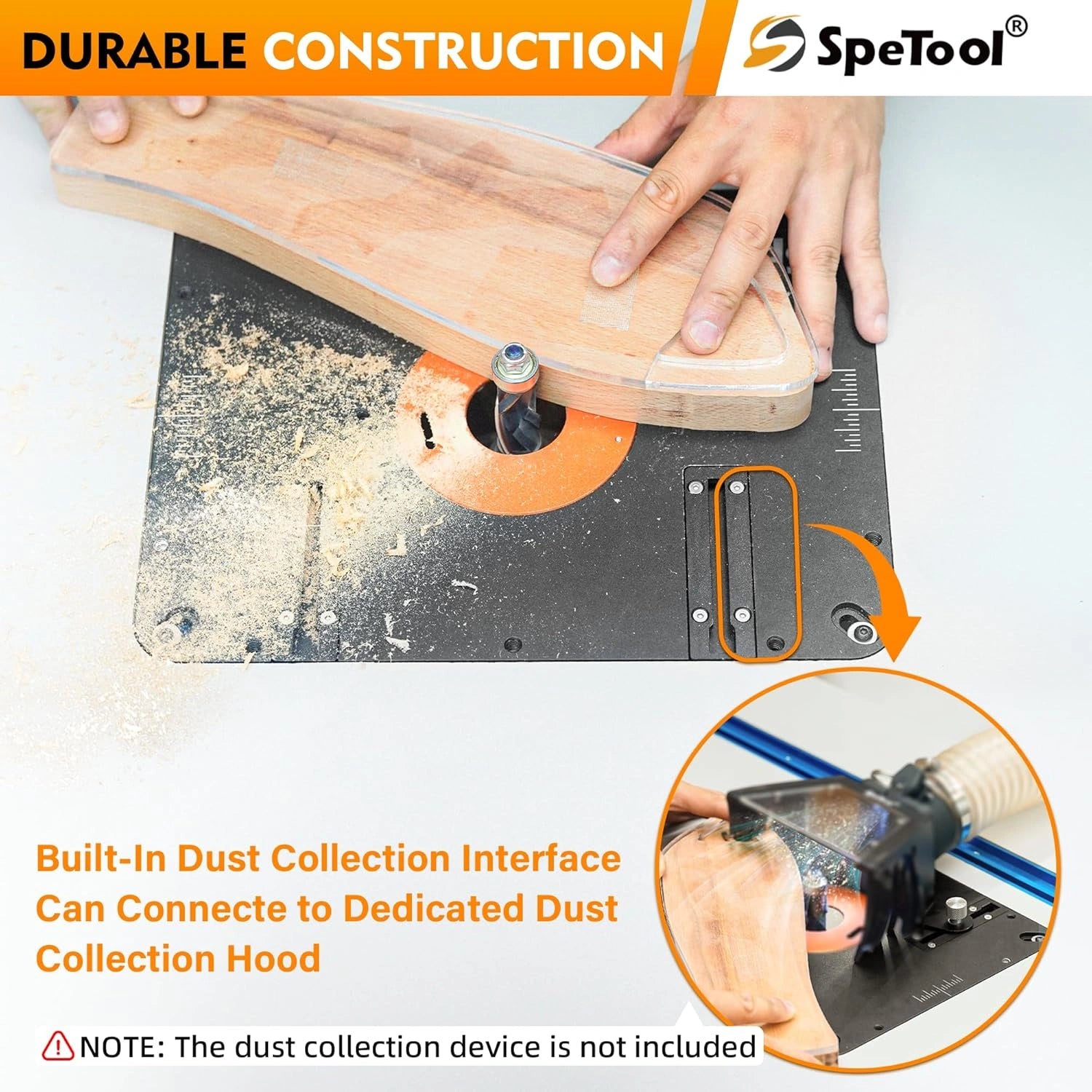

Yes. The insert plate has a built-in dust port, fully compatible with SpeTool LED dust collectors and most standard systems.
The 9-1/4” x 11-3/4” insert plate fits most commercial tables. DIY templates are included to help you retrofit any table easily.
The SpeTool Router Lift fits virtually all routers with diameters from 2.56”–4.21” (65–107mm), including most 1.25 HP, 2.25 HP, and 3.25 HP models. Please check your router’s diameter before purchase.
I shopped for a router lift for months before choosing the SpeTool router lift. None of the other offerings were as versatile or as well made. I needed a way to use a Porter Cable 3 1/4hp router that is 4.2" in diameter, and most of the other lifts could not accommodate this large router. In addition, the SpeTool installation was very simple and straightforward. From the time I unpacked the parts to the time I had the unit in place and ready to use was a little over 1 hour. I installed it in a wing on my table saw using the supplied templates and it fit perfectly. I've been using the SpeTool router lift for several weeks now and I am impressed by how easy it is to operate and how accurate it is in use. Previously, I had a smaller router attached to a plate that had to be removed from the table each time to change bits or when adjustments were needed The SpeTool lift is much easier. I would recommend it to anyone needing an easy to install and accurate router lift at an affordable price.
J
John
Quality Router Lift
This Router lift is top quality with a really accurate cut out jig which gives a perfect installation. I have just installed and cannot find any fault with this piece of equipment all the attachments are also top quality
If I was to suggest an added piece of detail that would add to the quality is to have caps to cover the bolts which bolt it down.
S
S Cochran
Precision Control ... Finally!
I originally bought my router and router table from a Big Box Store. The router table came with a stand, so you probably know which one I have. The fixed based routers are great for any work you need to set and route; not so good for making adjustments via hex adjustments.
The difference in working with my router is night and day. I can make the slightest adjustments and lock them in. Each pass is consistent from the first piece to the last. I have made micro adjustments that are dialed in on the first go. I am extremely satisfied with the results.
Highly Recommend.
R
Roger Gaudreau
Excellent mais..
Très bien construit, tout en beauté avec des matériaux de qualité. C'est facile à installer et fonctionne avec précision. Je l'ai essayé avec mes deux toupies une petite toupie de 2 1/2'' et une de 3 3/8''. Aucune difficulté pour les installer. La seule raison pour laquelle je ne donne pas 5 étoiles, c'est parce que dans les deux cas la mèche ne se retrouve pas au centre de l'ouverture. Avec une mèche 1/2'' on peut pas utiliser la plaque avec le petit trou parce que ça frotte sur le côté, peu importe la toupie on doit utiliser la plaque d'insertion médiane.
J
John Miriello
Great Quality Lift
This router lift is a quality tool. Was packaged and delivered in perfect condition. All parts were there and they even included templates if you were making a new table (which I was). This was a secondary lift for my shop. My primary lift is a Jessem but this could easily be the top lift in any small shop. Quality and heft throughout and I can easily switch and use either a full size router or a compact one. They hit a home run with this one.
