SpeTool EU W05009 ATS COATED CARBIDE INSERT 4 FLUTES SPOILBOARD 40MM DIA x 8MM SHANK ROUTER BIT
SpeTool EU W05009 ATS COATED CARBIDE INSERT 4 FLUTES SPOILBOARD 40MM DIA x 8MM SHANK ROUTER BIT
SpeTool EU W05009 ATS COATED CARBIDE INSERT 4 FLUTES SPOILBOARD 40MM DIA x 8MM SHANK ROUTER BIT
SpeTool EU W05009 ATS COATED CARBIDE INSERT 4 FLUTES SPOILBOARD 40MM DIA x 8MM SHANK ROUTER BIT
SpeTool EU W05009 ATS COATED CARBIDE INSERT 4 FLUTES SPOILBOARD 40MM DIA x 8MM SHANK ROUTER BIT
SpeTool EU W05009 ATS COATED CARBIDE INSERT 4 FLUTES SPOILBOARD 40MM DIA x 8MM SHANK ROUTER BIT

SpeTool EU W05009 ATS COATED CARBIDE INSERT 4 FLUTES SPOILBOARD 40MM DIA x 8MM SHANK ROUTER BIT

€38,37 EUR

Shipping calculated at checkout

8 reviews
8 reviews
SKU: EU-IP4F-40-D8-G

ATS-coated spoilboard bit planes, trims and grooves with a 40 mm cutting diameter and compact 8 mm shank—ideal for European routers. Four 10.5 × 10.5 × 2.2 mm carbide inserts (2+2 design) rotate for four fresh edges, giving twice the life of brazed cutters while leaving a smoother, swirl-free surface.

68 in stock
Quantity:
Product bundles:
American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

  • Fast Delivery

  • 365-Days Warranty

  • Ships Worldwide

See More Bundles

Product Description

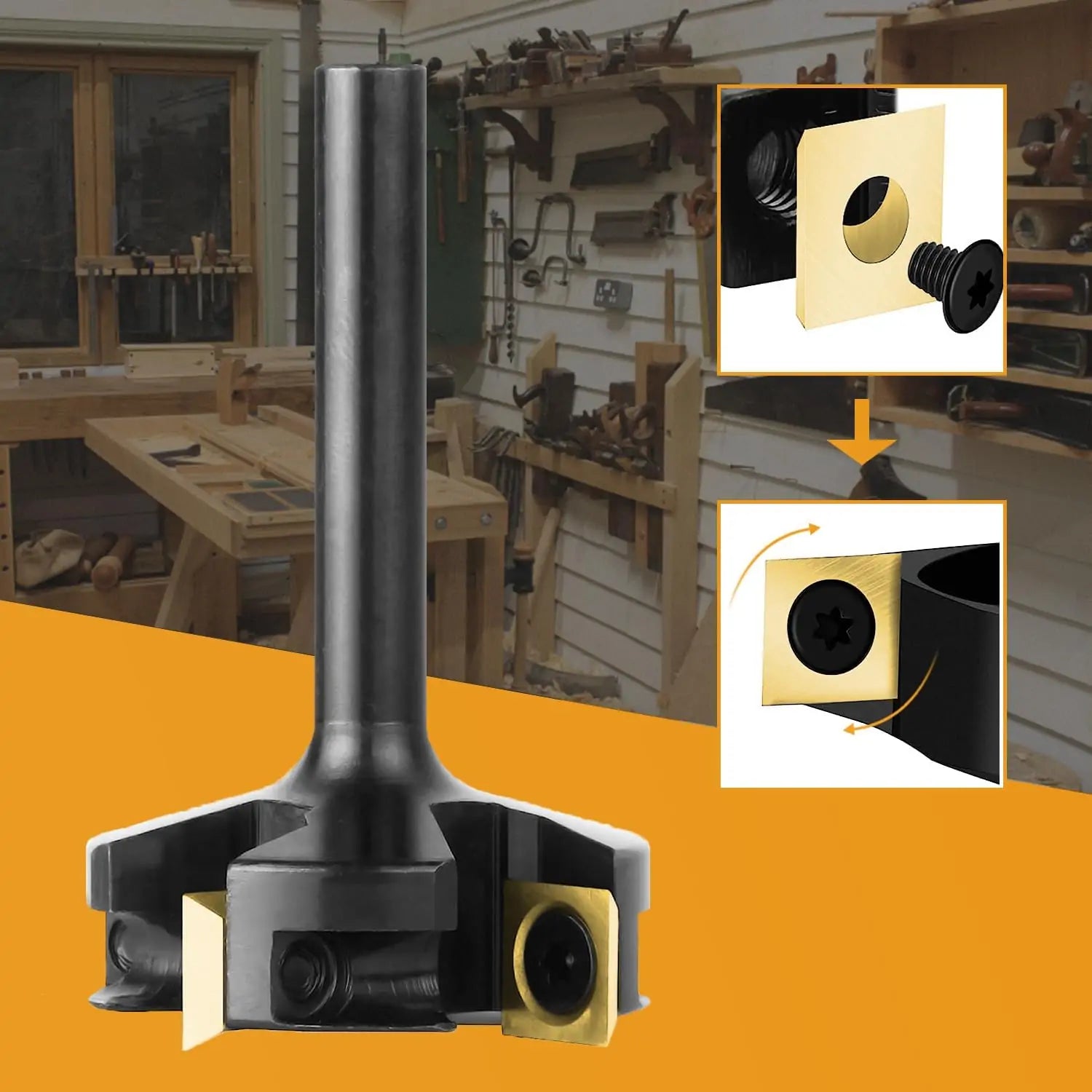

Built for compact European routers, the SpeTool W05009 packs a 40 mm surfacing head onto a vibration-taming 8 mm shank. Its 2 + 2 geometry pairs two primary cutters with two up-shear scorers, shaving stock quickly while polishing the bottom of the pass. Each 10.5 × 10.5 × 2.2 mm micro-grain insert presents four razor edges—just loosen a Torx screw, rotate 90°, and you’re sharp again. An ATS (AlTiSi) coating shields the carbide from heat and pitch, extending edge life far beyond uncoated knives. Perfect for MDF, plywood, hardwood and epoxy worktops, W05009 ships from the EU with fast VAT-paid delivery and a 365-day warranty.

Key Specifications

Parameter Metric
Cutting diameter (CD) 40 mm
Shank diameter (SD) 8 mm
Insert size 10.5 × 10.5 × 2.2 mm
Insert count / design 4 inserts – 2 cutters + 2 scorers
Material / coating Solid-steel body, ATS-coated carbide inserts
Primary uses Spoilboard surfacing, slab flattening, trimming, slotting
Warranty 365-day EU warranty

Frequently Asked Questions

It clears stock fast yet stays balanced on compact routers with 8 mm collets, common in European hobby CNCs and handheld trim routers.

Yes; the short 63 mm body and four-wing symmetry minimise leverage, letting 1.5 kW routers plane oak at 2 mm passes without chatter.

Bosch GKF 600, Makita RT0700/RT50, DeWalt D26204, Katsu 101750, Mafell LO 50 and most ER11-based spindles clamp 8 mm straight from the factory.

Four: rotate 90° when dull and enjoy a fresh ATS-coated edge each time.

The Al-Ti-Si layer resists heat and pitch-build-up, giving roughly double the edge life vs. uncoated tungsten carbide when surfacing MDF or oak.

Limit to 0.8–1.0 mm; epoxy chips are brittle and melt if feeds are too slow.

Yes—two up-shear scorers slice fibres before the main cutters, leaving a noticeably smoother floor than two-knife brazed bits.

A T15 L-key and spare screw ship with every bit, saving a trip to the hardware store.

Yes—the up-shear scorers slice melamine cleanly; use a 1 mm finishing pass for gloss laminates.

SpeTool grants a 12-month commercial warranty plus any mandatory national protections for professional equipment.

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
David G
Fraise de surface

Pas encore essayé mais à l'air de bonne qualité

P
Petar Radiković
I LOVE it

It is a little pricey but excellent

M
Mulder Houtbewerking
Uitstekende frees

Uitstekende frees

S
Sven
Fräser

Sehr gute Qualität super Fräs Ergebnis

S
Simon
Top

Knapp 1,5m2 Parkett um 6mm abgefräst. Schnittverhalten am Ende immernoch wie am Anfang, obwohl ich ein paar mal in Alu gekommen bin.
