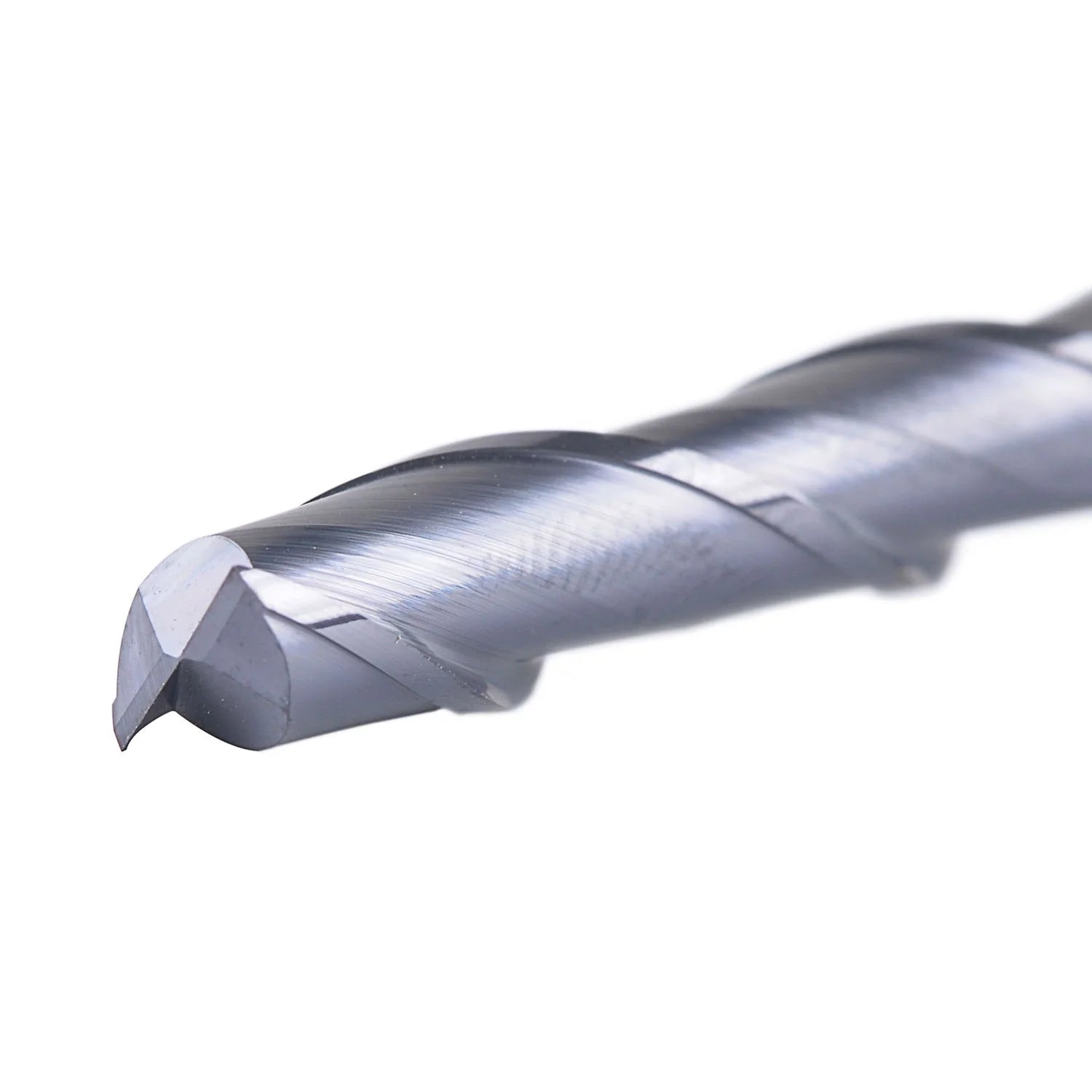

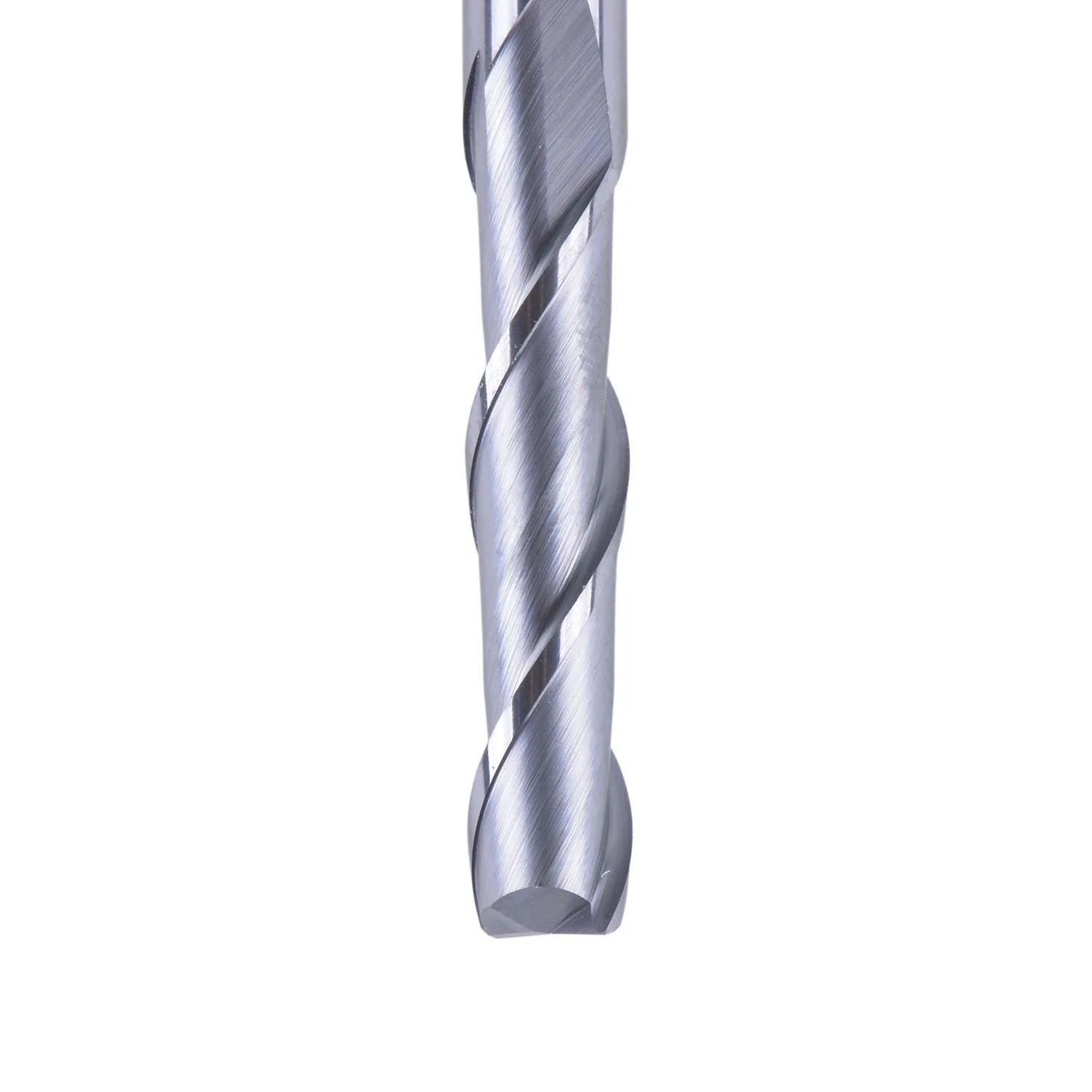

SpeTool 2 Flute 1/4" Shank Extra 3" Long Carbide End Mill TiAlN Coated
SpeTool 2 Flute 1/4" Shank Extra 3" Long Carbide End Mill TiAlN Coated
SpeTool 2 Flute 1/4" Shank Extra 3" Long Carbide End Mill TiAlN Coated
SpeTool 2 Flute 1/4" Shank Extra 3" Long Carbide End Mill TiAlN Coated
SpeTool 2 Flute 1/4" Shank Extra 3" Long Carbide End Mill TiAlN Coated
SpeTool 2 Flute 1/4" Shank Extra 3" Long Carbide End Mill TiAlN Coated

SpeTool UK M02004 CNC SC Spiral for Steel, Stainless Steel Metal with TiAlN Coating 2-Flute 1/4" Dia x 1/4" Shank x 1-1/8" Cutting Length x 3" Long Flat Top Up Cut End Mill

Sale price£15.78 GBP

Shipping calculated at checkout

No reviews
No reviews
SKU: UK-SP2EL-D1/4
8 in stock

Quantity:
Product bundles:
  • Fast Delivery

  • 60-Days Warranty

  • Ships Worldwide

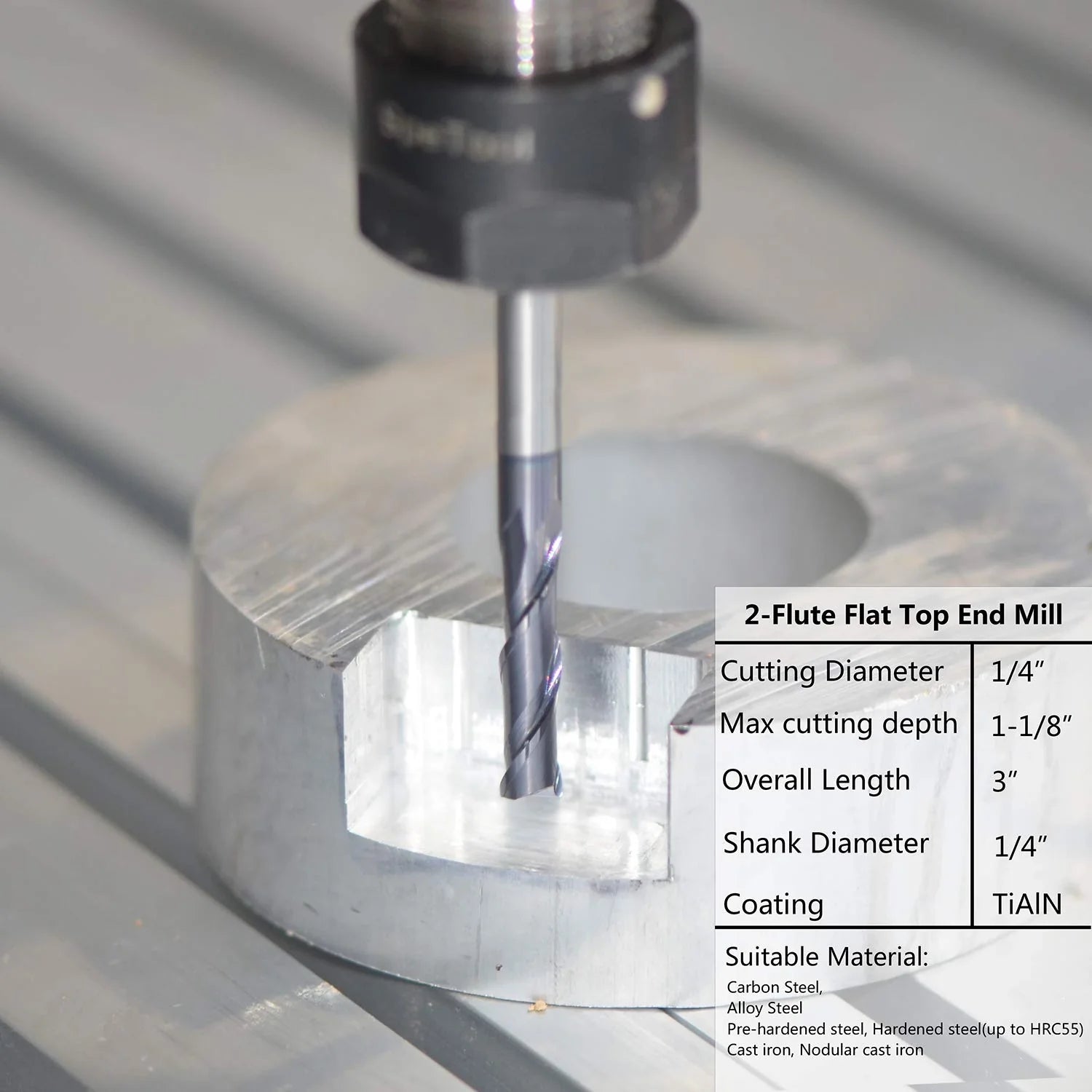

Specification:

Flute number

2

End Cut Type

Flat Top

Shank Diameter(SD)

1/4"

Cutting Diameter(CD)

1/4"

Cutting Length(CL)

1-1/8"

Overall Length(OVL)

3"

Coating

TiAlN

Material  Carbide



Overview:

For longer tool life and a better finish in general-purpose milling applications, these solid carbide end mills are harder, stronger, and more wear-resistant than high-speed steel and cobalt steel end mills. Their extreme hardness means they are brittle, so a highly rigid setup, such as a CNC machine, is necessary to prevent the end mill from breaking.

The TiAlN coated end mills dissipate heat better than other end mills, especially at high speeds. At high temperatures, the coating creates a layer of aluminum oxide that transfers heat to the chips, keeping the tool cool, even when used without lubrication.



Designed for cutting the following materials:



Cast Iron

Titanium

Steel: 40-50HRC

Carbon Steel

Chrome

Stainless Steel

Steel Weldments

Ferrous Metal
