Level A – Industrial & High-Volume Shops
When to Use Level A:
-
You're processing over 100 linear feet of acrylic daily.
-
Your equipment includes professional features like mist-coolant or dedicated air-blast systems.
Equipment Recommendations:
-
3 kW water-cooled spindle
-
Premium coated O-flute bits (such as Amana Tool or Onsrud)
-
Closed-loop feed-rate control for optimal performance
Ideal Feeds & Speeds:
-
Chip-load: approximately 0.007 inches
-
RPM: 24,000; Feed: 160 IPM
Results to Expect:
-
Crystal-clear edges straight off the machine, minimal to no post-processing required.
Level B – Best Budget Workflow for Hobby CNCs (Most Readers Fit Here)
When to Use Level B:
-
Hobbyists or small shops processing under 40 linear feet per day.
-
Primarily creating signs, decorative panels, or custom acrylic projects.
Recommended Equipment:
-
Trim router or entry-level 1.5 kW ER-11 VFD spindle
-
Affordable ¼-inch or ⅛-inch O-flute router bits, either uncoated or TiB₂-coated
-
Simple chip evacuation system using a shop vacuum or basic air-blast (~30 PSI)
Ideal Feeds & Speeds:
-
Chip-load: approximately 0.005 inches
-
RPM: 18,000; Feed: 95 IPM
Results to Expect:
-
Good edge clarity with minimal haze; easily improved through flame polishing or sanding.
Recommended Budget-Friendly Bits:
-

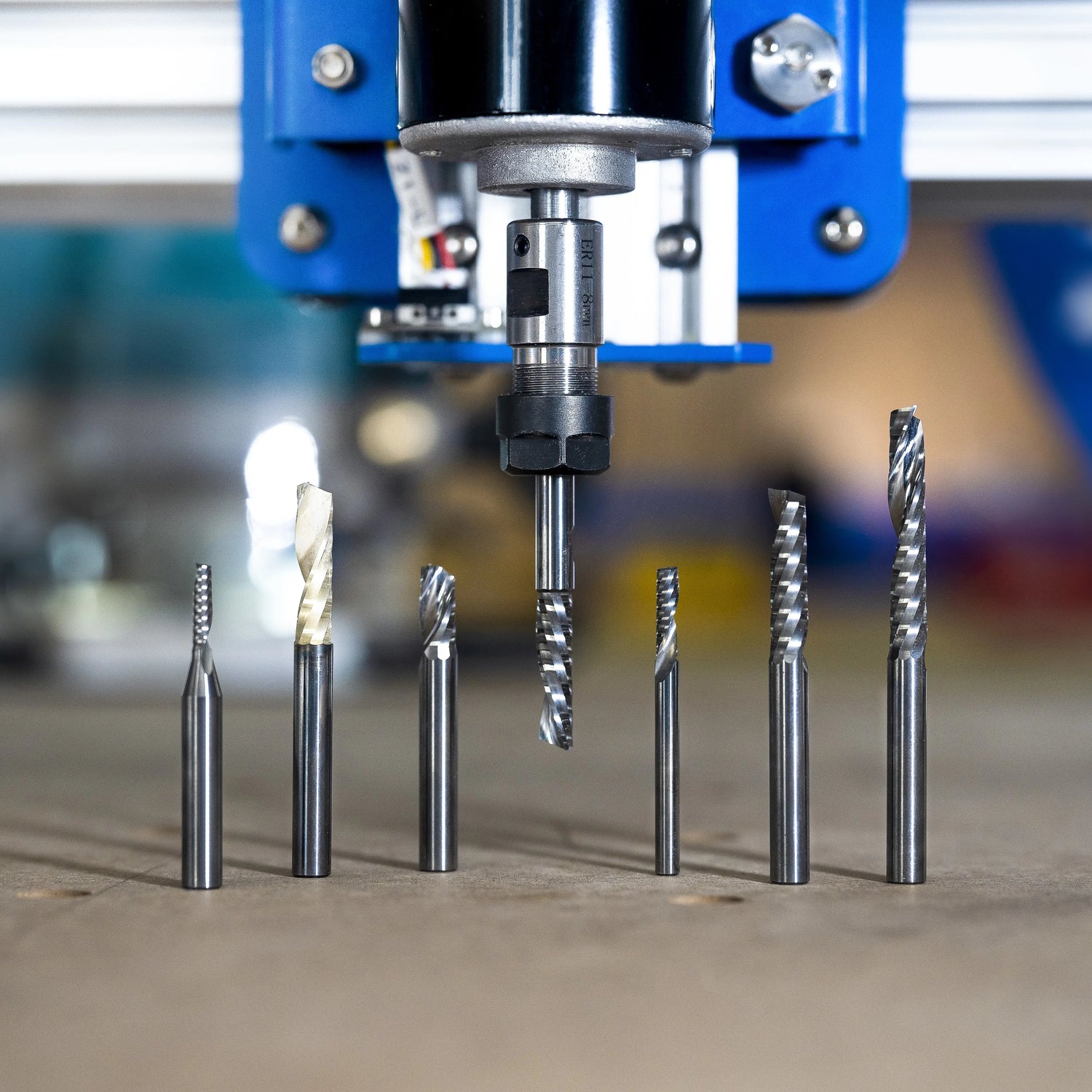

SpeTool Single-Flute Bits: Affordable and reliable performance.
Quick-Start Implementation Checklist for Level B
-
Select a Bit: Choose a reliable single-flute bit priced between $15–$25.
-
Initial Settings: Start with an RPM of 18,000 and a feed rate of 95 IPM for a ¼-inch bit.
-
Effective Chip Evacuation: Use a vacuum shoe or side-mounted air blast.
-
Test Cut: Adjust incrementally until edges are clear and free from melting.
