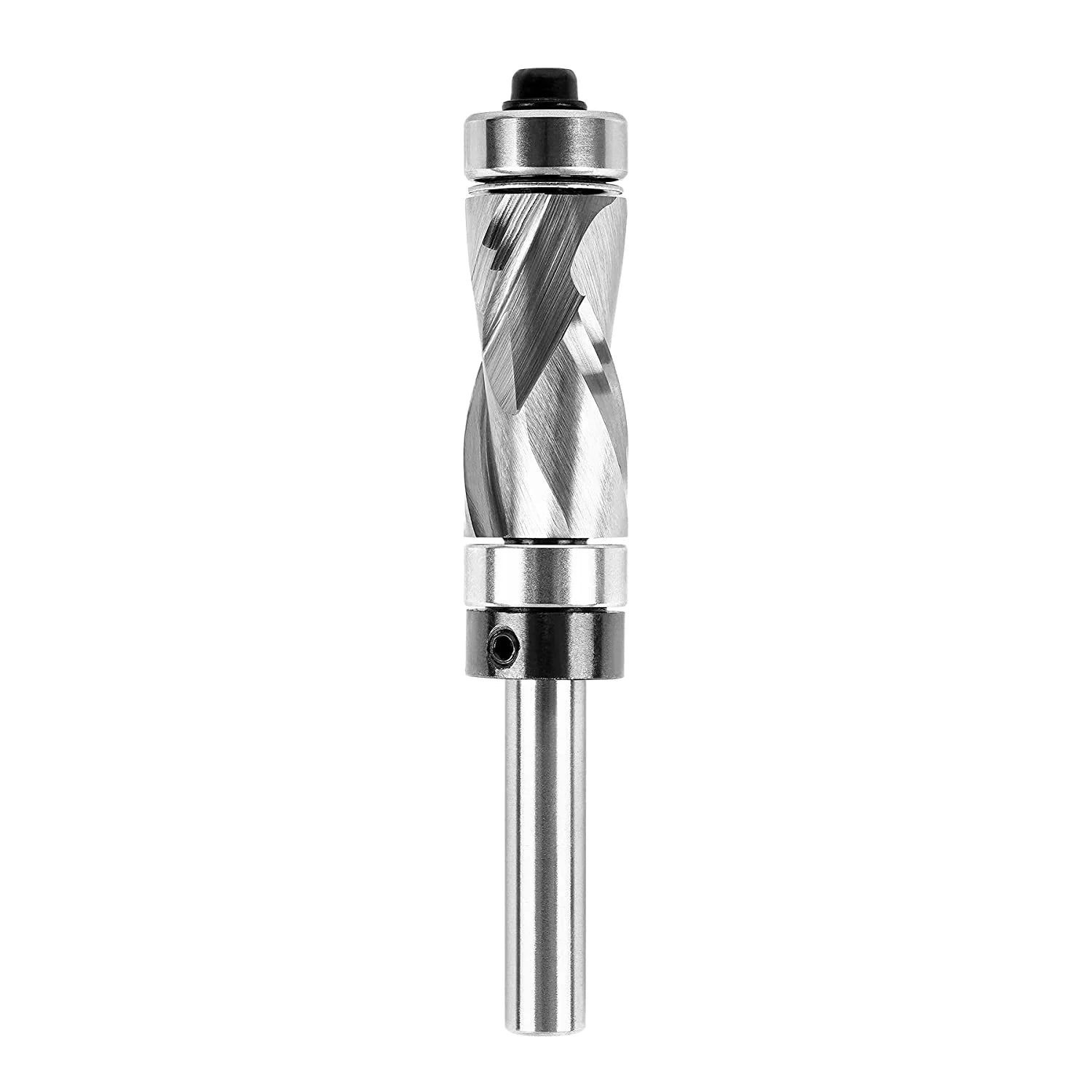

SpeTool UK W07034 SC Top And Bottom Bearing Compression Flush Trim 1/2" Dia x 1/4" Shank x 1" Cutting Length x 2-3/4" Overall Long Router Bit

SKU: UK-WTBB2F-D1/2-H1/4-RE
£42.03 GBP

Shipping calculated at checkout

Flush Trim Spiral Bits deliver precise, clean edge trimming by following a template or pattern. Their spiral cutting edges reduce tear-out, leave a smooth finish on wood, plywood, MDF, and laminates, and work equally well with handheld or table-mounted routers. Perfect for professional-quality joinery and duplicate workpieces.

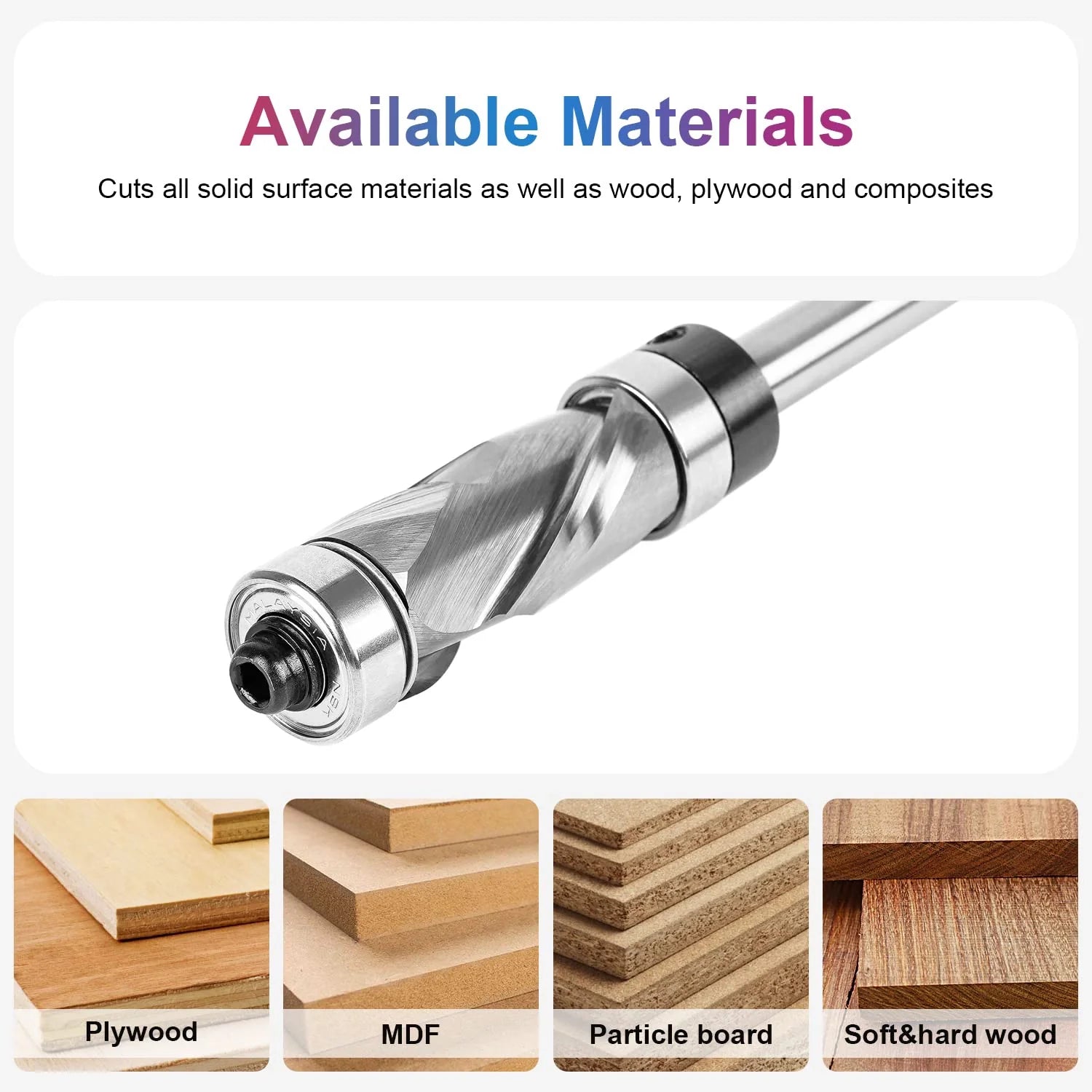

Excellent For Cutting:

  • MDF
  • Plywood
  • Laminate
  • Softwood
  • Hardwood

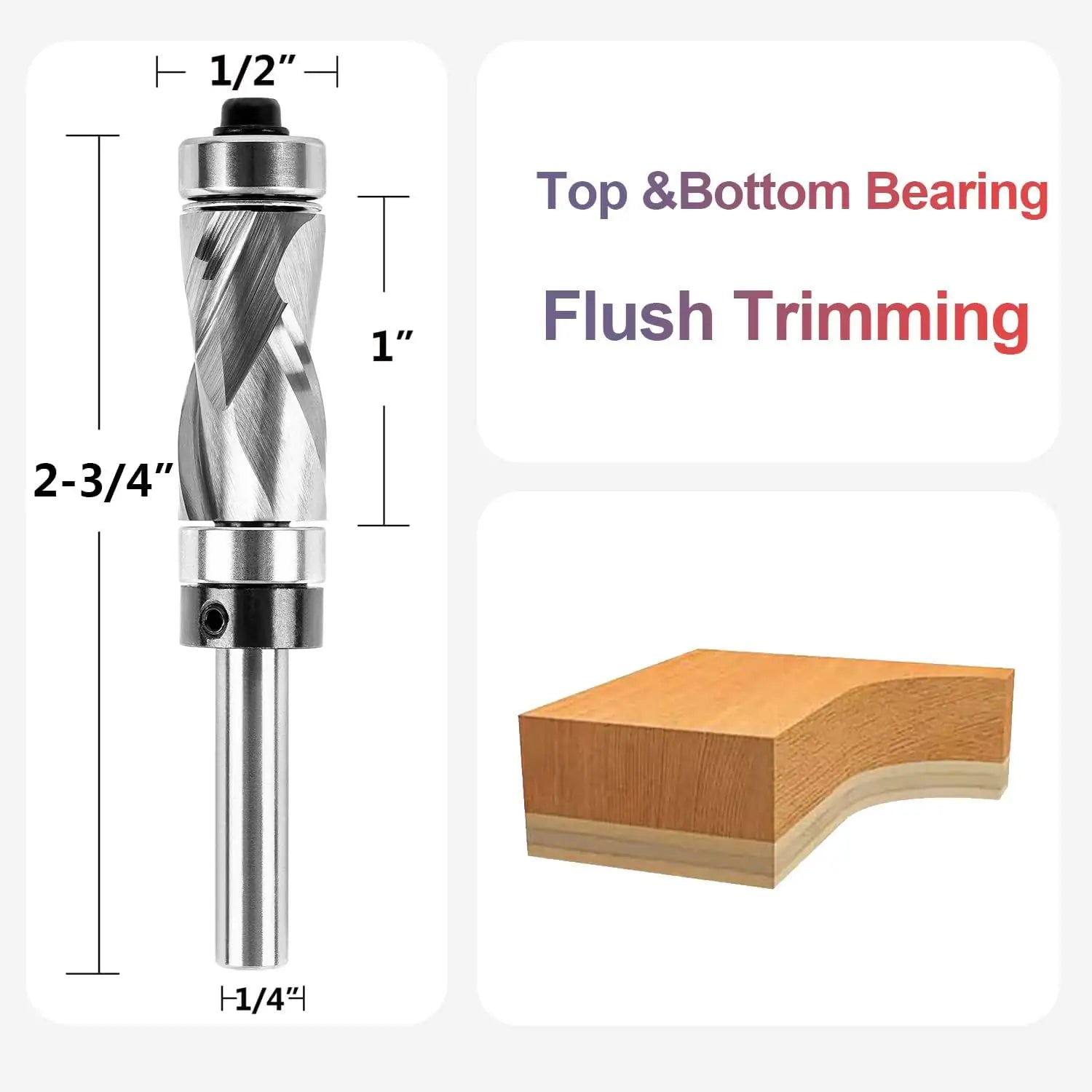

TOOL SPECS: ¼" shank, ½" cutting diameter, 1" cutting length, 2-3/4" overall length, top and bottom bearings, solid carbide.

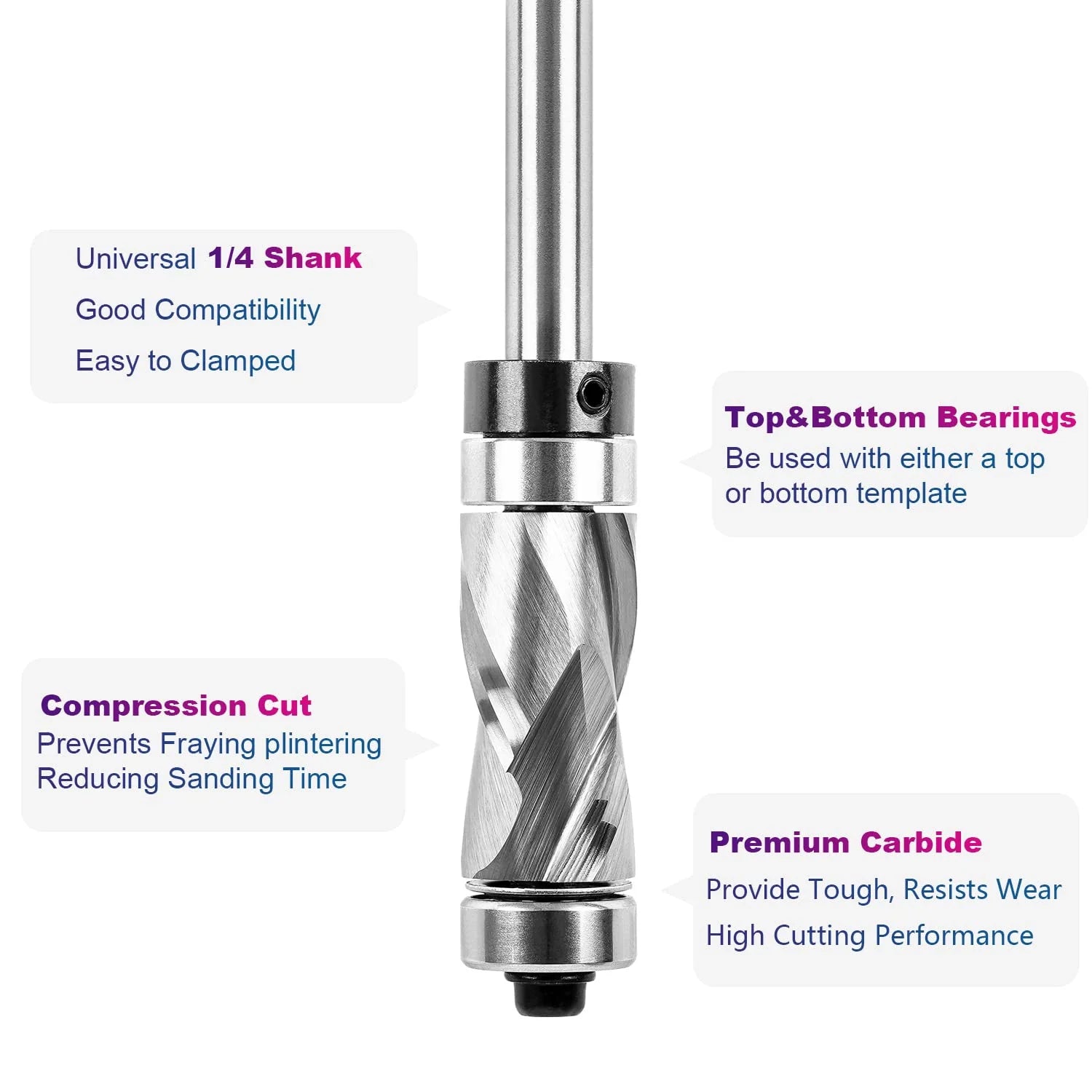

ULTIMATE FLUSH TRIM: Solid carbide construction with top and bottom bearings ensures clean, precise cuts while preventing fraying and splintering.

COMPRESSION CUT DESIGN: Up-cut and down-cut edges combine in one bit to shear wood fibers perfectly, delivering smooth, professional finishes on a variety of materials.

INDUSTRIAL-GRADE QUALITY: Premium carbide resists wear, stays sharp longer, and provides efficient chip evacuation for reduced heat buildup during high-speed routing.

VERSATILE APPLICATIONS: Ideal for pattern and template work, flush trimming, and precision routing with handheld routers or router tables.

51 in stock
Quantity:
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Sharp Cuts, Clean Lines, Zero Hassle.
SpeTool SC 3/8 Dia 3.5 Inch Long Compression Flush Trim Router Bit

Spiral Sharpness for the Smoothest Finish.
SpeTool 5PCS Carbide 1/4" Shank Bottom Bearing Flush Trim Router Bits

Upgrade Your Trim Game with Spiral Performance.

Precision Engineering for the Perfect Edge.

Similar Size

Part No.

Cutting Dia.
(D)

 Cutting Height
(B)

Shank Dia.
(d)

Overall Length
(L)

Rotation

 Coating Rec. RPM
W07020 32mm 63.5mm 1/2" 5" 14,000
W07038 3/4" 2-1/2" 1/2" / 14,000
W07004 1/4" 1-1/8" 1/4" 3" Up 18,000
*W07004-SPE-X 1/4" 1-1/8" 1/4" 3" Up TAC 18,000
W07005 1/4" 1-1/8" 1/4" 3" Down 18,000
*W07005-SPE-X 1/4" 1-1/8" 1/4" 3" Down TAC 18,000
W07006 1/4" 1-1/8" 1/4" 3" Compression 18,000
*W07006-SPE-X 1/4" 1-1/8" 1/4" 3" Compression TAC 18,000
W07013 1/2" 1-1/2" 1/2" 4" Compression 16,000
*W07013-SPE-X 1/2" 1-1/2" 1/2" 4" Compression TAC 16,000
W07015 1/2" 1" 1/4" 2-4/5" Compression 14,000
W07016 7/8" 1-3/16" 1/2" 3-1/2" Compression 14,000
W07017 1/2" 1" 1/4" 2-5/8" Compression 14,000
W07023 1/2" 1-1/4" 1/4" 3-1/4" Compression 14,000
W07024 1/2" 1-1/4" 1/4" 2-7/8" Compression 14,000
W07025 3/4" 1-3/4" 1/2" 3-5/8" Compression 14,000
W07034 1/2" 1" 1/4" 2-3/4" Compression 14,000
W07043 1/2" 1/4" 1/4" 2" 14,000
W07052 3/4" 1-3/4" 1/2" / Compression 14,000



*Customized sizes are acceptable

Frequently Asked Questions

Used to trim edges flush with templates or patterns, ensuring precise replication.

Spiral cutting edges slice wood fibers cleanly, minimizing splintering and tear-out.

Upcut pulls chips upward (better chip evacuation); downcut pushes chips down (cleaner surface finish).

Yes, spiral bits generally provide smoother cuts and less vibration.

Absolutely, they work well on plywood, MDF, laminates, and hardwood.

Use proper feed rates and sharp bits; avoid slowing down too much.

Use a template guide bearing and firm router control to prevent drift.

Both; they perform well in handheld and CNC setups.

Coatings (like TAC, TiN or TiAlN) can extend bit life, especially on abrasive materials.

Use downcut bits or climb cut with spiral bits carefully.
