SpeTool Compression Router Bit 1 8 Dia 1 4 SHK SC CNC Up&Down End Mill
SpeTool Compression Router Bit 1 8 Dia 1 4 SHK SC CNC Up&Down End Mill
SpeTool Compression Router Bit 1 8 Dia 1 4 SHK SC CNC Up&Down End Mill

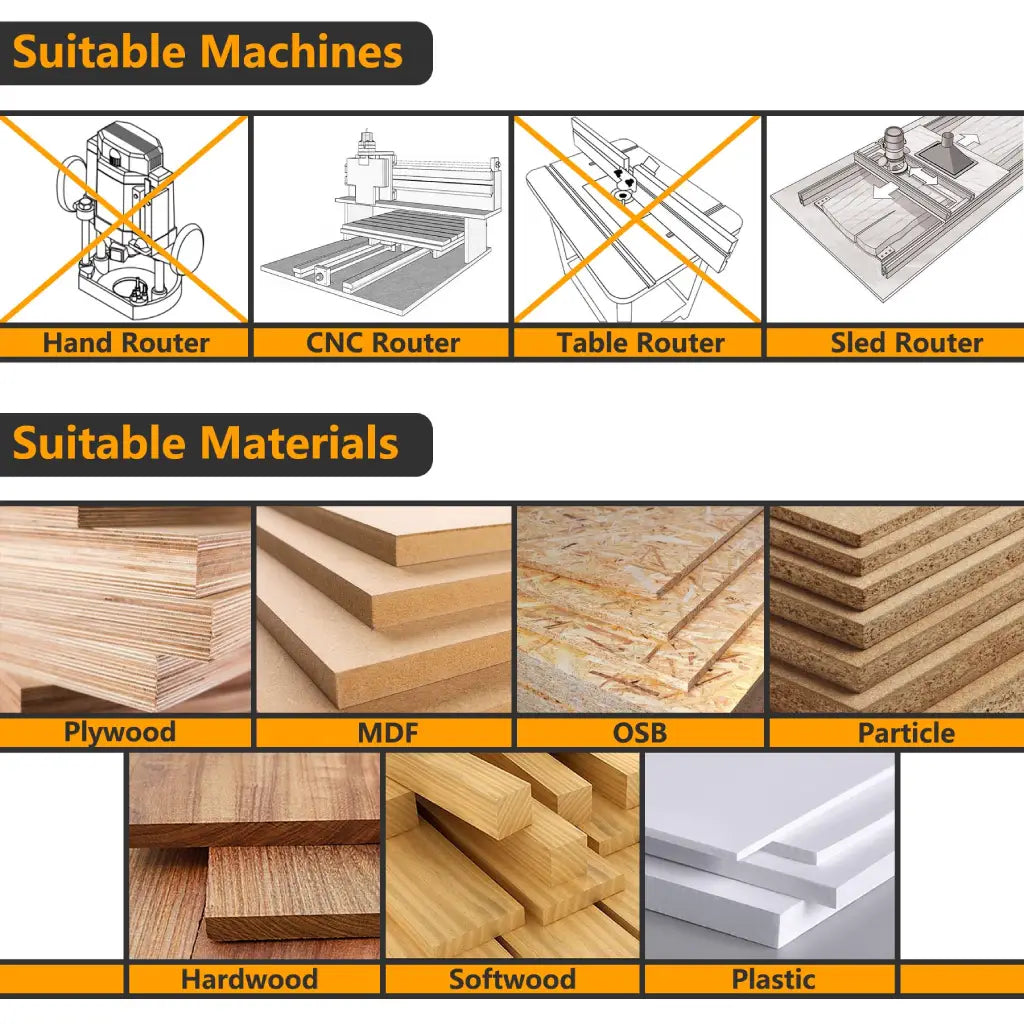

SpeTool router bit suitable Machines and Materials

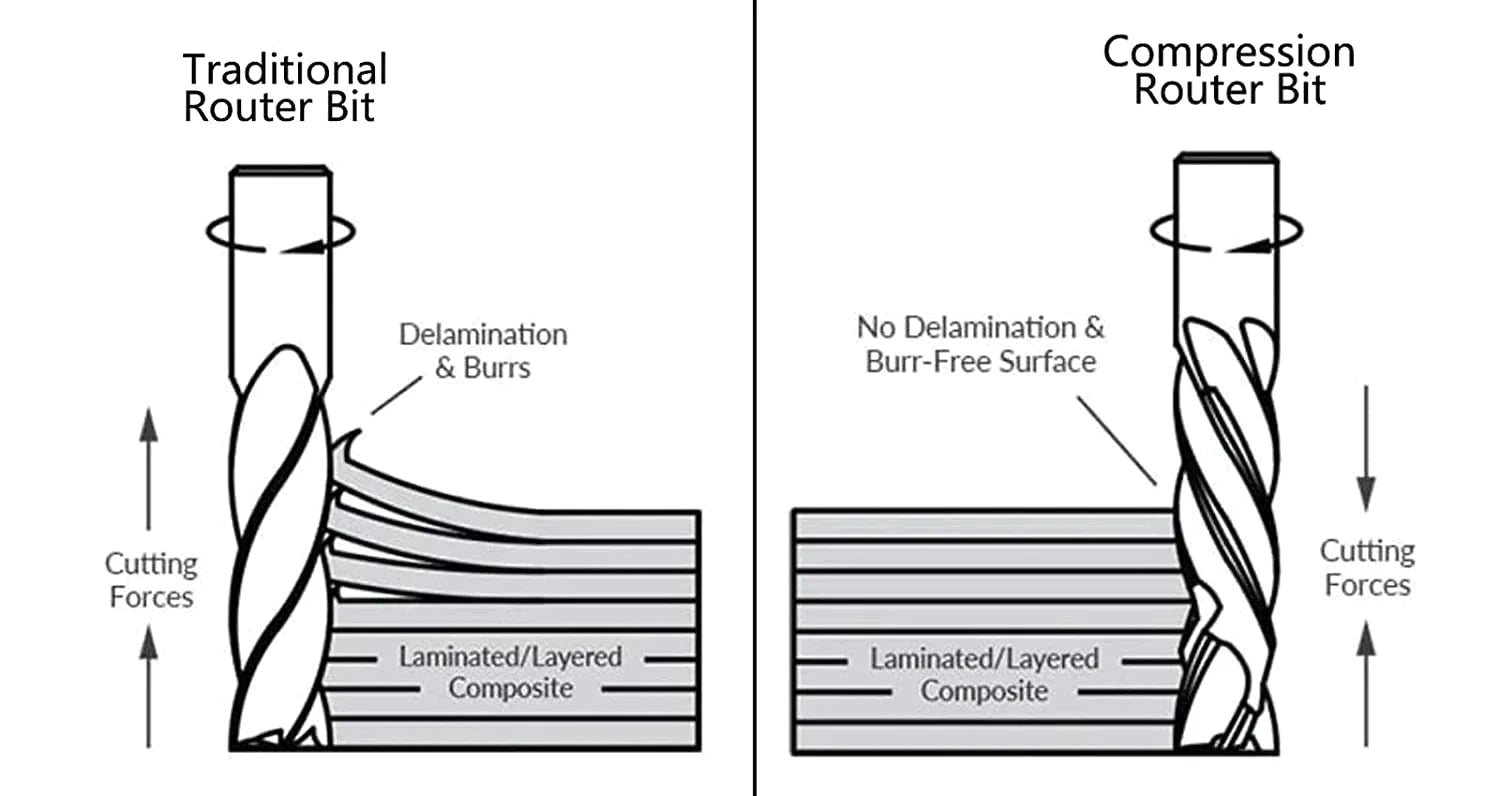

SpeTool router bit difference between traditional router bit and compression router bit

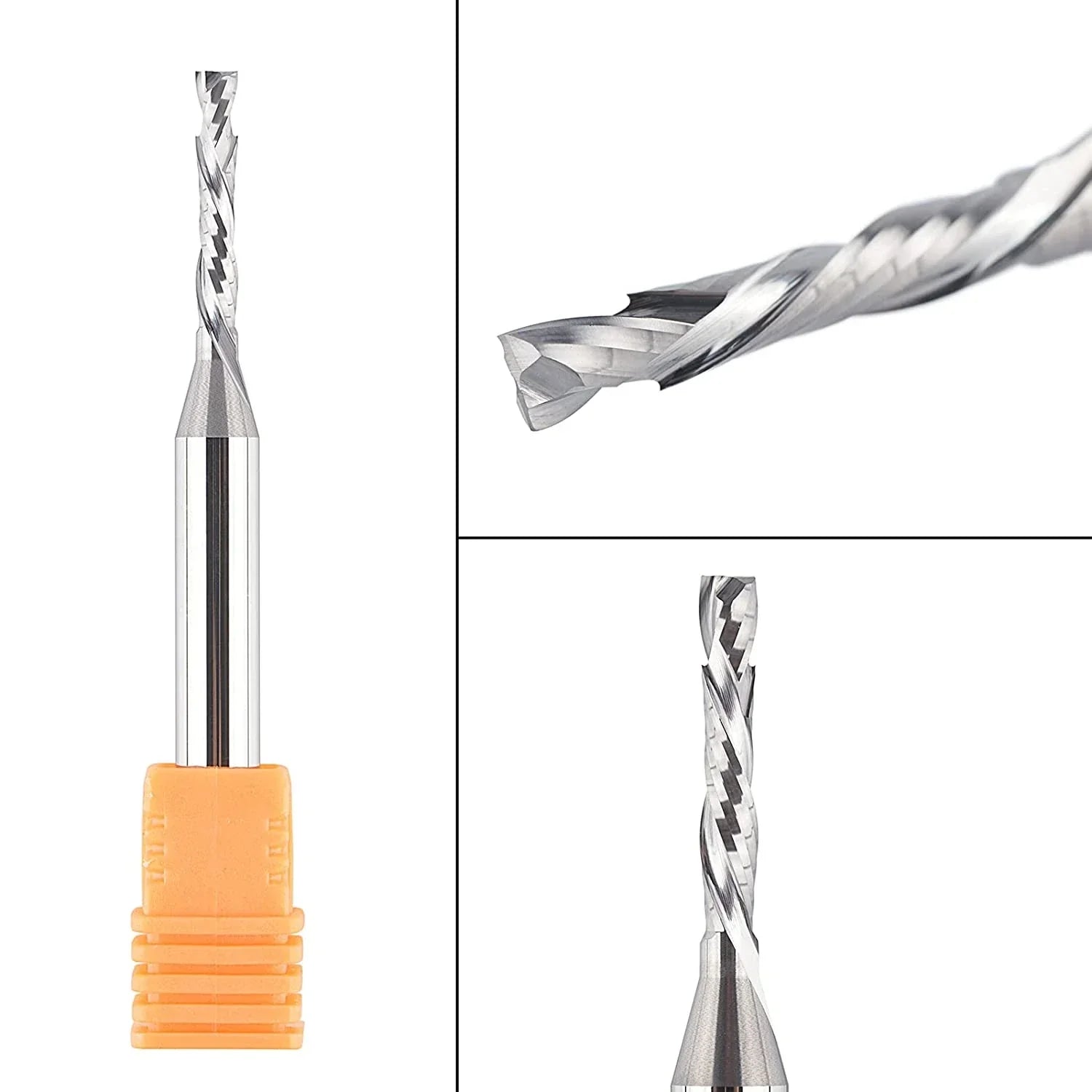

SpeTool UK W02004 SC Compression Spiral 1/8" Dia x 1/4" Shank x 3/4" Cutting Length x 2-1/2" Long 2 Flute Router Bit

Sale price£17.09 GBP

Shipping calculated at checkout

No reviews
No reviews
SKU: UK-SP-D1/4-1/8-U&D
19 in stock

Quantity:
Product bundles:
  • Fast Delivery

  • 60-Days Warranty

  • Ships Worldwide


Specification

Cutting Direction: UP & DOWN
Cutting Diameter(CD): 1/8"
Shank Diameter(SD): 1/4"
Cutting Length(CL): 3/4"
Overall Length(OVL): 2-1/2"
Material  Carbide


Overview

The Compression Cutter consists of an up cut and down cut helix. The top portion of the length of the cut has right-hand cutting teeth with a left-hand spiral. The lower portion of the length of the cut has right-hand cutting teeth with a right-hand spiral. This creates opposing cutting forces to stabilize the material removal process when cutting layered composites to prevent delamination, fiber pullout, and burs along the surface. Compression of the top and bottom of the workpiece keeps the layered bonded together.

Specially designed to provide an excellent finish. It can be used with handheld, table-mounted, and CNC routers.


Designed for cutting the following materials

  • MDF/HDF
  • Foam Board
  • Hardwood
  • Plastic
  • Softwood
  • Plywood
