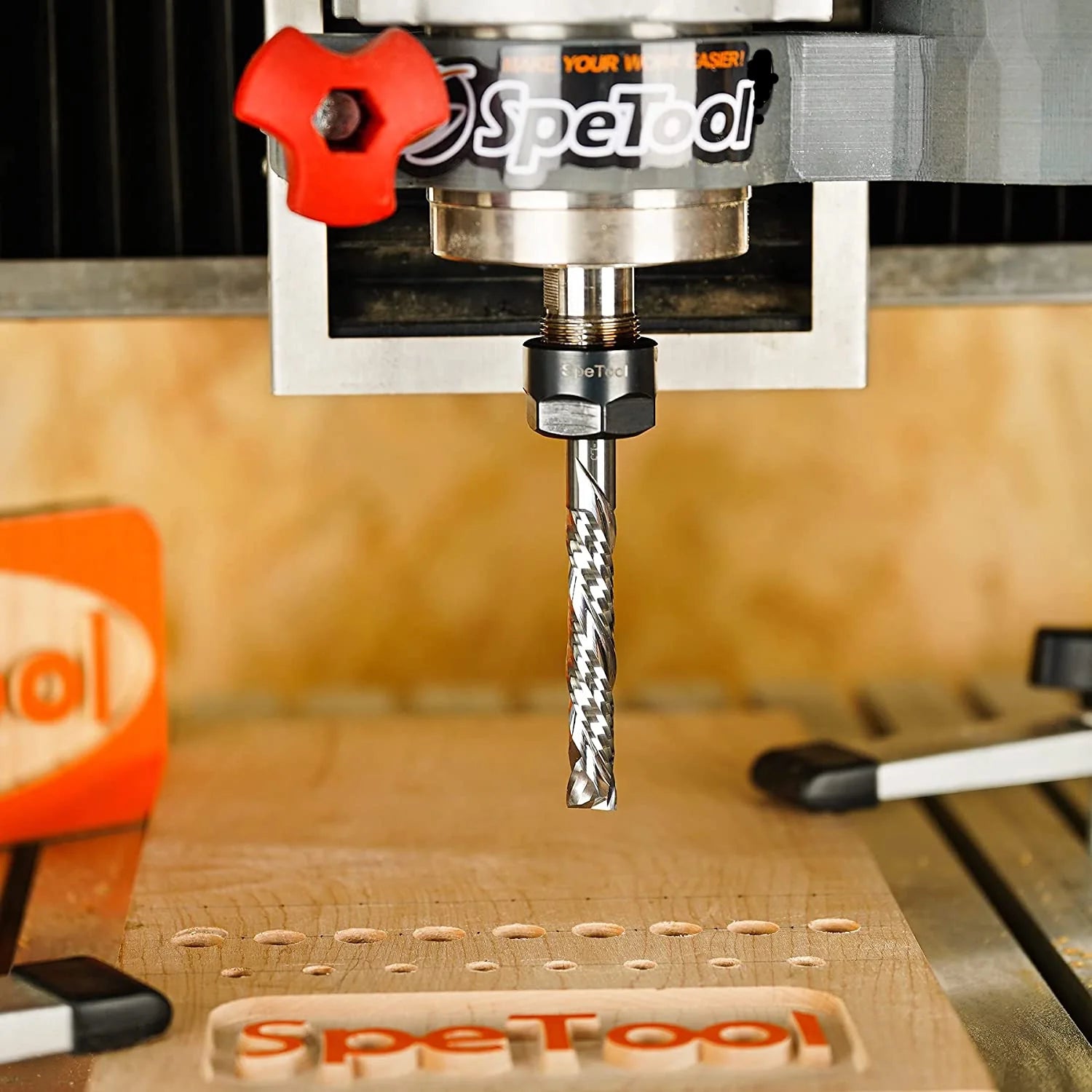

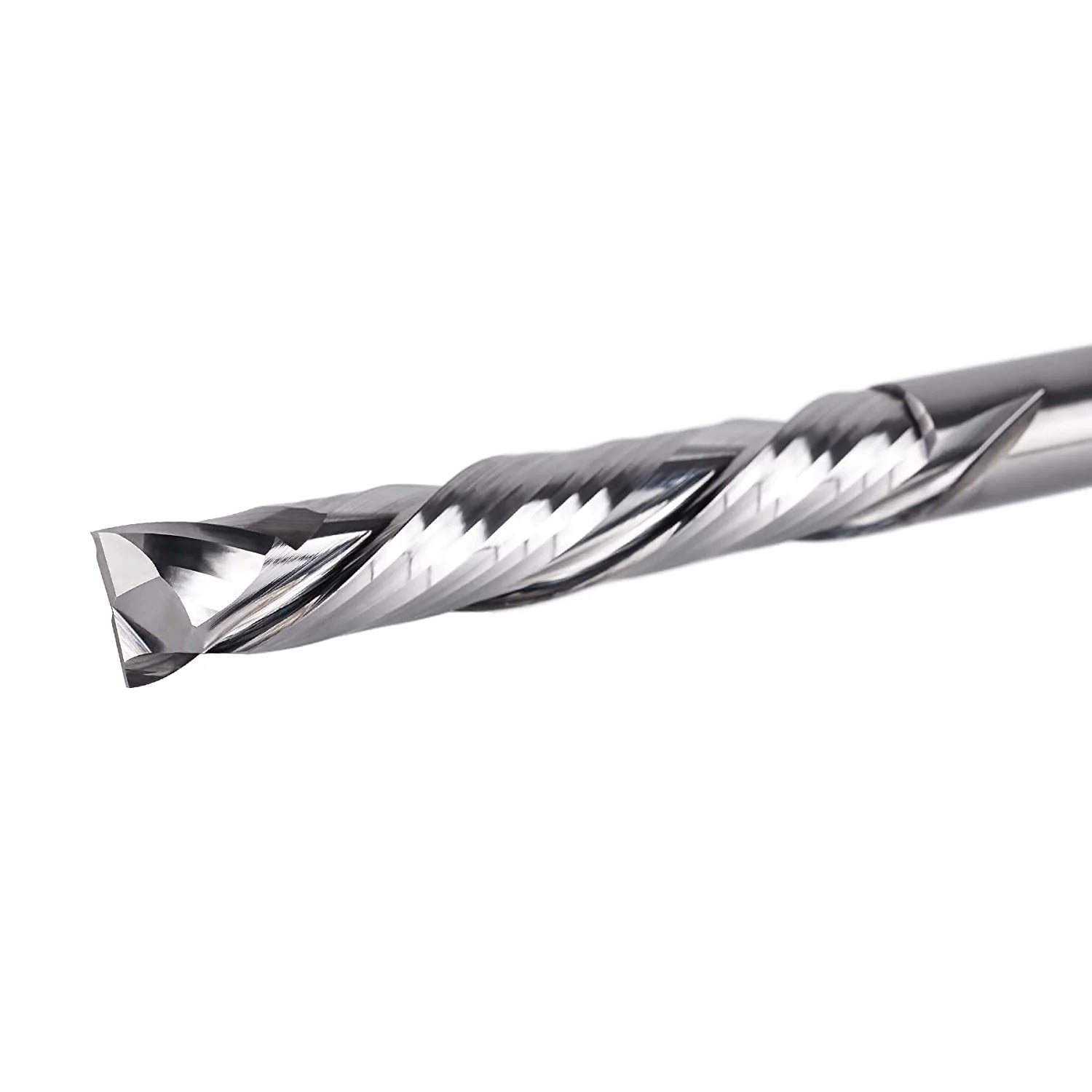

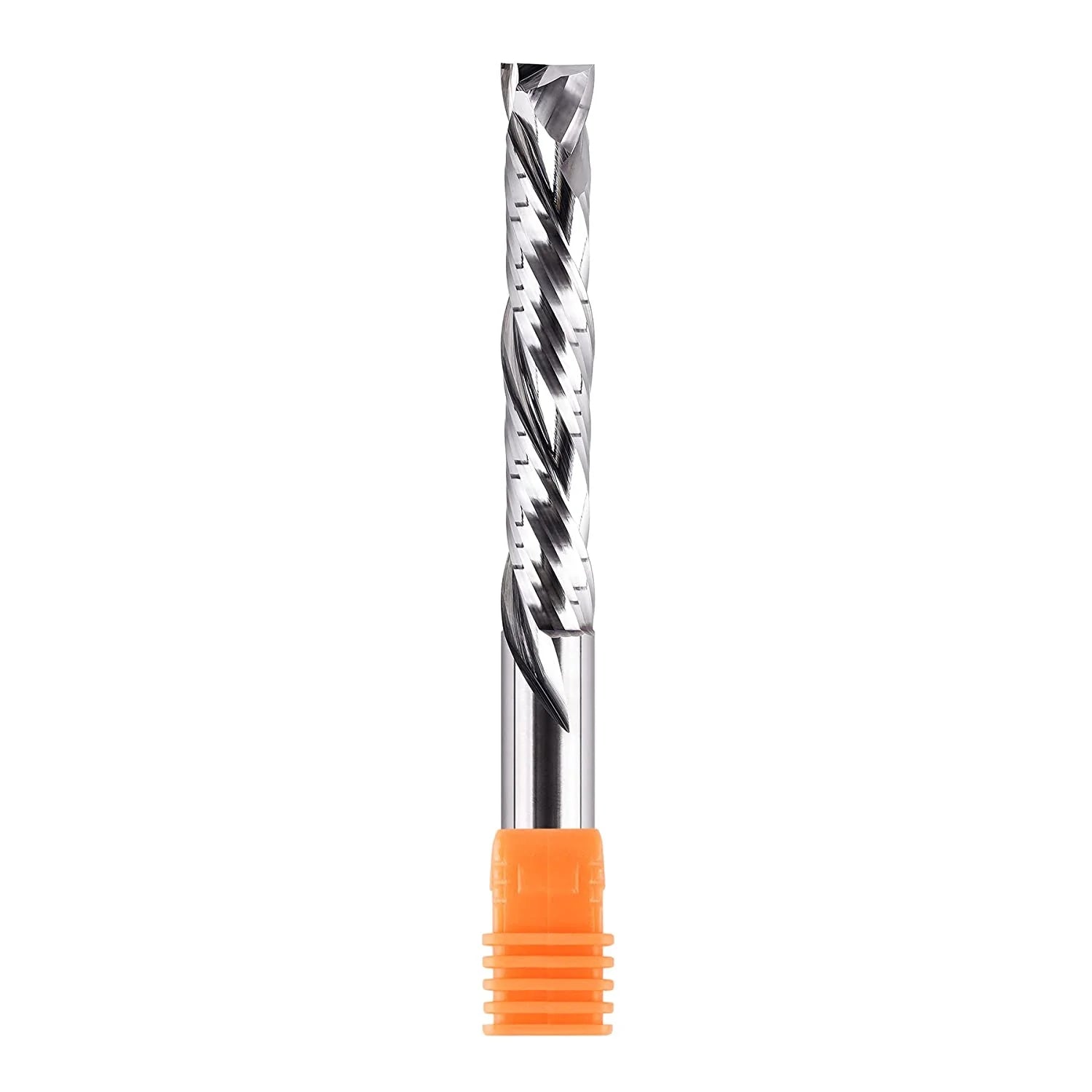

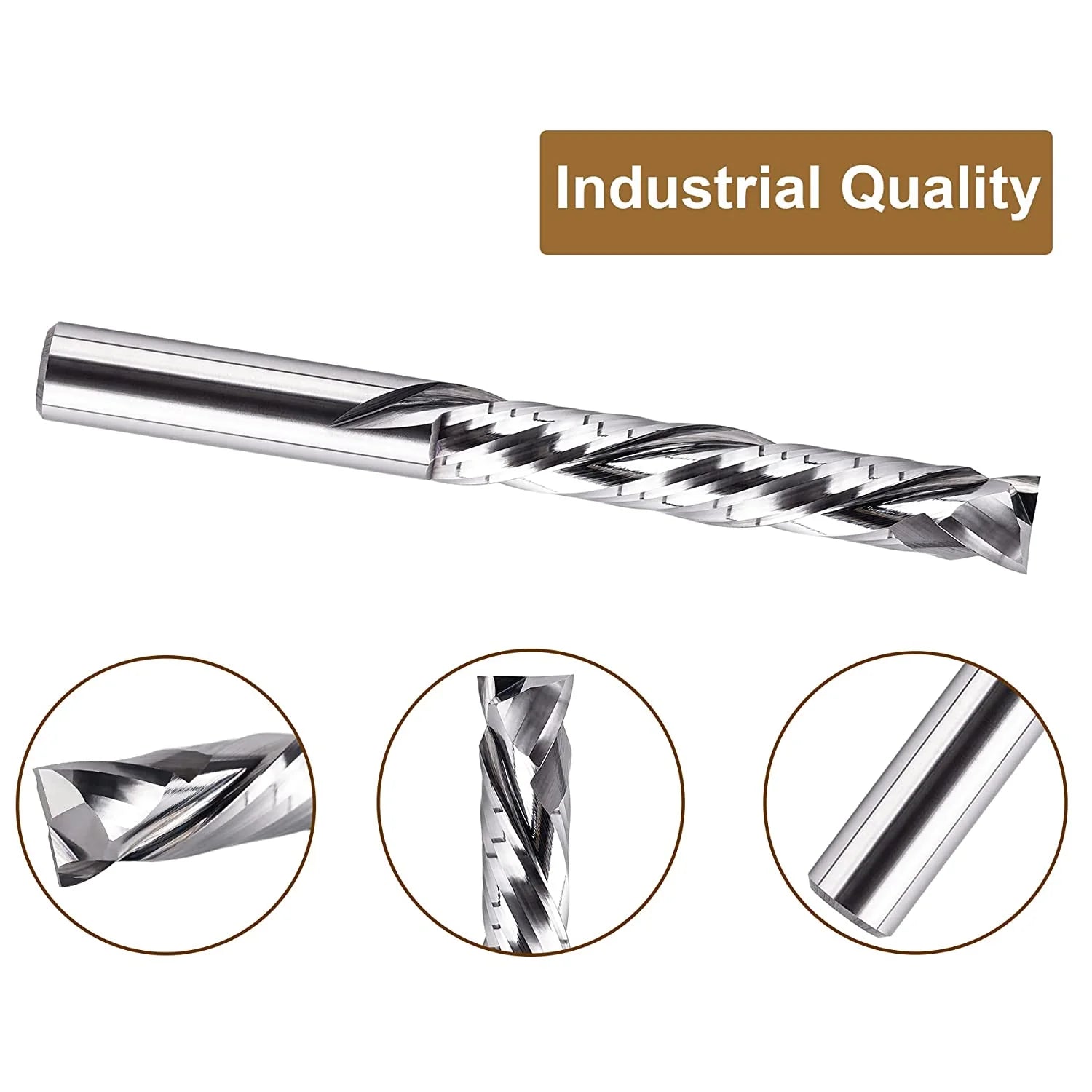

SpeTool UK W02012 Compression Spiral 1/2" Dia x 1/2" Shank x 3" Cutting Length x 5" Extra Long 2 Flute Router Bit

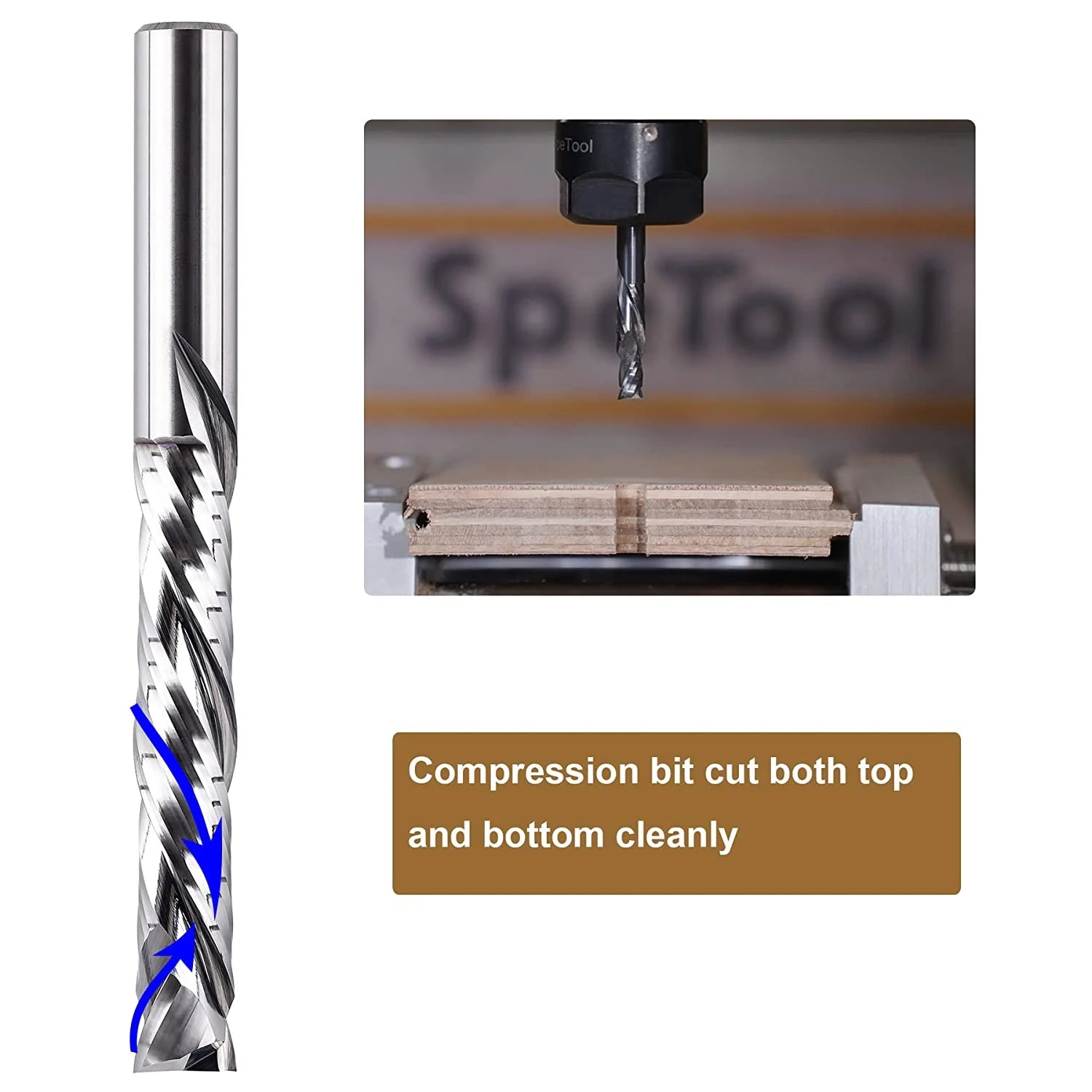

Get flawless cuts on both sides of your material. SpeTool’s compression bits combine up-cut and down-cut flutes for clean edges top and bottom, making them perfect for plywood, MDF, melamine, and laminated boards. Built with solid carbide for durability and CNC precision.
Excellent For Cutting:
- MDF/HDF
- Plywood
- Melamine
- Laminate
- Softwood/Hardwood
- Veneered Plywood
TOOL SPECS: Solid carbide, compression spiral with 1/2" cutting diameter, 1/2" shank, 3" cutting length, and 5" overall length for use in routers with a 1/2" collet.
Quantity:
Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.
Ready to Cut Like Never Before?
Similar Size
| Part No. |
Cutting Dia. |
Cutting Height (B) |
Shank Dia. |
Overall Length |
Flute |
Coating | Rec. RPM |
|---|---|---|---|---|---|---|---|
| SP2FC-D4-L22 | 4mm | 22mm | 4mm | 50mm | 2 | 18,000 | |
| SP2FC-D4-L25 | 4mm | 25mm | 4mm | 50mm | 2 | 18,000 | |
| SP2FC-D6-L22 | 6mm | 22mm | 6mm | 50mm | 2 | 14,000 | |
|
SP2FC-D6-L32 |
6mm | 32mm | 6mm | 75mm | 2 | 14,000 | |
|
SP2FC-D8-L32 |
8mm | 32mm | 8mm | 75mm | 2 | 12,000 | |
| W02001 | 1/2" | 1-1/4" | 1/2" | 3" | 2 | 15,000 | |
| W02003 | 1/4" | 1" | 1/4" | 2-1/2" | 2 | 18,000 | |
| *W02003-SPE-X | 1/4" | 1" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
| W02004 | 1/8" | 3/4" | 1/4" | 2-1/2" | 2 | 18,000 | |
| *W02004-SPE-X | 1/8" | 3/4" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
| W02006 | 1/2" | 1-1/2" | 1/2" | 4" | 2 | 15,000 | |
| W02011 | 1/4" | 1-1/4" | 1/4" | 3" | 2 | 18,000 | |
| *W02011-SPE-X | 1/4" | 1-1/4" | 1/4" | 3" | 2 | TAC | 18,000 |
| W02012 | 1/2" | 3" | 1/2" | 5" | 2 | 15,000 | |
| *W02014-SPE-X | 3/16" | 1" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
*Customized sizes are acceptable
CNC Feed/Speed (PDF)
| Products Type |
Products Type |
|---|---|
| Spriral Router Bits | Download |
| 2D & 3D Tapered Router Bits | Download |
| V Groove Router Bits | Download |
| O-Flute Router Bits | Download |
| Spoilboard Surfacing Router Bits | Download |
| Bowl & Tray Router Bits | Download |
| Aluminum & Metal Router Bits | Download |
Fusion 360 & Vectric & Carveco & Carbide 3D .tools file
|
Software |
Tool File |
|
Fusion 360 Tools File(Updated To 20251015) |
|
|
Vectric Tools File (Updated To 20251015) |
|
|
Carveco Tools File(Updated To 20251028) |
|
|
Carbide 3D Tools File(Updated To 20251028) |
Frequently Asked Questions
A bit that combines up‑cut at the tip and down‑cut near the shank to deliver clean edges both top and bottom.
They prevent tear‑out on both surfaces—ideal for plywood, laminates, melamine, and MDF.
Yes—high‑quality compression bits are typically made of solid carbide for durability and sharpness.
Yes, they’re perfect for through‑cuts where both faces matter, such as cabinet panels or double‑sided veneer.
Better than straight bits—spiral flute design improves cutting action, though slower feed rates may be needed.
Your first pass must fully engage both up‑cut and down‑cut zones—typically half the diameter deep at least to activate both.
Yes, with handheld routers plus pilot bearings—they can be used for flush trimming and template following.
Compression bits are more expensive but last longer and reduce sanding/rework time—worth the investment.
Yes—they help minimize tear‑out even when grain direction is complex.
Many pros recommend rough cutting first, then finishing with compression bit for the perfect edge.
