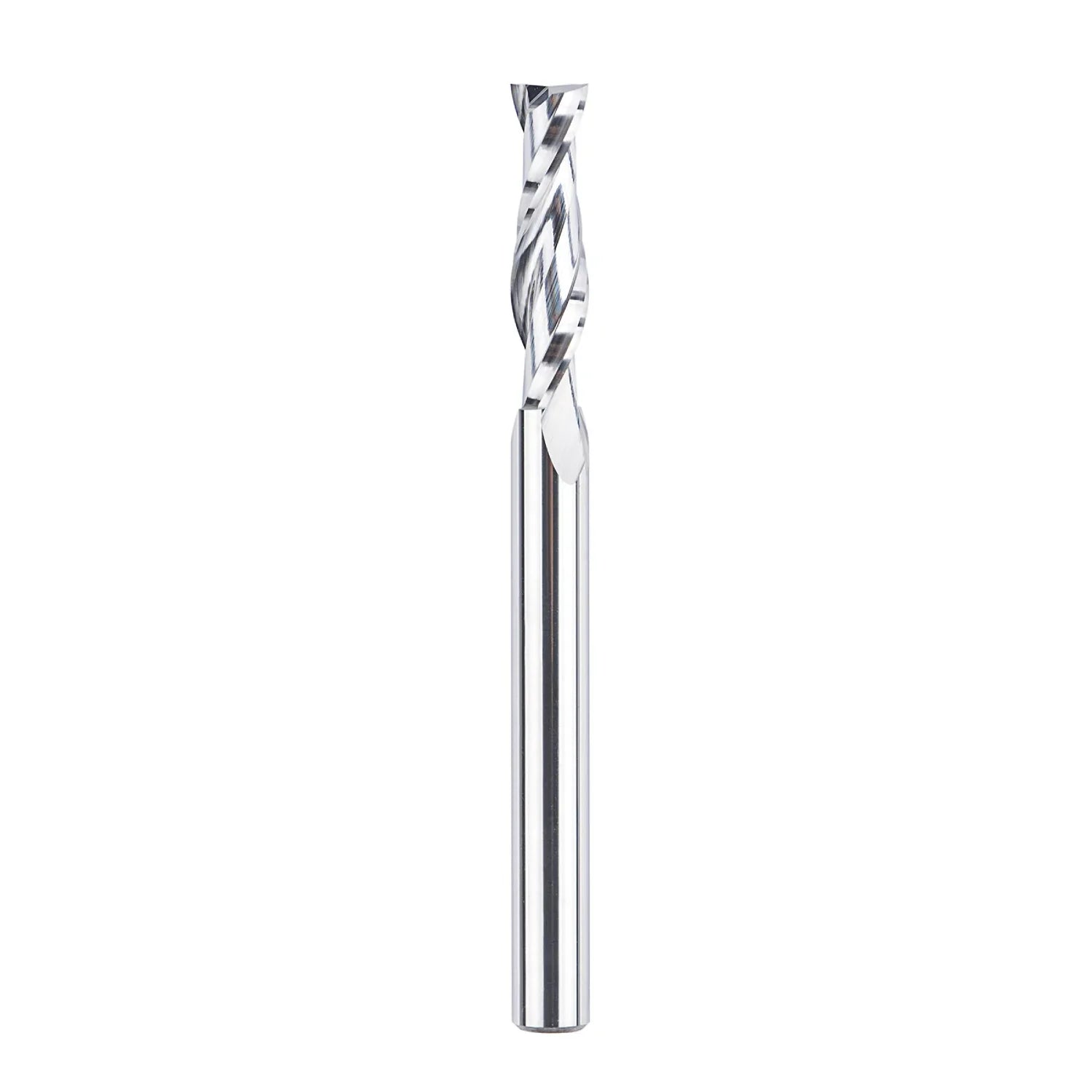

SpeTool UK W04016 SC Spiral Plunge 1/4" Dia x 1/4" Shank x 1" Cutting Length 3" Extra Long 2 Flute Up-Cut Router Bit

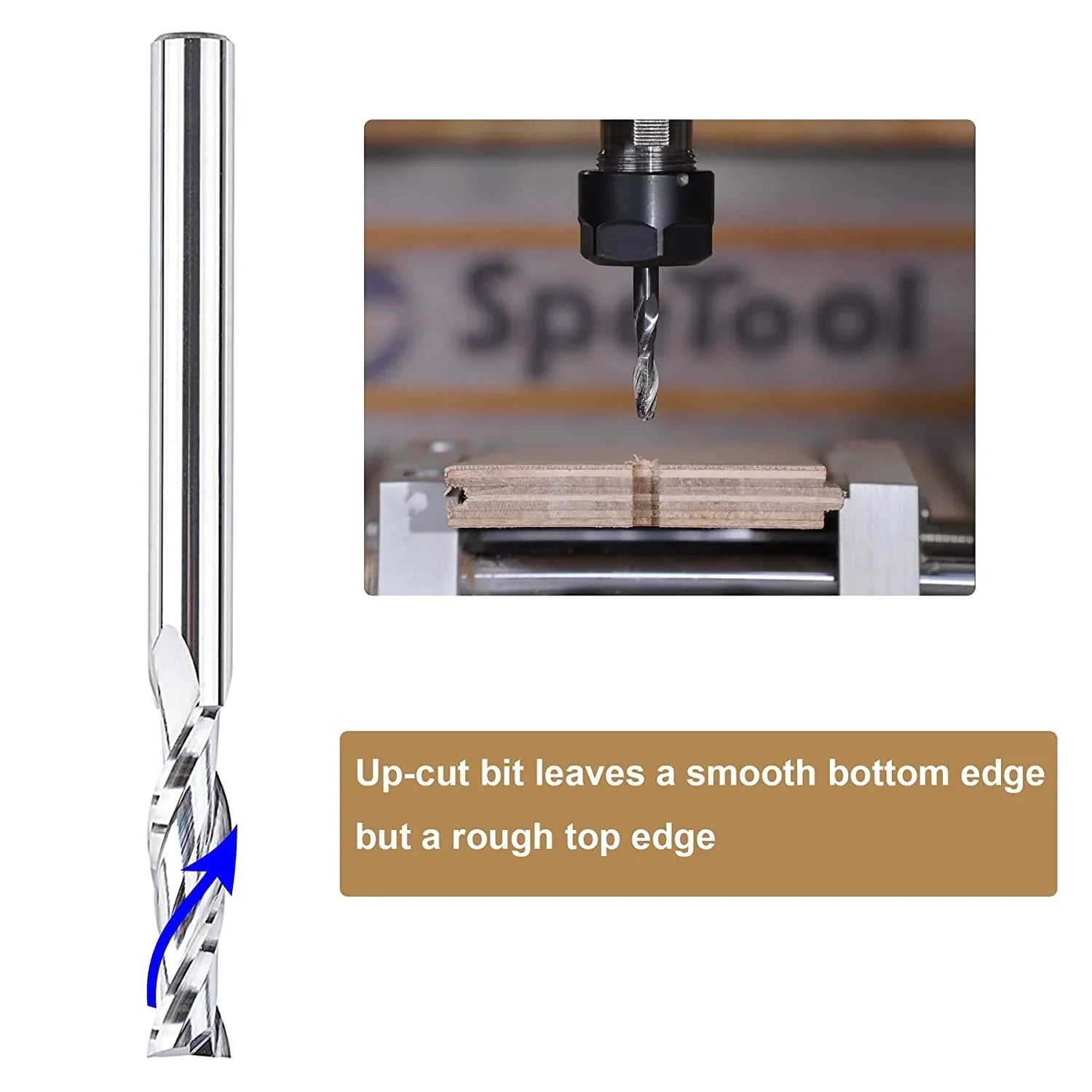

An Up Cut Router Bit is designed to pull chips upward as it cuts, giving you clean bottom edges and efficient chip removal. Ideal for deep cuts, slotting, and mortising in wood, MDF, and plywood.
Excellent For Cutting:
- MDF/HDF
- Plywood
- Melamine
- Laminate
- Softwood/Hardwood
- Veneered Plywood

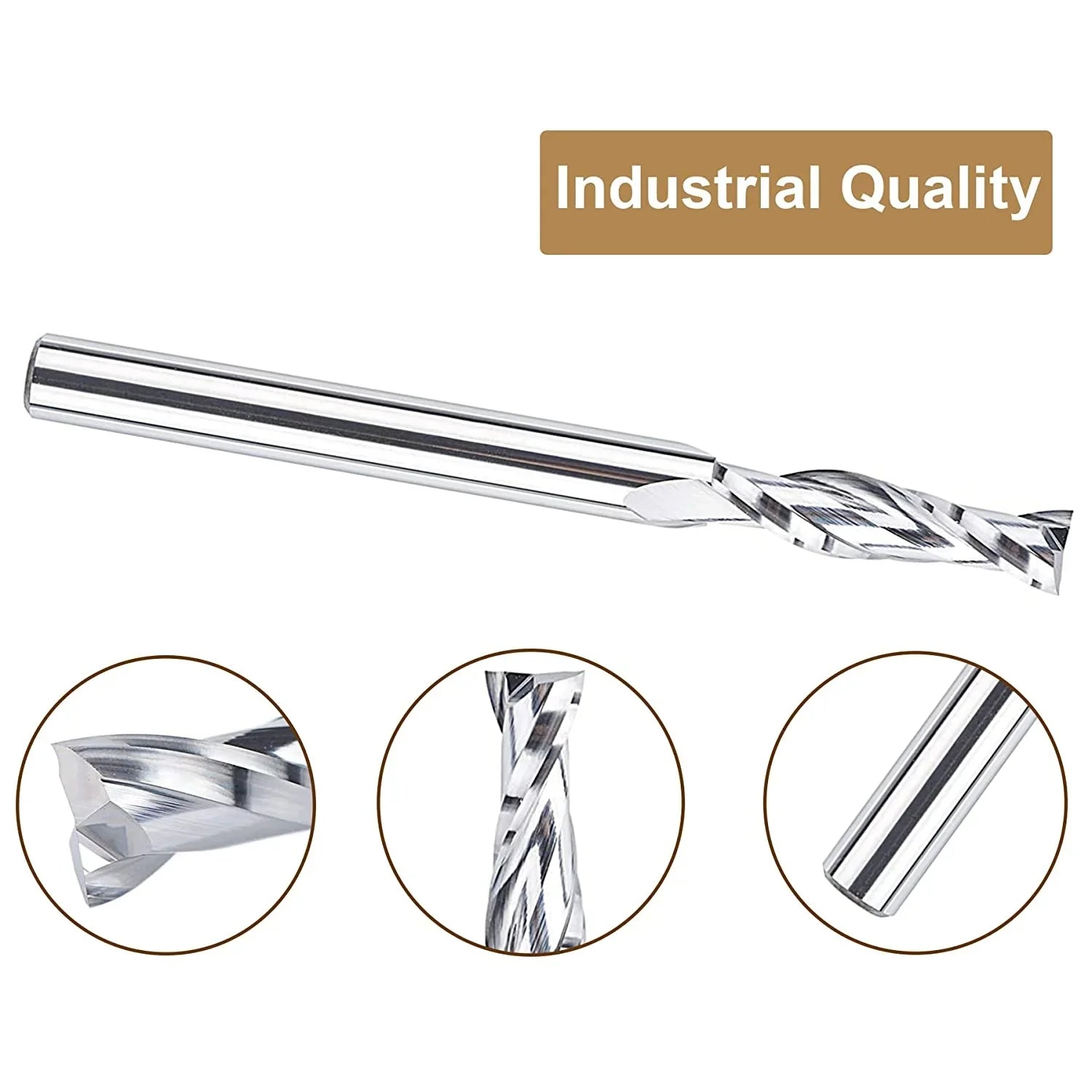

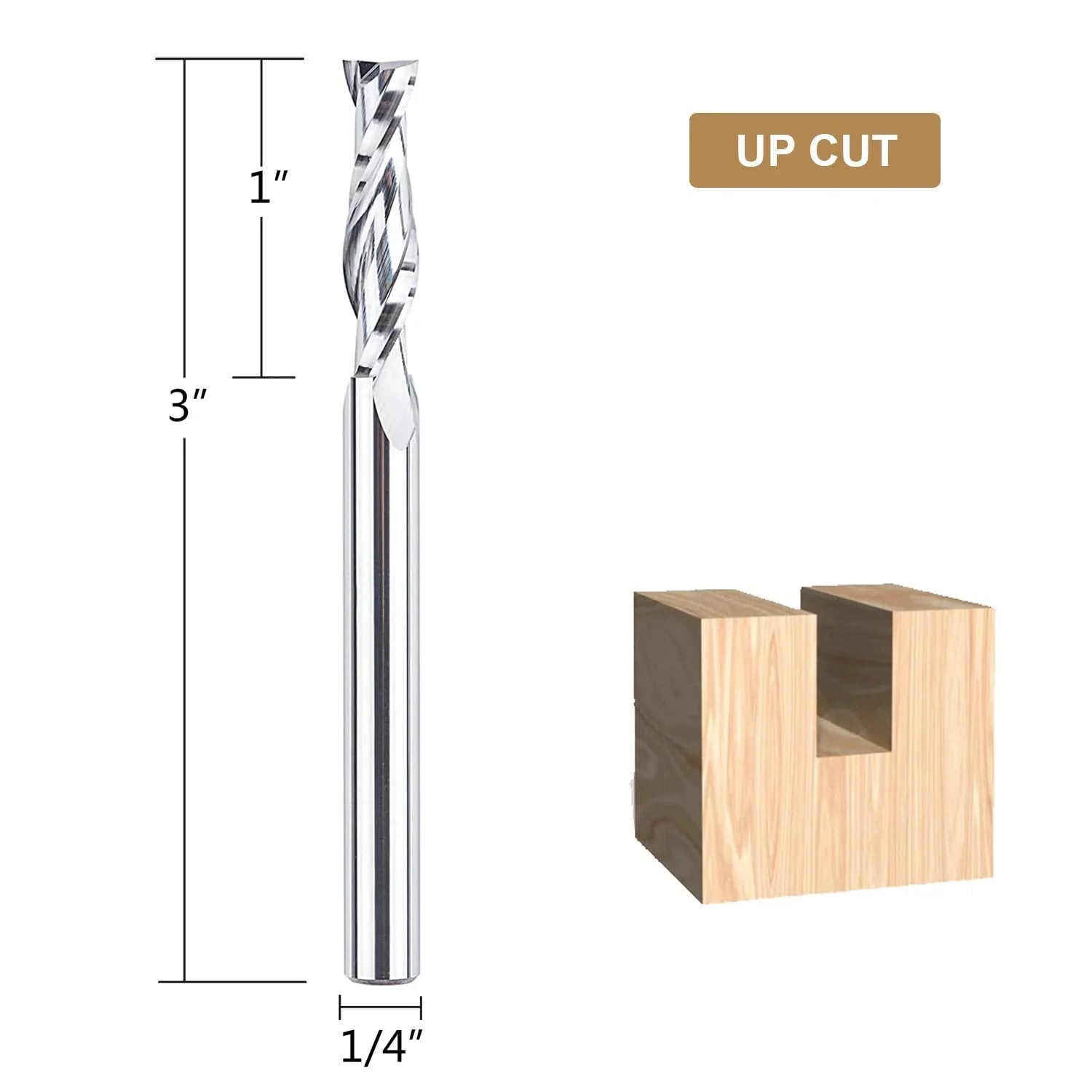

TOOL SPECS: Solid carbide, up cut spiral with 1/4" cutting diameter, 1/4" shank, 1" cutting length, and 3" overall length for use in routers with a 1/4" collet.
Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.
Ready to Cut Like Never Before?
Similar Size
| Part No. |
Cutting Dia. |
Cutting Height (B) |
Shank Dia. |
Overall Length |
Flute |
Coating | Rec. RPM |
|---|---|---|---|---|---|---|---|
| SP-D8-H8-U | 8mm | 32mm | 8mm | 75mm | 2 | 12,000 | |
| W04003 | 1/2" | 1-1/4" | 1/2" | 3" | 2 | 15,000 | |
| W04005 | 1/4" | 1" | 1/4" | 2-1/2" | 2 | 18,000 | |
| *W04005-SPE-X | 1/4" | 1" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
| W04007 | 1/8" | 1/2" | 1/4" | 2" | 2 | 18,000 | |
| *W04007-SPE-X | 1/8" | 1/2" | 1/4" | 2" | 2 | TAC | 18,000 |
| W04010 | 3/8" | 1-3/4" | 1/2" | 4" | 2 | 15,000 | |
| W04012 | 1/2" | 2" | 1/2" | 4" | 2 | 15,000 | |
| W04014 | 1/4" | 1-1/4" | 1/4" | 3" | 2 | 18,000 | |
| W04016 | 1/4" | 1" | 1/4" | 3" | 2 | 18,000 | |
| W04017 | 1/8" | 1" | 1/4" | 3" | 2 | 18,000 | |
| *W04017-SPE-X | 1/8" | 1" | 1/4" | 3" | 2 | TAC | 18,000 |
| W04022 | 1/4" | 2" | 1/4" | 4" | 2 | 18,000 | |
| W04023 | 1/16" | 1/2" | 1/4" | 2" | 2 | 18,000 | |
| *W04032-SPE-X | 3/16" | 1" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
| W04037 | 1/32" | 1/8" | 1/4" | 2" | 2 | 18,000 | |
| *W04037-SPE-X | 1/32" | 1/8" | 1/4" | 2" | 2 | TAC | 18,000 |
*Customized sizes are acceptable
CNC Feed/Speed (PDF)
| Products Type |
Products Type |
|---|---|
| Spriral Router Bits | Download |
| 2D & 3D Tapered Router Bits | Download |
| V Groove Router Bits | Download |
| O-Flute Router Bits | Download |
| Spoilboard Surfacing Router Bits | Download |
| Bowl & Tray Router Bits | Download |
| Aluminum & Metal Router Bits | Download |
Fusion 360 & Vectric & Carveco & Carbide 3D .tools file
|
Software |
Tool File |
|
Fusion 360 Tools File(Updated To 20251015) |
|
|
Vectric Tools File (Updated To 20251015) |
|
|
Carveco Tools File(Updated To 20251028) |
|
|
Carbide 3D Tools File(Updated To 20251028) |
Frequently Asked Questions
A helical bit that lifts chips upward, ideal for deep plunges and fast chip evacuation.
Use up-cut for deep pockets and efficient chip removal; choose down-cut when you need a splinter-free top face.
Some top-side splintering can occur; minimize it with a backer board or shallow first pass.
Excessive RPM or slow feed causes heat; sharpen or clean the bit and speed up the feed.
Clear chips with strong dust extraction or pause to vacuum; up-cut flutes already help eject debris.
Compression bits give splinter-free faces on both sides; up-cut is faster but may fray the top veneer.
Extra flutes can improve finish but require slower feed per tooth; 2-flute is a good all-round choice.
Too-deep cuts or slow chip evacuation overheat the small shank—use shallower passes and higher feed.
They’re fine if feed direction is correct and stock is clamped; expect more chip spray than in a table.
Use sharp bits, minimize tool overhang, and match feed to RPM to keep chip load steady.
