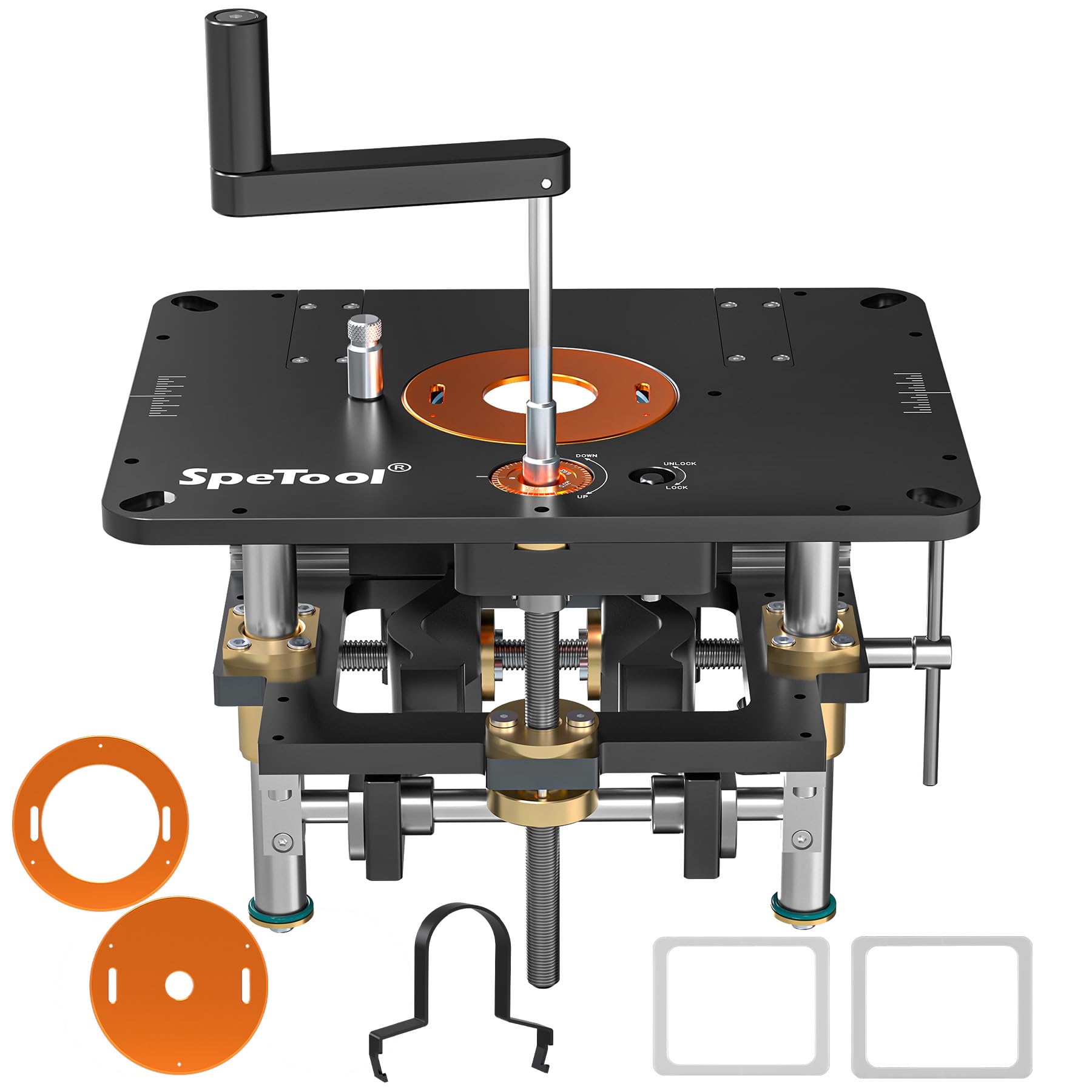

SpeTool P01002 router lift with adjustment crank, installation templates and orange insert rings

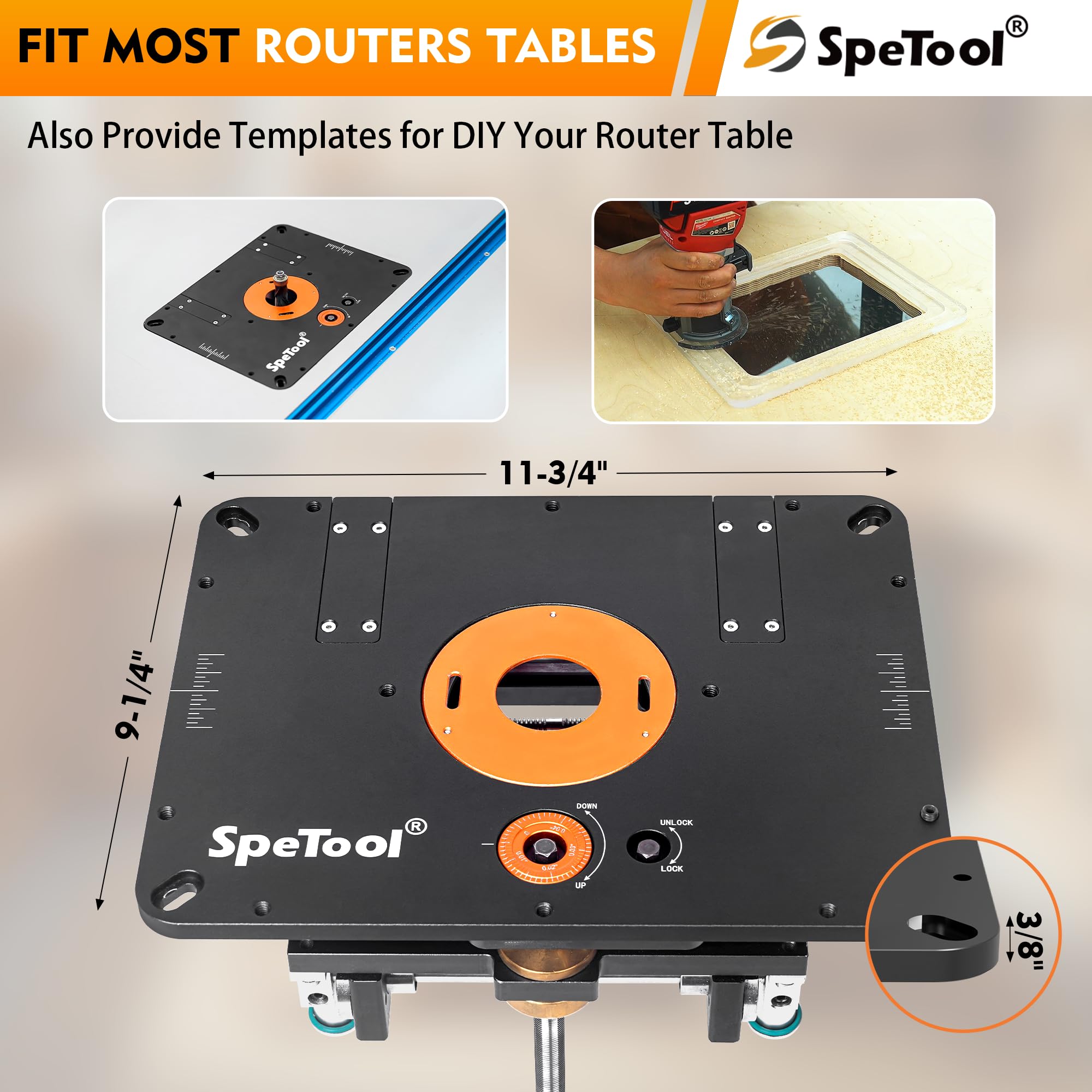

P01002 dimensions: 9-1/4 by 11-3/4 inch plate, table clearance, insert rings and 65–107 mm motor clamp

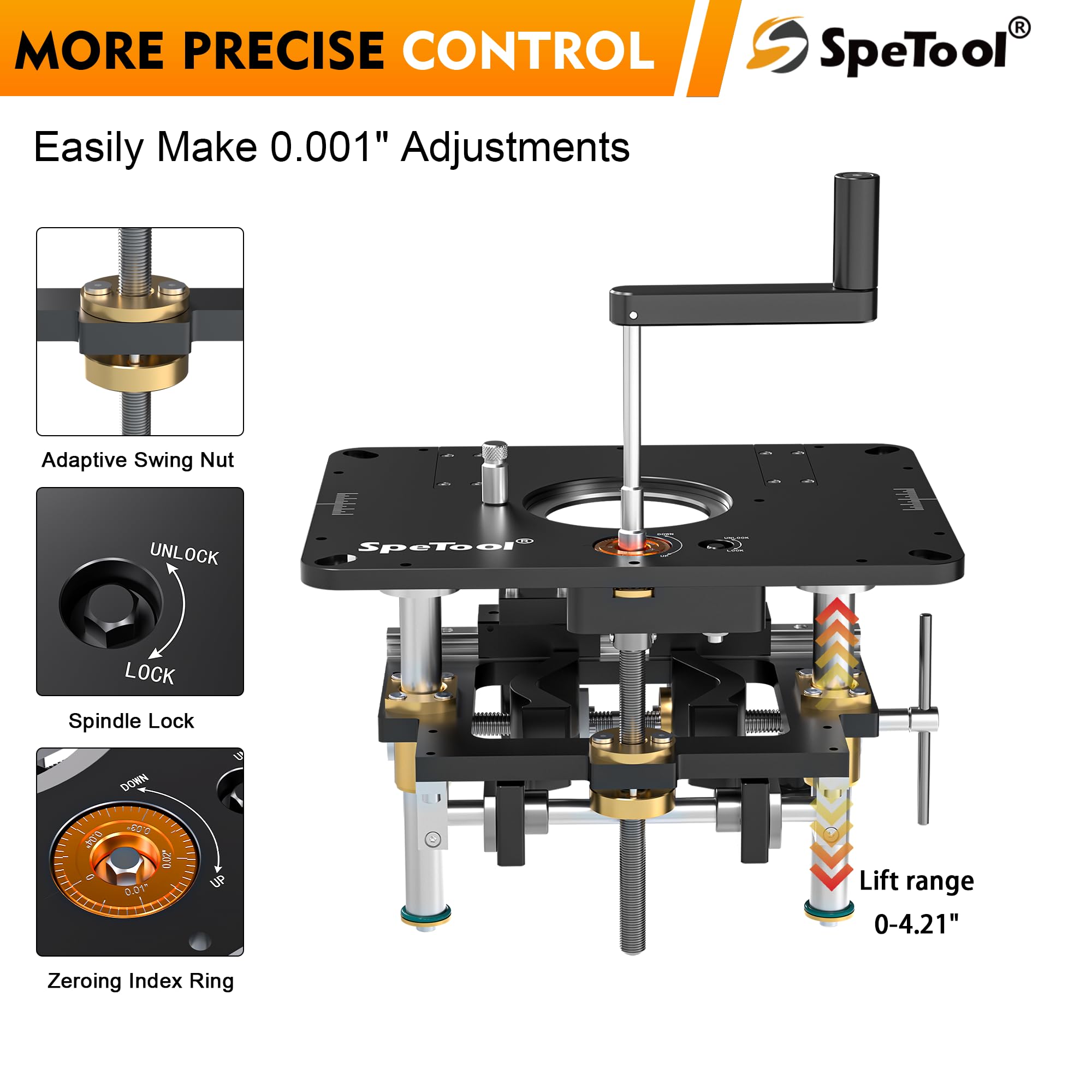

P01002 height adjustment mechanism, separate height lock and zeroing index ring
P01002 plate dimensions and installation template used to prepare a router table opening

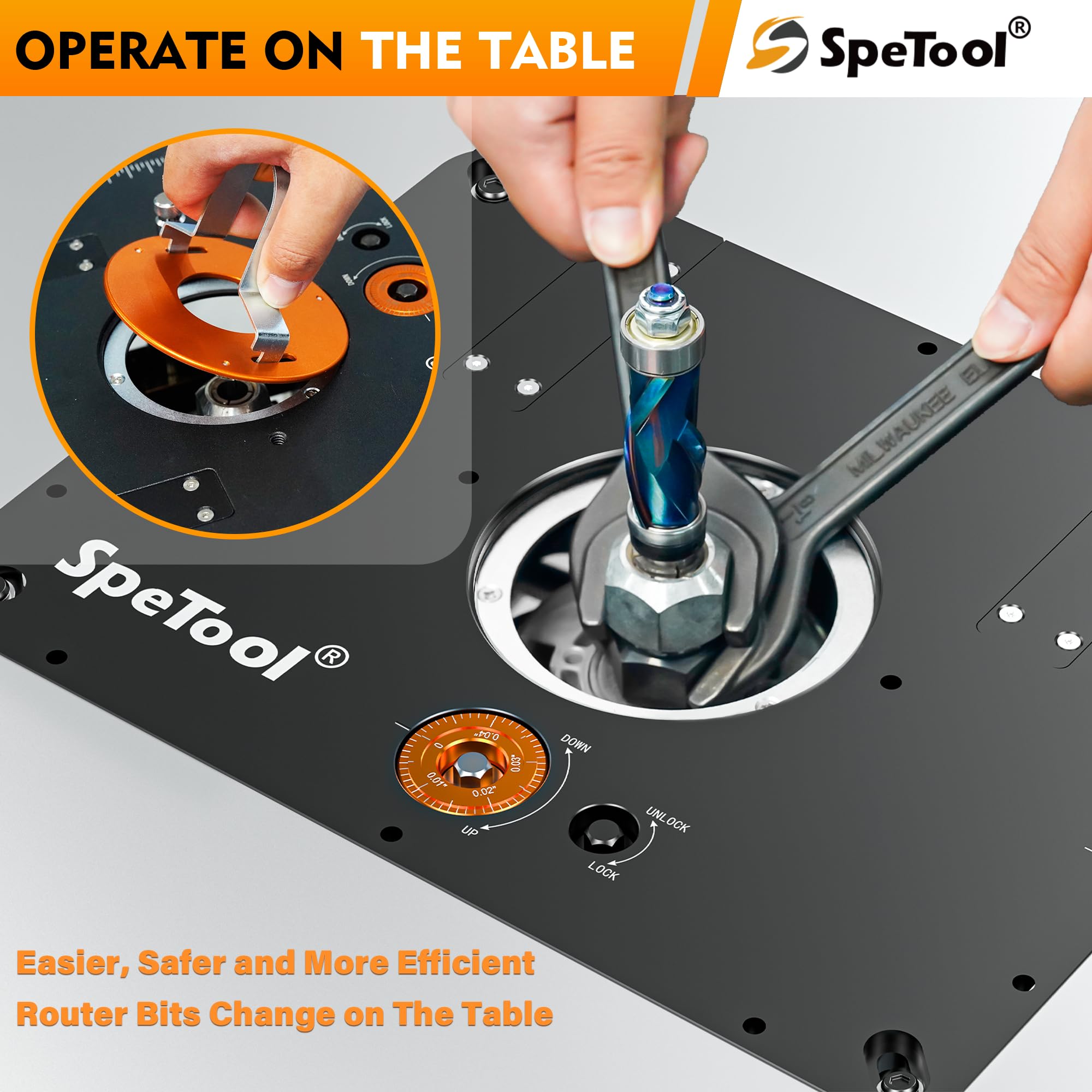

Changing a router bit and removing the magnetic insert ring from above the P01002 table plate

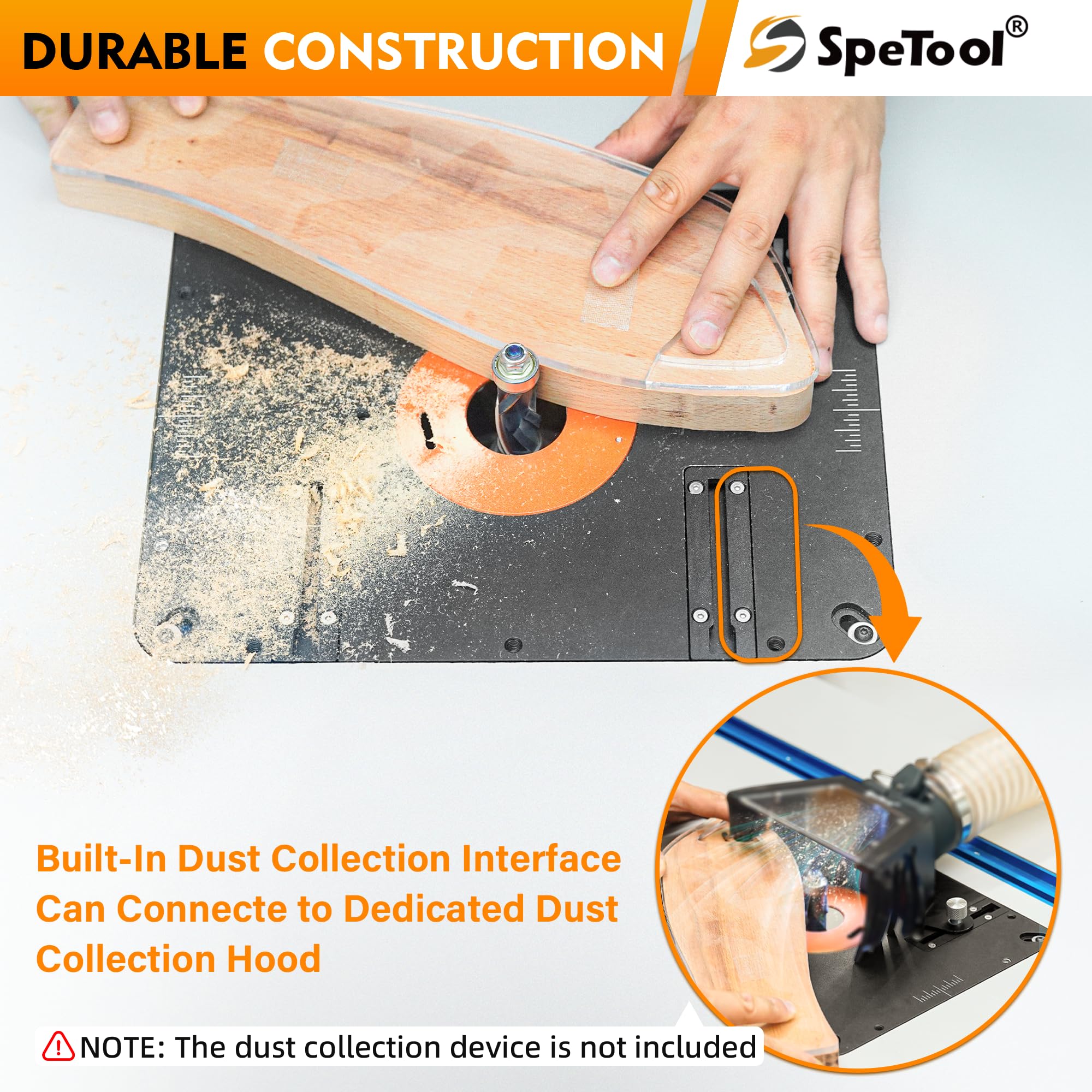

Woodworking with P01002 and its dust collection interface; optional dust hood shown separately

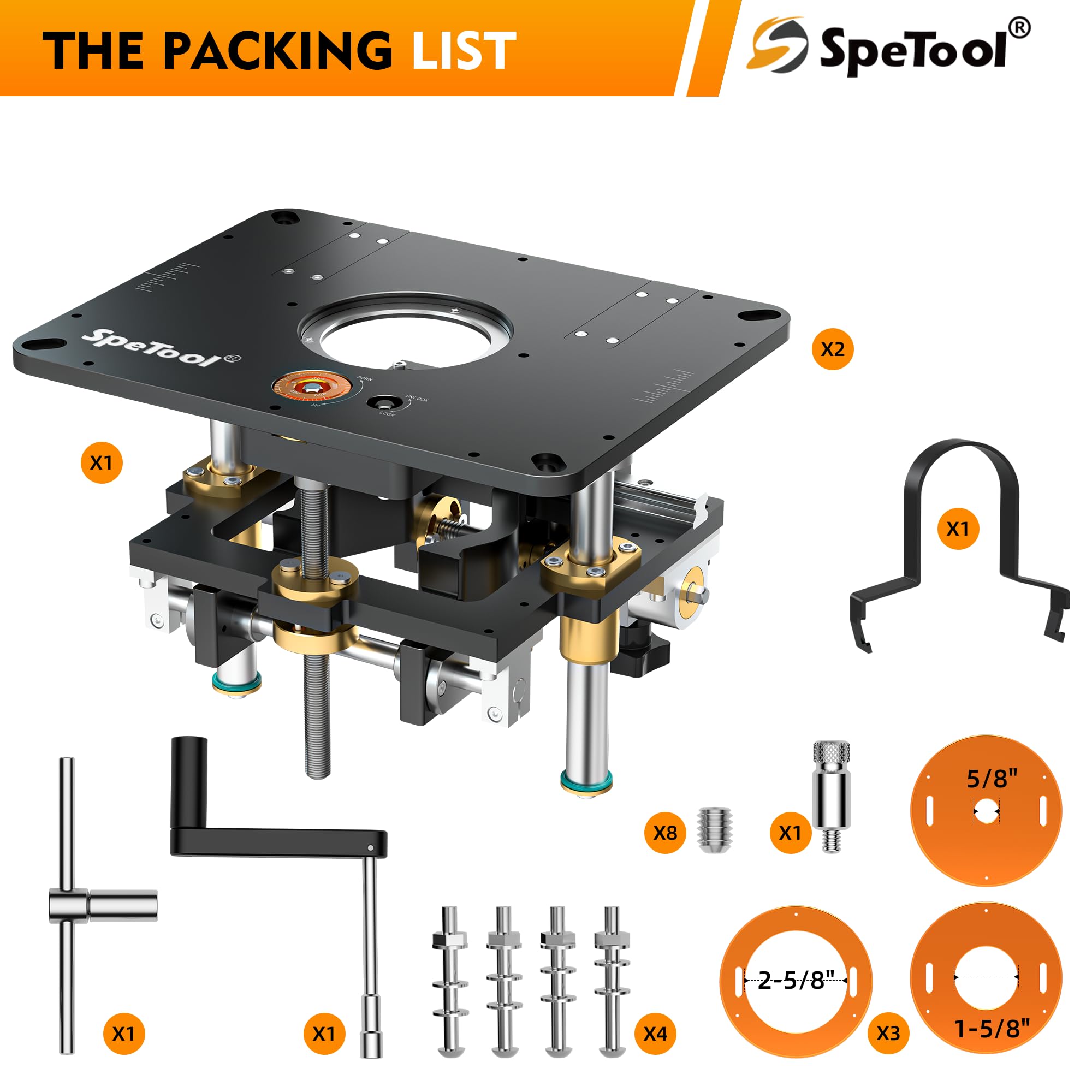

P01002 package contents showing the lift, adjustment tools, mounting hardware and three insert rings
SpeTool P01002 router lift product demonstration video
SpeTool P01002 router lift installation demonstration video

Élévateur de précision pour défonceuse SpeTool P01002

Réglez la hauteur de la fraise depuis le dessus de votre table. Verrouillez-la et reprenez votre projet.

Prix de vente$539.40 CAD Prix normal$581.47 CAD
Sauver 7%
  • Above-table adjustment
  • Separate height lock
  • DIY template included
Check My Motor & Table Fit

Router motor and optional dust hood sold separately.

Quantité:

Read the installation manual (PDF)

Shipping options, applicable taxes and final totals are shown at checkout for your destination.

American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

CHECK YOUR SETUP

Will It Fit My Motor & Table?

Two checks before you buy: the removable motor and the router table. A model match alone does not confirm the complete setup.

1. Check your motor

Measure the straight, cylindrical area that the lift will clamp—not the removable base or handles.

2. Check your table

Enter a model or diameter to check the available guidance. Router table compatibility must be verified separately.
Table fit still needs verification.

This check runs on this page. Your entries are not sent to customer support.

Measure before you order

Nominal motor range
65–107 mm / 2.56–4.21 in
Nominal plate dimensions
9¼″ × 11¾″ / 235 × 298 mm
Plate thickness
⅜″ / 9.5 mm

Plate size is not a cutting dimension. Check the opening, support ledge depth, corner radius, screw locations and clearance below your table against the actual lift and installation template.

Bosch RA1181 owner? Do not treat P01002 as a confirmed drop-in fit. Ask about the P01004 option and confirm the exact table version before ordering.

Check the current installation manual (PDF) →

Ask SpeTool to confirm fit →

Include the exact router model, motor diameter, table model and photos of the opening.

Router model references (9)

Each entry states its verification status. Guidance applies to the removable motor, not every router from that brand or every router table. Verify your exact motor version, clamping surface and table separately.

Bosch 1617EVSLikely fit — verify your setup

Diamètre de moteur de référence : 88.9 mm. Vérifiez votre moteur amovible et votre table avant de commander.

Bosch 1617EVSPKLikely fit — verify your setup

La référence du kit utilise la famille de moteurs 1617EVS. Vérifiez l’étiquette et la version du moteur réel, pas seulement le nom du kit.

DEWALT DW618Likely fit — verify your setup

Diamètre de moteur de référence : 88.9 mm. Vérifiez la zone de serrage cylindrique et l’accès aux commandes.

DEWALT DW618PKLikely fit — verify your setup

La référence du kit utilise un moteur DW618M. Vérifiez l’étiquette, la version et la zone de serrage du moteur réel.

Makita RF1101Likely fit — verify your setup

Diamètre de moteur de référence : environ 82 mm. Vérifiez le moteur amovible et la surface de serrage réelle.

Porter-Cable 690LRLikely fit — verify your setup

Diamètre de moteur de référence : 88.9 mm. Vérifiez le moteur amovible, la zone de serrage et la table.

Makita DRT50Installation confirmed by SpeTool support

Le service d’assistance SpeTool a confirmé une installation avec ce modèle. Vérifiez votre version exacte, le dégagement de la batterie, l’accès à l’interrupteur et la table avant l’installation.

SKIL RT1323Installation confirmed by SpeTool support

Le service d’assistance SpeTool a confirmé une installation avec ce modèle. Vérifiez la version exacte du moteur, la surface de serrage, l’accès aux commandes et la table.

Milwaukee 5615Installation confirmed by SpeTool support

Le service d’assistance SpeTool a confirmé une installation avec ce modèle. Vérifiez la version exacte du moteur, la surface de serrage, l’accès aux commandes et la table.

Bosch MRC23EVS: Non pris en charge : le moteur ne peut pas fonctionner une fois retiré de sa base d’origine. Un résultat fondé uniquement sur le diamètre ne permet pas d’ignorer cette limite.

SEE IT IN ACTION

Precision You Can See. Control You Can Feel.

See the lift and installation process before you plan your setup.

DESIGNED AROUND YOUR WORKFLOW

Engineered for Stable, Repeatable Adjustments

Réglez la hauteur depuis le dessus de la table

Réglez la hauteur depuis le dessus de la table

Le mécanisme à 20 TPI se déplace de 0.05″ par tour complet, ce qui permet de modifier la hauteur de la fraise de manière maîtrisée. Utilisez le cadran de mise à zéro comme repère pour retrouver un réglage.

Les graduations de réglage décrivent le mécanisme ; elles ne garantissent pas la précision de la coupe finie.

Installez le moteur. Verrouillez le réglage.

Installez le moteur. Verrouillez le réglage.

La structure de serrage réglable accueille les corps de moteur cylindriques compatibles dans la plage nominale de 65–107 mm. Vérifiez la géométrie exacte du moteur avant l’installation.

Après avoir réglé la hauteur, serrez le verrouillage de hauteur séparé conformément au manuel.

Une base solide pour votre table de défonceuse

Une base solide pour votre table de défonceuse

La plaque en aluminium soutient l’élévateur dans une ouverture de table correctement préparée. Mettez-la de niveau et fixez-la avant utilisation, en vérifiant le rebord d’appui et les dégagements autour du mécanisme.

Le réglage par le dessus de la table permet de modifier facilement la hauteur au quotidien. L’interface d’aspiration intégrée accueille le capot d’aspiration P01003 en option.

PLAN IT. FIT IT. DIAL IT IN.

Upgrade Your Router Table with Confidence

Existing router table? Check the opening and recess first. Building your own? Plan the opening with the supplied template and current manual; cutting and tools may be required.

  1. Vérifiez la compatibilité de la défonceuse et de la table

    Vérifiez la compatibilité de la défonceuse et de la table

    Mesurez le corps du moteur et vérifiez l’ouverture, le rebord d’appui et les dégagements en vous référant à l’élévateur réel et au gabarit.

  2. Préparez l’ouverture de la table de défonceuse

    Préparez l’ouverture de la table de défonceuse

    Fixez le gabarit et préparez l’ouverture uniquement après avoir vérifié les dimensions. Une découpe et un fraisage peuvent être nécessaires.

  3. Installez et fixez l’élévateur de défonceuse

    Installez et fixez l’élévateur de défonceuse

    Mettez la plaque en place, utilisez les vis de nivellement et une équerre, puis fixez l’élévateur avec les vis de fixation.

  4. Montez la défonceuse et réglez la hauteur

    Montez la défonceuse et réglez la hauteur

    Débranchez l’alimentation, puis serrez fermement le moteur. Vérifiez l’accès aux commandes, réglez la hauteur et serrez le verrouillage de hauteur.

Dimensions & included accessories

Nominal plate: 9¼″ × 11¾″ × ⅜″. Motor clamping range: 65–107 mm.

Router lift, DIY installation template, three magnetic insert rings, insert ring remover, Allen wrench, crank wrench, guide pin, leveling screws and fixing screws. Router motor and P01003 dust hood are sold separately.

Tools & installation preparation

The manual calls for a set square to check leveling. For a custom opening, it describes a jigsaw or router with a template guide bushing and a top-bearing flush-trim bit. Secure the template and use tools appropriate to your table material.

Unplug the router before installation or adjustments. Confirm access to its power switch and speed control.

Installation Guide (PDF)

REAL WOODWORKERS, REAL WORKSHOPS

Trusted by Woodworkers

Read product reviews from the store’s existing customer review system.

  • 5 stars: 43 (96%)
  • 4 stars: 1 (2%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (2%)
Some of the reviews shown are from related products the merchant grouped with this one.
m
mad scientist
 Great product. I highly recommend.

OUTSTANDING product. Turned my tablesaw into a very nice router table.

E
Eddie L Traynham III
Nice little package, easily setup

The Spetool Router Lift package is a well thought out package complete with plexiglass templates for routing out a seat in a piece of wood for the lift kit should you not have a Pre-cut table ready for installation.

The lift is a heavy duty lift with a smooth action providing more than enough lift for any project. The lift easily fit my DeWalt DWP611 Compact Router. I have not as yet had a chance to try it out as I am looking to add dust collection and a miter fence to the package, but don’t anticipate any problems routing out projects in its current configuration.

G
Geoff
Best Bang for the Buck

I shopped for a router lift for months before choosing the SpeTool router lift. None of the other offerings were as versatile or as well made. I needed a way to use a Porter Cable 3 1/4hp router that is 4.2" in diameter, and most of the other lifts could not accommodate this large router. In addition, the SpeTool installation was very simple and straightforward. From the time I unpacked the parts to the time I had the unit in place and ready to use was a little over 1 hour. I installed it in a wing on my table saw using the supplied templates and it fit perfectly. I've been using the SpeTool router lift for several weeks now and I am impressed by how easy it is to operate and how accurate it is in use. Previously, I had a smaller router attached to a plate that had to be removed from the table each time to change bits or when adjustments were needed The SpeTool lift is much easier. I would recommend it to anyone needing an easy to install and accurate router lift at an affordable price.

J
John
Quality Router Lift

This Router lift is top quality with a really accurate cut out jig which gives a perfect installation. I have just installed and cannot find any fault with this piece of equipment all the attachments are also top quality
If I was to suggest an added piece of detail that would add to the quality is to have caps to cover the bolts which bolt it down.

J
Jose Alvarez
Very satisfied

I am very satisfied with the Spe Tool Router lift; it is magnificent, very practical, functional, and above all, economically priced compared to other on the market.

J
Julian

Never arrived

R
Raymond Lambert
Worth the money

I’ve been wanting to upgrade my router capability for a long time. The SpeTool has made life so much easier and efficient. I love how quickly I can make changes to both routers and bits. Too easy. Adjustments are simple and I don’t need to work from underneath. Highly recommend considering one if you like to use routers. Frankly, the more I use them they more uses I find for them.

L
Lane

Love it. Extremely high quality and can fit both my porter cable and spinrite routers.

M
Marc Emmerke
Excellent Router Lift

This lift is easy to install especially with the included acrylic templates. The operation of the lift is smooth and very accurate. Love it!

Q
Qazar

They were kind enough to offer me a full refund even though my return window had expired. That's good customer service. It really is a solid tool and works great.

S
SEGUNDO ARIAS

It's not bad—it's well-made and highly precise, but it's very heavy and has complex internal components.

A
Anibal Venegas

This is a great accessory for the Tupí router, allowing me to perform extremely precise operations on my new woodworking router table.

m
marilyn
 Fantastic product

Easy install, fits all 3 of my routers. Most of all it comes with templates which make the install a breeze

G
G Briel
 high quality

100% satisfied. Excellently made.

T
Trevor

Fantastic marketing for the product says what it does to the T. I like the locking feature on there and the adjustable mount for all size of routers. I wish I could have gotten 10 leveling screws rather than the 8. Granted I had some bolts handy to help lvl the table in some spots but for the price i really think 2 more Lvling screws could have been added for the full capability if it was needed for the next consumer. Other than that the 1/2” almost zero clearance really helps and the other throat plates that come with it are astounding as well. The lvling screws were my only interjection.

K
Kristin L Conway
 Quality

Great Lift.

y
yeah
Great Lift

A well made and designed tool

M
Mark Sheehan
 Excellent router lift!

Extremely well made. Great build quality. Came well packaged and exceeded expectations!

S
Sodiepop
 Great tool

Books as described a little overpriced I think but it does fit almost any router trim a full size very sturdy build

O
Oswaldo Amado
Excelente artículo y excelente servicio del vendedor

Un artículo de excelente calidad, buen material, todo muy bien, el envío fue rápido, un excelente vendedor

R
Ron Babineau
No short cuts

Well made

R
Richard Kolodny
 Extremely happy

I love it...easy install with provided templates. Steel & brass. Excellent ma winery. Router holding setup is much better that any others I looked at. Highly recommend

B
Bill Hall
 Spe Tool router lift, very easy to use.

This SpeTool Router lift is great. Much easier to use to set up my router bits for my work pieces. Highly recommend this product. However, had to modify my router Bosch Router table RA1171. It was simple to do.

D
David A. Twente
Router table lift system for larger sized routers.

I finally got the time to add this to my old DIY router table. Installation was easy, even though the instruction book was pretty minimal. I certainly appreciate the precision lift and the ease of changing router bits. It is designed to fit a wide range of routers, and it is easy to remove or install a router quickly. This is a structurally strong, highly accurate piece of equipment. I think it is a bit over priced, but the quality is much higher than some of the other units I have looked at.

H
Harvey Lynn Edwards Jr.
Worth the money!

Wow, this thing is nice. So much better than the one I had. Very nice construction, works super smooth. Fits ever router I own except maybe the Festool. I haven't tried it yet. I'll update when I try it.

C
College101
budget friendly, high quality

Router is as advertises, solid build quality. The lift arrived packaged well and ready for use. The included templates where a great add for install.

S
SNC Property Holdings
Great Design

This router mount is 1st class. Easy to set up and use. It fit perfectly into my Old School Router Plate.

S
S Cochran
Precision Control ... Finally!

I originally bought my router and router table from a Big Box Store. The router table came with a stand, so you probably know which one I have. The fixed based routers are great for any work you need to set and route; not so good for making adjustments via hex adjustments.
The difference in working with my router is night and day. I can make the slightest adjustments and lock them in. Each pass is consistent from the first piece to the last. I have made micro adjustments that are dialed in on the first go. I am extremely satisfied with the results.
Highly Recommend.

d
double
Quality router lift

SepTool router lift was just what I had been searching for. Perfect for my 4 inch router motor. Seems to be made well with metal and aluminum construction. Lift works smooth and accurate with fine adjustments.

BEFORE YOU BUY

P01002 Questions, Answered

Le P01002 est-il compatible avec ma défonceuse ?

La plage de serrage nominale est de 65–107 mm au niveau du corps cylindrique droit du moteur. Le diamètre ne suffit pas : vérifiez la forme du moteur, la zone de serrage, la base amovible et l’accès aux commandes. Utilisez l’outil de vérification de compatibilité et contactez SpeTool en indiquant votre modèle exact.

Est-il compatible avec ma table de défonceuse ?

Les dimensions nominales de la plaque sont de 9¼″ × 11¾″ × ⅜″. Vérifiez votre table de défonceuse à l’aide du guide d’installation actuel et du gabarit fourni. Contrôlez la feuillure, l’ouverture traversante, le rebord d’appui, le rayon des angles, les points de fixation et l’espace sous la table avant toute découpe ou installation.

Le P01002 est-il compatible avec une table Bosch RA1181 ?

Ne supposez pas que le P01002 remplace directement la plaque dans l’ouverture de la RA1181. SpeTool propose une option P01004 pour les tables Bosch. Demandez au service d’assistance de confirmer la version exacte de la table, la plaque et les exigences de montage avant de choisir un élévateur.

Puis-je régler la hauteur depuis le dessus de la table ?

Oui. Utilisez la clé à manivelle sur le cadran de réglage de la hauteur, conformément au manuel officiel. Desserrez le verrouillage de hauteur avant le réglage, puis resserrez-le après. Débranchez la défonceuse avant toute installation ou tout changement de fraise.

L’élévateur comprend-il un moteur de défonceuse ou un capot d’aspiration ?

Non. Ce produit P01002 vendu seul comprend l’élévateur et les accessoires d’installation indiqués. Le moteur de défonceuse, la table, les fraises et le capot d’aspiration P01003 en option ne sont pas inclus.

Un gabarit d’installation est-il inclus ?

Oui. Le gabarit d’installation à réaliser soi-même aide à préparer une ouverture adaptée dans votre propre table. Il ne rend pas toutes les ouvertures existantes compatibles. Vérifiez la feuillure, le matériau de la table, l’appui et les dégagements avec le manuel actuel avant de découper ; des outils et un usinage peuvent être nécessaires.

Que contient le colis ?

L’élévateur de défonceuse, le gabarit d’installation à réaliser soi-même, trois bagues d’insertion magnétiques, un outil de retrait des bagues, une clé Allen, une clé à manivelle, un doigt de guidage, des vis de nivellement et des vis de fixation. Le moteur de défonceuse et le capot d’aspiration P01003 en option sont vendus séparément.

Comment fonctionnent la livraison, les retours et la garantie ?

Les options de livraison, les frais et les taxes dépendent de votre destination et sont indiqués lors du paiement. Consultez notre politique de livraison et nos conditions de retour et de garantie en vigueur avant de commander.

Si votre livraison est retardée ou si vous avez besoin d’aide, contactez SpeTool en indiquant votre numéro de commande. Ne publiez pas de données personnelles liées à votre commande dans un avis public.
