A router bit with a black steel body and silver-colored carbide inserts arranged in a spiral pattern around the shank.
SpeTool Ranger Series CA W07020 Carbide Insert Flush Trim with Top and Bottom Double Bearings 32mm Dia x 1/2" Shank x 63.5mm Cutting Length x 5" Long Pattern Template Router Bit
SpeTool Ranger Series CA W07020 Carbide Insert Flush Trim with Top and Bottom Double Bearings 32mm Dia x 1/2" Shank x 63.5mm Cutting Length x 5" Long Pattern Template Router Bit
SpeTool Ranger Series CA W07020 Carbide Insert Flush Trim with Top and Bottom Double Bearings 32mm Dia x 1/2" Shank x 63.5mm Cutting Length x 5" Long Pattern Template Router Bit

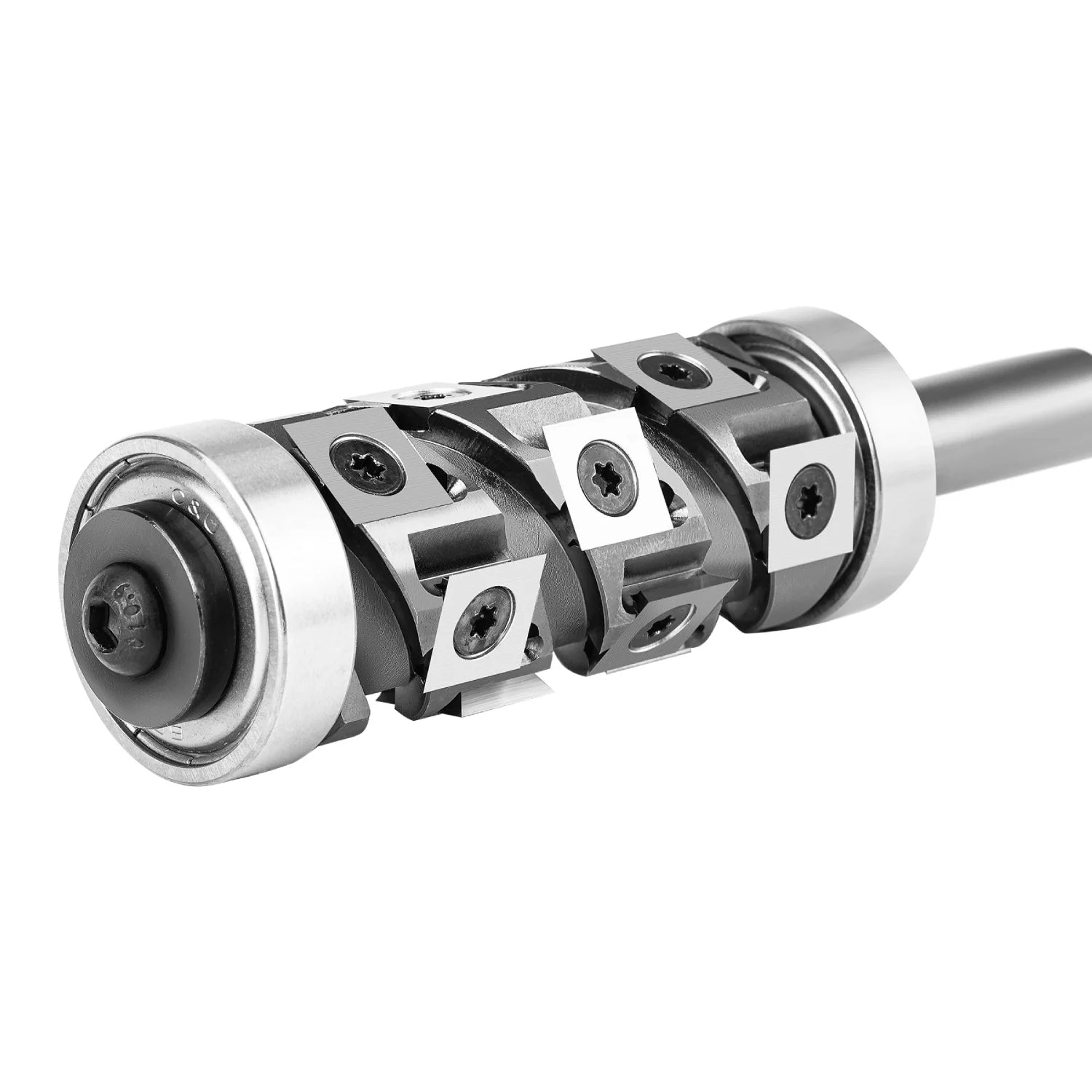

SpeTool Ranger Carbide Insert Flush Trim Router Bit 32mm Dia 1/2" SHK
SpeTool Ranger Carbide Insert Flush Trim Router Bit 32mm Dia 1/2" SHK
SpeTool Ranger Carbide Insert Flush Trim Router Bit

SpeTool Ranger Series CA W07020 Carbide Insert Flush Trim with Top and Bottom Double Bearings 32mm Dia x 1/2" Shank x 63.5mm Cutting Length x 5" Long Pattern Template Router Bit

SKU: CA-SP-IWTBB-D32-d1/2
$152.05 CAD $157.79 CAD
Sold out

Shipping calculated at checkout

The SpeTool Ranger Heavy Duty Flush Trim Router Bit is built for maximum durability and precision, featuring a robust multi-blade design and high-quality bearings for smooth, tear-out-free trimming. Ideal for thick hardwoods, plywood, MDF, and laminate.

Excellent For Cutting:

  • MDF
  • Chipboard
  • Solid Wood
  • Density Board
  • Melamine Board
  • Particle Board
  • Veneer Plywood (Laminate)

Specifications:

Cutting Length: 63.5mm
Cutting Diameter: 32mm
Shank Size: 1/2 inch

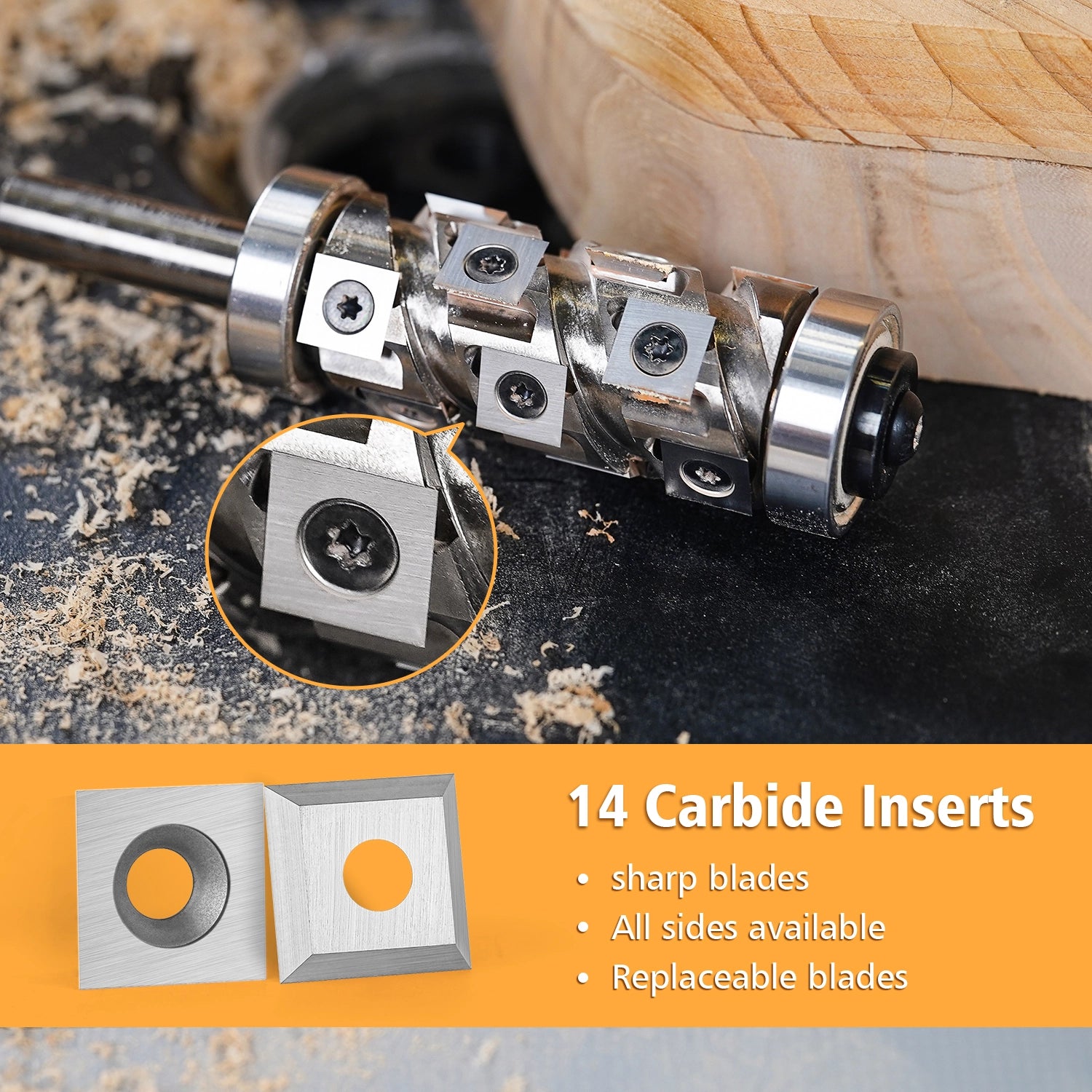

Includes 14 pieces of (12mmx12mmx2.2mm) carbide inserts

⚠️Important Notes:
We recommend using this bit with a table-mounted router for optimal performance. Always ensure the set screws are tightened securely before each use. This practice guarantees a stable work environment and excellent cutting results.
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Ranger Power – Trim Strong, Trim Clean.

Heavy-Duty Bits for Flawless Finishes.

Similar Size

Part No.

Cutting Dia.
(D)

 Cutting Height
(B)

Shank Dia.
(d)

Overall Length
(L)

Blades

 Bearing Inserts Rec. RPM
W07020 32mm 63.5mm 1/2" 5" 14 Top & Bottom O01001 14,000
W07038 3/4" 2-1/2" 1/2" / 7 Top & Bottom O01001 14,000

*Customized sizes are acceptable

Frequently Asked Questions

The Ranger features replaceable carbide inserts and top & bottom bearings in a spiral pattern, offering clean, tear-free trimming and extended tool life. Its steel body adds durability and minimized deflection.

The Ranger Series includes easy-to-remove carbide blades that can be rotated or replaced—no need to change the entire bit.

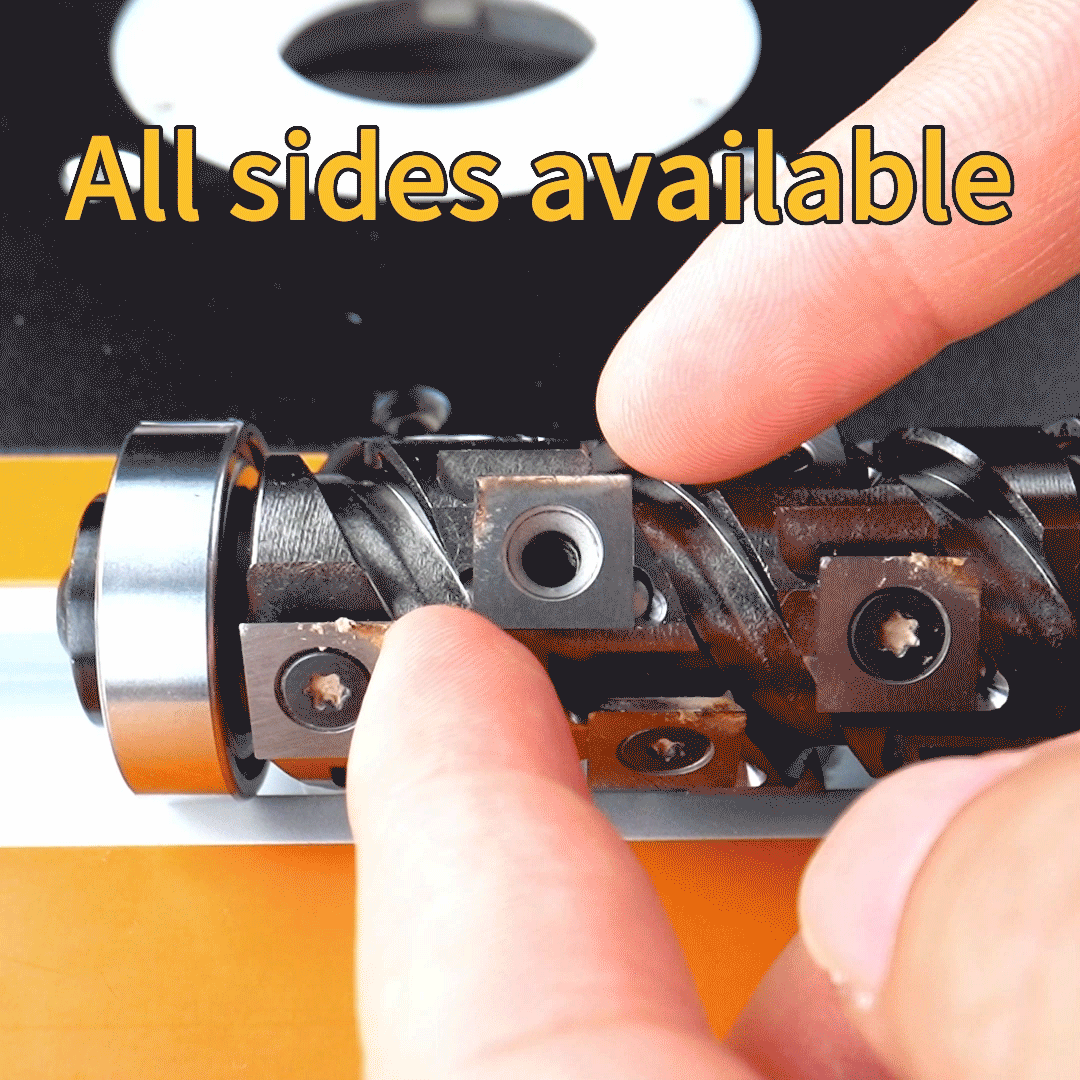

Each insert offers four cutting edges that can be rotated as they dull. That effectively multiplies the tool life before needing replacements.

Yes. One reviewer notes it “makes short work of hardwood… produces a nice smooth edge,” particularly after rotating the inserts.

Best performance is achieved with a table-mounted router. Handheld use is possible but requires steady, controlled passes due to its robust design.
