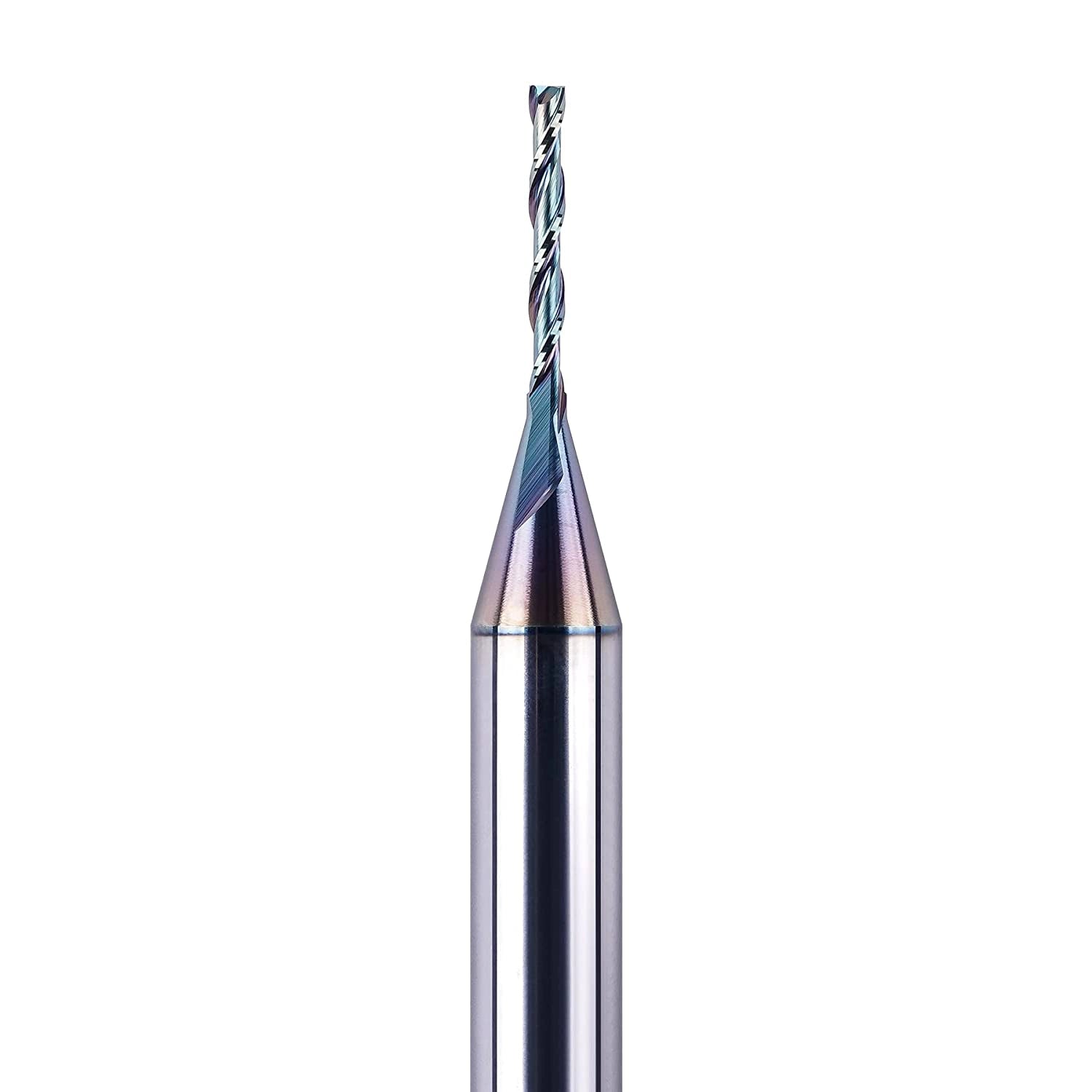

SpeTool slender spiral router bit with multicolored cutting flutes, shown upright.

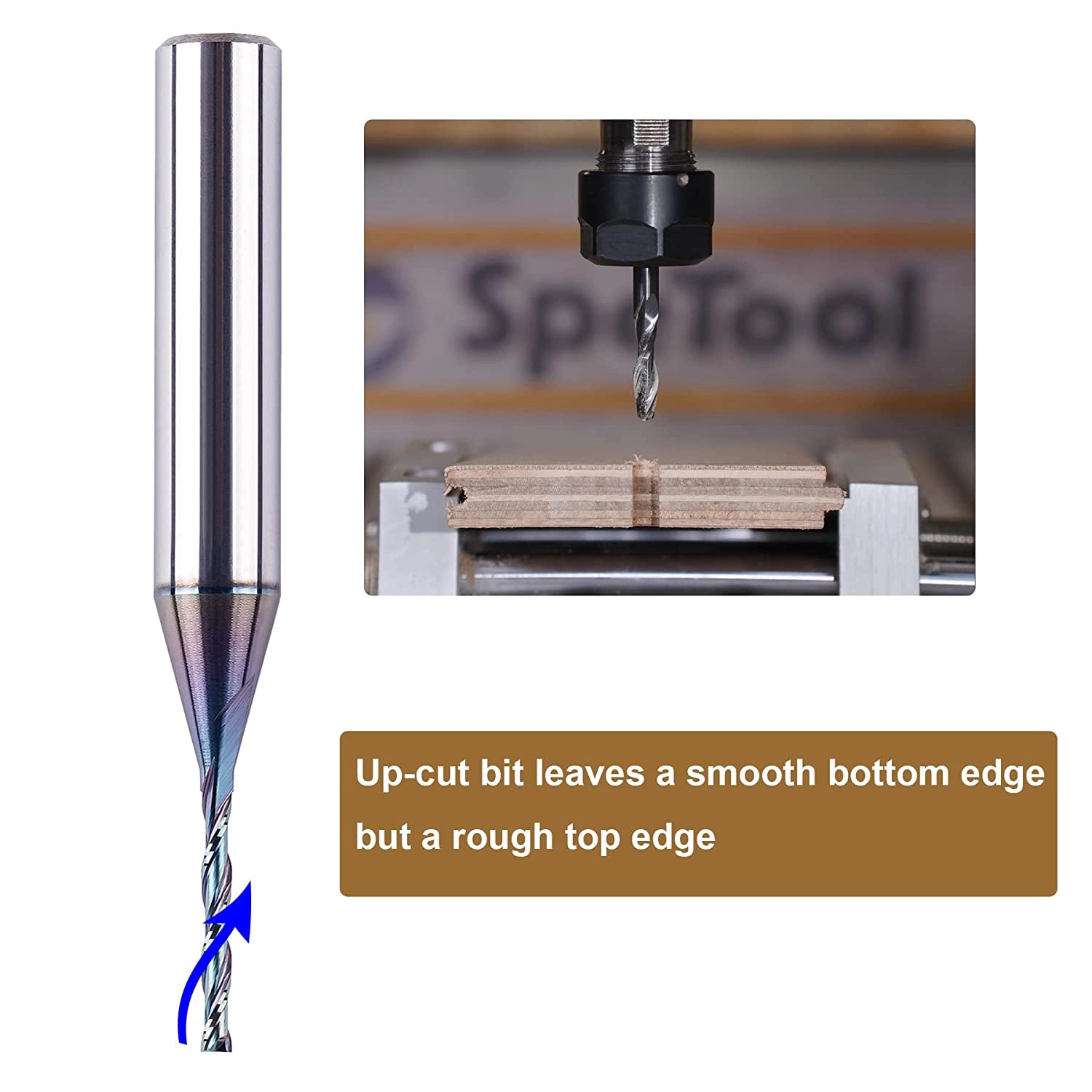

SpeTool upcut spiral router bit with a dimension diagram and an illustration of a groove in wood.
SpeTool slender spiral router bit with close-ups of its cutting tip, flutes and shank.
SpeTool upcut spiral router bit diagram with an inset showing a routed wooden edge.
Angled close-up of a SpeTool slender spiral router bit.
Close-up of the narrow multicolored cutting flutes on a SpeTool router bit.
Examples of carved wooden plaques with emblems and personalized lettering.
Early Access · 8% OFF Sitewide Nov 20–25 · No minimum spend

SpeTool CA W04023 SPE-X Extra Tool Life Coated SC Spiral Plunge 1/16" Dia x 1/4" Shank x 1/2" Cutting Length 2" Long 2 Flute Up-Cut Router Bit

SKU: CA-SP-D1/4-1/16-U-TAC-FBA
Sale price$37.41 CAD

Shipping calculated at checkout


An Up Cut Router Bit is designed to pull chips upward as it cuts, giving you clean bottom edges and efficient chip removal. Ideal for deep cuts, slotting, and mortising in wood, MDF, and plywood.

Excellent For Cutting:

  • MDF/HDF
  • Plywood
  • Melamine
  • Laminate
  • Softwood/Hardwood
  • Veneered Plywood

TOOL SPECS: Solid carbide, up cut spiral with 1/16" cutting diameter, 1/4" shank, 1/2" cutting length, and 2" overall length for use in routers with a 1/4" collet.

 TAC Coating: Enhances cutting edge sharpness and lubricity, reducing heat and oxidation buildup. Delivers superior cutting quality and durability—lasting up to 2.5 times longer than uncoated bits.
20 in stock
Quantity:
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Ready to Cut Like Never Before?

Frequently Asked Questions

A helical bit that lifts chips upward, ideal for deep plunges and fast chip evacuation.

Use up-cut for deep pockets and efficient chip removal; choose down-cut when you need a splinter-free top face.

Some top-side splintering can occur; minimize it with a backer board or shallow first pass.

Excessive RPM or slow feed causes heat; sharpen or clean the bit and speed up the feed.

Clear chips with strong dust extraction or pause to vacuum; up-cut flutes already help eject debris.

Compression bits give splinter-free faces on both sides; up-cut is faster but may fray the top veneer.

Extra flutes can improve finish but require slower feed per tooth; 2-flute is a good all-round choice.

Too-deep cuts or slow chip evacuation overheat the small shank—use shallower passes and higher feed.

They’re fine if feed direction is correct and stock is clamped; expect more chip spray than in a table.

Use sharp bits, minimize tool overhang, and match feed to RPM to keep chip load steady.
