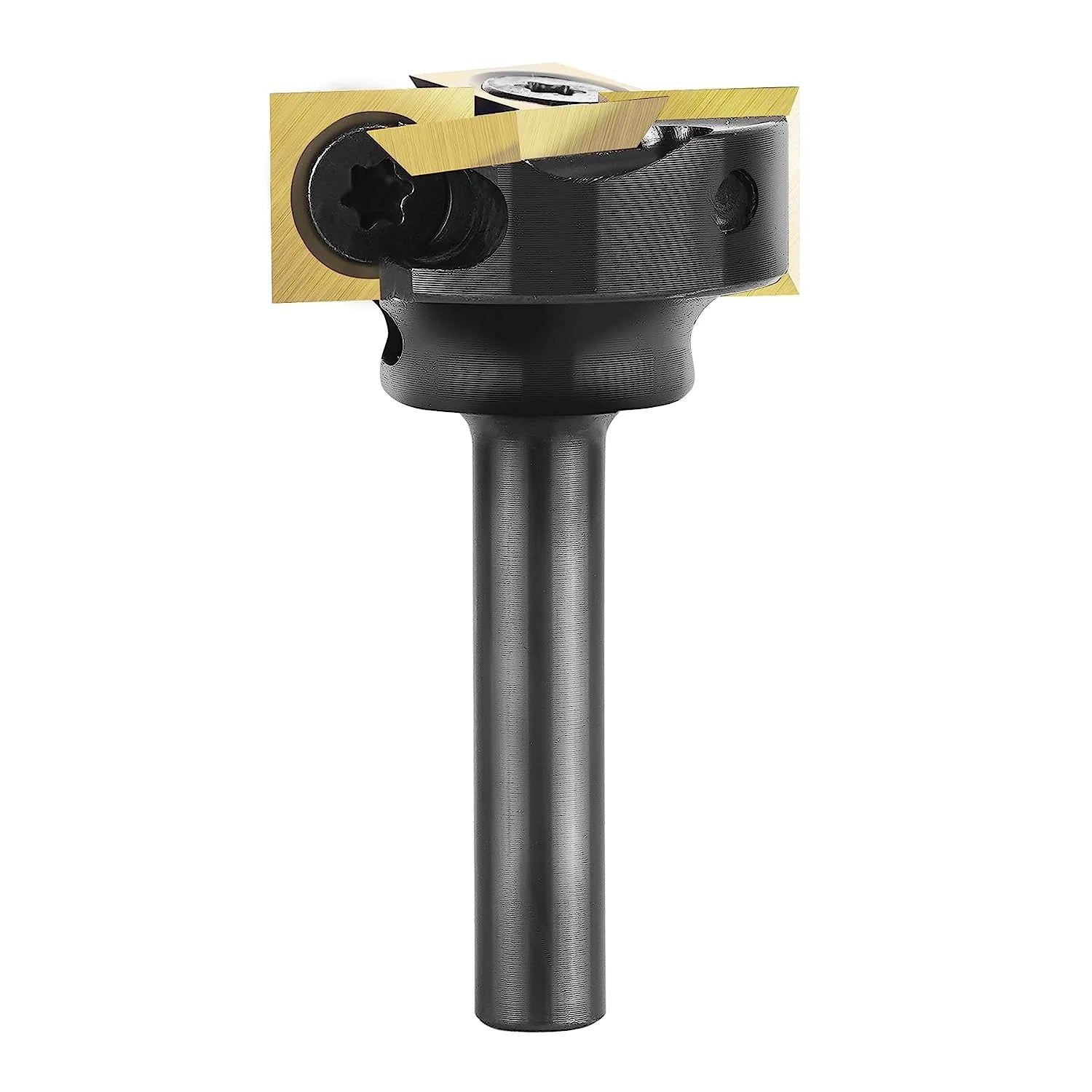

SpeTool CA W05001 ATS Coated Insert Mini Surfacing & Rabbeting Flycutter 2+2 Flute Design 1" Diameter x 1/4" Shank Router Bit
Spoilboard Surfacing Router Bits are built for fast, smooth, and precise flattening of CNC spoilboards, slabs, and large wood surfaces. With ultra-sharp carbide inserts and a durable body, they deliver clean cuts, extend tool life, and reduce sanding—perfect for keeping your CNC bed true and ready for accurate machining.
Excellent For Cutting:
- MDF
- Chipboard
- Hardwood
- Plastic
- Plywood
- Fiberboard
- Softwood
- Acrylic

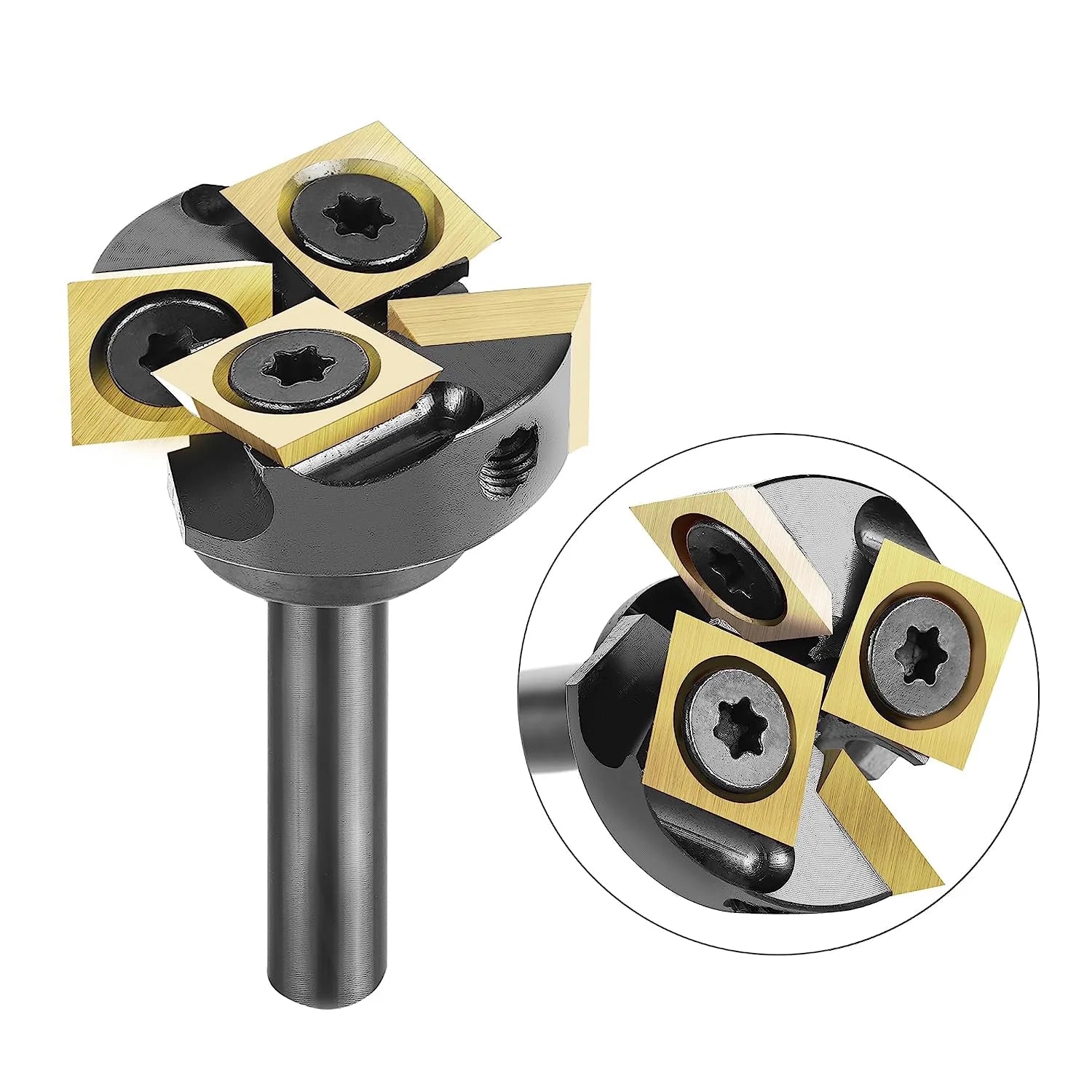

TOOL SPECS: ¼" shank, 1" cutting diameter, 2+2 flute design with 10×10×2.2 mm four-edge carbide inserts for precise bottom cleaning.
FAST & SMOOTH: Two main cutters remove material efficiently while twin up-shear scorers deliver a smoother finish in fewer passes.
LONG-LASTING VALUE: ATS-coated carbide inserts provide heat and wear resistance, keeping edges sharp and delivering up to 2.5× tool life—rotate or replace inserts, not the bit.
Quantity:
Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.
Smooth starts with the right bit.
Similar Size
| Part No. |
Cutting Dia. |
Shank Dia. |
Overall Length |
Flute |
Coating |
Repl. Blades |
Rec. RPM |
|---|---|---|---|---|---|---|---|
| W05001 | 1" | 1/4" | 1-4/5" | 2+2 | O01002 | 18,000 | |
| *W05001-ATS | 1" | 1/4" | 1-4/5" | 2+2 | ATS | O01008 | 18,000 |
| W05002 | 2" | 1/2" | 2-1/5" | 3 | O01001 | 18,000 | |
| *W05002-ATS | 2" | 1/2" | 2-1/5" | 3 | ATS | O01004 | 18,000 |
| W05003 | 2-1/2" | 1/2" | 2-4/5" | 4 | O01001 | 18,000 | |
| *W05003-ATS | 2-1/2" | 1/2" | 2-4/5" | 4 | ATS | O01004 | 18,000 |
| W05004 | 1-1/4" | 1/4" | 2" | 2+2 | O01002 | 18,000 | |
| *w05004-ATS | 1-1/4" | 1/4" | 2" | 2+2 | ATS | O01008 | 18,000 |
| W05010 | 3" | 1/2" | 2-5/6" | 2+2 | O01001 | 18,000 | |
| *W05010-ATS | 3" | 1/2" | 2-5/6" | 2+2 | ATS | O01004 | 18,000 |
| W05014 | 3-1/4" | 1/2" | 3" | 5 | O01010 | 12,000 |
*Customized sizes are acceptable
CNC Feed/Speed (PDF)
| Products Type |
Products Type |
|---|---|
| Spriral Router Bits | Download |
| 2D & 3D Tapered Router Bits | Download |
| V Groove Router Bits | Download |
| O-Flute Router Bits | Download |
| Spoilboard Surfacing Router Bits | Download |
| Bowl & Tray Router Bits | Download |
| Aluminum & Metal Router Bits | Download |
Fusion 360 & Vectric & Carveco & Carbide 3D .tools file
|
Software |
Tool File |
|
Fusion 360 Tools File(Updated To 20251015) |
|
|
Vectric Tools File (Updated To 20251015) |
|
|
Carveco Tools File(Updated To 20251028) |
|
|
Carbide 3D Tools File(Updated To 20251028) |
Frequently Asked Questions
Designed for leveling and cleaning the sacrificial spoilboard on CNC tables or router sleds. Wide diameter and multiple flutes ensure efficient flattening.
A ½" shank offers greater rigidity and less vibration compared to thinner shanks.
Replaceable insert bits (like Amana's with 4-sided knives) offer better longevity—cheaper over time versus replacing entire bits.
Absolutely—surfacing bits perform flat surfacing much faster than small end mills, significantly reducing runtimes.
Yes—but may still require sanding afterward for full smoothness.
Community reports describe dust clouds on “cosmic scales”—strong dust collection is essential.
Routers with 2¼ HP+, ½" collet, variable speed, and soft start are preferred. Examples: Porter-Cable 890, Bosch 1617 EVS.
Some recommend raising spoilboard height or using a shorter sled to compensate.
Yes—take shallow passes, reduce RPM, and keep bit moving to avoid burning.
Use appropriate feed/fine passes and larger diameter bits; users reported no ridges on 5×8’ table using 2.5" bit.
