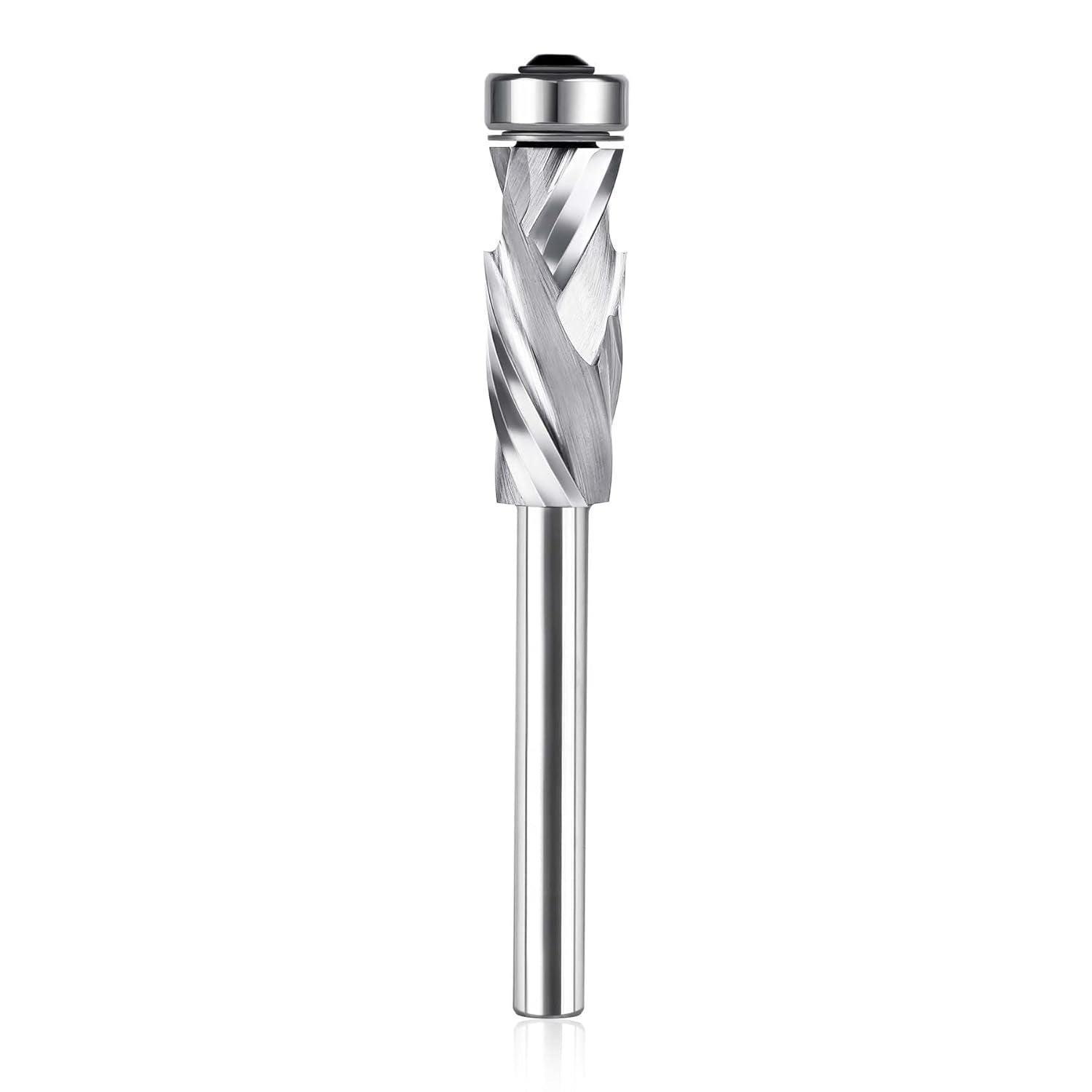

SpeTool CA W07040 SC Bottom Bearing Compression Flush Trim 1/2" Dia x 1/4" Shank x 1-1/4" Cutting Length x 3-1/4" Overall Long Template Router Bit

SKU: CA-WTUD2FL-D1/2-H1/4
$70.53 CAD

Shipping calculated at checkout

Ultimate Flush Trim Bits provide precise, clean trimming with durable spiral cutting edges designed to reduce tear-out and deliver smooth finishes. Ideal for use with templates on wood, plywood, MDF, and laminates, these bits ensure professional-quality results in both handheld and router tables applications.

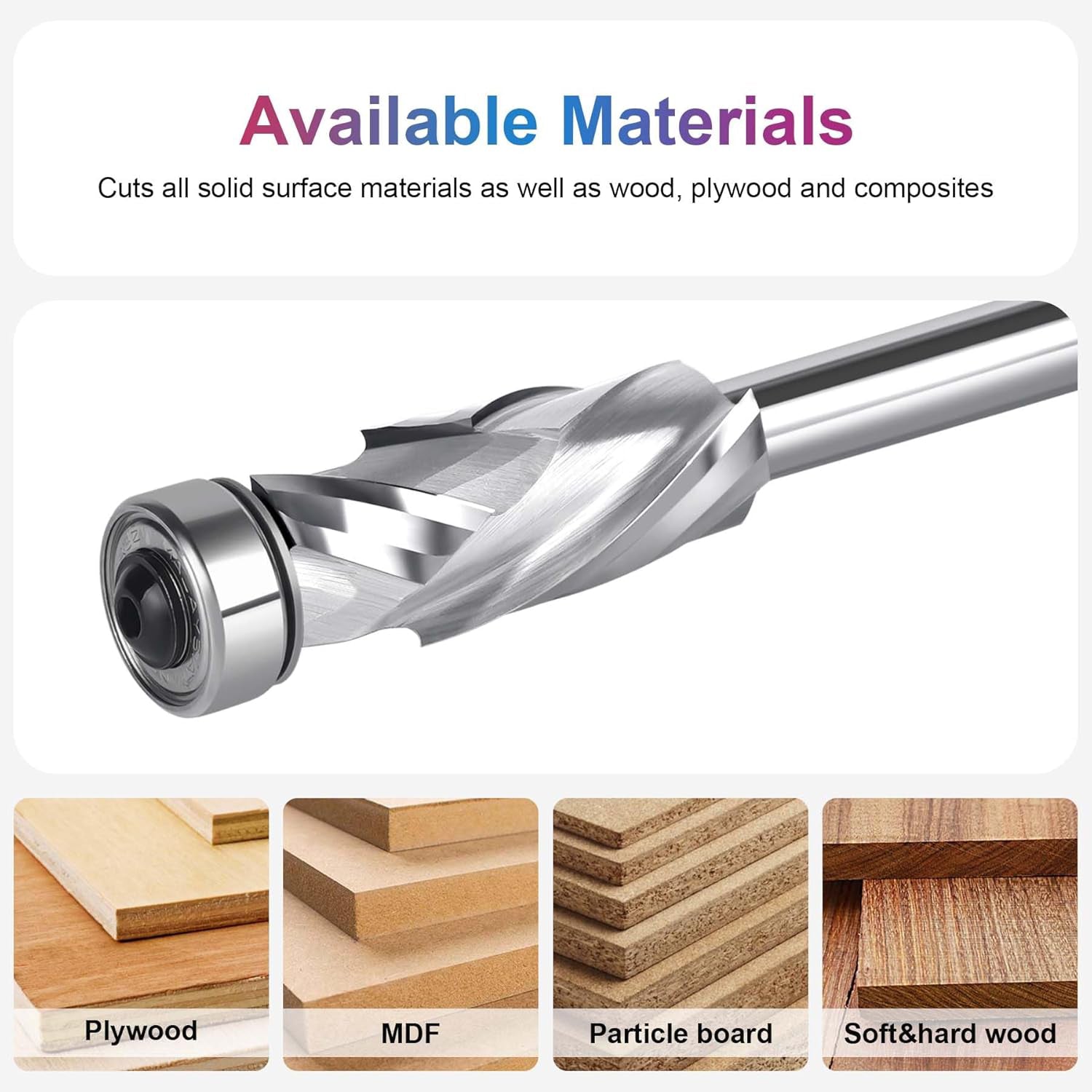

Excellent For Cutting:

  • MDF
  • Plywood
  • Laminate
  • Softwood
  • Hardwood

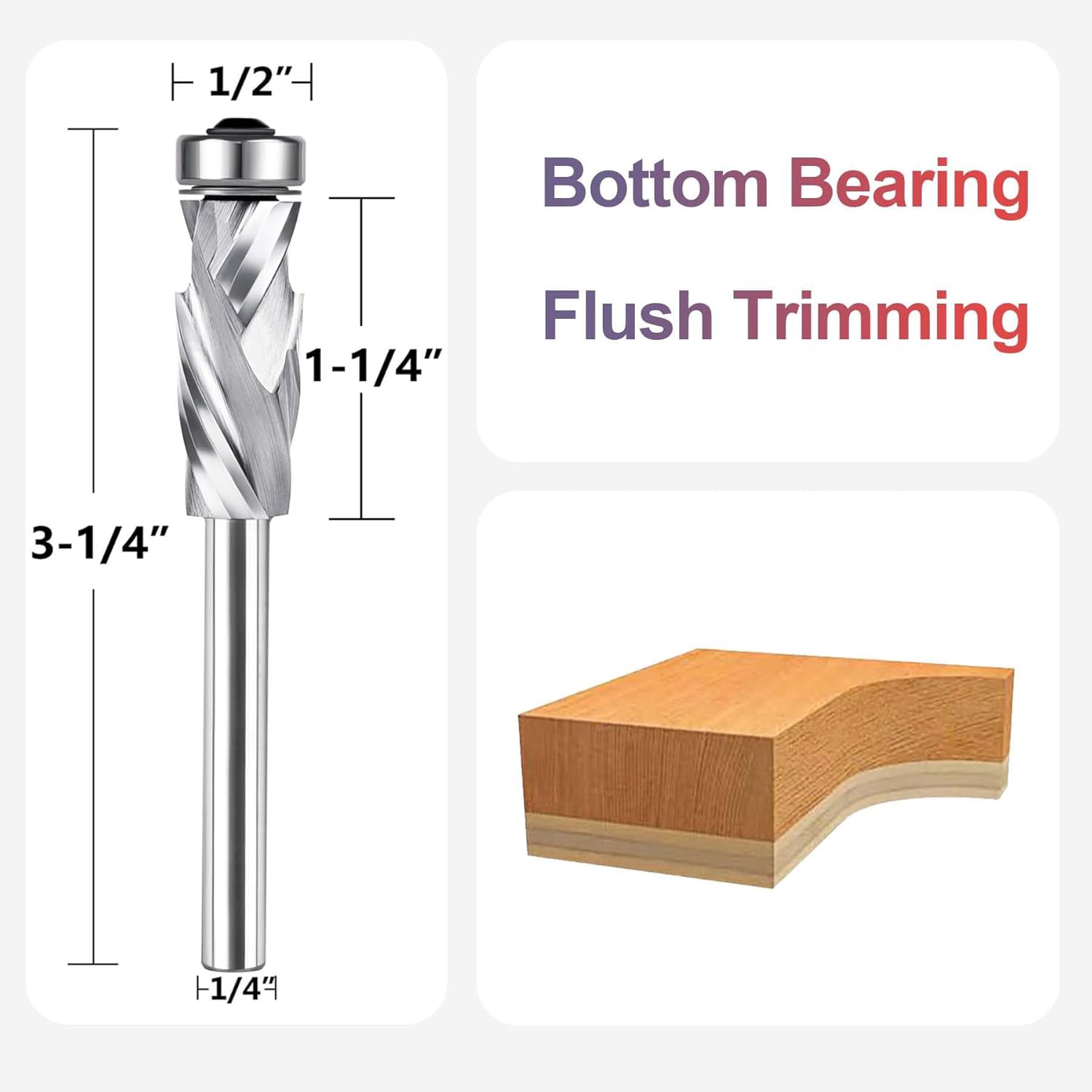

TOOL SPECS: Solid carbide, bottom bearing, compression cut with 1/2" cutting diameter, 1/4" shank, 1-1/4" cutting length, and 3-1/4" overall length for use in routers with a 1/4" collet.

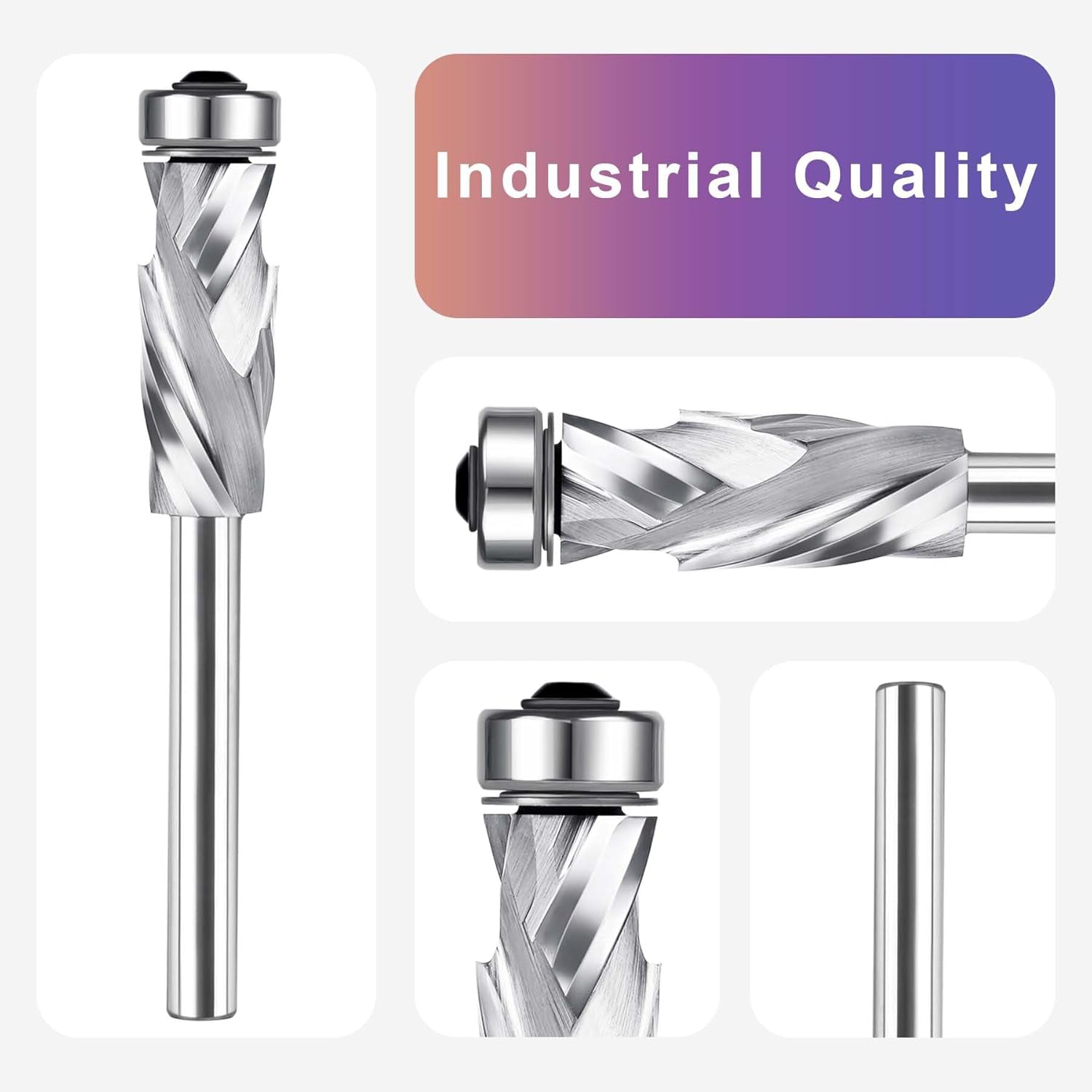

ULTIMATE FLUSH TRIM: This heavy-duty solid carbide bit is made from premium industrial-grade carbide, induction brazed onto a 1/4" steel shank for superior strength, durability, and cutting performance.

CUTTING HEAD: The 1/2" diameter provides a precise cutting edge for clean, smooth cuts, preventing fraying or splintering even on challenging wood grain.

DESIGN OPTIONS: Bottom bearing design ensures perfect edge-following when trimming templates or patterns. Ideal for flush trim applications with a 1-1/4" cutting length for versatile and accurate routing.

COMPRESSION CUT: Engineered with compression cutting geometry to combine upcut and downcut benefits in a single tool, providing clean, chip-free edges on both the top and bottom surfaces of the material.

Only 6 units left
Quantity:
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Smooth trim, zero tear-out.
TRIMMING ROUTER BITS

Designed for precision and long-lasting performance.
SpeTool 3/4 Dia 1/2 SHK Flush Trim Compression Top Bearing Router Bit

Upgrade your routing with Ultimate Flush Trim Bits by SpeTool.

Durable spiral cutters for professional-quality finishes.

Similar Size

Part No.

Cutting Dia.
(D)

 Cutting Height
(B)

Shank Dia.
(d)

Overall Length
(L)

Rotation

 Bearing Coating Rec. RPM
W07015 1/2" 1" 1/4" 2-4/5" Comp. Bottom 14,000
W07016 7/8" 1-3/16" 1/2" 3-1/2" Comp. Top 14,000
W07017 1/2" 1" 1/4" 2-5/8" Comp. Top 14,000
W07018 7/8" 1-3/16" 1/2" 3-3/4" Comp. Top 14,000
W07023 1/2" 1-1/4" 1/4" 3-1/4" Comp. Top & Bottom 14,000
W07024 1/2" 1-1/4" 1/4" 2-7/8" Comp. Top 14,000
W07025 3/4" 1-3/4" 1/2" 3-5/8" Comp. Top 14,000
W07026 3/4" 1-3/4" 1/2" 4-1/3" Comp. Top & Bottom 14,000
W07034 1/2" 1" 1/4" 2-3/4" Comp. Top & Bottom 14,000
W07040 1/2" 1-1/4" 1/4" 3-1/4" Comp. Bottom 14,000
W07041 3/4" 1-3/4" 1/2" 4-2/5" Comp. Bottom 14,000
W07042 1/2" 3/4" 1/4" 2-1/2" Top 14,000
W07043 1/2" 1/4" 1/4" 2" Top 14,000

*Customized sizes are acceptable

Frequently Asked Questions

For template-follow trimming, ideal for wood, MDF, plywood, and laminates.

Many recommend double-bearing for flexibility with templates on top or bottom and better control.

Spiral designs give smoother cuts and reduce tear-out, especially for template routing.

Use multiple shallow passes and correct cutting direction.

Depends on template location: top-bearing for templates on top, bottom-bearing for templates below.

Correct feed direction, stable support, and a bit with the right diameter.

Bit length and bearing alignment matter; too much difference can affect accuracy.

Use a top-bearing bit for the first pass, then a bottom-bearing bit to finish.

Use protective tape or choose a bearing size that avoids overcutting.

Table-mounted gives more stability; handheld is versatile but requires steady hands.
