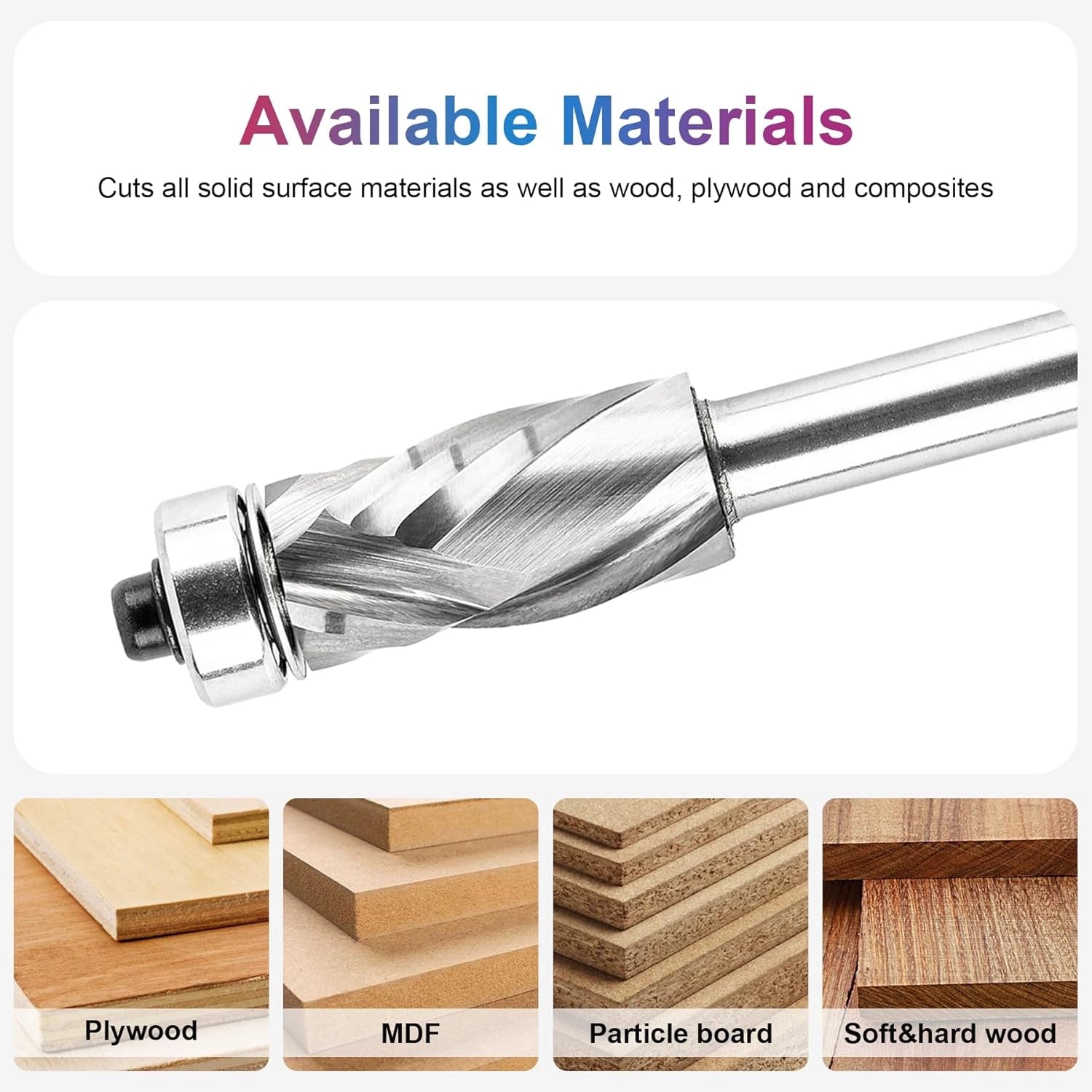

Ultimate Flush Trim Bits provide precise, clean trimming with durable spiral cutting edges designed to reduce tear-out and deliver smooth finishes. Ideal for use with templates on wood, plywood, MDF, and laminates, these bits ensure professional-quality results in both handheld and router tables applications.

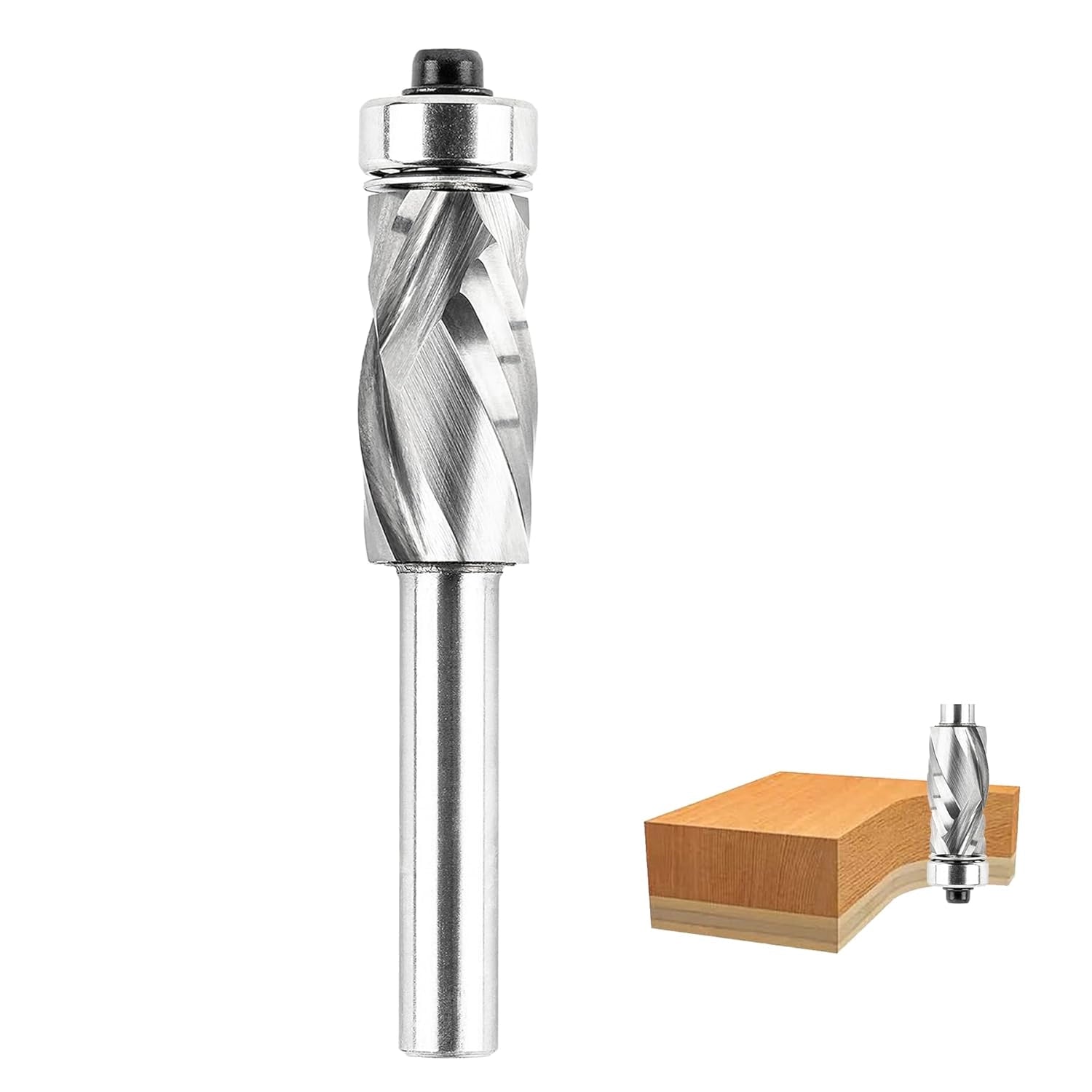

TOOL SPECS: Solid carbide spiral flush trim router bit with 12mm cutting diameter, 8mm shank, 25mm cutting length, and top starting bearing for use in table-mounted or handheld routers.
HIGH PERFORMANCE: This compression cut flush trim bit provides clean edges, efficient chip removal, and reduced heat buildup, maintaining sharpness longer than standard bits for precise routing.

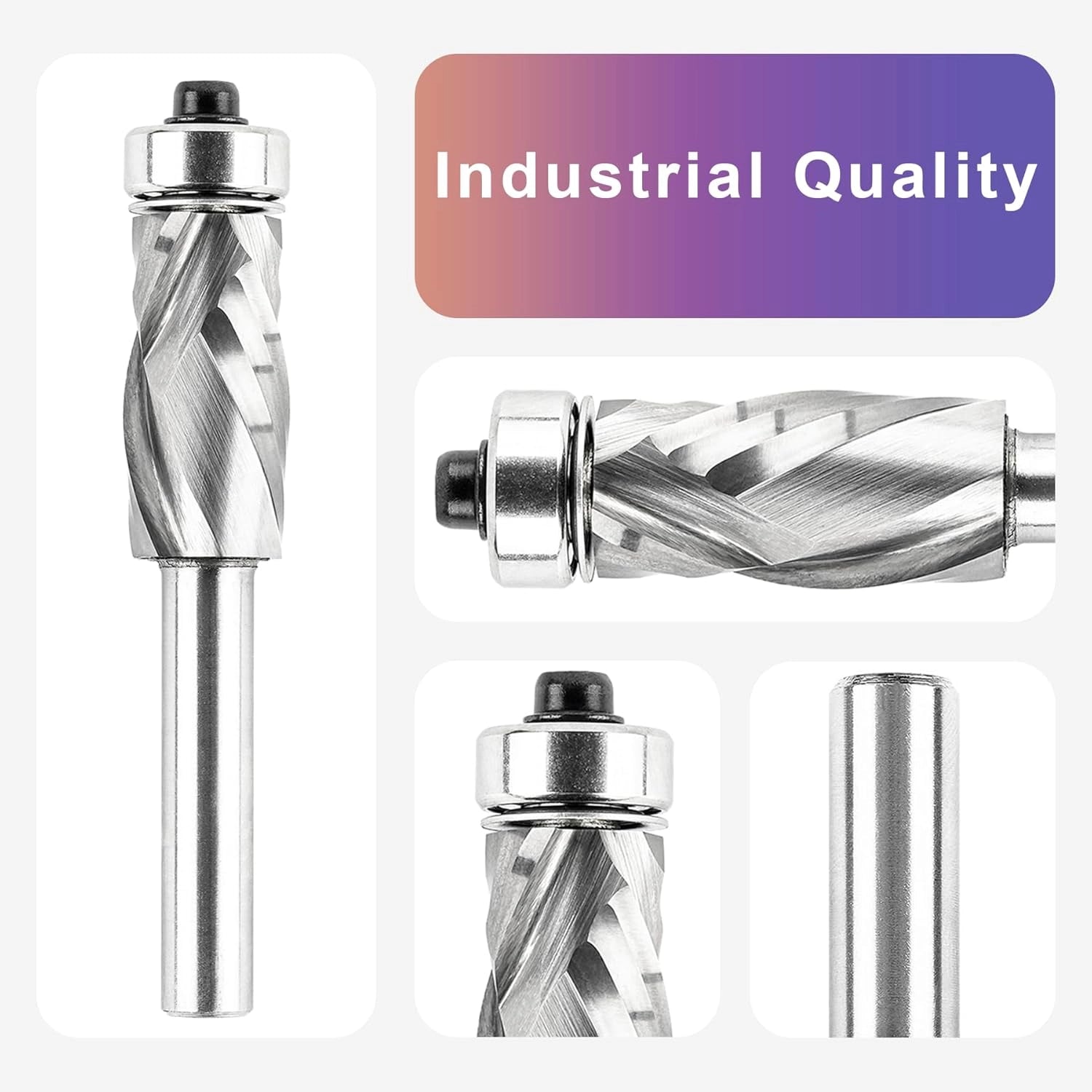

INDUSTRIAL QUALITY: Made with a solid carbide cutter and durable steel shank, this bit delivers excellent hardness, long-lasting performance, and reliable precision.
DESIGN OPTIONS: Top starting bearing ensures accurate edge-following for template and copy routing, making it ideal for flush trimming applications.
TIPS: To maximize tool life, remove accumulated wood chips after each use or after 30 minutes of continuous operation.
Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.
| Part No. |
Cutting Dia. |
Cutting Height (B) |
Shank Dia. |
Overall Length |
Rotation |
Bearing | Coating | Rec. RPM |
|---|---|---|---|---|---|---|---|---|
| FTBB2FC-D12-D8 | 12mm | 32mm | 8mm | 84mm | Comp. | Top&Bottom | 14,000 | |
| FTB2FC-D12-D8 | 12mm | 25mm | 8mm | / | Comp. | Top | 14,000 | |
| FBB2FC-D12-D8 | 12mm | 25mm | 8mm | / | Comp. | Bottom | 14,000 |
*Customized sizes are acceptable
| Products Type |
Products Type |
|---|---|
| Spriral Router Bits | Download |
| 2D & 3D Tapered Router Bits | Download |
| V Groove Router Bits | Download |
| O-Flute Router Bits | Download |
| Spoilboard Surfacing Router Bits | Download |
| Bowl & Tray Router Bits | Download |
| Aluminum & Metal Router Bits | Download |
|
Software |
Tool File |
|
Fusion 360 Tools File(Updated To 20251015) |
|
|
Vectric Tools File (Updated To 20251015) |
|
|
Carveco Tools File(Updated To 20250930) |
|
|
Carbide 3D Tools File |
For template-follow trimming, ideal for wood, MDF, plywood, and laminates.
Many recommend double-bearing for flexibility with templates on top or bottom and better control.
Spiral designs give smoother cuts and reduce tear-out, especially for template routing.
Use multiple shallow passes and correct cutting direction.
Depends on template location: top-bearing for templates on top, bottom-bearing for templates below.
Correct feed direction, stable support, and a bit with the right diameter.
Bit length and bearing alignment matter; too much difference can affect accuracy.
Use a top-bearing bit for the first pass, then a bottom-bearing bit to finish.
Use protective tape or choose a bearing size that avoids overcutting.

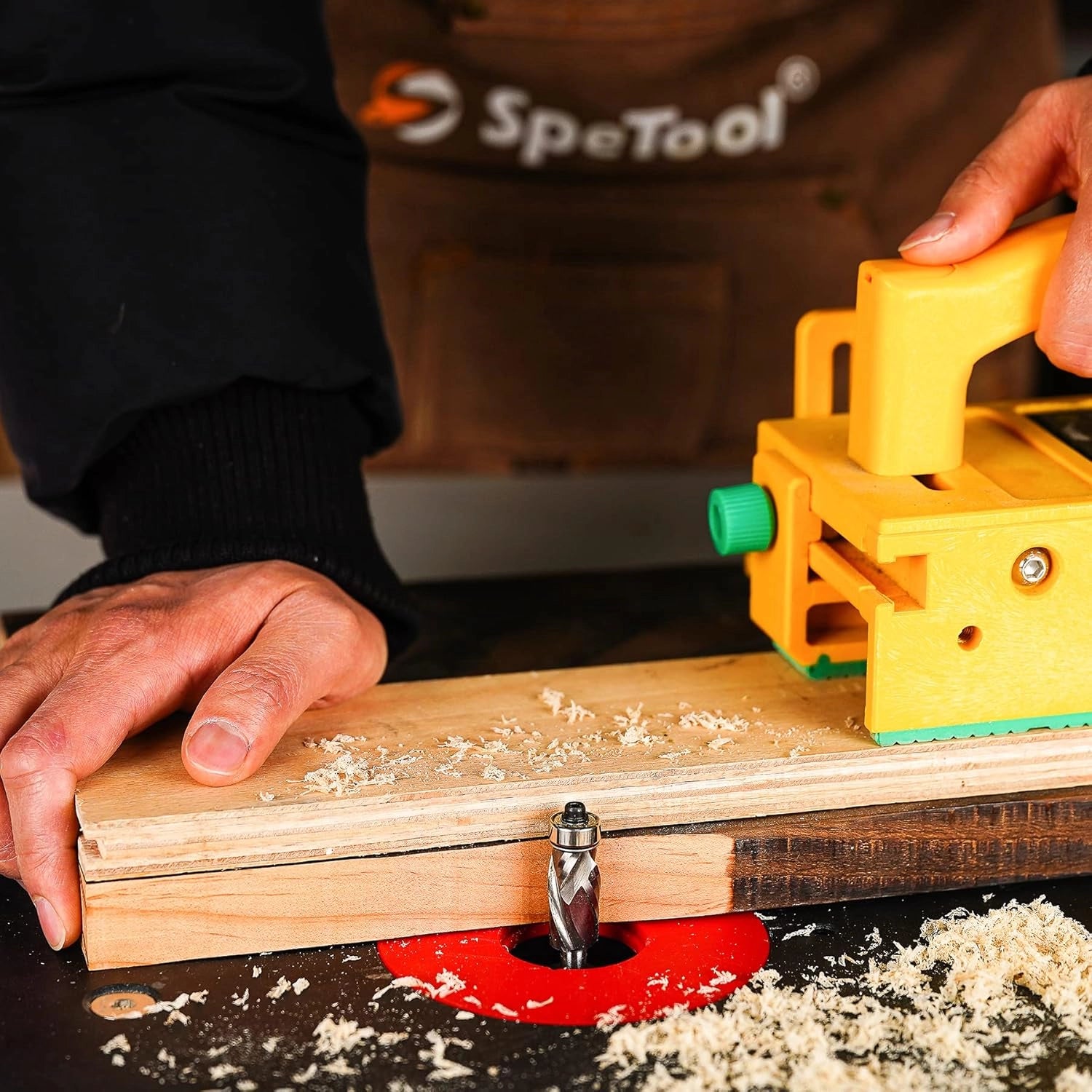

Table-mounted gives more stability; handheld is versatile but requires steady hands.
