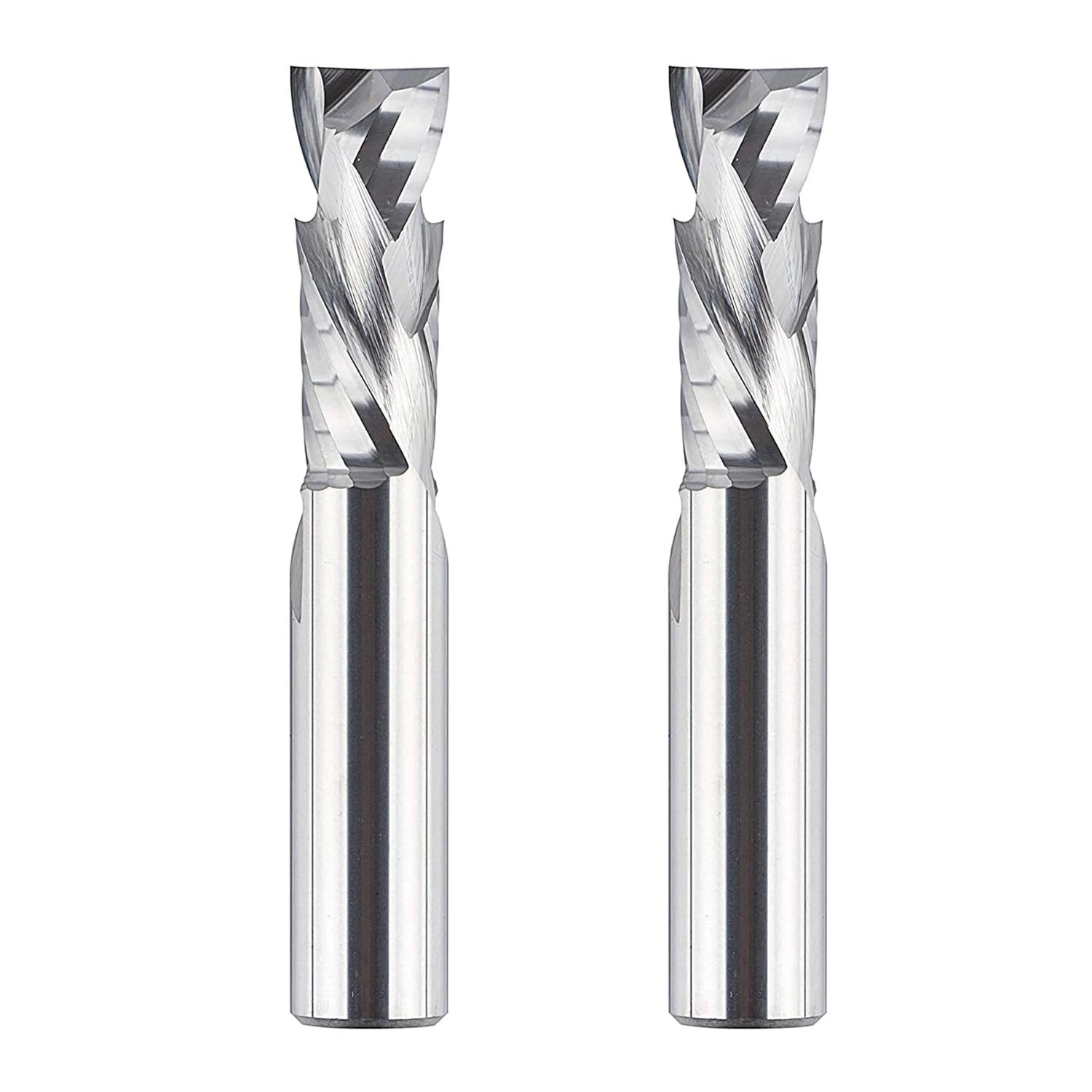

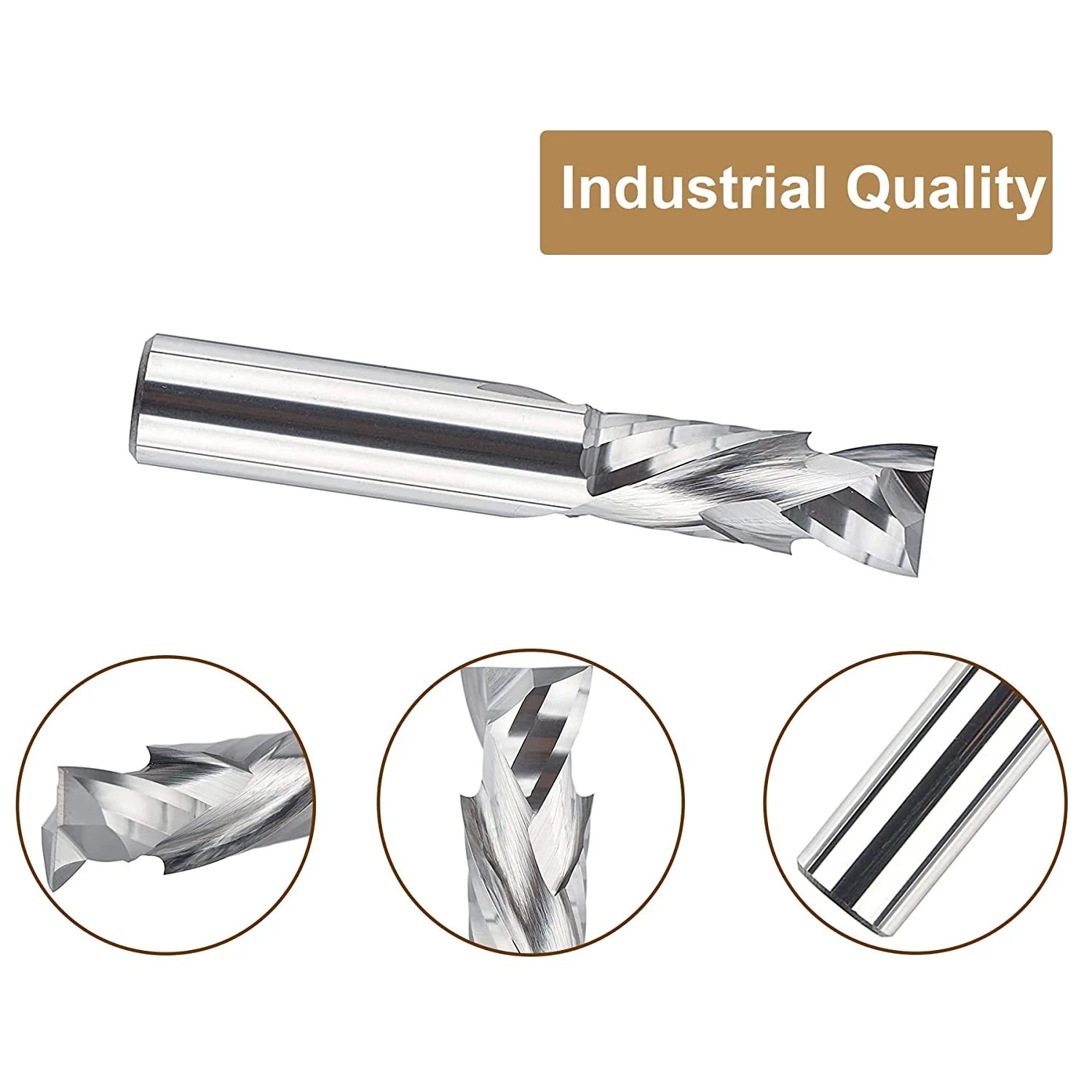

SpeTool CA W02001 SC Compression Spiral 1/2" Dia x 1/2" Shank x 1-1/4" Cutting Length x 3" Long 2 Flute Router Bit

Sale price$48.20 CAD Regular price$58.42 CAD
Save 17%

Shipping calculated at checkout

No reviews
No reviews
SKU: CA-SP-D1/2-1/2-U&D-FBA
6 in stock

Quantity:
  • Fast Delivery

  • 60-Days Warranty

  • Ships Worldwide

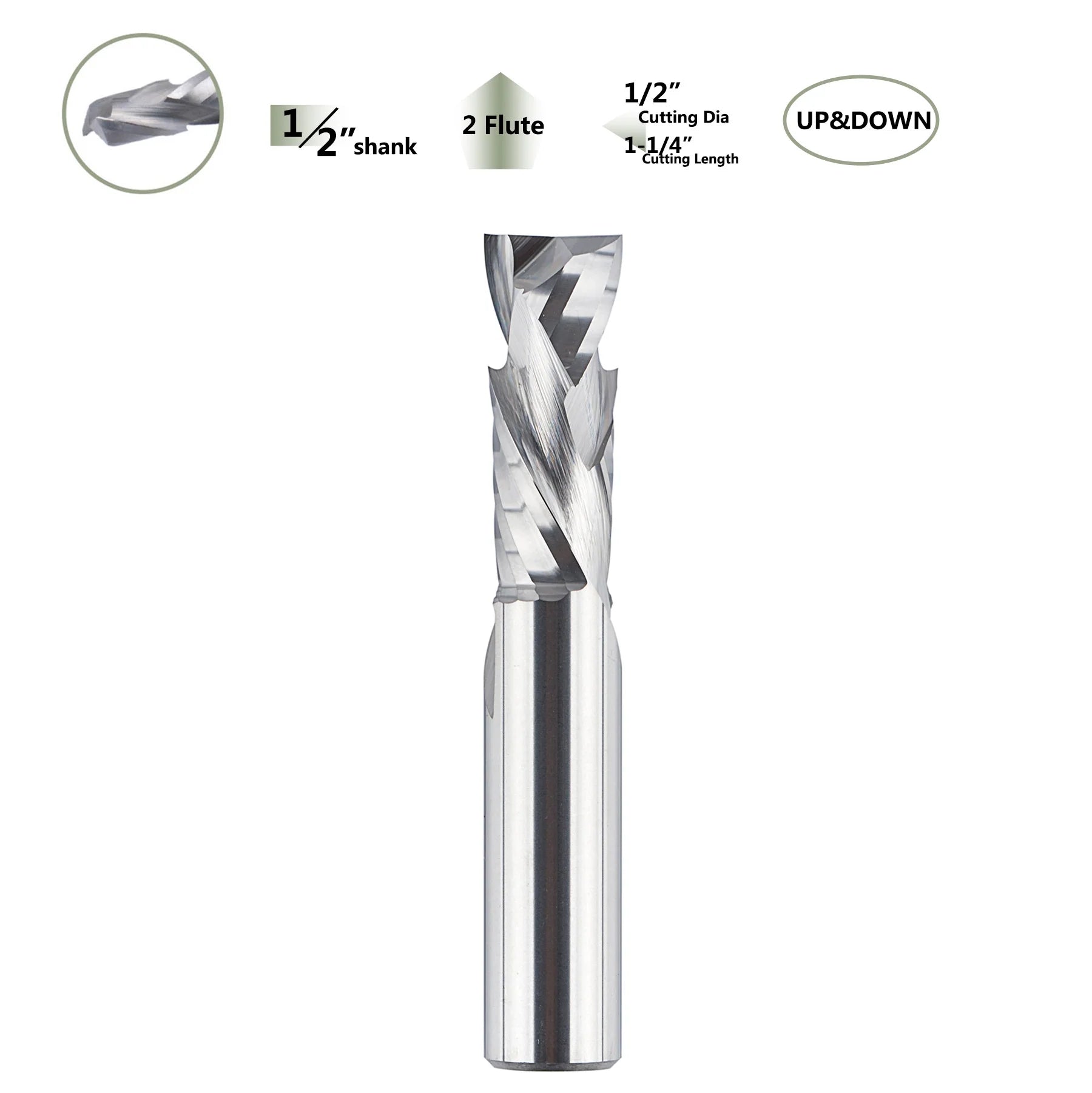

Specification

Cutting Direction: UP & DOWN
Cutting Diameter(CD): 1/2"
Shank Diameter(SD): 1/2"
Cutting Length(CL): 1-1/4"
Overall Length(OVL): 3"
Material Carbide


Overview

The Compression Cutter consists of an up cut and down cut helix. The top portion of the length of the cut has right-hand cutting teeth with a left-hand spiral. The lower portion of the length of the cut has right-hand cutting teeth with a right-hand spiral. This creates opposing cutting forces to stabilize the material removal process when cutting layered composites to prevent delamination, fiber pullout, and burs along the surface. Compression of the top and bottom of the workpiece keeps the layered bonded together.

Specially designed to provide an excellent finish. It can be used with handheld, table-mounted, and CNC routers.

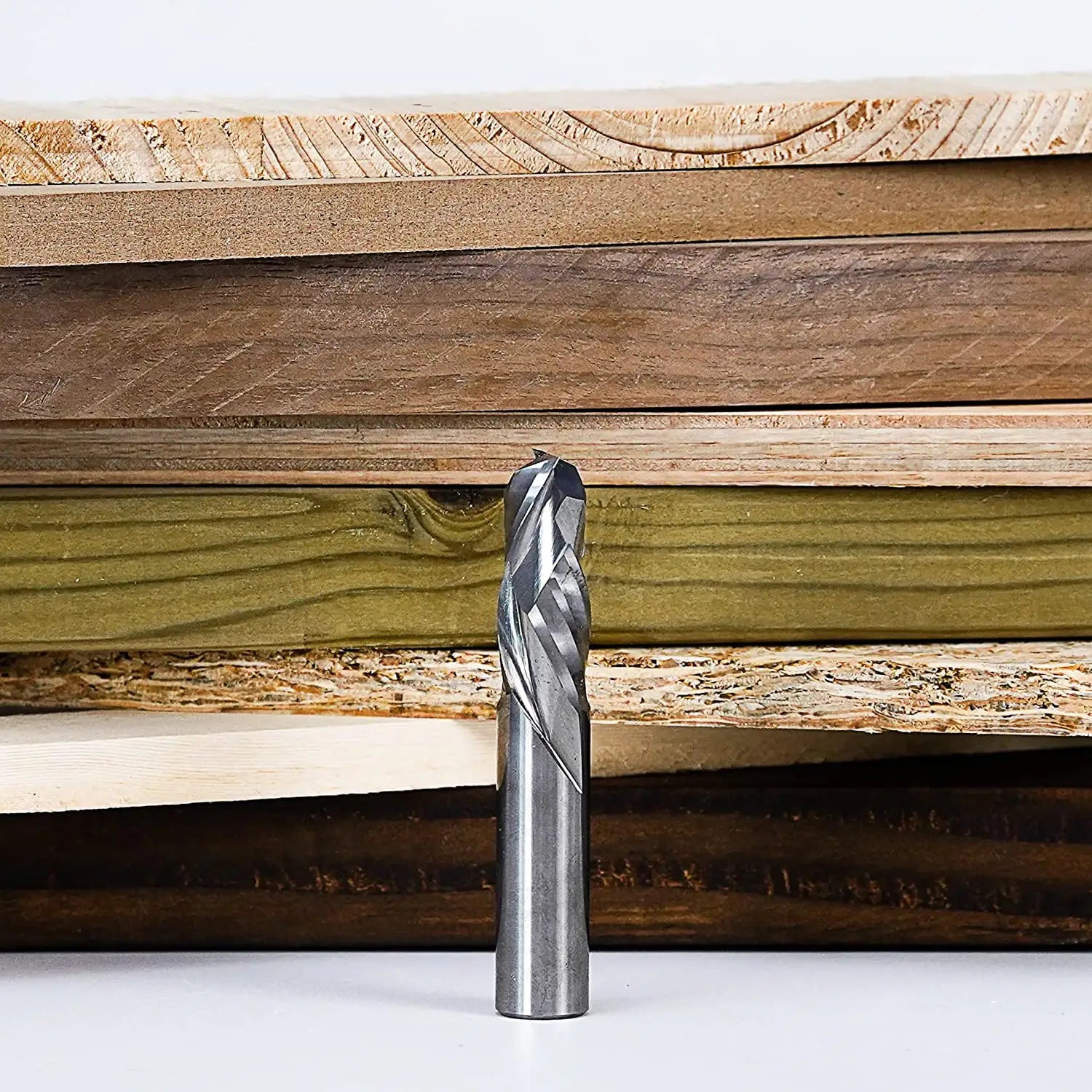

Designed for cutting the following materials

  • MDF/HDF
  • Foam Board
  • Hardwood
  • Plastic
  • Softwood
  • Plywood
