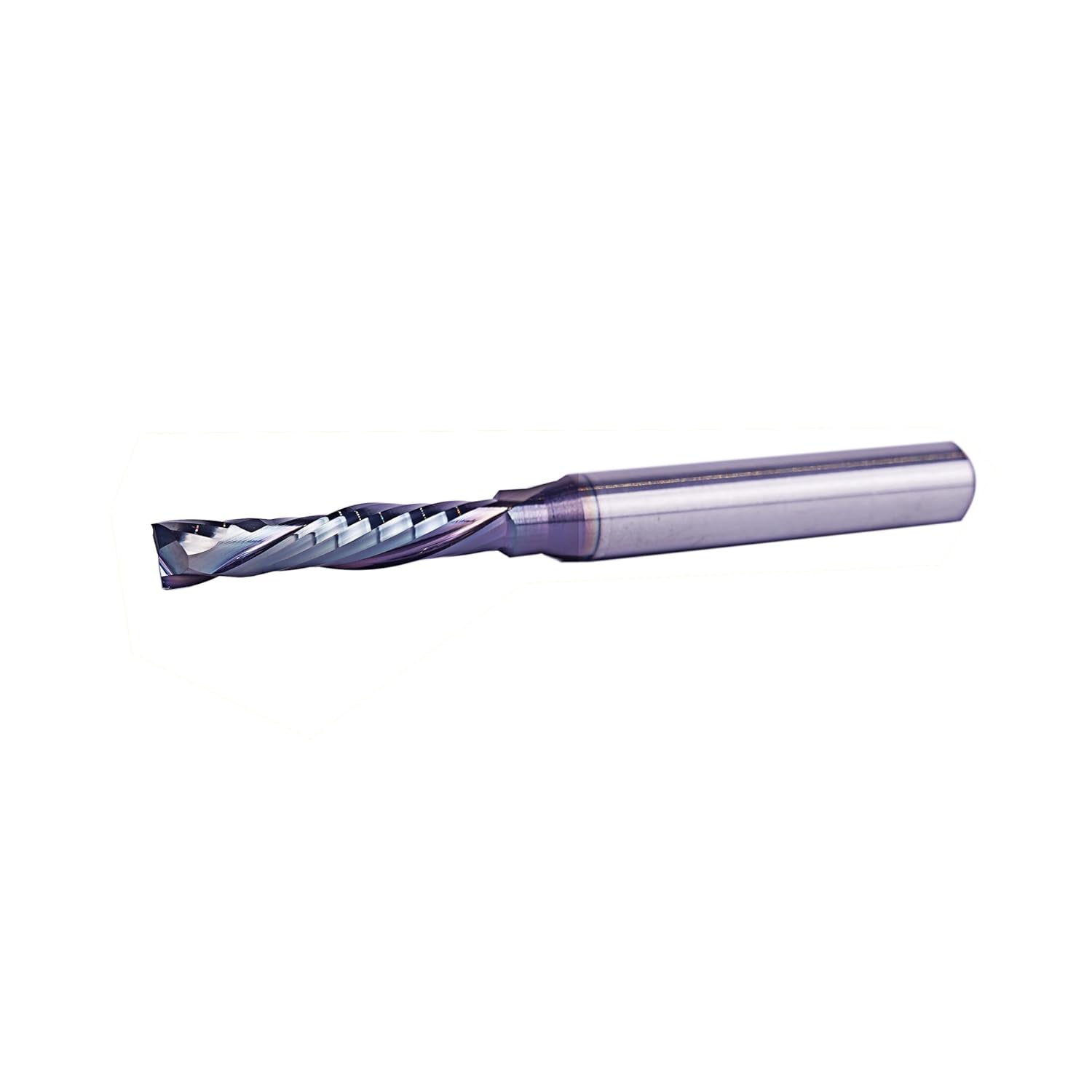

SpeTool CA W02014 SPE-X Extra Tool Life Coated SC Compression Spiral 3/16" Dia x 1/4" Shank x 1" Cutting Length x 2-1/2" Long 2 Flute Router Bit

Sale price$25.85 CAD

Shipping calculated at checkout

No reviews
No reviews
SKU: CA-SP-D1/4-3/16-U&D-TAC-FBA
17 in stock

Quantity:
Product bundles:
  • Fast Delivery

  • 60-Days Warranty

  • Ships Worldwide


Specification

Cutting Direction: UP & DOWN
Cutting Diameter(CD): 3/16"
Shank Diameter(SD): 1/4"
Cutting Length(CL): 1"
Overall Length(OVL): 2-1/2"
Material  Carbide
Coating SPE-X


Overview

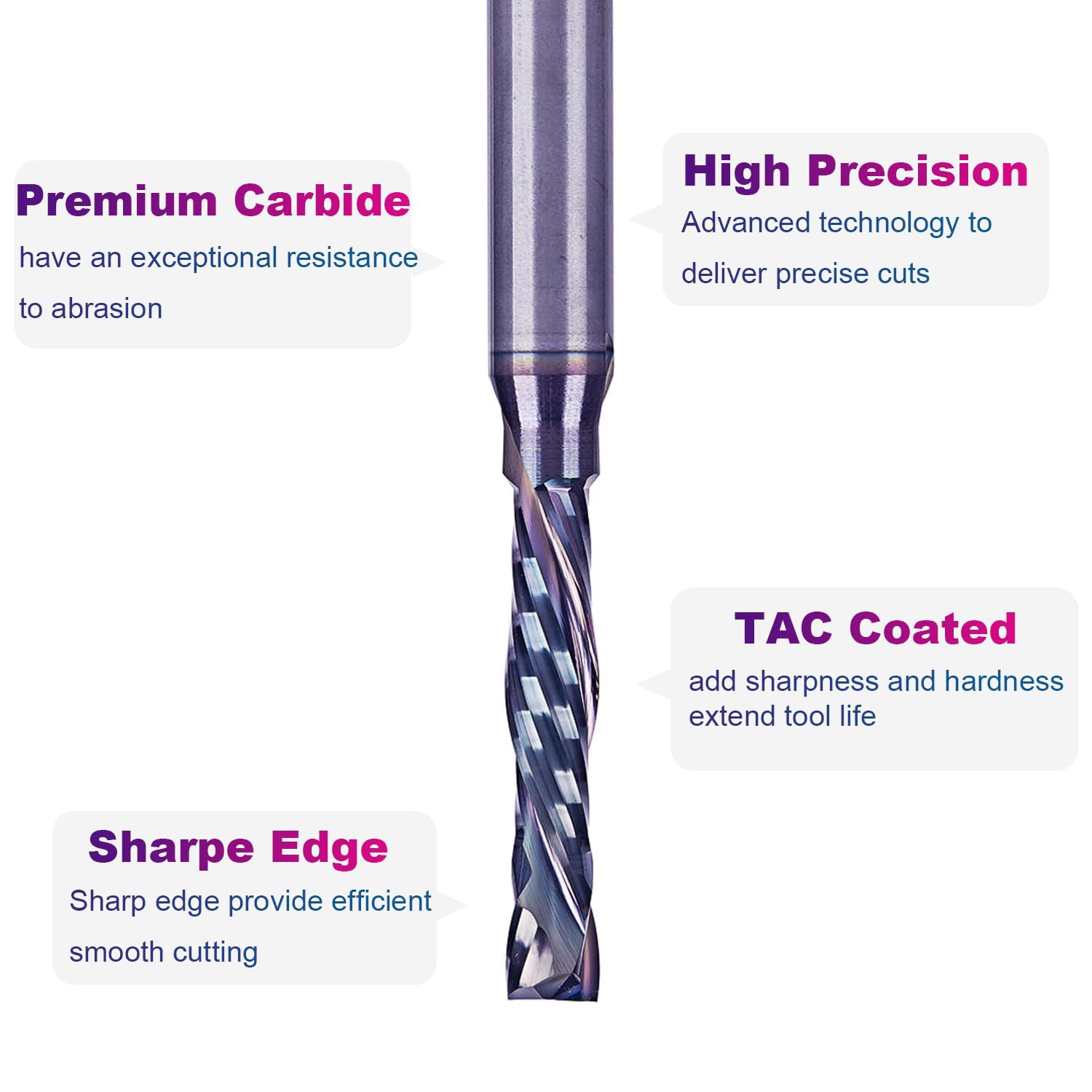

The Compression Cutter consists of an up cut and down cut helix. The top portion of the length of the cut has right-hand cutting teeth with a left-hand spiral. The lower portion of the length of the cut has right-hand cutting teeth with a right-hand spiral. This creates opposing cutting forces to stabilize the material removal process when cutting layered composites to prevent delamination, fiber pullout, and burs along the surface. Compression of the top and bottom of the workpiece keeps the layered bonded together.

Specially designed to provide an excellent finish. It can be used with handheld, table-mounted, and CNC routers.

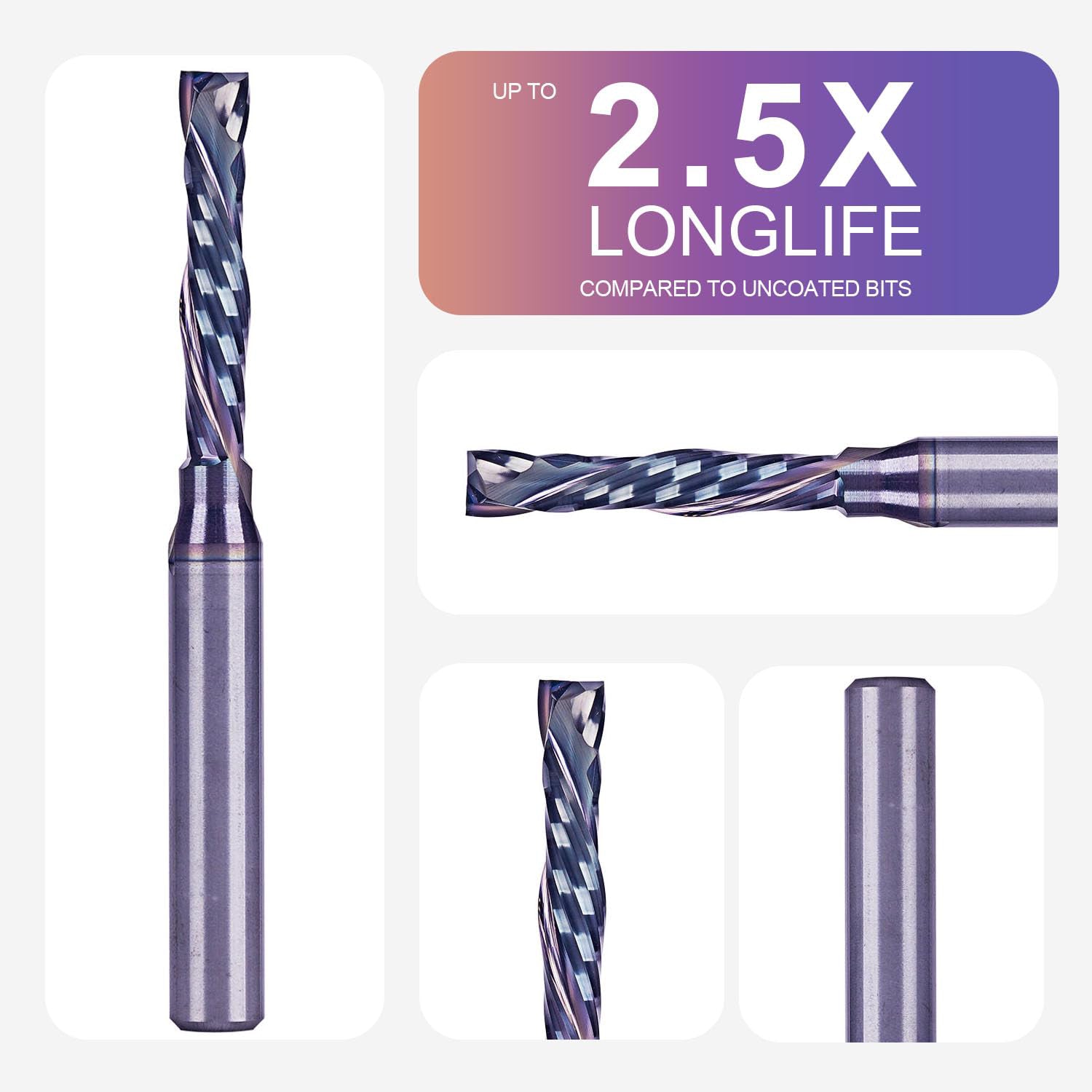

The SPE-X new design coating could provide up to 2.5X normal life and a much more smooth cutting edge than others

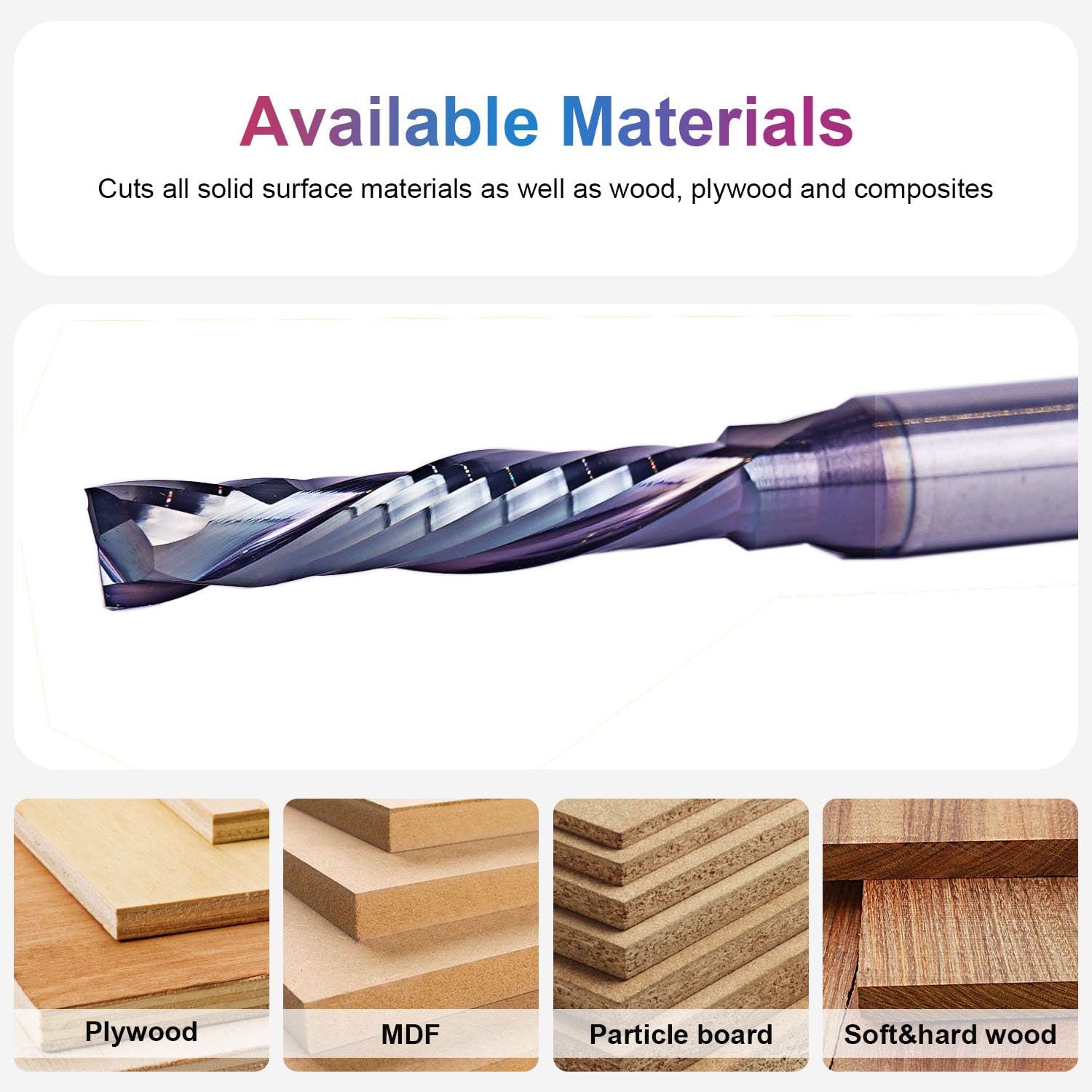

Designed for cutting the following materials

  • MDF/HDF
  • Foam Board
  • Hardwood
  • Plastic
  • Softwood
  • Plywood
