SpeTool W05003 CNC Spoilboard ATS Inserto recubierto de carburo 4 alas, superficie, cepillado, corte de moscas y nivelador de losa 2-1/2" de diámetro x 1/2" vástago enrutador broca

SKU: IP4F-2-1/2-D1/2-ATS
$59.99 USD

Envío calculado en la compra

Spoilboard Surfacing Router Bits are built for fast, smooth, and precise flattening of CNC spoilboards, slabs, and large wood surfaces. With ultra-sharp carbide inserts and a durable body, they deliver clean cuts, extend tool life, and reduce sanding—perfect for keeping your CNC bed true and ready for accurate machining.

Excellent For Cutting:

  • MDF
  • Chipboard
  • Hardwood
  • Plastic
  • Plywood
  • Fiberboard
  • Softwood
  • Acrylic
  • CORTE RÁPIDO: esta broca enrutadora cepilladora está diseñada con inserciones de carburo de 4 alas y un diámetro de corte de 2-1/2", con inserciones de carburo de 4 alas (12 mm * 12 mm * 2,2 mm, 35 grados, orificio recto), lo que resulta en una mayor eficiencia. funcionamiento de carpintería.
  • RENTABLE: la broca fresadora de superficies utiliza inserciones de carburo sólido de 4 lados con revestimiento ATS que brindan resistencia al calor y al desgaste, se mantienen afiladas, garantizan un gran rendimiento y brindan una vida útil de la herramienta de hasta 2,5 veces. Se pueden utilizar los 4 bordes de los insertos. reemplace los insertos cuando sea necesario, en lugar de reemplazar toda la broca.
  • DISEÑO DE GRADO INDUSTRIAL: Vástago de 1/2" y acero sólido de diámetro de corte de 2-1/2" para una larga duración y mantener el cuerpo recto.
  • UTILIZADO EN: Esta broca enrutadora aplanadora es perfecta para aplanar losas de madera, limpiar el fondo, repavimentar o cepillar la superficie superior del spoilboard. Adecuado para maderas blandas y duras, MDF, contrachapado, laminado, etc.

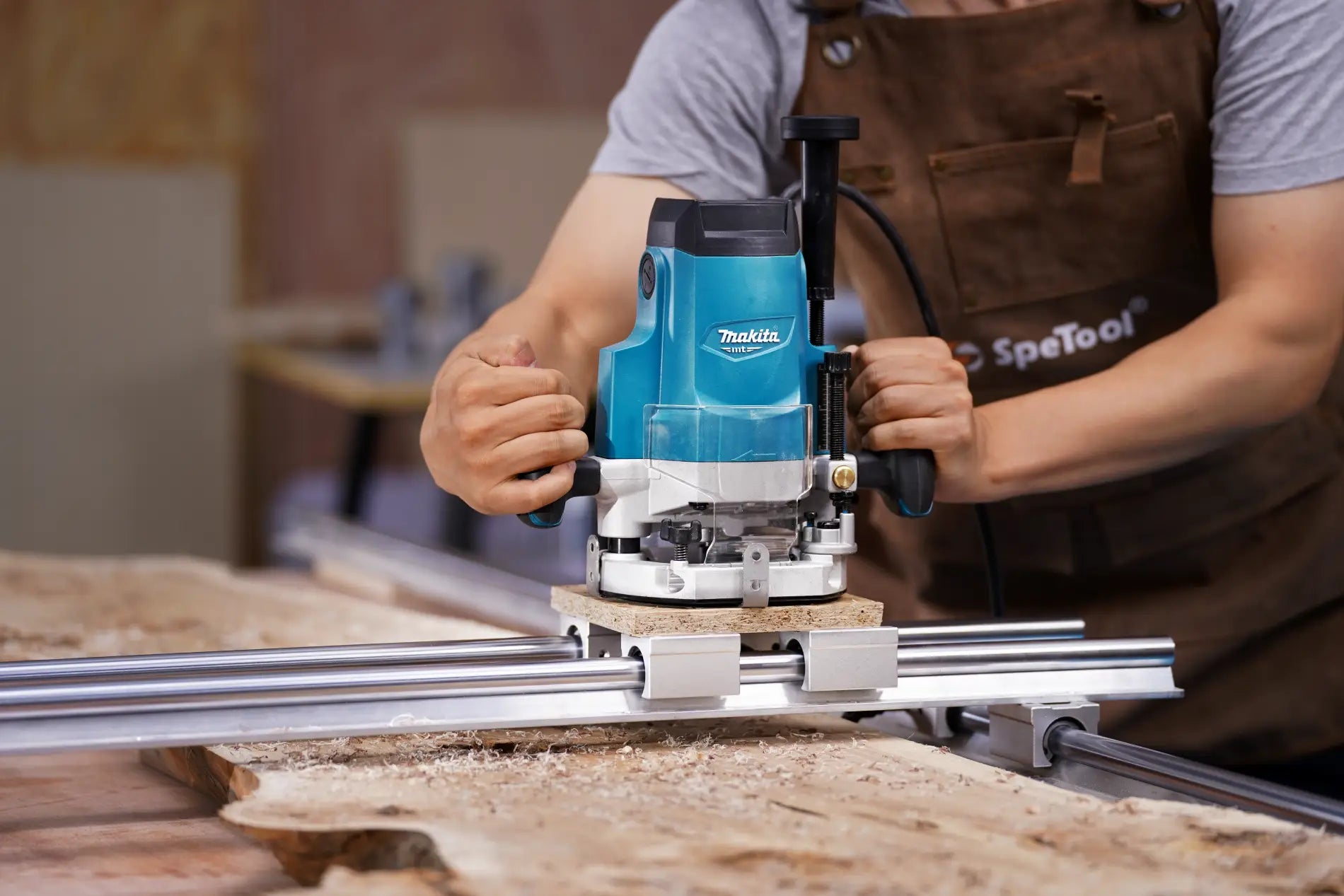

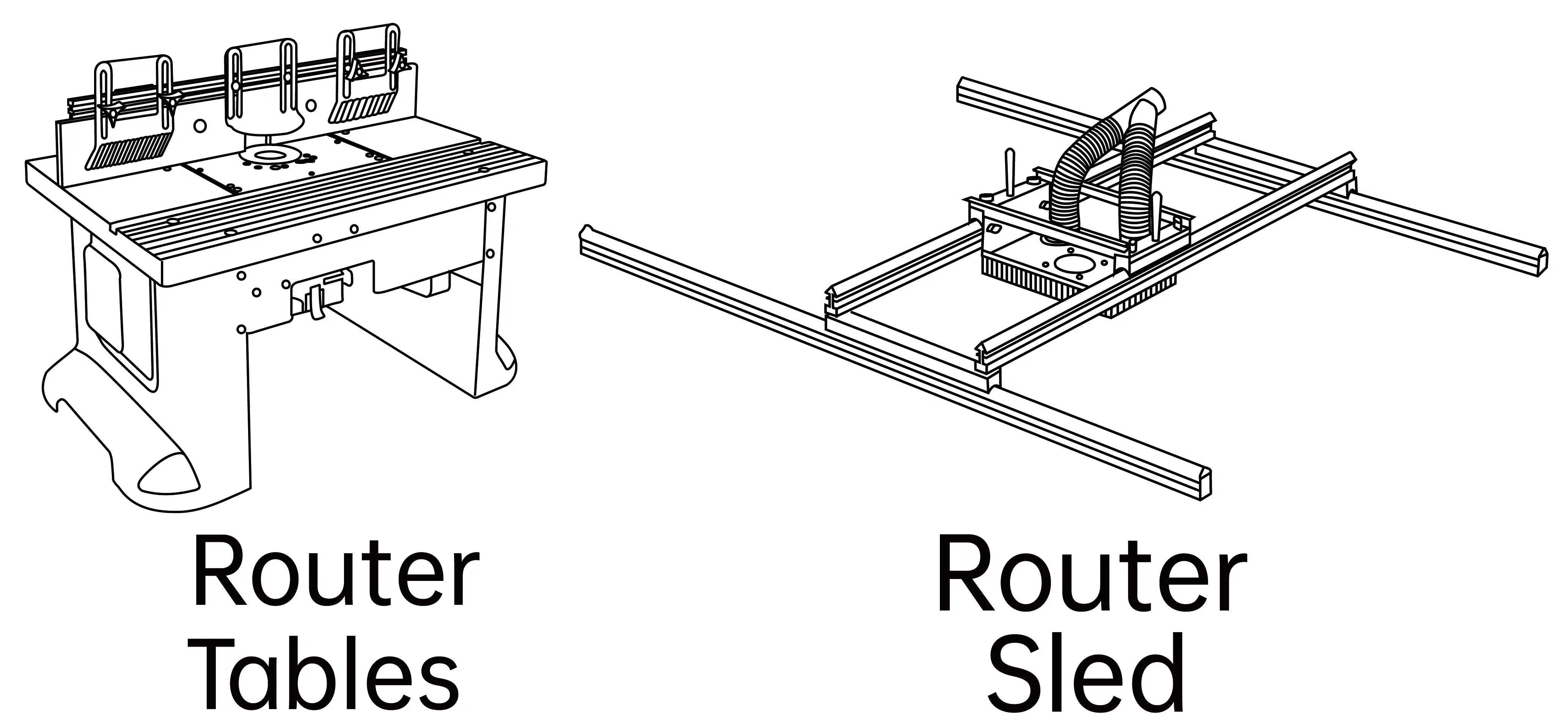

  • Se utiliza en CNC y otras fresadoras automáticas, así como en fresadoras de inmersión manuales y montadas en mesa con un trineo para trabajar la madera.
  • Vida útil ultralarga: el revestimiento ATS proporciona resistencia al calor y al desgaste, se mantiene afilado, garantiza un excelente rendimiento y proporciona una vida útil de la herramienta de hasta 2,5 veces.
    34 en existencias
    Cantidad:
    Payment & Security
    American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

    Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

    Local delivery
    Free shipping
    90-day Refund
    365-Day Warranty

    Smooth starts with the right bit.
    Flattenning planer router bit SpeTool

    Industrial strength. Woodworker approved.
    3-wing Surfacing Router Bit Planer Bit 2" Diam SpeTool

    From rough to refined—fast.
    Flattenning planer router bit SpeTool

    More cut. Less time. No compromise.

    Similar Size

    Part No.

    Cutting Dia.
    (D)

    Shank Dia.
    (d)

    Overall Length
    (L)

    Flute
    (F)

    		 Coating Repl. Blades
         		Rec. RPM
    W05001 1" 1/4" 1-4/5" 2+2 O01002 18,000
    *W05001-ATS 1" 1/4" 1-4/5" 2+2 ATS O01008 18,000
    W05002 2" 1/2" 2-1/5" 3 O01001 18,000
    *W05002-ATS 2" 1/2" 2-1/5" 3 ATS O01004 18,000
    W05003 2-1/2" 1/2" 2-4/5" 4 O01001 18,000
    *W05003-ATS 2-1/2" 1/2" 2-4/5" 4 ATS O01004 18,000
    W05004 1-1/4" 1/4" 2" 2+2 O01002 18,000
    *w05004-ATS 1-1/4" 1/4" 2" 2+2 ATS O01008 18,000
    W05010 3" 1/2" 2-5/6" 2+2 O01001 18,000
    *W05010-ATS 3" 1/2" 2-5/6" 2+2 ATS O01004 18,000
    W05014 3-1/4" 1/2" 3" 5 O01010 12,000

    *Customized sizes are acceptable

    Frequently Asked Questions

    Designed for leveling and cleaning the sacrificial spoilboard on CNC tables or router sleds. Wide diameter and multiple flutes ensure efficient flattening.

    A ½" shank offers greater rigidity and less vibration compared to thinner shanks.

    Replaceable insert bits (like Amana's with 4-sided knives) offer better longevity—cheaper over time versus replacing entire bits.

    Absolutely—surfacing bits perform flat surfacing much faster than small end mills, significantly reducing runtimes.

    Yes—but may still require sanding afterward for full smoothness.

    Community reports describe dust clouds on “cosmic scales”—strong dust collection is essential.

    Routers with 2¼ HP+, ½" collet, variable speed, and soft start are preferred. Examples: Porter-Cable 890, Bosch 1617 EVS.

    Some recommend raising spoilboard height or using a shorter sled to compensate.

    Yes—take shallow passes, reduce RPM, and keep bit moving to avoid burning.

    Use appropriate feed/fine passes and larger diameter bits; users reported no ridges on 5×8’ table using 2.5" bit.
