SpeTool 1/4 Diam Spiral SC Router Bits Up Cut End Mill for Woodworking
SpeTool 1/4 Diam Spiral SC Router Bits Up Cut End Mill for Woodworking
SpeTool 1/4 Diam Spiral SC Router Bits Up Cut End Mill for Woodworking
SpeTool 1/4 Diam Spiral SC Router Bits Up Cut End Mill for Woodworking
SpeTool 1/4 Diam Spiral SC Router Bits Up Cut End Mill for Woodworking
SpeTool 1/4 Diam Spiral SC Router Bits Up Cut End Mill for Woodworking
SpeTool W04005 SC Broca enrutadora de corte ascendente de 2 flautas con inmersión en espiral de 1/4" de diámetro x 1/4" de vástago x 1" de longitud de corte x 2-1/2" de largo

SpeTool W04005 SC Broca enrutadora de corte ascendente de 2 flautas con inmersión en espiral de 1/4" de diámetro x 1/4" de vástago x 1" de longitud de corte x 2-1/2" de largo

SKU: SP-D1/4-1/4-U-FBA
$15.99 USD

Envío calculado en la compra

An Up Cut Router Bit is designed to pull chips upward as it cuts, giving you clean bottom edges and efficient chip removal. Ideal for deep cuts, slotting, and mortising in wood, MDF, and plywood.

Excellent For Cutting:

  • MDF/HDF
  • Plywood
  • Melamine
  • Laminate
  • Softwood/Hardwood
  • Veneered Plywood

Especificación

Dirección de corte: ARRIBA
Diámetro de corte (CD): 1/4"
Diámetro del vástago (SD): 1/4"
Longitud de corte (CL): 1"
Longitud total (OVL): 2-1/2"
Material Carburo


Descripción general

La broca en espiral Upcut es el tipo más popular de herramienta estriada en espiral. Úselo para ranurar o ranurar, para la evacuación de virutas hacia arriba y para obtener un mejor acabado en la parte inferior de la pieza. Estas brocas permiten cortes rápidos ya que la herramienta elimina las virutas del material.

Especialmente diseñado para proporcionar un excelente acabado. Se puede utilizar con enrutadores CNC, de mesa y portátiles.


Diseñado para cortar los siguientes materiales.

  • MDF/HDF
  • Tablero de espuma
  • Madera dura
  • El plastico
  • Madera blanda
  • Madera contrachapada

Número de items:1
102 en existencias
Cantidad:
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Ready to Cut Like Never Before?

SpeTool Up Down Cut Spiral Router bits

Spiral Bits Built for Real Woodworkers.

Clean Cuts. No Burn. Just Precision.

Solid Carbide Power You Can Trust.

Similar Size

Part No.

Cutting Dia.
(D)

 Cutting Height
(B)

Shank Dia.
(d)

Overall Length
(L)

Flute
(F)

 Coating Rec. RPM
W04001 3/8" 1-1/4" 1/2" 3" 2 15,000
*W04001-SPE-X 3/8" 1-1/4" 1/2" 3" 2 TAC 15,000
W04003 1/2" 1-1/4" 1/2" 3" 2 15,000
*W04003-SPE-X 1/2" 1-1/4" 1/2" 3" 2 TAC 15,000
W04005 1/4" 1" 1/4" 2-1/2" 2 18,000
*W04005-SPE-X 1/4" 1" 1/4" 2-1/2" 2 TAC 18,000
W04007 1/8" 1/2" 1/4" 2" 2 18,000
*W04007-SPE-X 1/8" 1/2" 1/4" 2" 2 TAC 18,000
W04010 3/8" 1-3/4" 1/2" 4" 2 15,000
W04012 1/2" 2" 1/2" 4" 2 15,000
*W04012-SPE-X 1/2" 2" 1/2" 4" 2 TAC 15,000
W04014 1/4" 1-1/4" 1/4" 3" 2 18,000
*W04014-SPE-X 1/4" 1-1/4" 1/4" 3" 2 TAC 18,000
W04016 1/4" 1" 1/4" 3" 2 18,000
W04017 1/8" 1" 1/4" 3" 2 18,000
*W04017-SPE-X 1/8" 1" 1/4" 3" 2 TAC 18,000
W04022 1/4" 2" 1/4" 4" 2 18,000
*W04022-SPE-X 1/4" 2" 1/4" 4" 2 TAC 18,000
W04023 1/16" 1/2" 1/4" 2" 2 18,000
*W04023-SPE-X 1/16" 1/2" 1/4" 2" 2 TAC 18,000
W04029 1/16" 1/4" 1/4" 2" 2 18,000
W04031 1/8" 3/4" 1/8" 1-1/2" 2 18,000
*W04031-SPE-X 1/8" 3/4" 1/8" 1-1/2" 2 TAC 18,000
W04032 3/16" 1" 1/4" 2-1/2" 2 18,000
*W04032-SPE-X 3/16" 1" 1/4" 2-1/2" 2 TAC 18,000
W04033 3/8" 1-1/4" 3/8" 3" 2 15,000
W04037 1/32" 1/8" 1/4" 2" 2 18,000
*W04037-SPE-X 1/32" 1/8" 1/4" 2" 2 TAC 18,000

*Customized sizes are acceptable

Frequently Asked Questions

A helical bit that lifts chips upward, ideal for deep plunges and fast chip evacuation.

Use up-cut for deep pockets and efficient chip removal; choose down-cut when you need a splinter-free top face.

Some top-side splintering can occur; minimize it with a backer board or shallow first pass.

Excessive RPM or slow feed causes heat; sharpen or clean the bit and speed up the feed.

Clear chips with strong dust extraction or pause to vacuum; up-cut flutes already help eject debris.

Compression bits give splinter-free faces on both sides; up-cut is faster but may fray the top veneer.

Extra flutes can improve finish but require slower feed per tooth; 2-flute is a good all-round choice.

Too-deep cuts or slow chip evacuation overheat the small shank—use shallower passes and higher feed.

They’re fine if feed direction is correct and stock is clamped; expect more chip spray than in a table.

Use sharp bits, minimize tool overhang, and match feed to RPM to keep chip load steady.

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Steve Hays
Works as expected.

Just like the title says! Fast shipping and great customer communication! Will purchase from this vendor again!

T
Topcat1957
SpeTool W04005 GREAT END MILL BIT

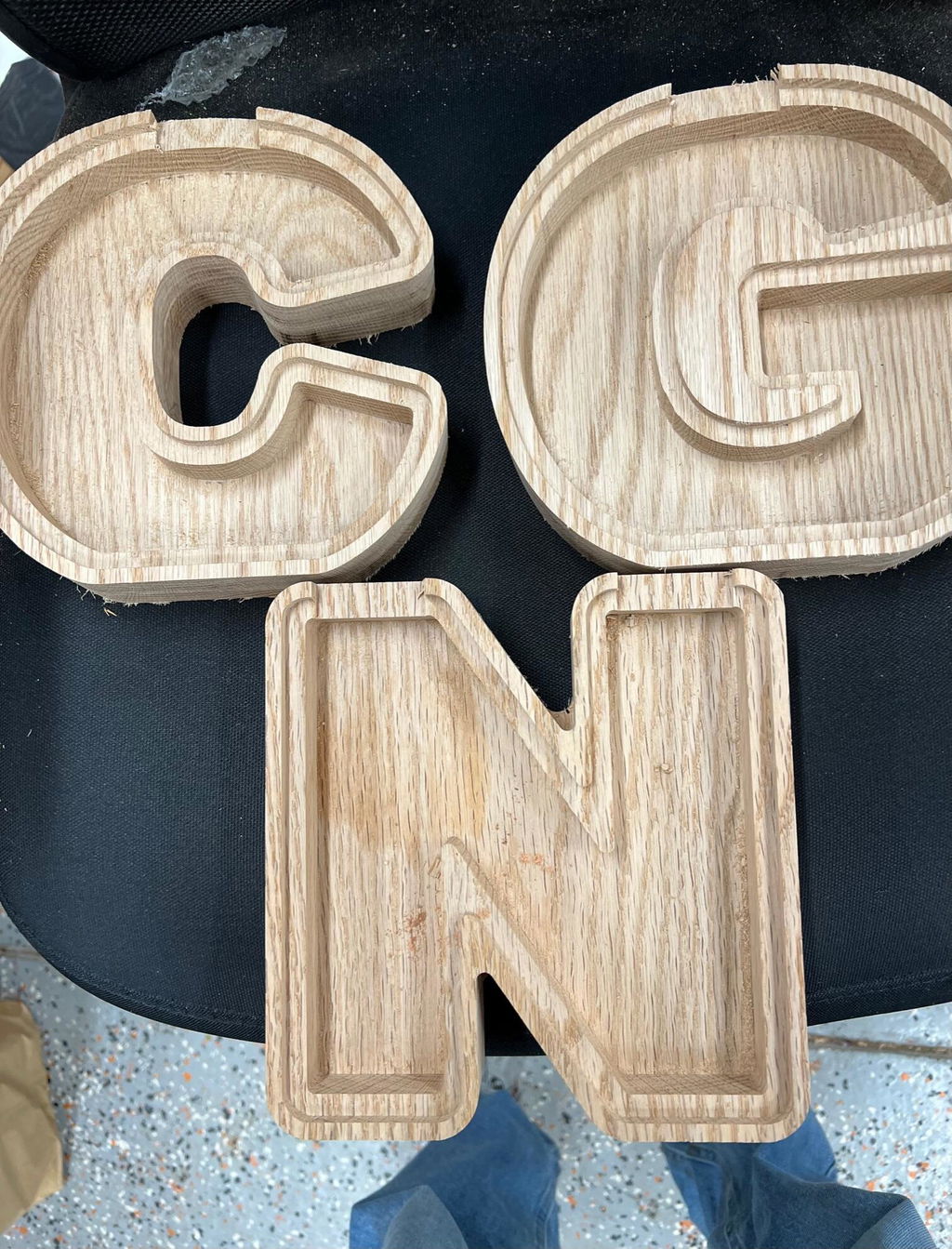

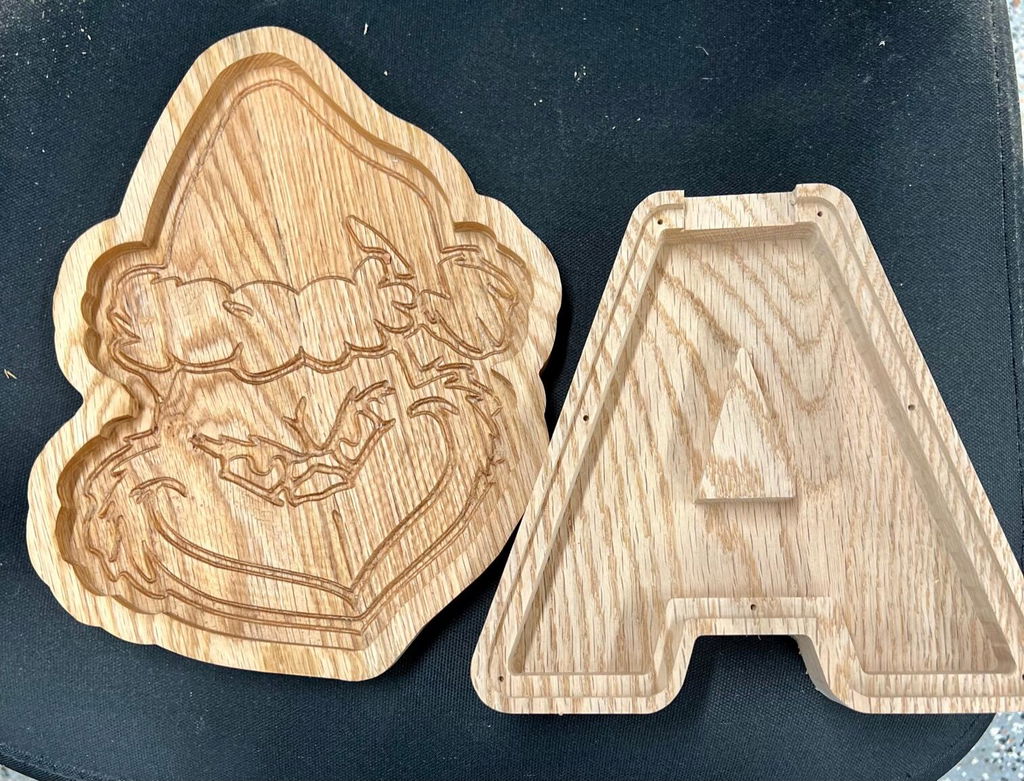

I bought this bit for the price and it exceeded my expectations. I have cut 6 banks out with it. All Hardwood and all coving out to an inch. Each bank took about 35- 40 minutes to run and the only bit i used was this bit. i cut a Grinch tray out with the same bit coved the tray and cut out the tray. Used the v bit was SpeTool v 90 bit to do the Grinch. No more overpriced bits for me. I am convinced these are my new line of bits. Thanks

User picture User picture
D
Debra Mcknight
Love the spetool bits! As a beginner, they let me concentrate on the design, not the mechanics!

I have several and will be buying more. I really like the Facebook page and.special deals there!

D
David Orler
Spetool bits

I love these bits and now own over 20 of them in various sizes. Why pay crazy money when you can get quality bits and much affordable price. Thanks spetools!

User picture User picture
