SpeTool Ranger 3/4" D 2-1/2" CL 1/2" S Carbide Insert Flush Trim Router Bit
SpeTool Ranger 3/4" D 2-1/2" CL 1/2" S Carbide Insert Flush Trim Router Bit
SpeTool Ranger 3/4" D 2-1/2" CL 1/2" S Carbide Insert Flush Trim Router Bit
SpeTool Ranger 3/4" D 2-1/2" CL 1/2" S Carbide Insert Flush Trim Router Bit
SpeTool W07038 Fresa de enrasar con plaquitas de carburo de la serie Ranger para patrones y plantillas, dobles rodamientos superior e inferior, diámetro de corte de 3/4", vástago de 1/2", longitud de corte de 2-1/2"
SpeTool W07038 Fresa de enrasar con plaquitas de carburo de la serie Ranger para patrones y plantillas, dobles rodamientos superior e inferior, diámetro de corte de 3/4", vástago de 1/2", longitud de corte de 2-1/2"

SpeTool W07038 Fresa de enrasar con plaquitas de carburo de la serie Ranger para patrones y plantillas, dobles rodamientos superior e inferior, diámetro de corte de 3/4", vástago de 1/2", longitud de corte de 2-1/2"

SKU: IWTBBU-d1/2-D3/4-FBA
Precio de venta$92.39 USD

Envío calculado en la compra


The SpeTool Ranger Heavy Duty Flush Trim Router Bit is built for maximum durability and precision, featuring a robust multi-blade design and high-quality bearings for smooth, tear-out-free trimming. Ideal for thick hardwoods, plywood, MDF, and laminate.

Excelentes para cortar:

  • MDF
  • Aglomerado
  • Madera maciza
  • Tablero de densidad
  • Tablero de melamina
  • Tablero de partículas
  • Contrachapado enchapado (laminado)

Especificaciones:

Longitud de corte: 2-1/2"
Diámetro de corte: 3/4"
Tamaño del vástago: 1/2 pulgada
Incluye 7 piezas de plaquitas de carburo (12mmx12mmx2.2mm)

⚠️Notas importantes:
Recomendamos utilizar esta fresa con una fresadora montada en mesa para obtener un rendimiento óptimo. Compruebe siempre que los tornillos de fijación estén bien apretados antes de cada uso. Esta práctica garantiza un entorno de trabajo estable y excelentes resultados de corte.

15 en existencias
Cantidad:
Pagos y seguridad
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Tus datos de pago se procesan de forma segura. Nunca almacenamos ni tenemos acceso a la información de tu tarjeta de crédito, lo que garantiza una privacidad y seguridad completas.

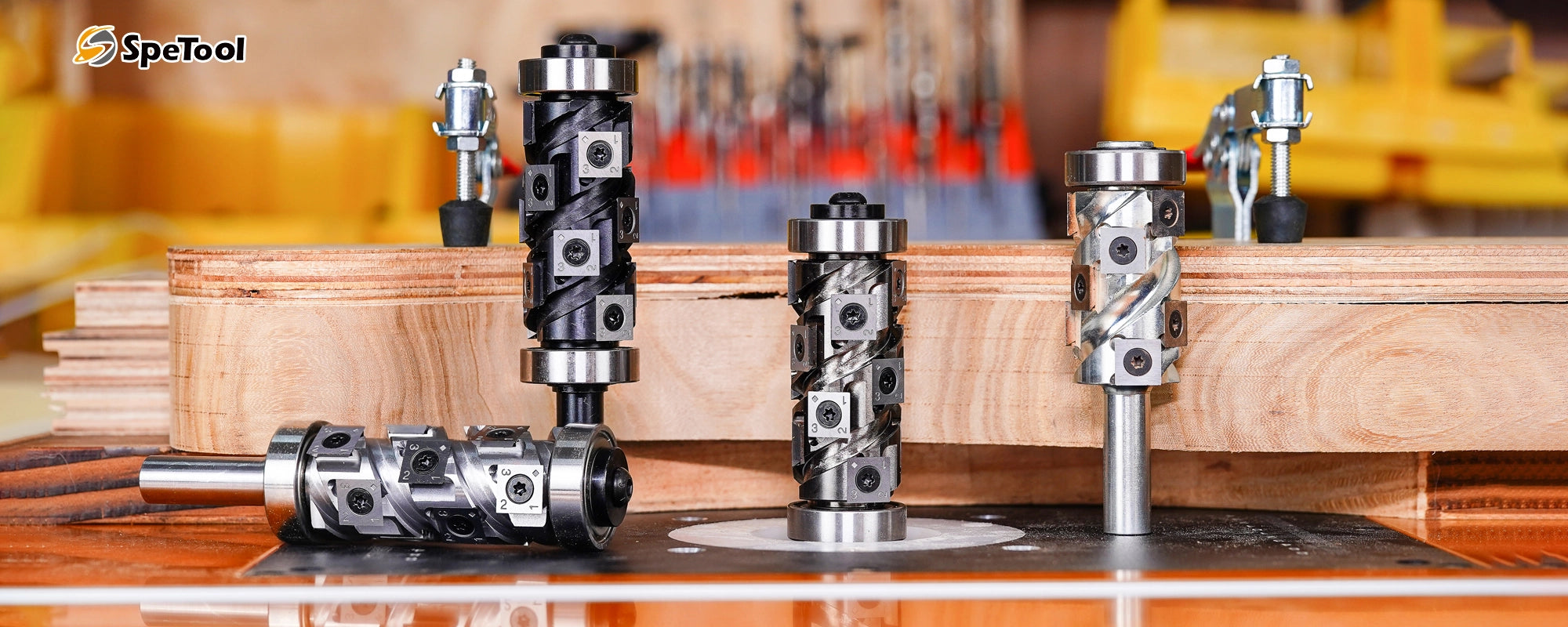

Potencia Ranger: recorte potente y limpio.

Tamaños similares

N.º de pieza

Diámetro de corte
(D)

Altura de corte
(B)

Diámetro del vástago
(d)

Longitud total
(L)

Cuchillas

Rodamiento Insertos RPM recomendadas
W07020 32mm 63.5mm 1/2" 5" 14 Superior & inferior O01001 14,000
W07038 3/4" 2-1/2" 1/2" / 7 Superior & inferior O01001 14,000

*Se admiten tamaños personalizados

Preguntas frecuentes

The Ranger features replaceable carbide inserts and top & bottom bearings in a spiral pattern, offering clean, tear-free trimming and extended tool life. Its steel body adds durability and minimized deflection.

La serie Ranger incorpora cuchillas de carburo fáciles de retirar que se pueden girar o sustituir, sin necesidad de cambiar toda la fresa.

Cada plaquita ofrece cuatro filos de corte que se pueden girar a medida que se desgastan. Esto multiplica de forma efectiva la vida útil de la herramienta antes de necesitar recambios.

Sí. Un usuario comenta que «trabaja la madera dura con rapidez… y deja un borde suave y uniforme», especialmente después de girar las plaquitas.

El mejor rendimiento se obtiene con una fresadora montada en mesa. También se puede usar a mano, pero su diseño robusto exige pasadas firmes y controladas.

  • 5 stars: 11 (92%)
  • 4 stars: 1 (8%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
J
J. Overton
Awesome looking bit

This router bit looks gnarly. It says right on the box not to use in handheld applications and I wouldn't dare. That said, the carbide teeth are great as I could easily shape some plywood I had on hand as well as some hardwoods I tried. This bit should last a long time since I can rotate the carbide cutters 4 times to get a fresh blade. So far happy with the quality and function of this bit.

L
LRS
High quality and well-made flush trim bit

The bit came very well packaged in foam and inside a plastic sleeve. My first impression on taking it out was “wow”. It’s quite large and has a top and bottom bearing, and by all appearances, seems to be a heavy duty and well made piece of tooling. The top and bottom bearings are a little narrow, but as long as they spin freely, it shouldn’t be a problem. Overall, I’m impressed, and as soon as I have a chance to use it, I’ll report on the cutting performance. If it works as well as it looks, it will be a very good addition to my tooling.

J
John Turner

Excellent

J
Jeff Doolittle
Router bit

Works great,fast shipping.what more could you ask for.great customer service

J
Jim Fulbright

Decent bit, but I think I need to work on some adjustments because it doesn't get the wood completely flush, instead it leaves a small little strip of wood about 1 cm wide and 1mm raised

w
willytexas
Wow!!

This is my first carbide insert bit and all I have to say is Wow! Clean cuts, smooth feeling and a promise of durability and savings. This turned out to be a great buy for me.

s
smiley
nice patterning bit.

Nice little router bit. It is a big thick bit that will take a strong router to pull. I am using a 2.25 HP router and even that can bog down if I do not go slow or take shallow passes. I Also find it works best in a router table at 13k rpms. It gave me clean cuts and no deflection using a chair template on some nominal 2x material (pressure treated southern yellow pine). I did use multiple passes never doing more than 3/8 of an inch on each pass. It may have been able to go deeper but I don't like stressing my tools and am not running a production shop, so slow and steady for max tool life.

The genius of these bit sis if you manage to dull a carbide insert you have 3 more sharp sides. Likewise if you are using reclaimed material and missed a nail then chip a tooth you get 3 more chances to mess up before needing just a new available carbide insert.

P
Preferred Reviewer
Excellent Trim Bit

This bit makes short work of hardwood. Running some walnut through it produces a nice smooth edge. the cutters are easy to remove and shift positions and the re-index themselves nicely on the holder. It's pricier than your flat trim bits, but this will last you a lot longer since you can get replacement cutters for it. If will also last longer since the cutters can be repositioned when an edge starts showing wear.

M
Miriam Volle
Very nice flush cut bit

This looks a bit like art - its really well designed and made

It runs well balanced and with the staggered cutters, actually cuts more smoothly than a typical two edged cutter - and the chips are smaller.

It does seem to have a more limited depth of cut you can make in a single pass but that's ok - its still effective and easier to control (still not a bit for hand held operations)

Top and bottom bearings run freely - they are a little narrow but do their job fine.

Like spiral planers heads, this leaves a little bit different finish but its smooth and clean.

Very nice bit - and with the four sided inserts, its easy to have a fresh sharp set of edges whenever needed.

G
Gadget geek
Very nice router bit

This is the first time I have purchased this style of router bit. First things first I don’t want to use it as it’s like a piece of art work. Looks like it was machined well and the carbide is razor sharp. I haven’t had the opportunity to use it yet but in build quality and looks alone it’s a 5star bit. Excited to have a job come up where I can use it and will report back on the quality of cut when I do. I’m expecting it will be smooth.

J
J. Sharp
Awesome Bit

Wow, this is an awesome attention getting router bit! It's quite large and the carbide cutting inserts are all very sharp, so handle with care!. Both bearings, top & bottom, spin very freely and the bit is well balanced when tested on my table. I had never used a bit this large and have to admit was a little intimidated when first spinning it up. I quickly got over the nerve issue after experiencing how smoothly it cut with only taking off a small amount of material each pass. I love the idea of being able to rotate the cutters (4 times) to a new blade edge when getting dull or chipped. This bit & cutters should last a very long time before having to replace. There defiantly won't be any hand holding router work with this bad boy!

C
Christopher D.
Give it a try!

These replaceable carbide insert bits are awesome! It's amazing what you can get as a consumer these days.

This bit is machined true and trims very smoothly out of the sleeve. SpeTools has replacement inserts that run about $2.50 an insert (but as a pack of 10). Both guide bearings are also replaceable but I don't see that they have a replacement part for them.

SpeTools seems to be doing the CNC distribution thing well! Great reviews on most of their products. I hope they keep to decent quality standards.
