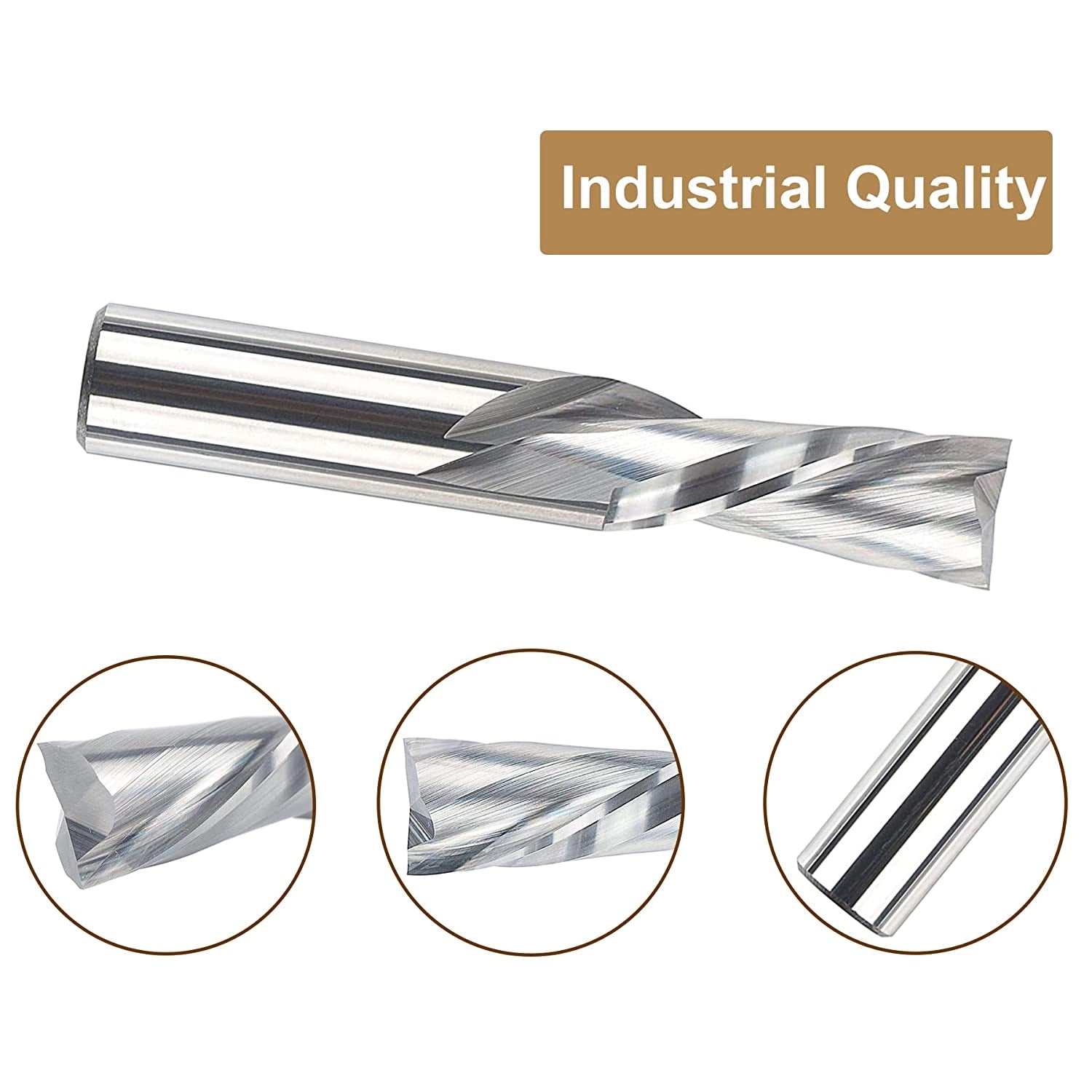

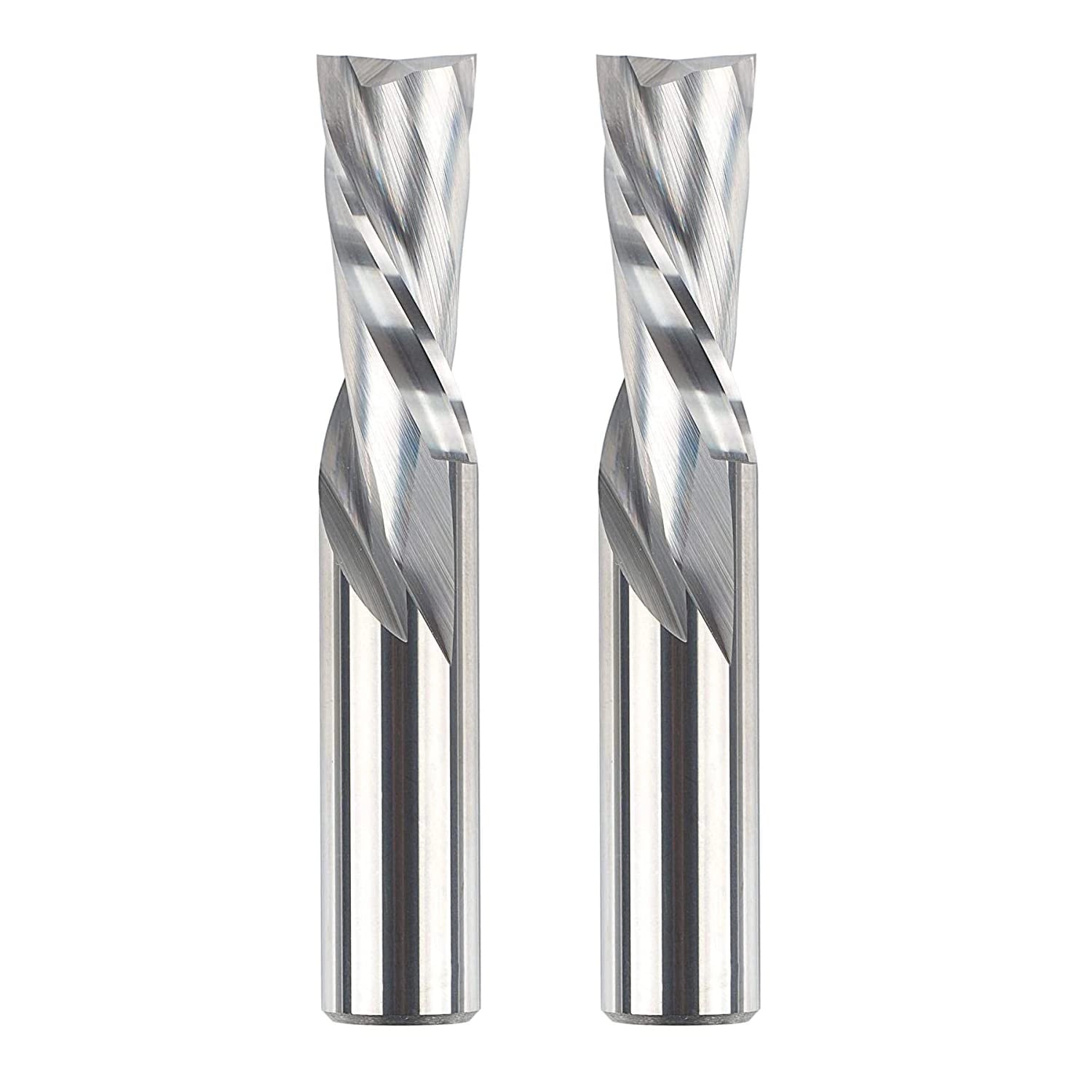

SpeTool W04002 SC Spiral Plunge 1/2" Dia x 1/2" Shank x 1-1/4" Cutting Length x 3" Long 2 Flute Down-Cut Router Bit

SpeTool Router Bits New Customer Discount

$32.39 USD

Shipping calculated at checkout

Number of Items: 1
1
2

Available Now!


For bulk requirements please click here!

USA, Canada, UK, Germany orders ship from local Amazon warehouses with Amazon's speed; others from China.

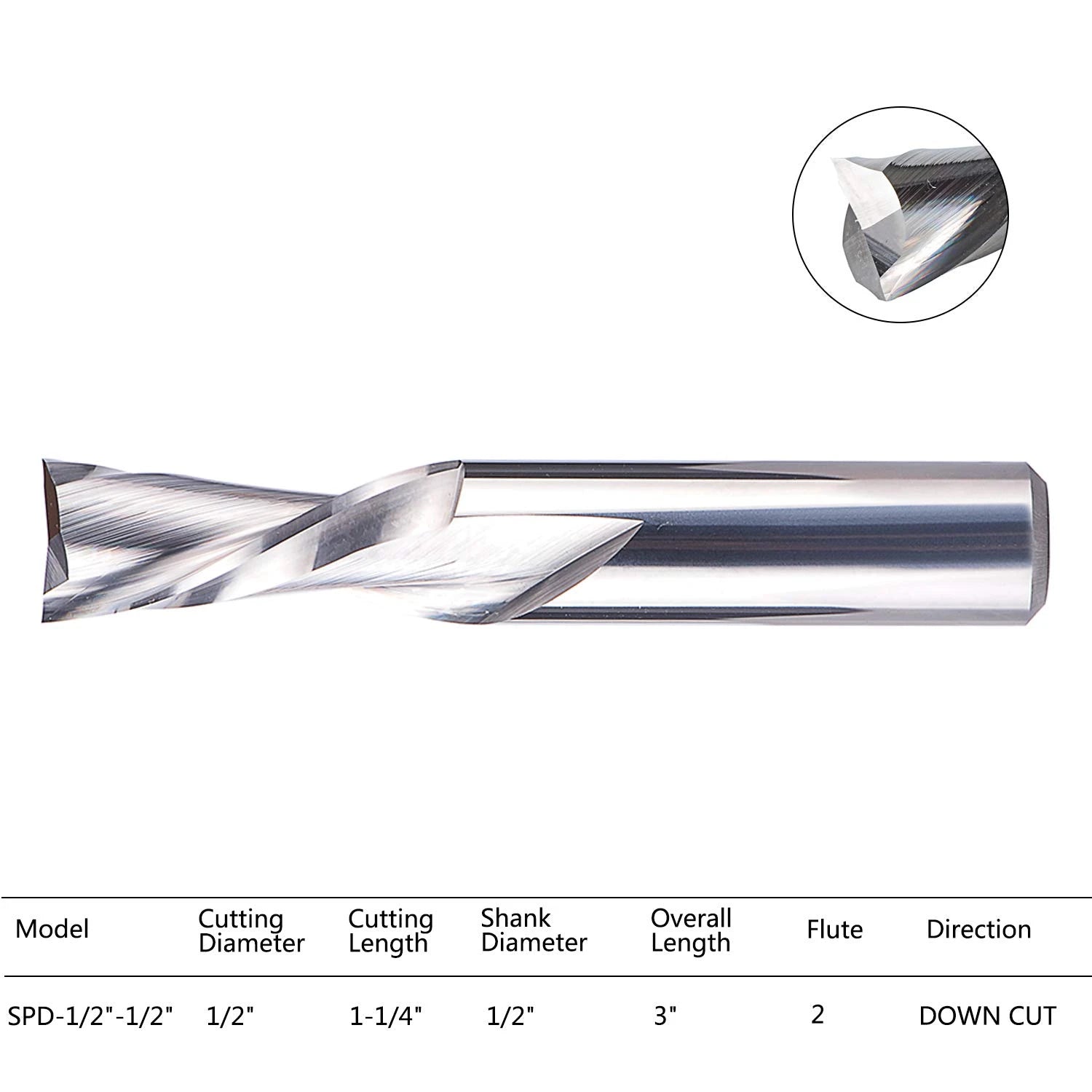

Specification

Cutting Direction: DOWN
Cutting Diameter(CD): 1/2"
Shank Diameter(SD): 1/2"
Cutting Length(CL): 1-1/4"
Overall Length(OVL): 3"
Material Carbide


Overview

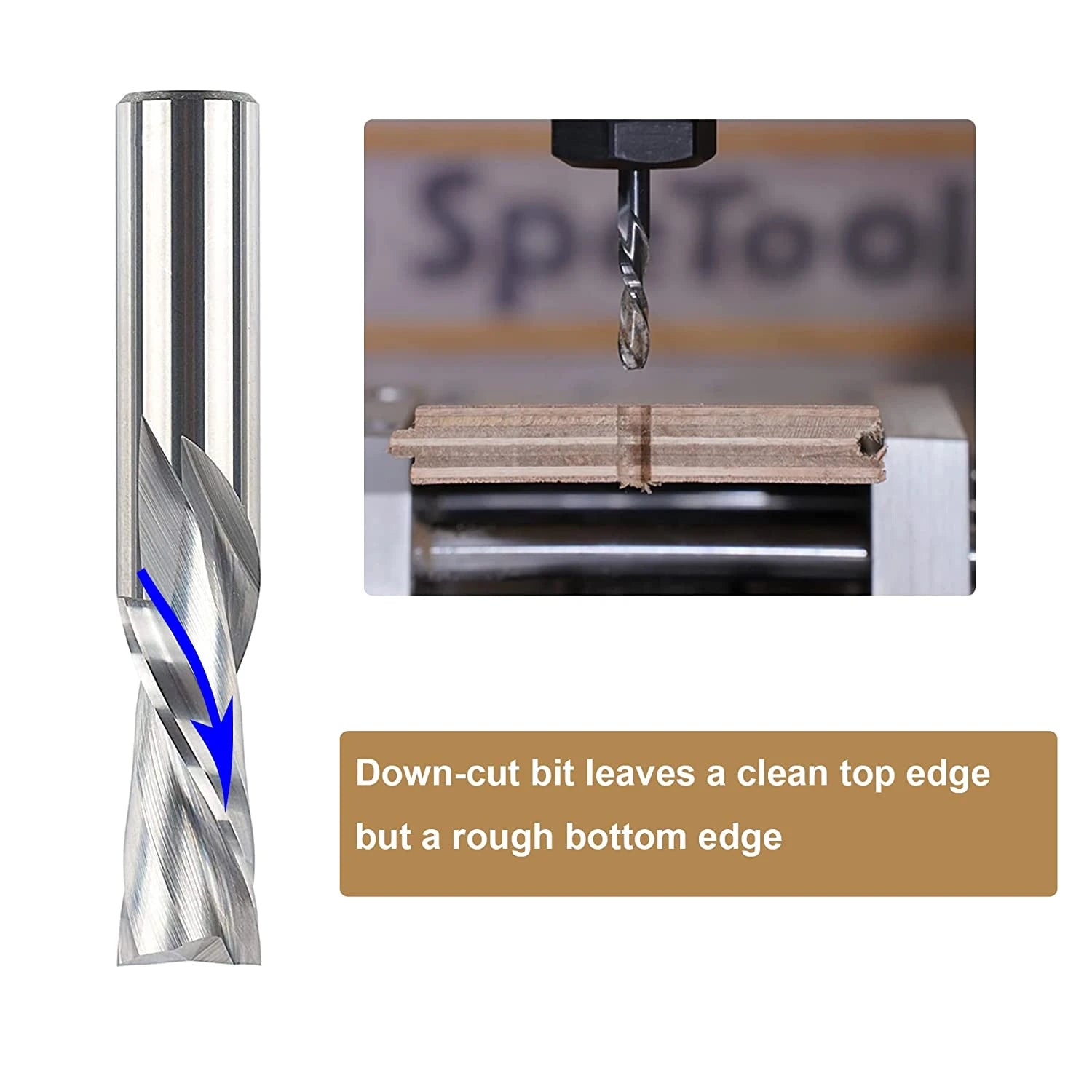

Downcut spiral tools are best used for thinner materials which will be pushed down into the machine bed rather than being lifted with an upcut spiral. This can be particularly useful when using vacuum hold down where maintaining the seal between the material and sacrificial bed is crucial. These tools are predominantly used when a high-quality cut finish is required on the top surface of cut parts.

Specially designed to provide an excellent finish. It can be used with handheld, table-mounted, and CNC routers.


Designed for cutting the following materials

  • MDF/HDF
  • Foam Board
  • Hardwood
  • Plastic
  • Softwood
  • Plywood



DOWNLOAD CNC SPEED/FEED FILE OR CHECK THE PAGE FEED & SPEED.

Safety Guidelines

BE CAREFUL. Always wear eye and ear protection along with dust masks. Avoid using bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter. Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters. Disconnect power when changing bits or making adjustments, and  always leave the power disconnected when not in use. Follow all safety recommendations of the power tool manufacturer. SpeTool Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification
of any product (including sharpening).

WARNING: Re-grinding of SpeTool products will produce dust of potentially hazardous ingredients. Always read and follow owner’s safety manual of all power machinery before using bits. Always use eye protection while using this or any carbide cutting product.

WARNING: SpeTool products can expose you to chemicals including lead and/or cobalt, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

WARNING: Drilling, sanding or machining wood products can expose you to wood dust, a ubstance known to the State of California to cause cancer. Avoid inhaling wood dust or use a mask or other safeguards for personal protection. For more information go to http://www.P65Warnings.ca.gov.

Autodesk fusion 360 logo
Spetool tool file database vectric
SpeTool-carevco-tool-database

CNC Software.tool Files Available

Fusion 360™, Vectric® & Carveco® CNC Tool File For Download, click here!
