SpeTool P01002 router lift with adjustment crank, installation templates and orange insert rings
P01002 dimensions: 9-1/4 by 11-3/4 inch plate, table clearance, insert rings and 65–107 mm motor clamp

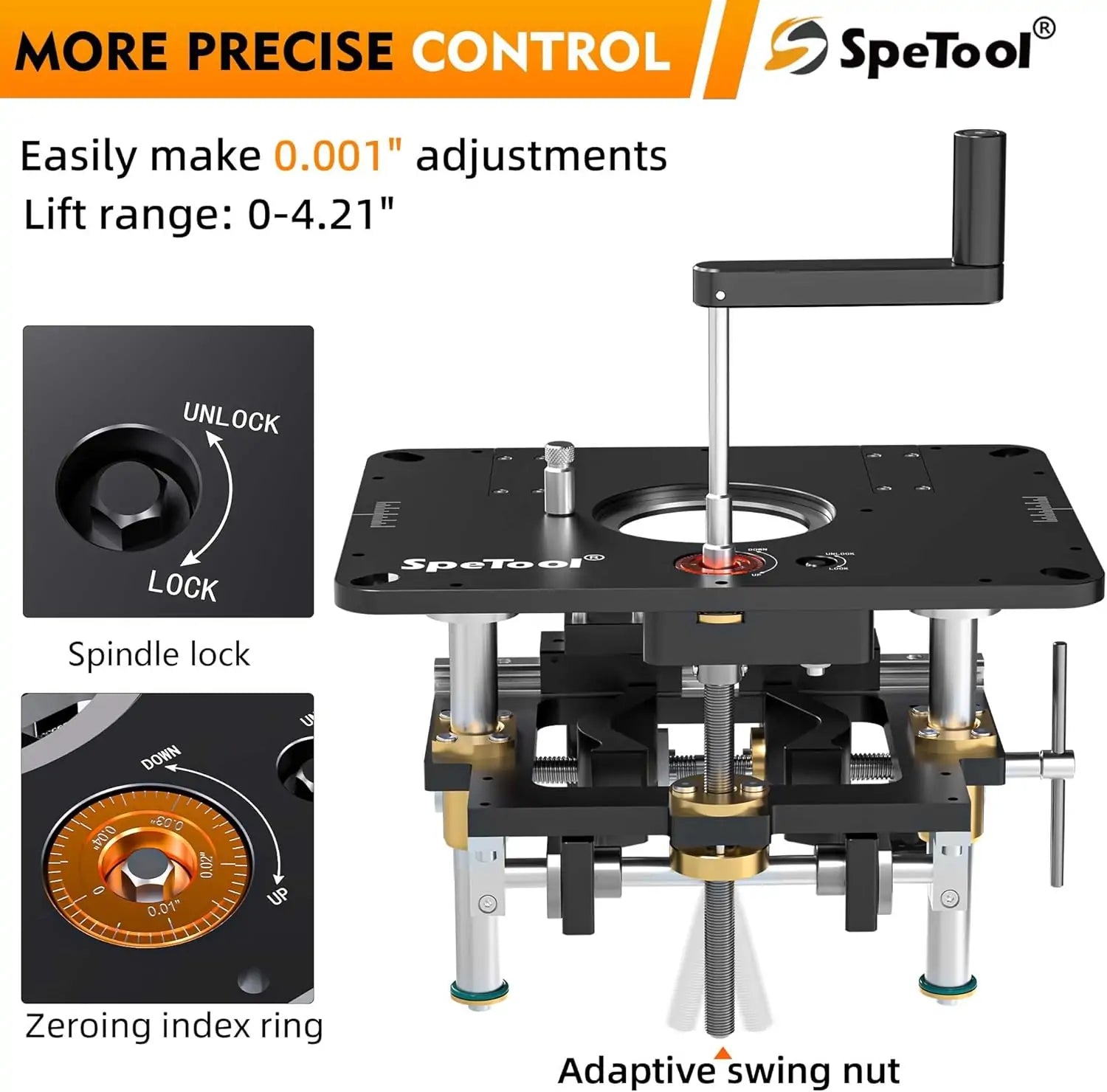

P01002 height adjustment mechanism, separate height lock and zeroing index ring

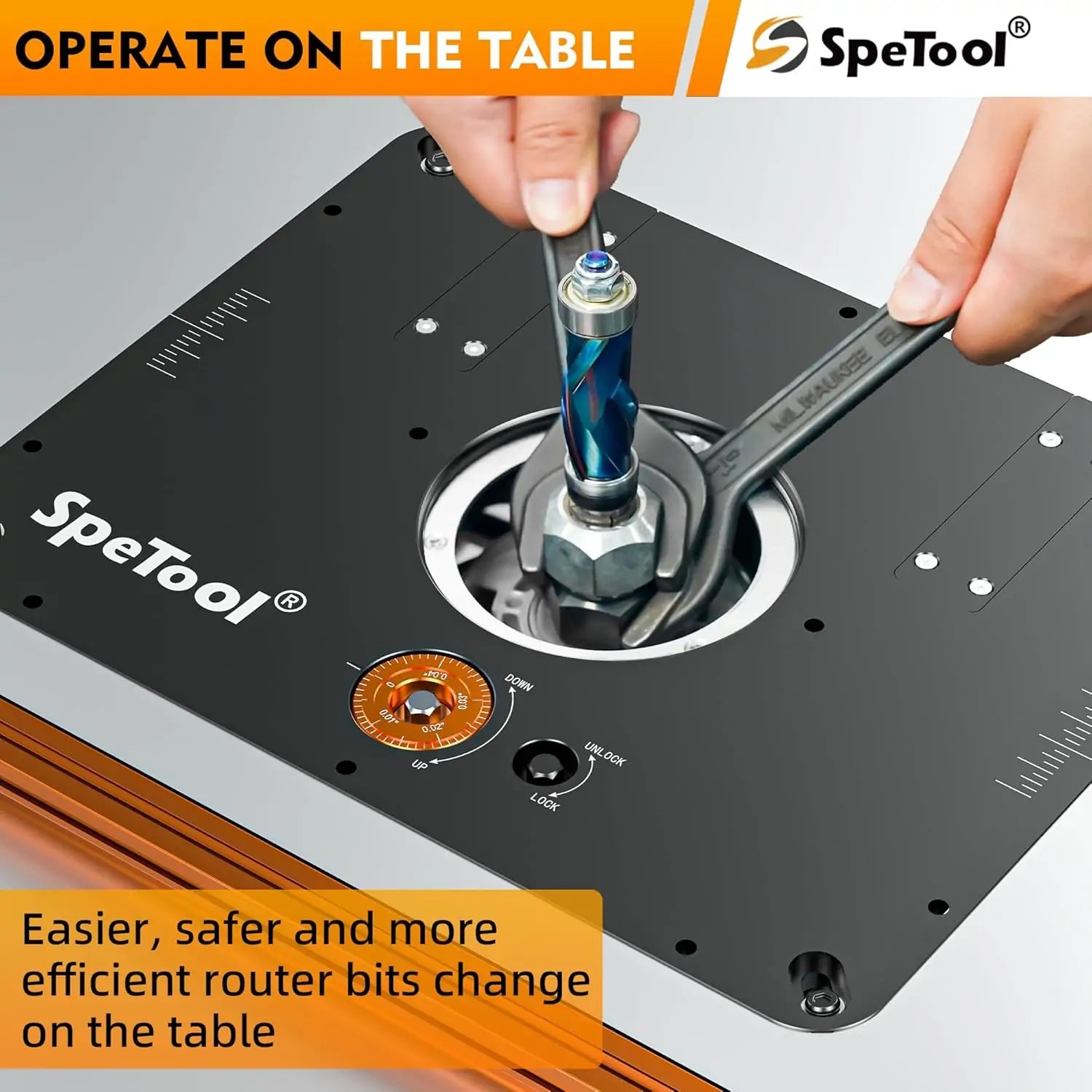

Changing a router bit and removing the magnetic insert ring from above the P01002 table plate
P01002 plate dimensions and installation template used to prepare a router table opening
Woodworking with P01002 and its dust collection interface; optional dust hood shown separately

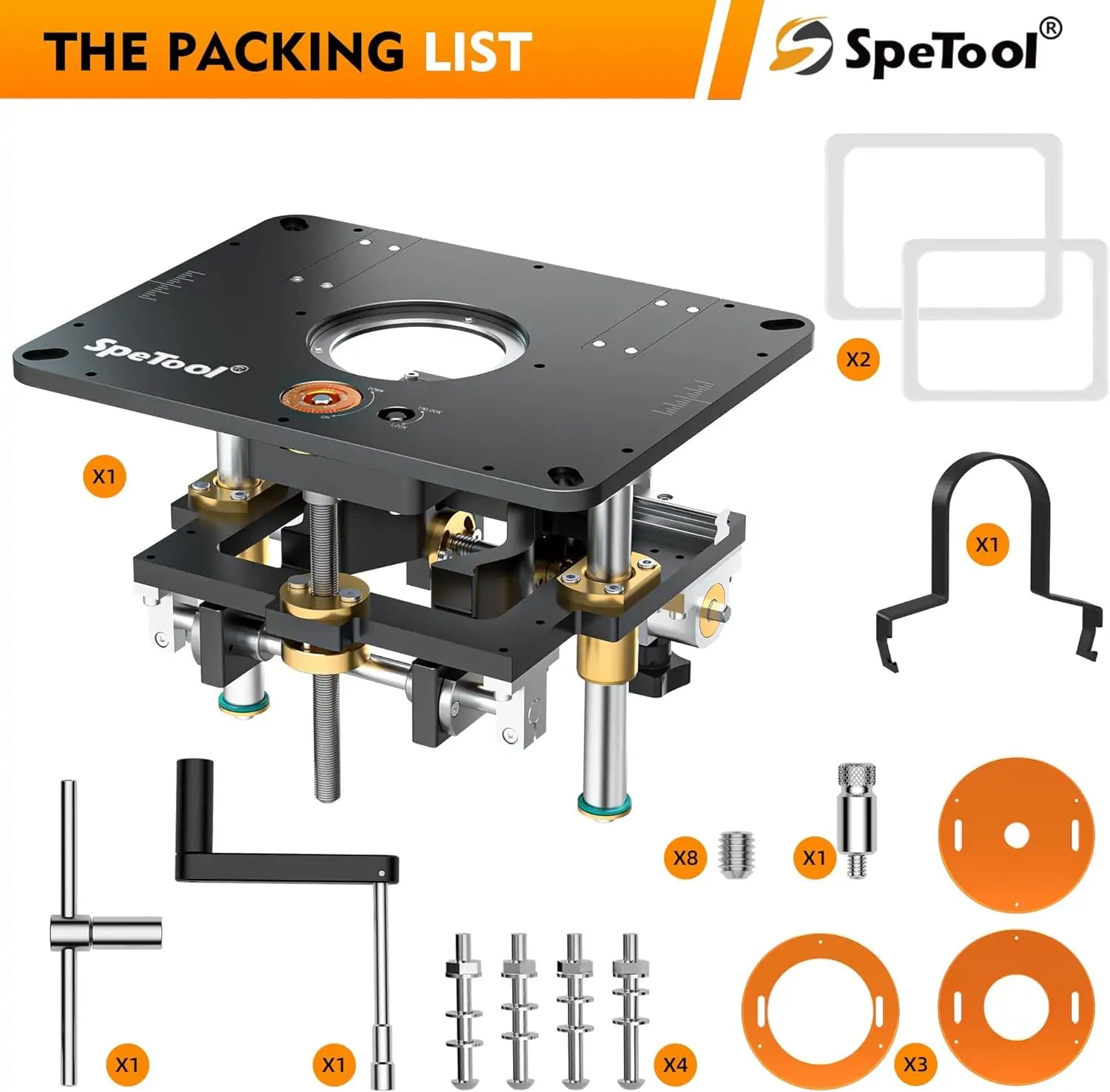

P01002 package contents showing the lift, adjustment tools, mounting hardware and three insert rings
SpeTool P01002 router lift product demonstration video
SpeTool P01002 router lift installation demonstration video
Early Access · 8% OFF Sitewide Nov 20–25 · No minimum spend

Elevador de precisión para fresadora SpeTool P01002

Ajusta la altura de la fresa desde encima de la mesa. Bloquéala y vuelve a tu proyecto.

Precio de venta$342.95 USD Precio normal$397.72 USD
Ahorra 14%
  • Above-table adjustment
  • Separate height lock
  • DIY template included
Check My Motor & Table Fit

Router motor and optional dust hood sold separately.

Cantidad:

Read the installation manual (PDF)

Shipping options, applicable taxes and final totals are shown at checkout for your destination.

American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

CHECK YOUR SETUP

Will It Fit My Motor & Table?

Two checks before you buy: the removable motor and the router table. A model match alone does not confirm the complete setup.

1. Check your motor

Measure the straight, cylindrical area that the lift will clamp—not the removable base or handles.

2. Check your table

Enter a model or diameter to check the available guidance. Router table compatibility must be verified separately.
Table fit still needs verification.

This check runs on this page. Your entries are not sent to customer support.

Measure before you order

Nominal motor range
65–107 mm / 2.56–4.21 in
Nominal plate dimensions
9¼″ × 11¾″ / 235 × 298 mm
Plate thickness
⅜″ / 9.5 mm

Plate size is not a cutting dimension. Check the opening, support ledge depth, corner radius, screw locations and clearance below your table against the actual lift and installation template.

Bosch RA1181 owner? Do not treat P01002 as a confirmed drop-in fit. Ask about the P01004 option and confirm the exact table version before ordering.

Check the current installation manual (PDF) →

Ask SpeTool to confirm fit →

Include the exact router model, motor diameter, table model and photos of the opening.

Router model references (9)

Each entry states its verification status. Guidance applies to the removable motor, not every router from that brand or every router table. Verify your exact motor version, clamping surface and table separately.

Bosch 1617EVSLikely fit — verify your setup

Diámetro de referencia del motor: 88.9 mm. Comprueba tu motor extraíble y tu mesa antes de hacer el pedido.

Bosch 1617EVSPKLikely fit — verify your setup

La referencia del kit utiliza la familia de motores 1617EVS. Comprueba la etiqueta y la versión del motor real, no solo el nombre del kit.

DEWALT DW618Likely fit — verify your setup

Diámetro de referencia del motor: 88.9 mm. Comprueba la zona cilíndrica de sujeción y el acceso a los controles.

DEWALT DW618PKLikely fit — verify your setup

La referencia del kit utiliza un motor DW618M. Comprueba la etiqueta, la versión y la zona de sujeción del motor real.

Makita RF1101Likely fit — verify your setup

Diámetro de referencia del motor: aproximadamente 82 mm. Confirma el motor extraíble y la superficie de sujeción real.

Porter-Cable 690LRLikely fit — verify your setup

Diámetro de referencia del motor: 88.9 mm. Comprueba el motor extraíble, la zona de sujeción y la mesa.

Makita DRT50Installation confirmed by SpeTool support

El servicio de asistencia de SpeTool ha confirmado una instalación con este modelo. Comprueba tu versión exacta, el espacio libre para la batería, el acceso al interruptor y la mesa antes de instalarlo.

SKIL RT1323Installation confirmed by SpeTool support

El servicio de asistencia de SpeTool ha confirmado una instalación con este modelo. Comprueba la versión exacta del motor, la superficie de sujeción, el acceso a los controles y la mesa.

Milwaukee 5615Installation confirmed by SpeTool support

El servicio de asistencia de SpeTool ha confirmado una instalación con este modelo. Comprueba la versión exacta del motor, la superficie de sujeción, el acceso a los controles y la mesa.

Bosch MRC23EVS: No compatible: el motor no puede funcionar cuando se retira de su base original. No utilices un resultado basado solo en el diámetro para ignorar esta limitación.

SEE IT IN ACTION

Precision You Can See. Control You Can Feel.

See the lift and installation process before you plan your setup.

DESIGNED AROUND YOUR WORKFLOW

Engineered for Stable, Repeatable Adjustments

Ajusta la altura desde encima de la mesa

Ajusta la altura desde encima de la mesa

El mecanismo de 20 TPI se desplaza 0.05″ por vuelta completa, lo que permite realizar cambios controlados en la altura de la fresa. Utiliza el dial de puesta a cero como referencia para volver a un ajuste.

Las marcas de ajuste describen el mecanismo; no garantizan la precisión del corte terminado.

Encaja el motor. Fija el ajuste.

Encaja el motor. Fija el ajuste.

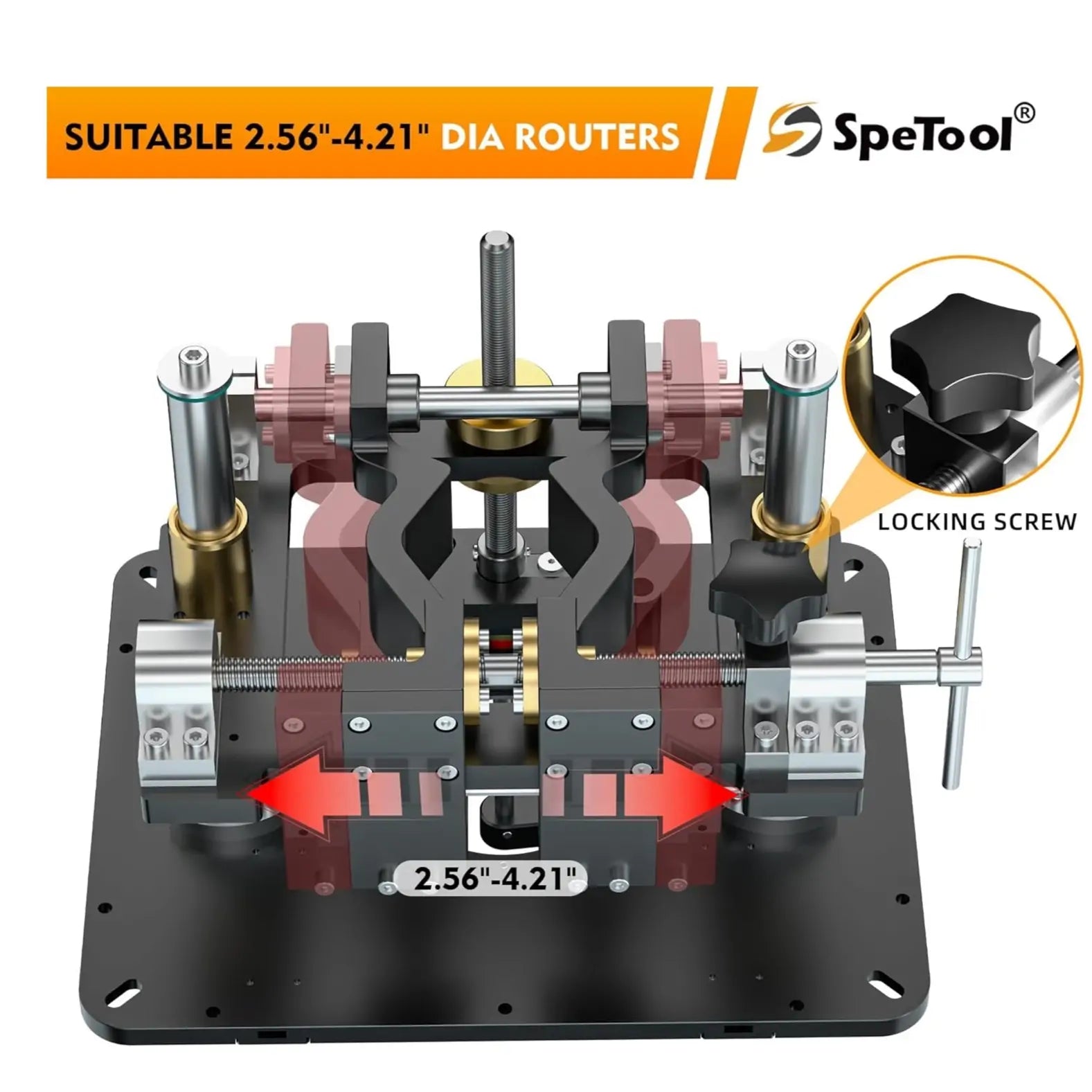

La estructura de sujeción ajustable admite cuerpos de motor cilíndricos compatibles dentro del intervalo nominal de 65–107 mm. Confirma la geometría exacta del motor antes de instalarlo.

Después de ajustar la altura, activa el bloqueo de altura independiente según las indicaciones del manual.

Una base sólida para tu mesa de fresado

Una base sólida para tu mesa de fresado

La placa de aluminio sostiene el elevador en una abertura de mesa correctamente preparada. Nivélala y fíjala antes del uso, comprobando el apoyo perimetral y los espacios libres alrededor del mecanismo.

El ajuste desde encima de la mesa deja a mano los cambios habituales de altura. La conexión integrada de extracción de polvo admite la campana de aspiración opcional P01003.

PLAN IT. FIT IT. DIAL IT IN.

Upgrade Your Router Table with Confidence

Existing router table? Check the opening and recess first. Building your own? Plan the opening with the supplied template and current manual; cutting and tools may be required.

  1. Comprueba la compatibilidad de la fresadora y la mesa

    Comprueba la compatibilidad de la fresadora y la mesa

    Mide el cuerpo del motor y comprueba la abertura, el apoyo perimetral y los espacios libres con el elevador y la plantilla reales.

  2. Prepara la abertura de la mesa de fresado

    Prepara la abertura de la mesa de fresado

    Fija la plantilla y prepara la abertura solo después de confirmar las dimensiones. Puede ser necesario cortar y fresar.

  3. Instala y fija el elevador de fresadora

    Instala y fija el elevador de fresadora

    Asienta la placa, utiliza los tornillos de nivelación y una escuadra y, después, fija el elevador con los tornillos de fijación.

  4. Monta la fresadora y ajusta la altura

    Monta la fresadora y ajusta la altura

    Con la alimentación desconectada, sujeta firmemente el motor. Comprueba el acceso a los controles, ajusta la altura y activa el bloqueo de altura.

Dimensions & included accessories

Nominal plate: 9¼″ × 11¾″ × ⅜″. Motor clamping range: 65–107 mm.

Router lift, DIY installation template, three magnetic insert rings, insert ring remover, Allen wrench, crank wrench, guide pin, leveling screws and fixing screws. Router motor and P01003 dust hood are sold separately.

Tools & installation preparation

The manual calls for a set square to check leveling. For a custom opening, it describes a jigsaw or router with a template guide bushing and a top-bearing flush-trim bit. Secure the template and use tools appropriate to your table material.

Unplug the router before installation or adjustments. Confirm access to its power switch and speed control.

Installation Guide (PDF)

REAL WOODWORKERS, REAL WORKSHOPS

Trusted by Woodworkers

Read product reviews from the store’s existing customer review system.

  • 5 stars: 58 (91%)
  • 4 stars: 5 (8%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (2%)
Some of the reviews shown are from related products the merchant grouped with this one.
m
mad scientist
 Great product. I highly recommend.

OUTSTANDING product. Turned my tablesaw into a very nice router table.

T
Toni
Frästisch

Lieferung und Verpackung perfekt. Alles dabei um das Teil Sach- und fachgerecht einbauen zu können. Die Bedienung der Höhenverstellung ist etwas schwer gängig was mich etwas negativ stimmt. Auch die Befestigung des Fräser ist nicht sehr zentral zur Lochöffnung und muss nachgebessert werden.

E
Eddie L Traynham III
Nice little package, easily setup

The Spetool Router Lift package is a well thought out package complete with plexiglass templates for routing out a seat in a piece of wood for the lift kit should you not have a Pre-cut table ready for installation.

The lift is a heavy duty lift with a smooth action providing more than enough lift for any project. The lift easily fit my DeWalt DWP611 Compact Router. I have not as yet had a chance to try it out as I am looking to add dust collection and a miter fence to the package, but don’t anticipate any problems routing out projects in its current configuration.

G
Geoff
Best Bang for the Buck

I shopped for a router lift for months before choosing the SpeTool router lift. None of the other offerings were as versatile or as well made. I needed a way to use a Porter Cable 3 1/4hp router that is 4.2" in diameter, and most of the other lifts could not accommodate this large router. In addition, the SpeTool installation was very simple and straightforward. From the time I unpacked the parts to the time I had the unit in place and ready to use was a little over 1 hour. I installed it in a wing on my table saw using the supplied templates and it fit perfectly. I've been using the SpeTool router lift for several weeks now and I am impressed by how easy it is to operate and how accurate it is in use. Previously, I had a smaller router attached to a plate that had to be removed from the table each time to change bits or when adjustments were needed The SpeTool lift is much easier. I would recommend it to anyone needing an easy to install and accurate router lift at an affordable price.

m
mad scientist
Great product. I highly recommend.

OUTSTANDING product. Turned my tablesaw into a very nice router table.

J
John
Quality Router Lift

This Router lift is top quality with a really accurate cut out jig which gives a perfect installation. I have just installed and cannot find any fault with this piece of equipment all the attachments are also top quality
If I was to suggest an added piece of detail that would add to the quality is to have caps to cover the bolts which bolt it down.

J
Jose Alvarez
Very satisfied

I am very satisfied with the Spe Tool Router lift; it is magnificent, very practical, functional, and above all, economically priced compared to other on the market.

T
T Baker
Router lift

Installation was easy. Have used it multiple times and am pleased with the precision of the adjustment and stability. I am very pleased. I don’t know what features the high priced units could be providing that this one doesn’t have. Great router lift.

A
Anibal Venegas

This is a great accessory for the Tupí router, allowing me to perform extremely precise operations on my new woodworking router table.

G
G Briel
 high quality

100% satisfied. Excellently made.

S
SEGUNDO ARIAS

It's not bad—it's well-made and highly precise, but it's very heavy and has complex internal components.

m
marilyn
 Fantastic product

Easy install, fits all 3 of my routers. Most of all it comes with templates which make the install a breeze

J
Julian

Never arrived

R
Raymond Lambert
Worth the money

I’ve been wanting to upgrade my router capability for a long time. The SpeTool has made life so much easier and efficient. I love how quickly I can make changes to both routers and bits. Too easy. Adjustments are simple and I don’t need to work from underneath. Highly recommend considering one if you like to use routers. Frankly, the more I use them they more uses I find for them.

L
Lane

Love it. Extremely high quality and can fit both my porter cable and spinrite routers.

k
k jones
Bad a$$

This is an amazing product. Pricey but worth every penny of it.

M
Marc Emmerke
Excellent Router Lift

This lift is easy to install especially with the included acrylic templates. The operation of the lift is smooth and very accurate. Love it!

Q
Qazar

They were kind enough to offer me a full refund even though my return window had expired. That's good customer service. It really is a solid tool and works great.

T
Trevor

Fantastic marketing for the product says what it does to the T. I like the locking feature on there and the adjustable mount for all size of routers. I wish I could have gotten 10 leveling screws rather than the 8. Granted I had some bolts handy to help lvl the table in some spots but for the price i really think 2 more Lvling screws could have been added for the full capability if it was needed for the next consumer. Other than that the 1/2” almost zero clearance really helps and the other throat plates that come with it are astounding as well. The lvling screws were my only interjection.

K
Kristin L Conway
 Quality

Great Lift.

y
yeah
Great Lift

A well made and designed tool

M
Mark Sheehan
 Excellent router lift!

Extremely well made. Great build quality. Came well packaged and exceeded expectations!

M
Mark Sheehan
Excellent router lift!

Extremely well made. Great build quality. Came well packaged and exceeded expectations!👍

S
SEGUNDO ARIAS
cumple expectativas

Esta bien, tiene calidad y presicion, pero muy pesado y accesorios internos complejos.

S
Sodiepop
 Great tool

Books as described a little overpriced I think but it does fit almost any router trim a full size very sturdy build

S
Sodiepop
Great tool

Books as described a little overpriced I think but it does fit almost any router trim a full size very sturdy build

O
Oswaldo Amado
Excelente artículo y excelente servicio del vendedor

Un artículo de excelente calidad, buen material, todo muy bien, el envío fue rápido, un excelente vendedor

O
Oswaldo Amado
Excelente artículo y excelente servicio del vendedor

Un artículo de excelente calidad, buen material, todo muy bien, el envío fue rápido, un excelente vendedor

R
Ron Babineau
No short cuts

Well made

BEFORE YOU BUY

P01002 Questions, Answered

¿Será compatible el P01002 con mi fresadora?

El intervalo nominal de sujeción es de 65–107 mm en el cuerpo cilíndrico recto del motor. El diámetro por sí solo no basta: comprueba la forma del motor, la zona de sujeción, la base extraíble y el acceso a los controles. Utiliza el comprobador de compatibilidad y comunica a SpeTool tu modelo exacto.

¿Encajará en mi mesa de fresado?

Las dimensiones nominales de la placa son 9¼″ × 11¾″ × ⅜″. Comprueba tu mesa de fresado con la guía de instalación vigente y la plantilla suministrada. Confirma el rebaje, la abertura pasante, el apoyo perimetral, el radio de las esquinas, los puntos de fijación y el espacio bajo la mesa antes de cortar o instalar.

¿Encajará el P01002 en una mesa Bosch RA1181?

No des por hecho que el P01002 encaja directamente en la abertura de la RA1181. SpeTool ofrece la opción P01004 para mesas Bosch. Pide al servicio de asistencia que confirme la versión exacta de la mesa, la placa y los requisitos de montaje antes de elegir un elevador.

¿Puedo ajustar la altura desde encima de la mesa?

Sí. Utiliza la manivela en el dial de ajuste de altura siguiendo el manual oficial. Libera el bloqueo de altura antes de ajustar y vuelve a bloquearlo después. Desconecta la alimentación de la fresadora antes del montaje o de cambiar la fresa.

¿El elevador incluye un motor de fresadora o una campana de aspiración?

No. Este producto individual P01002 incluye el elevador y los accesorios de instalación indicados. No incluye el motor de fresadora, la mesa de fresado, las fresas ni la campana de aspiración opcional P01003.

¿Incluye una plantilla de instalación?

Sí. La plantilla de instalación para bricolaje ayuda a preparar una abertura adecuada en tu propia mesa. No hace que cualquier abertura existente sea compatible. Comprueba el rebaje, el material de la mesa, el apoyo y los espacios libres con el manual vigente antes de cortar; pueden ser necesarias herramientas y operaciones de mecanizado.

¿Qué incluye el paquete?

El elevador de fresadora, la plantilla de instalación para bricolaje, tres anillos de inserción magnéticos, el extractor de anillos, la llave Allen, la manivela, el pasador guía, los tornillos de nivelación y los tornillos de fijación. El motor de fresadora y la campana de aspiración opcional P01003 se venden por separado.

¿Cómo funcionan los envíos, las devoluciones y la garantía?

Las opciones de entrega, los gastos y los impuestos dependen de tu destino y se muestran al finalizar la compra. Consulta nuestra política de envío y las condiciones de devoluciones y garantía vigentes antes de hacer el pedido.

Si tu entrega se retrasa o necesitas ayuda, contacta con SpeTool e indica tu número de pedido. No publiques datos personales de tu pedido en una reseña pública.

Need help with a specific setup? Contact SpeTool before ordering.

Planifique la instalación de su mesa de fresado

Antes de elegir el elevador P01002, consulte las indicaciones de esta página sobre la compatibilidad con el motor de su fresadora y su mesa de fresado. Revise los recursos de instalación antes de planificar la abertura de la mesa y el montaje.

Para comparar otras opciones, consulte las placas y elevadores para mesas de fresado SpeTool.
