SpeTool W05011 CNC Insert Mini Spoilboard Surfaceing, Rabbeting, Flycutter, nivelador de losa y cepilladora de superficie 1" de diámetro x 1/4" vástago enrutador broca x 2-1/4" de largo

SKU: IP2F-D1-d1/4-2T
$19.99 USD $25.99 USD
Agotado

Envío calculado en la compra

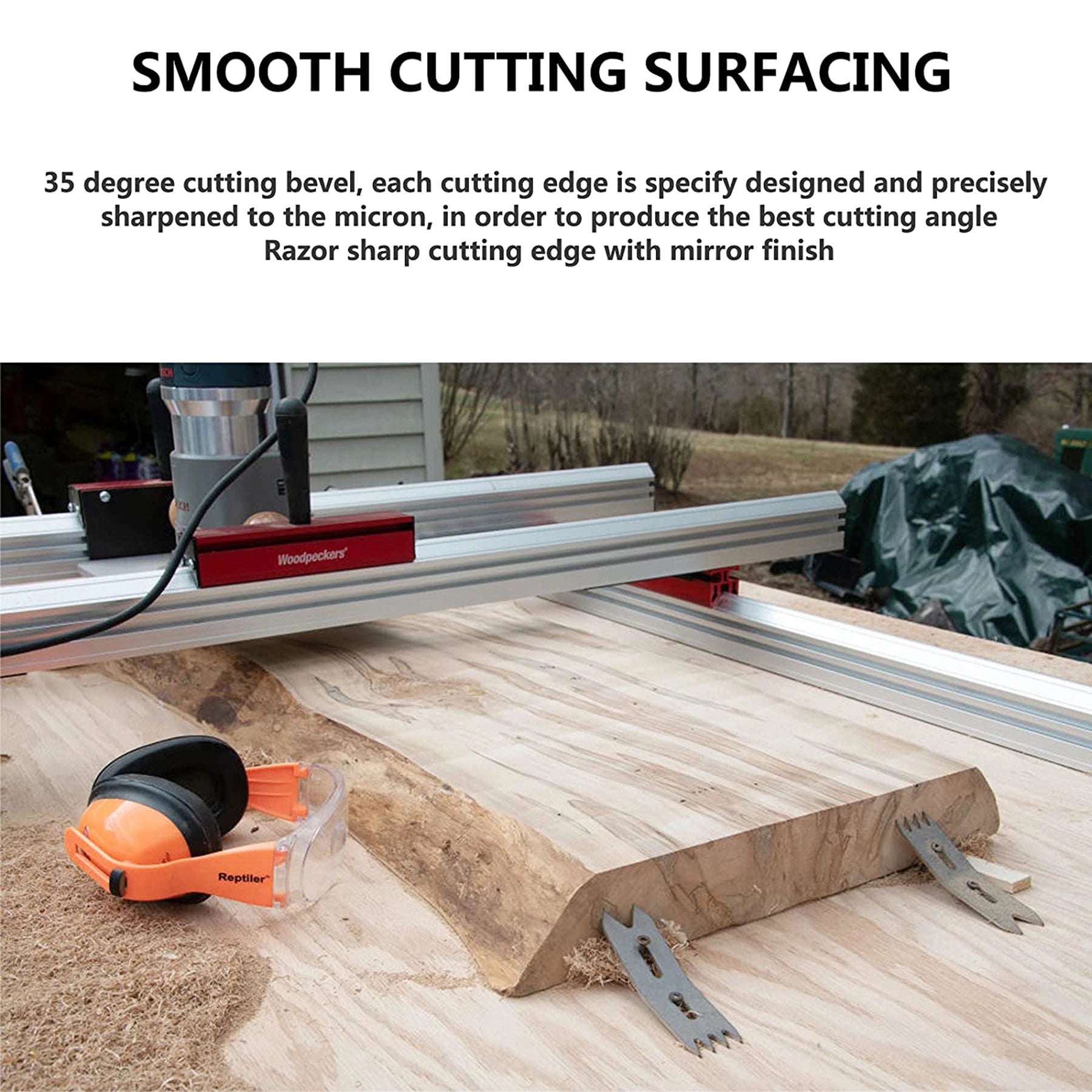

Spoilboard Surfacing Router Bits are built for fast, smooth, and precise flattening of CNC spoilboards, slabs, and large wood surfaces. With ultra-sharp carbide inserts and a durable body, they deliver clean cuts, extend tool life, and reduce sanding—perfect for keeping your CNC bed true and ready for accurate machining.

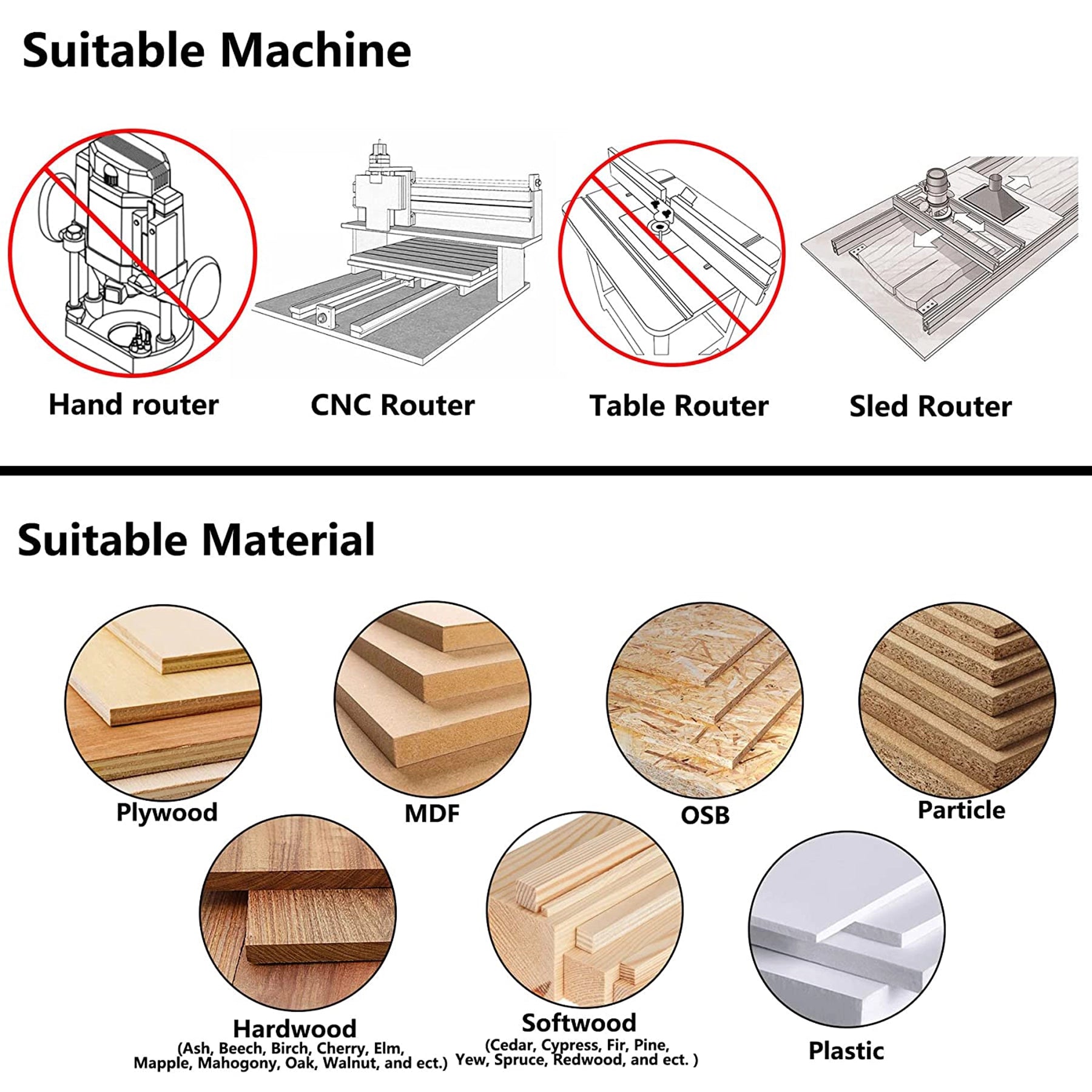

Excellent For Cutting:

  • MDF
  • Chipboard
  • Hardwood
  • Plastic
  • Plywood
  • Fiberboard
  • Softwood
  • Acrylic

Características:

  • CORTE RÁPIDO: esta broca enrutadora cepilladora está diseñada con insertos de carburo de 2 alas y un diámetro de corte de 1 ", insertos de carburo de 2 alas (12 mm * 12 mm * 2,2 mm, 35 grados, orificio recto), lo que resulta en un funcionamiento de carpintería más eficiente.

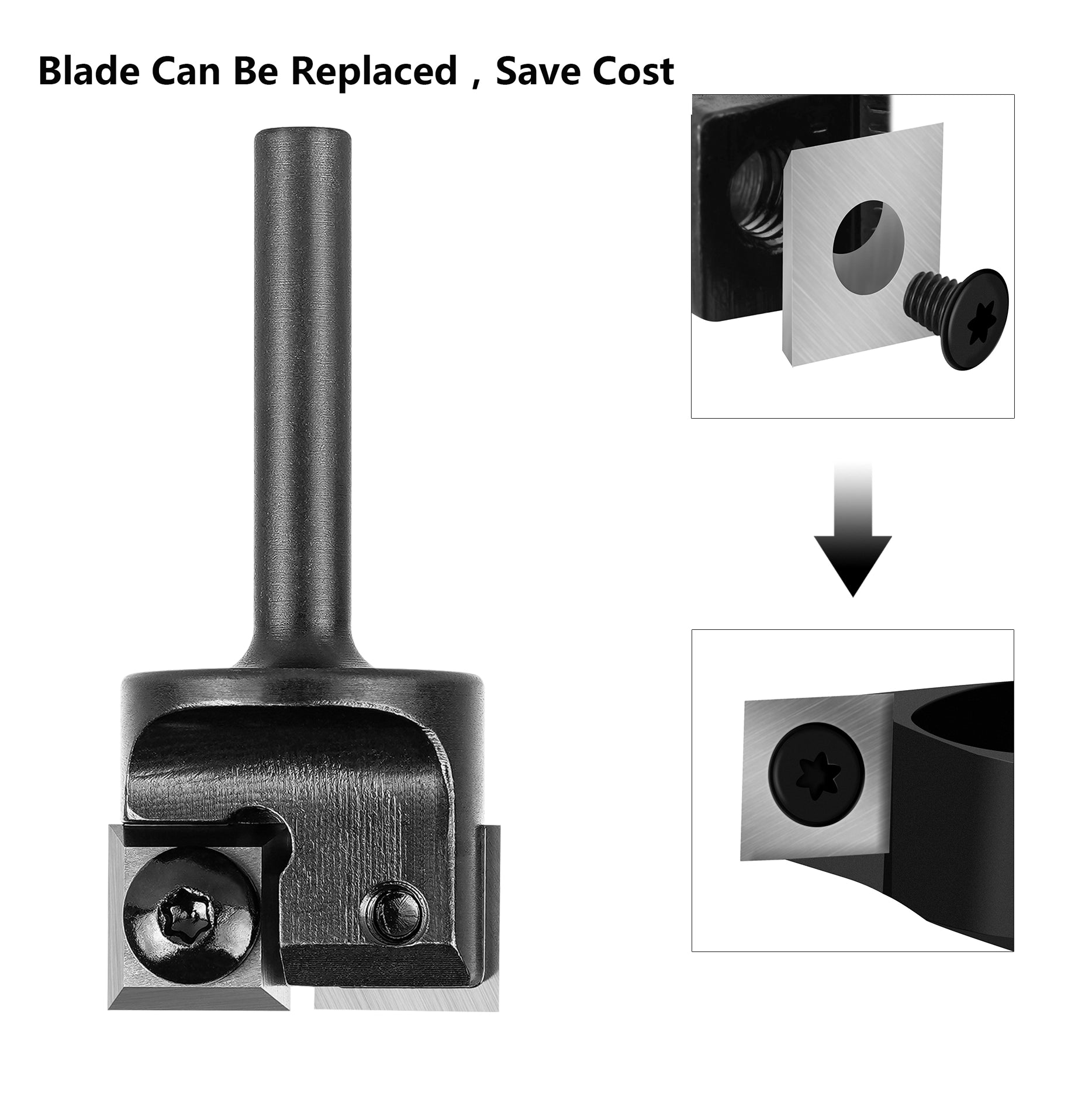

  • RENTABLE: la broca fresadora de superficies utiliza inserciones de carburo sólido de 4 lados. Se pueden utilizar los 4 bordes de los insertos. reemplace los insertos cuando sea necesario, en lugar de reemplazar toda la broca.

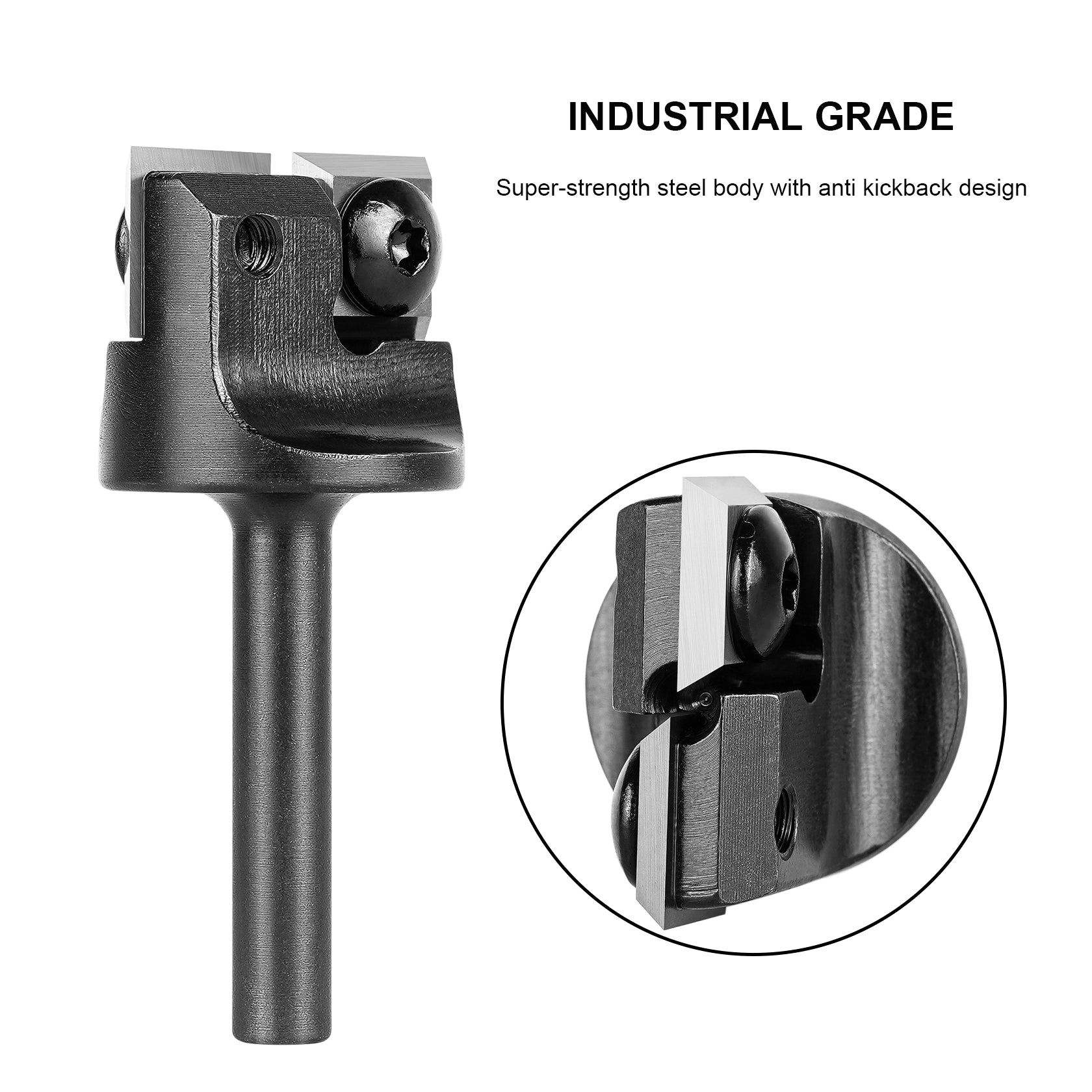

  • DISEÑO DE GRADO INDUSTRIAL: Vástago de 1/4" y acero sólido de diámetro de corte de 1" para una larga duración y mantener el cuerpo recto.
  • UTILIZADO EN: Esta broca enrutadora aplanadora de 1 pulgada es perfecta para aplanar losas de madera, limpiar el fondo, repavimentar o cepillar la superficie superior de la tabla de vela. Adecuado para maderas blandas y duras, MDF, contrachapado, laminado, etc.
  • Úselo en CNC y otros enrutadores automáticos, así como en enrutadores portátiles de mano y montados en mesa. Como máquinas de grabado para carpintería, máquinas de recorte, etc.
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Smooth starts with the right bit.
Flattenning planer router bit SpeTool

Industrial strength. Woodworker approved.
3-wing Surfacing Router Bit Planer Bit 2" Diam SpeTool

From rough to refined—fast.
Flattenning planer router bit SpeTool

More cut. Less time. No compromise.

Similar Size

Part No.

Cutting Dia.
(D)

Shank Dia.
(d)

Overall Length
(L)

Flute
(F)

 Coating Repl. Blades
 		Rec. RPM
W05001 1" 1/4" 1-4/5" 2+2 O01002 18,000
*W05002-ATS 2" 1/2" 2-1/5" 3 ATS O01004 18,000
*W05003-ATS 2-1/2" 1/2" 2-4/5" 4 ATS O01004 18,000
W05004 1-1/4" 1/4" 2" 2+2 O01002 18,000
*W05004-ATS 1-1/4" 1/4" 2" 2+2 ATS O01008 18,000
W05005 35mm 8mm 75mm 3 O01003 18,000
W05010 3" 1/2" 2-5/6" 2+2 O01001 18,000

*Customized sizes are acceptable

Frequently Asked Questions

Designed for leveling and cleaning the sacrificial spoilboard on CNC tables or router sleds. Wide diameter and multiple flutes ensure efficient flattening.

A ½" shank offers greater rigidity and less vibration compared to thinner shanks.

Replaceable insert bits (like Amana's with 4-sided knives) offer better longevity—cheaper over time versus replacing entire bits.

Absolutely—surfacing bits perform flat surfacing much faster than small end mills, significantly reducing runtimes.

Yes—but may still require sanding afterward for full smoothness.

Community reports describe dust clouds on “cosmic scales”—strong dust collection is essential.

Routers with 2¼ HP+, ½" collet, variable speed, and soft start are preferred. Examples: Porter-Cable 890, Bosch 1617 EVS.

Some recommend raising spoilboard height or using a shorter sled to compensate.

Yes—take shallow passes, reduce RPM, and keep bit moving to avoid burning.

Use appropriate feed/fine passes and larger diameter bits; users reported no ridges on 5×8’ table using 2.5" bit.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
CobraDoc101
So far, it's been great!

I have several routers, only one is CNC. It happens to be one of the popular 3018 machines with and extended Y-axis, call it a 3037. I have a poplar board I've been using to make spoil boards. The W05011surfaced my latest spoil board very well. More importantly, it squared the spoil board to the spindle. This board had been through the jointer and thickness planer already, so it was already close and didn't take much to finish it. I haven't tried it on MDF because my dust collection system isn't great. I do like the fact that the cutters have 4 usable sides.AND it has extra cutters. It's going to be a long time before I need more. I'm not cutting deep. I'm only making sure the spoil board is aligned with the spindle. Out of curiosity, I also tried on a purple heart work piece. Again, not going too fast or cutting deep.It did very well on a 6" x 6" purple heart board. If you've ever worked purple heart, you know it can be difficult. I only took off 3/32". Yes, I did need a little denatured alcohol to clean the bit afterward. That was expected. If I find something not to like about this bit, I'll edit my post. At first glance, this bit works as advertised.
(Yes, at one time I was a Cobra helicopter mechanic.)
