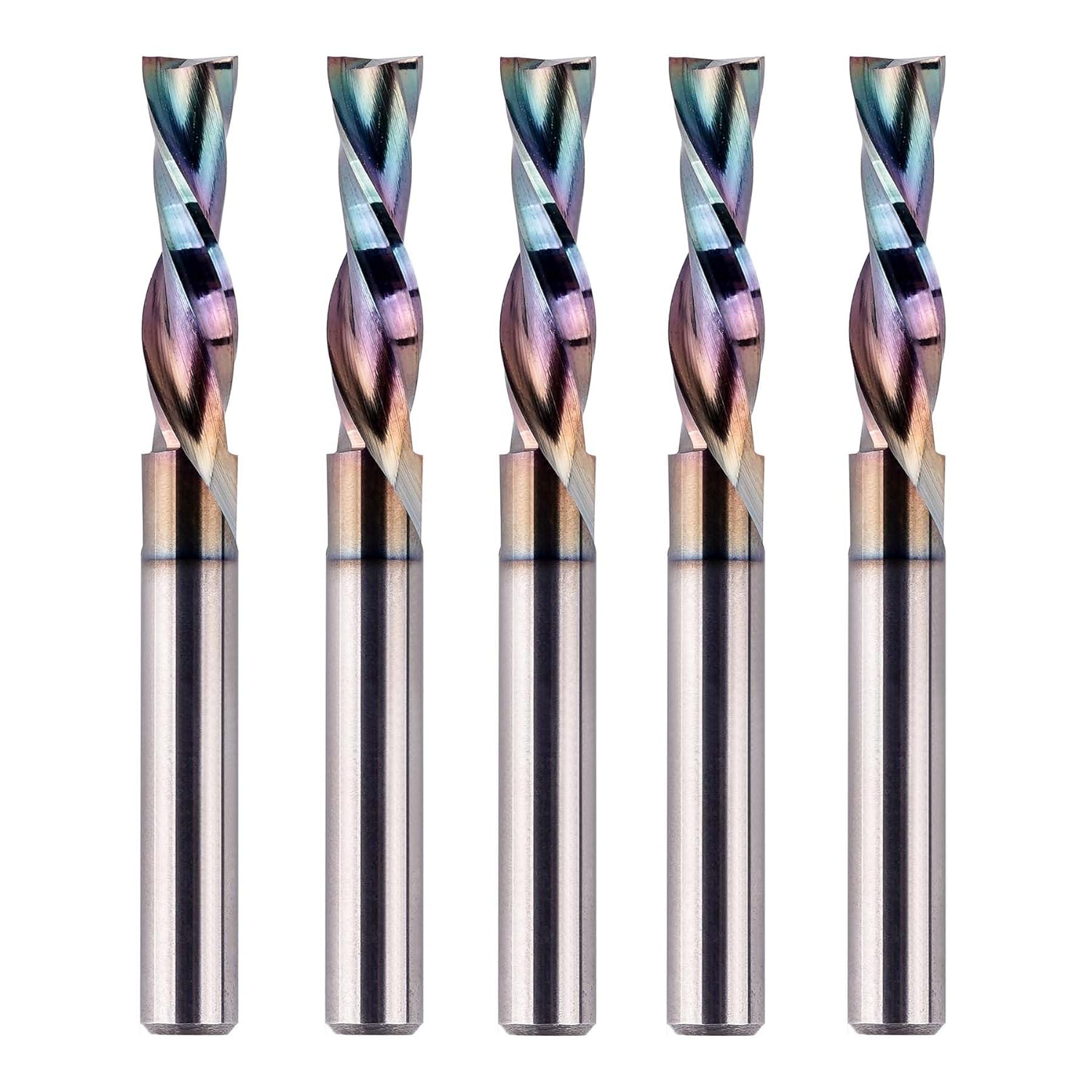

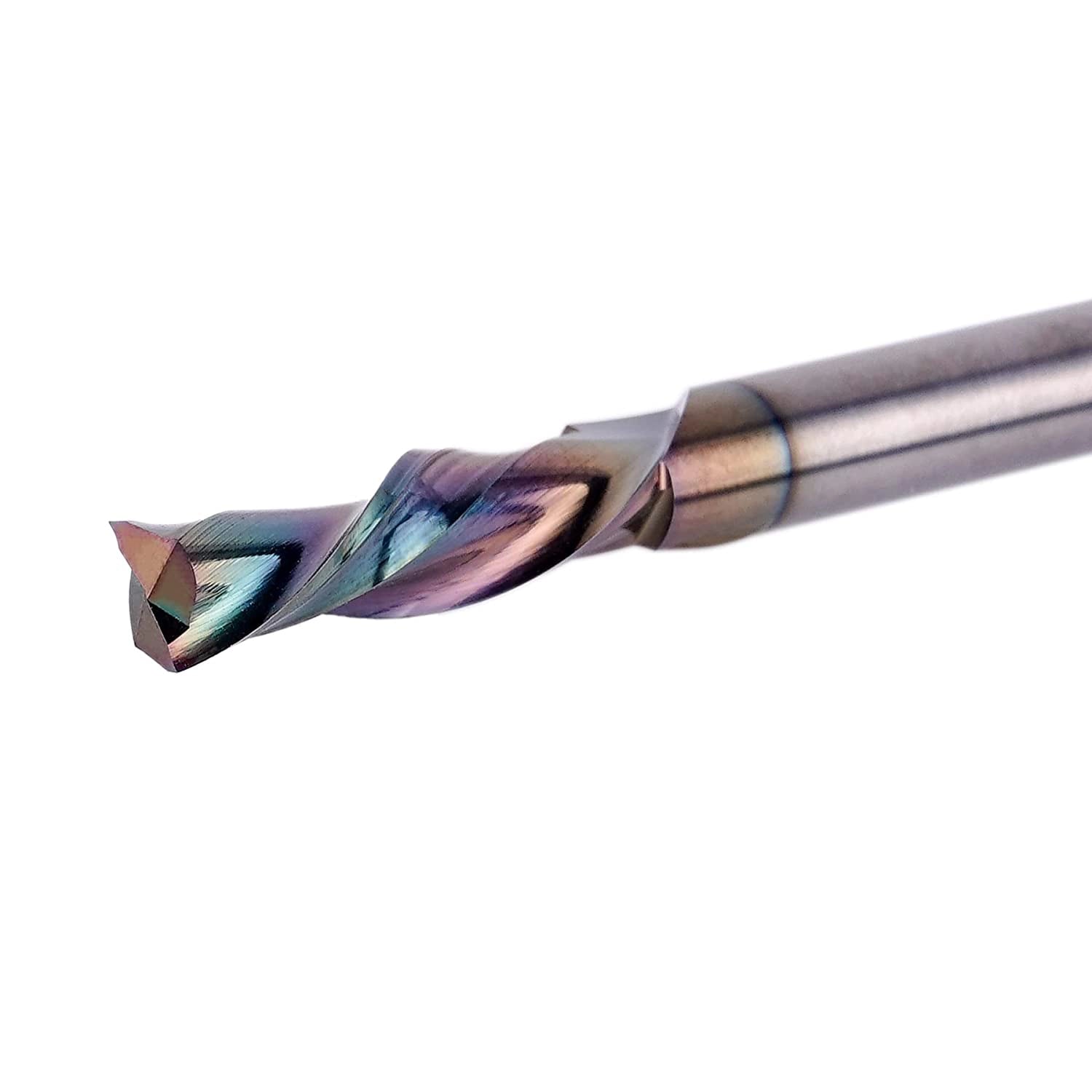

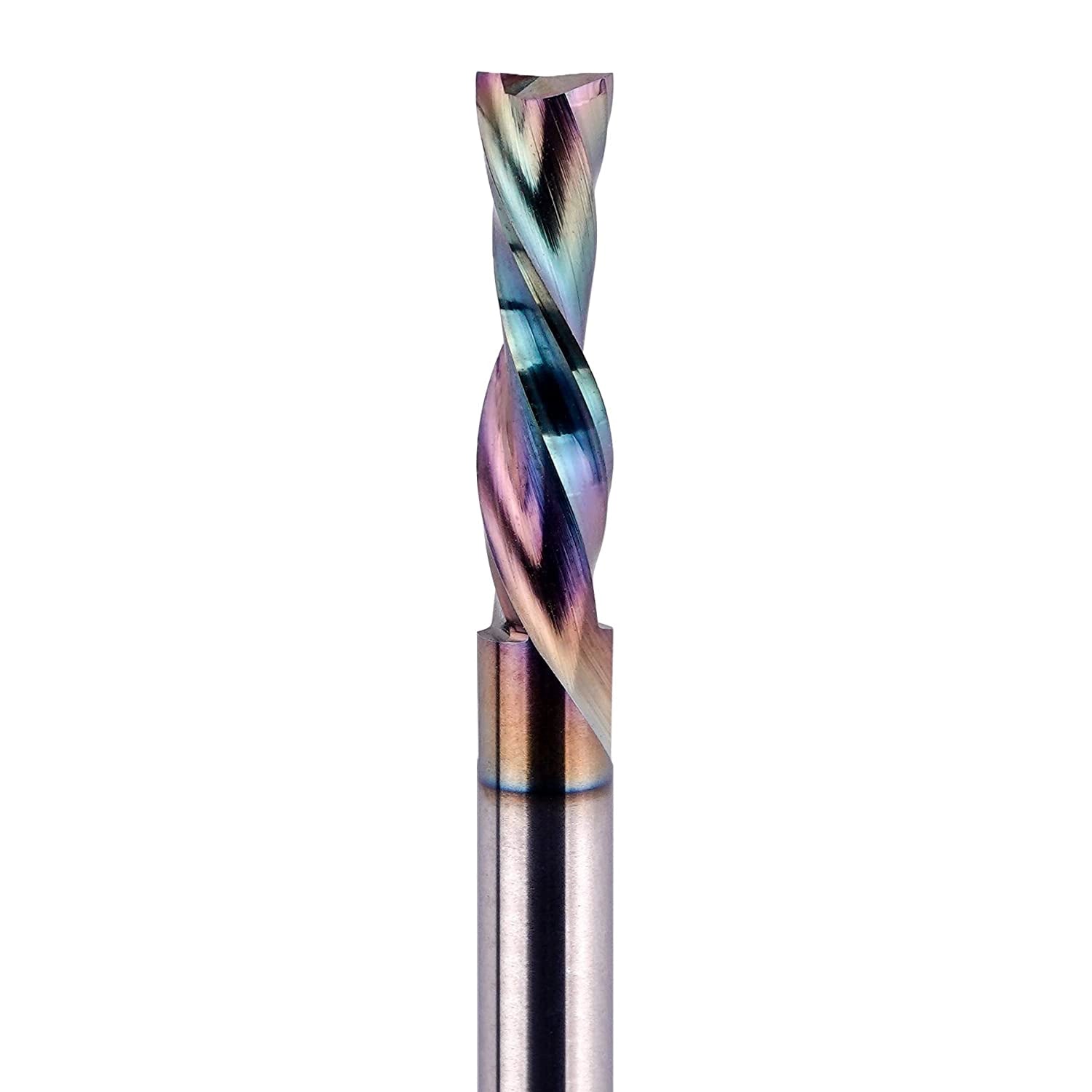

Solid-carbide down-cut bit with SPE-X coating delivers chip-free top surfaces in plywood, MDF, hardwood and laminates. Standard ¼″ shank and 1″ cut length fit CNC or handheld routers, while 2-flute spiral geometry forces chips downward for cooler cutting and superior edge finish, extending tool life.
| Dirección de corte: | ABAJO |
| Diámetro de corte (CD): | 1/4" |
| Diámetro del vástago (SD): | 1/4" |
| Longitud de corte (CL): | 1" |
| Longitud total (OVL): | 2-1/2" |
| Material | Carburo |

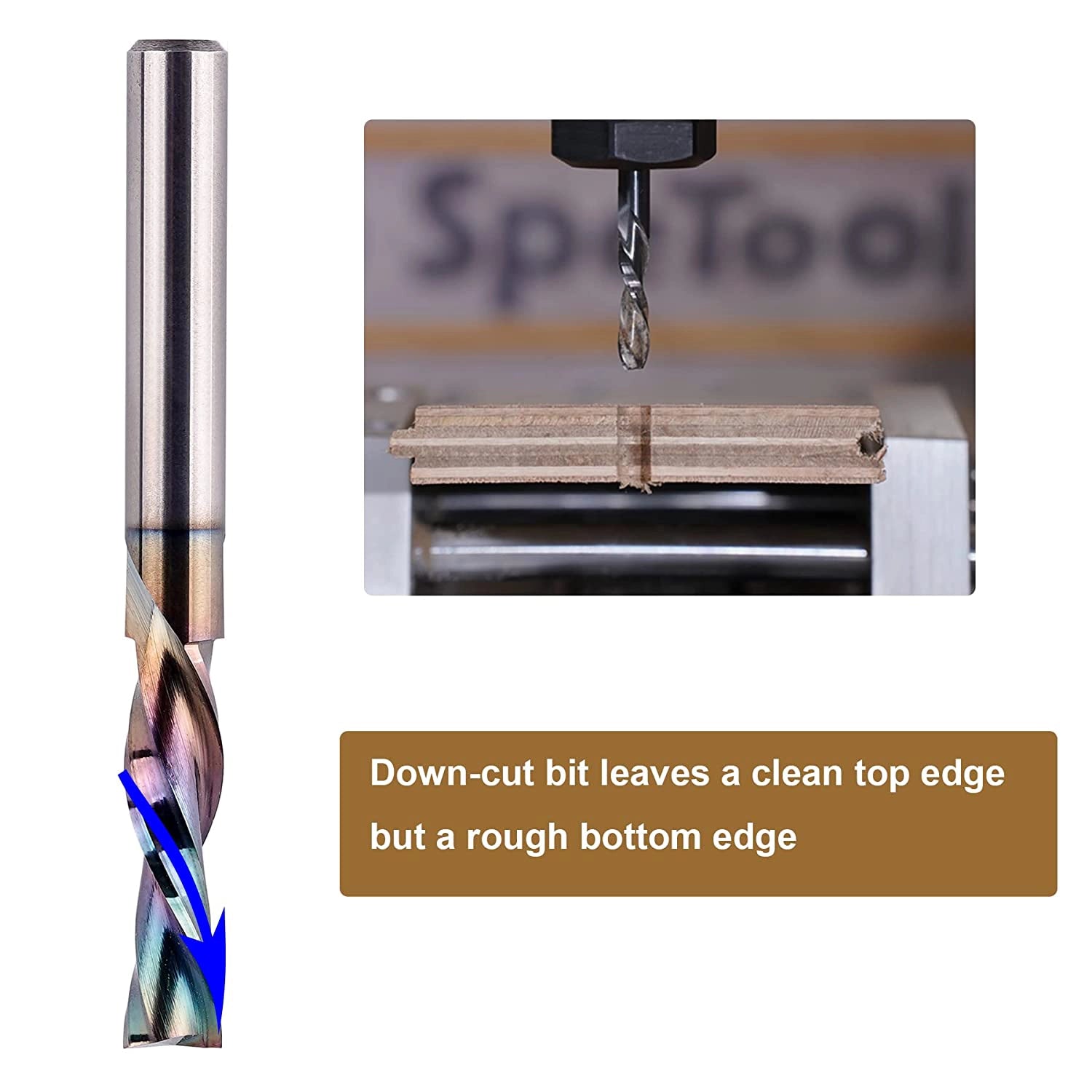

Las herramientas en espiral de corte descendente se utilizan mejor para materiales más delgados que serán empujados hacia la plataforma de la máquina en lugar de levantarse con una espiral de corte ascendente. Esto puede ser particularmente útil cuando se utiliza sujeción por vacío, donde es crucial mantener el sello entre el material y el lecho de sacrificio. Estas herramientas se utilizan principalmente cuando se requiere un acabado de corte de alta calidad en la superficie superior de las piezas cortadas.
Especialmente diseñado para proporcionar un excelente acabado. Se puede utilizar con enrutadores CNC, de mesa y portátiles.

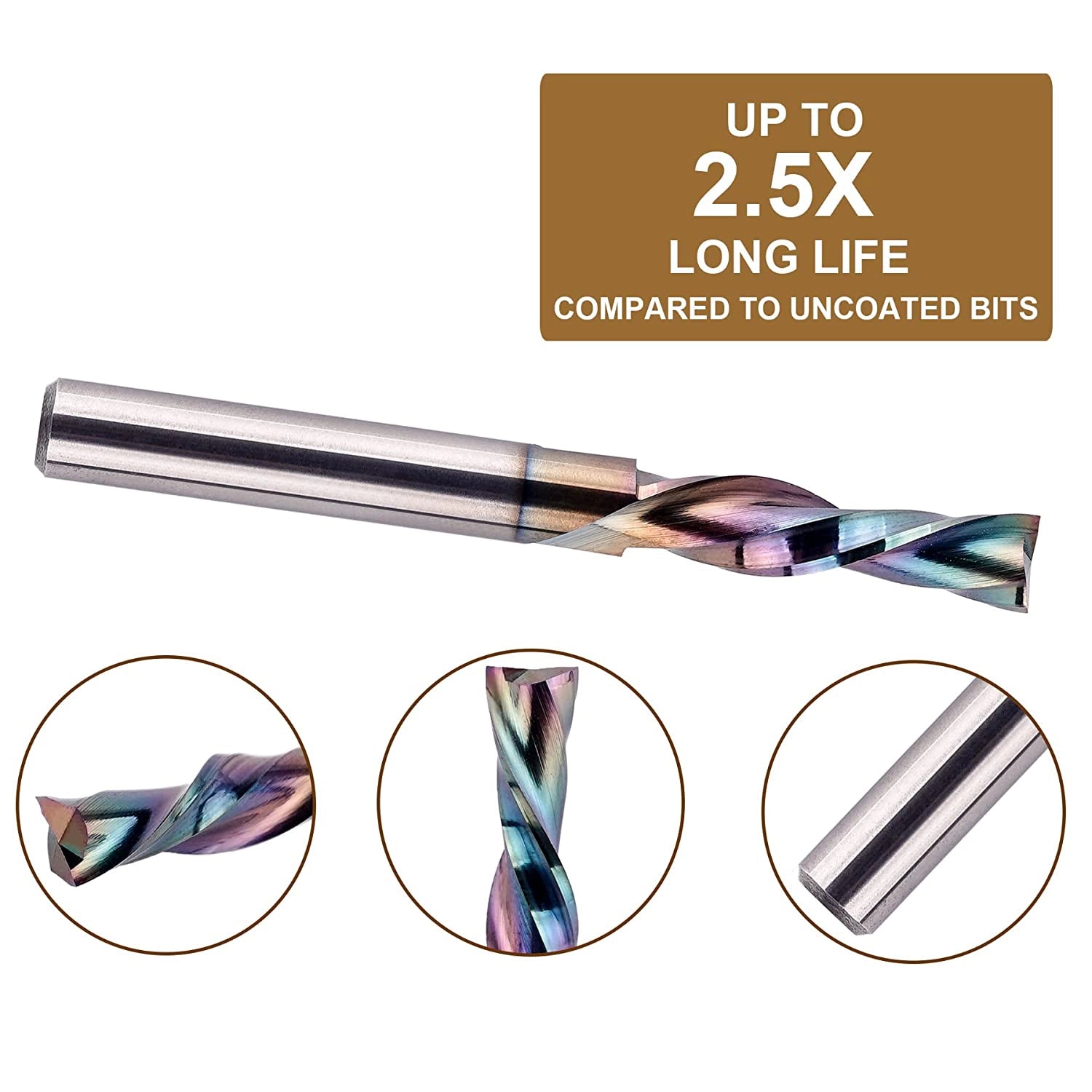

El recubrimiento de nuevo diseño SPE-X podría proporcionar una vida útil hasta 2,5 veces mayor y un filo de corte mucho más suave que otros. (El código anterior era W04019).
|
|
|
|
|
|

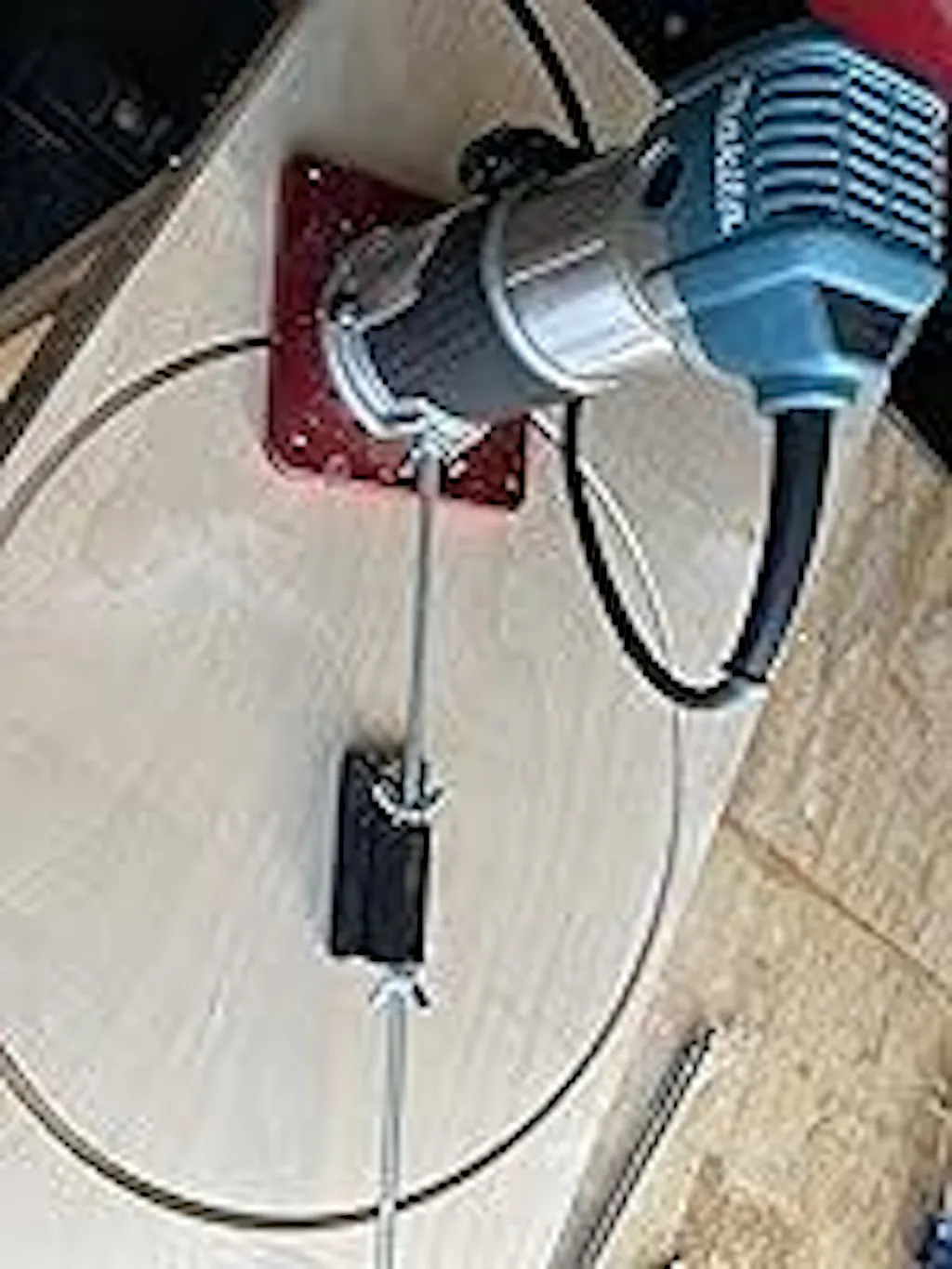

Wow!!! This spiral router bit works great!!! Used it to make circle cut outs for speakers. Very clean cuts. Not sure how long it will stay sharp but if it doesn’t last long, I will update my review.
I followed up this purchase by buying it directly from the manufacturers website. The price was the same but shipping was WAY faster.
Wonderful product....well made and packaged with fast delivery. Will purchase more from this company.

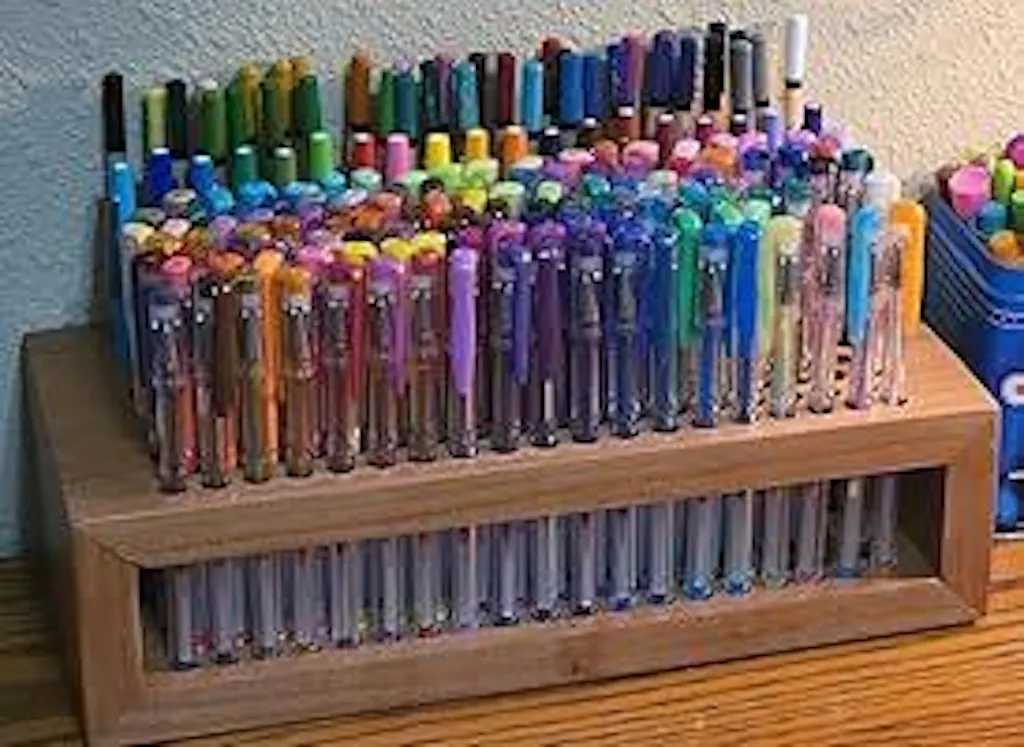

I originally bought this to make a pen / pencil holder for my wife, who like to sketch ... it has 204 holes in the top, with matching pockets in the base, and it was made out of white oak ... the bit took care of that task very well (I used a spiral milling method). Then today I used it in purple heart, milling a 3.9" diameter x 0.35" deep pocket that will hold a phone charging pad, and again with very good results. Note: I tend to use conservative feed and speed values ... in this latter case I used about 15000 rpm, 40 ipm, 0.05" depth per pass ... I could definitely have gone faster, but it's not worth it to me to save a few minutes and risk having issues.
I use SpeTool bits all the time with my CNC router. They are great quality and don't dull easily.
