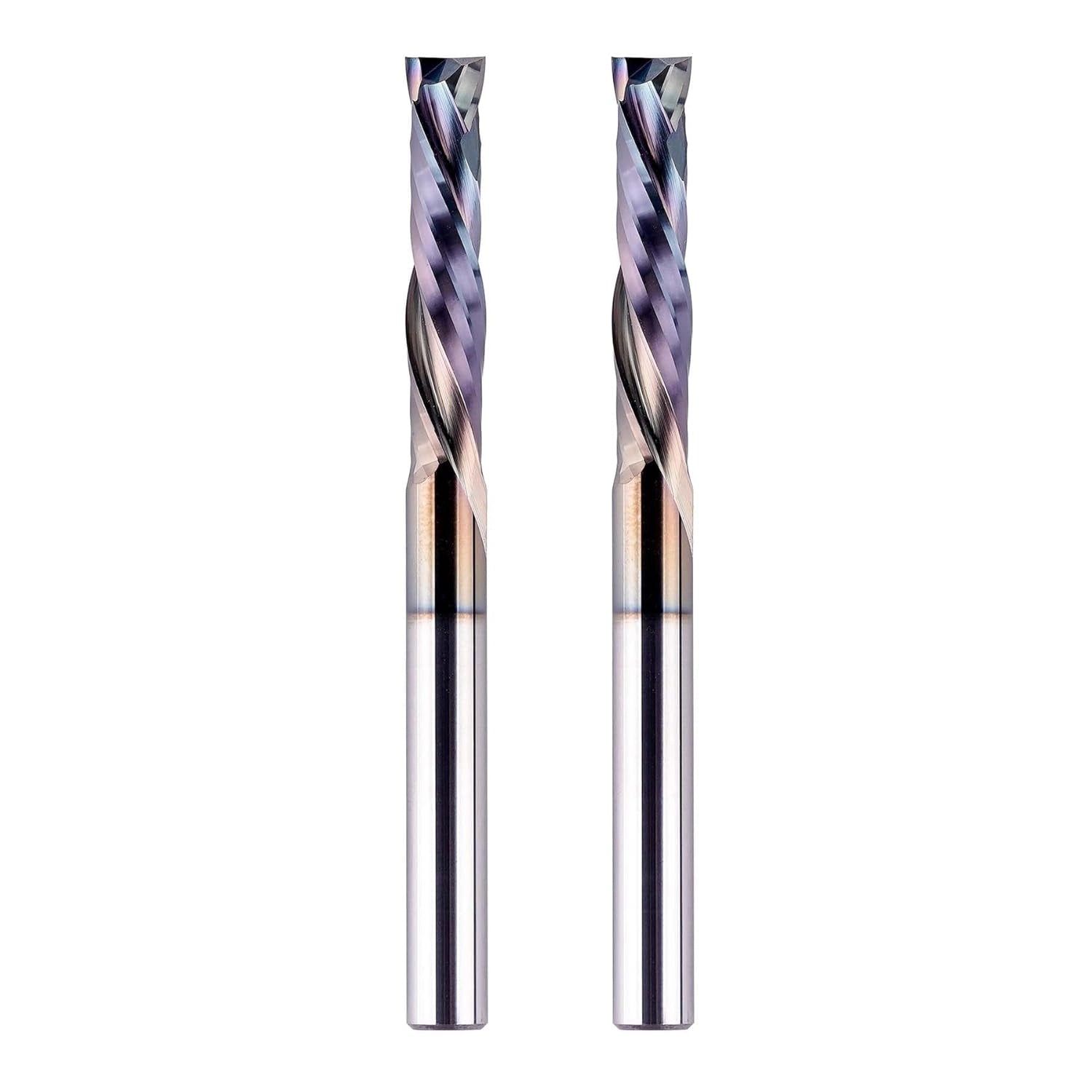

SpeTool Compression 1/4" SHK Router Bit 3" Extra Long SPE-X Coated
SpeTool Compression 1/4" SHK Router Bit 3" Extra Long SPE-X Coated
SpeTool Compression 1/4" SHK Router Bit 3" Extra Long SPE-X Coated
SpeTool Compression 1/4" SHK Router Bit 3" Extra Long SPE-X Coated
SpeTool Compression 1/4" SHK Router Bit 3" Extra Long SPE-X Coated
SpeTool Compression 1/4" SHK Router Bit 3" Extra Long SPE-X Coated
SpeTool Compression 1/4" SHK Router Bit 3" Extra Long SPE-X Coated
SpeTool W02011 SPE-X Extra Tool Life Coated SC Espiral de compresión 1/4" de diámetro x 1/4" de vástago x 1-1/4" de longitud de corte x 3" Broca enrutadora de 2 flautas extra larga
SpeTool W02011 SPE-X Extra Tool Life Coated SC Espiral de compresión 1/4" de diámetro x 1/4" de vástago x 1-1/4" de longitud de corte x 3" Broca enrutadora de 2 flautas extra larga
SpeTool W02011 SPE-X Extra Tool Life Coated SC Espiral de compresión 1/4" de diámetro x 1/4" de vástago x 1-1/4" de longitud de corte x 3" Broca enrutadora de 2 flautas extra larga

SpeTool W02011 SPE-X Extra Tool Life Coated SC Espiral de compresión 1/4" de diámetro x 1/4" de vástago x 1-1/4" de longitud de corte x 3" Broca enrutadora de 2 flautas extra larga

SKU: SPL-D1/4-1/4-U&D-TAC
$20.99 USD

Envío calculado en la compra

Get flawless cuts on both sides of your material. SpeTool’s compression bits combine up-cut and down-cut flutes for clean edges top and bottom, making them perfect for plywood, MDF, melamine, and laminated boards. Built with solid carbide for durability and CNC precision.

Excellent For Cutting:

  • MDF/HDF
  • Plywood
  • Melamine
  • Laminate
  • Softwood/Hardwood
  • Veneered Plywood

Especificación

Dirección de corte: ARRIBA ABAJO
Diámetro de corte (CD): 1/4"
Diámetro del vástago (SD): 1/4"
Longitud de corte (CL): 1-1/4"
Longitud total (OVL): 3"
Material Carburo


Descripción general

El cortador de compresión consta de una hélice cortada hacia arriba y hacia abajo. La parte superior de la longitud del corte tiene dientes cortantes a la derecha con una espiral a la izquierda. La parte inferior de la longitud del corte tiene dientes de corte derechos con una espiral derecha. Esto crea fuerzas de corte opuestas para estabilizar el proceso de eliminación de material al cortar compuestos en capas para evitar la delaminación, la extracción de fibras y las fresas a lo largo de la superficie. La compresión de la parte superior e inferior de la pieza de trabajo mantiene las capas unidas.

Especialmente diseñado para proporcionar un excelente acabado. Se puede utilizar con enrutadores CNC, de mesa y portátiles.

El nuevo revestimiento de diseño SPE-X podría proporcionar una vida útil hasta 2,5 veces mayor y un filo de corte mucho más suave que otros


Diseñado para cortar los siguientes materiales.

  • MDF/HDF
  • Tablero de espuma
  • Madera dura
  • El plastico
  • Madera blanda
  • Madera contrachapada

Number Of Item:1
293 en existencias
Cantidad:
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Ready to Cut Like Never Before?

SpeTool Up Down Cut Spiral Router bits

Spiral Bits Built for Real Woodworkers.

Clean Cuts. No Burn. Just Precision.

Solid Carbide Power You Can Trust.

Similar Size

spetool compression router bits
Part No.

Cutting Dia.
(D)

 Cutting Height
(B)

Shank Dia.
(d)

Overall Length
(L)

Flute
(F)

 Coating Rec. RPM
W02001 1/2" 1-1/4" 1/2" 3" 2 15,000
*W02001-SPE-X 1/2" 1-1/4" 1/2" 3" 2 TAC 15,000
W02002 3/8" 1-1/4" 1/2" 3" 2 15,000
*W02002-SPE-X 3/8" 1-1/4" 1/2" 3" 2 TAC 15,000
W02003 1/4" 1" 1/4" 2-1/2" 2 18,000
*W02003-SPE-X 1/4" 1" 1/4" 2-1/2" 2 TAC 18,000
W02004 1/8" 3/4" 1/4" 2-1/2" 2 18,000
*W02004-SPE-X 1/8" 3/4" 1/4" 2-1/2" 2 TAC 18,000
W02005 1/8" 3/4" 1/8" 1-1/2" 2 18,000
*W02005-SPE-X 1/8" 3/4" 1/8" 1-1/2" 2 TAC 18,000
W02006 1/2" 1-1/2" 1/2" 4" 2 15,000
*W02006-SPE-X 1/2" 1-1/2" 1/2" 4" 2 TAC 15,000
W02008 1/8" 1" 1/8" 2" 2 18,000
*W02008-SPE-X 1/8" 1" 1/8" 2" 2 TAC 18,000
W02010 1/4" 1" 1/4" 2-1/2" 2 18,000
W02011 1/4" 1-1/4" 1/4" 3" 2 18,000
*W02011-SPE-X 1/4" 1-1/4" 1/4" 3" 2 TAC 18,000
W02012 1/2" 3" 1/2" 5" 2 15,000
*W02012-SPE-X 1/2" 3" 1/2" 5" 2 TAC 15,000
W02013 3/8" 1-1/4" 3/8" 3" 2 15,000
W02014 3/16" 1" 1/4" 2-1/2" 2 18,000
*W02014-SPE-X 3/16" 1" 1/4" 2-1/2" 2 TAC 18,000

*Customized sizes are acceptable

Frequently Asked Questions

A bit that combines up‑cut at the tip and down‑cut near the shank to deliver clean edges both top and bottom.

They prevent tear‑out on both surfaces—ideal for plywood, laminates, melamine, and MDF.

Yes—high‑quality compression bits are typically made of solid carbide for durability and sharpness.

Yes, they’re perfect for through‑cuts where both faces matter, such as cabinet panels or double‑sided veneer.

Better than straight bits—spiral flute design improves cutting action, though slower feed rates may be needed.

Your first pass must fully engage both up‑cut and down‑cut zones—typically half the diameter deep at least to activate both.

Yes, with handheld routers plus pilot bearings—they can be used for flush trimming and template following.

Compression bits are more expensive but last longer and reduce sanding/rework time—worth the investment.

Yes—they help minimize tear‑out even when grain direction is complex.

Many pros recommend rough cutting first, then finishing with compression bit for the perfect edge.
