SpeTool W02012 Compression Spiral 1/2" Dia x 1/2" Shank x 3" Cutting Length x 5" Extra Long 2 Flute Router Bit

Sale price$57.99 USD Regular price$65.99 USD
Save 12%

Shipping calculated at checkout

No reviews
No reviews
SKU: SPXL-D1/2-1/2-U&D-FBA
Quantity:
  • Fast Delivery

  • 60-Days Warranty

  • Ships Worldwide


Specification

Cutting Direction: UP & DOWN
Cutting Diameter(CD): 1/2"
Shank Diameter(SD): 1/2"
Cutting Length(CL): 3"
Overall Length(OVL): 5"
Material  Carbide


Overview

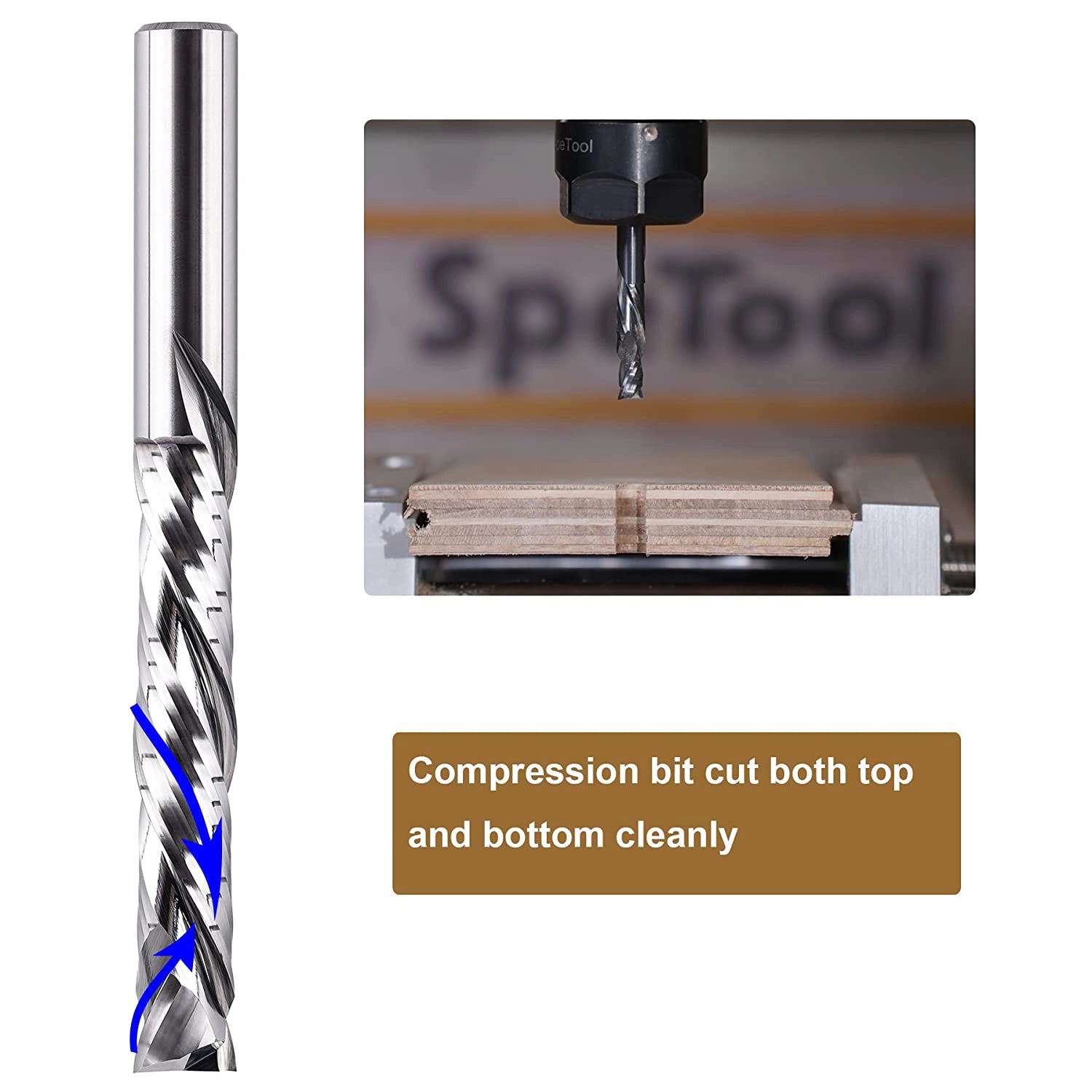

The Compression Cutter consists of an up & down cut helix. The top portion of the length of the cut has right-hand cutting teeth with a left-hand spiral. The lower portion of the length of the cut has right-hand cutting teeth with a right-hand spiral. This creates opposing cutting forces to stabilize the material removal process when cutting layered composites to prevent delamination, fiber pullout, and burs along the surface. Compression of the top and bottom of the workpiece keeps the layered bonded together.

Specially designed to provide an excellent finish. It can be used with handheld, table-mounted, and CNC routers.

Designed for cutting the following materials

  • MDF/HDF
  • Foam Board
  • Hardwood
  • Plastic
  • Softwood
  • Plywood
