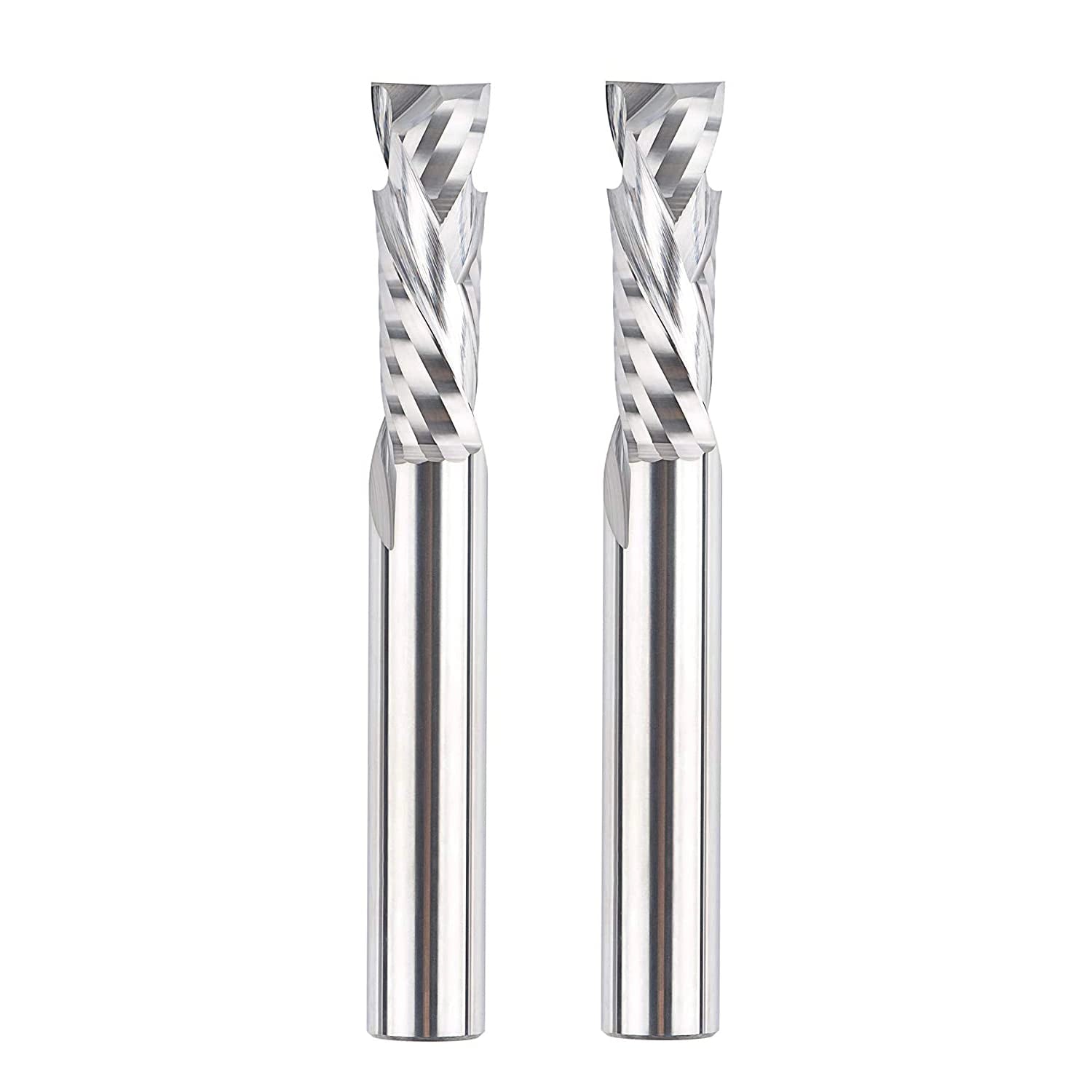

SpeTool W02006 SC Compression Spiral 1/2" Dia x 1/2" Shank x 1-1/2" Cutting Length x 4" Extra Long 2 Flute Router Bit

SpeTool Router Bits New Customer Discount

$42.19 USD

Shipping calculated at checkout

Number of Items: 1
1
2

Available Now!


For bulk requirements please click here!

USA, Canada, UK, Germany orders ship from local Amazon warehouses with Amazon's speed; others from China.

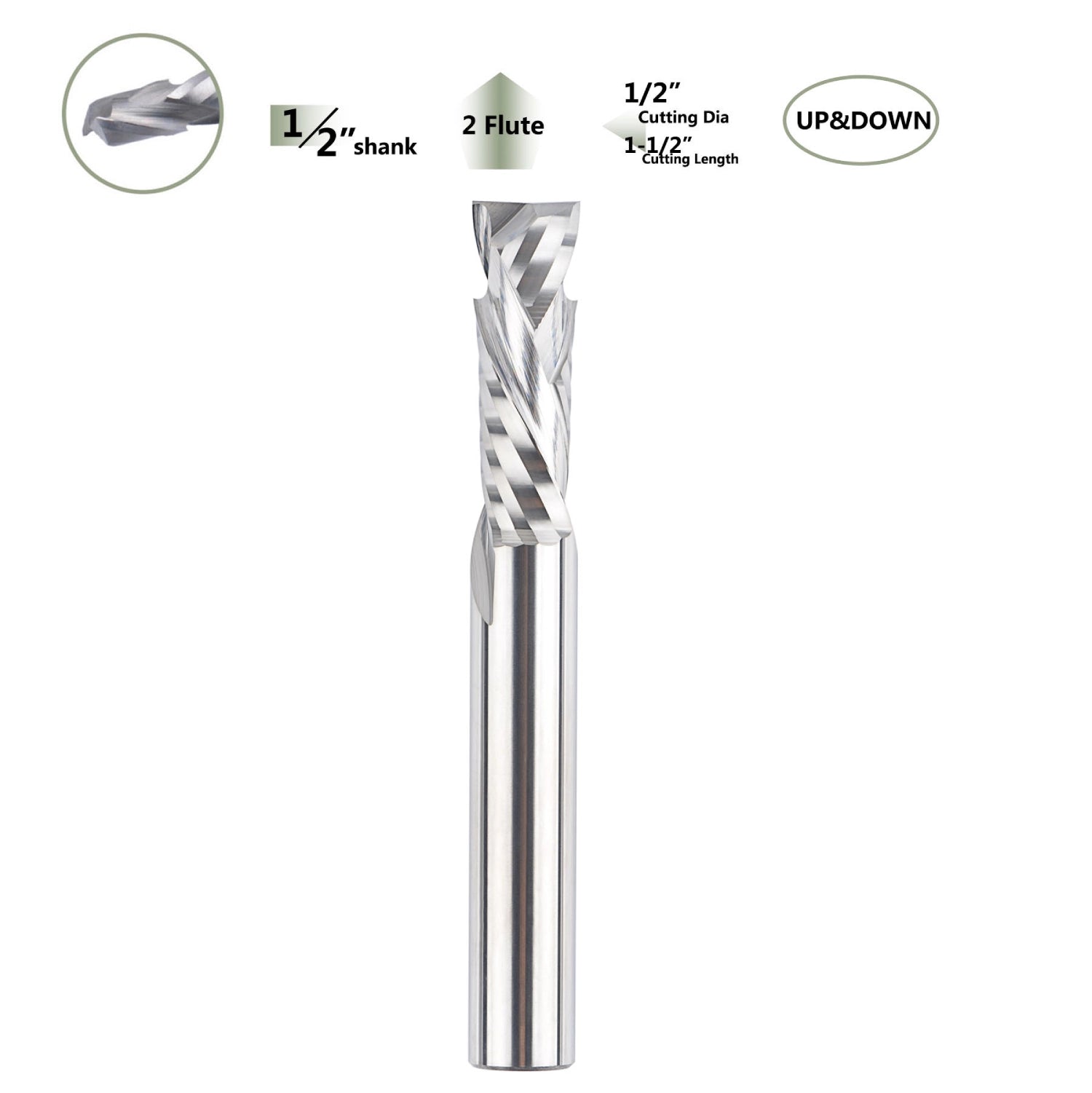

Specification

Cutting Direction: UP & DOWN
Cutting Diameter(CD): 1/2"
Shank Diameter(SD): 1/2"
Cutting Length(CL): 1-1/2"
Overall Length(OVL): 4"
Material  Carbide


Overview

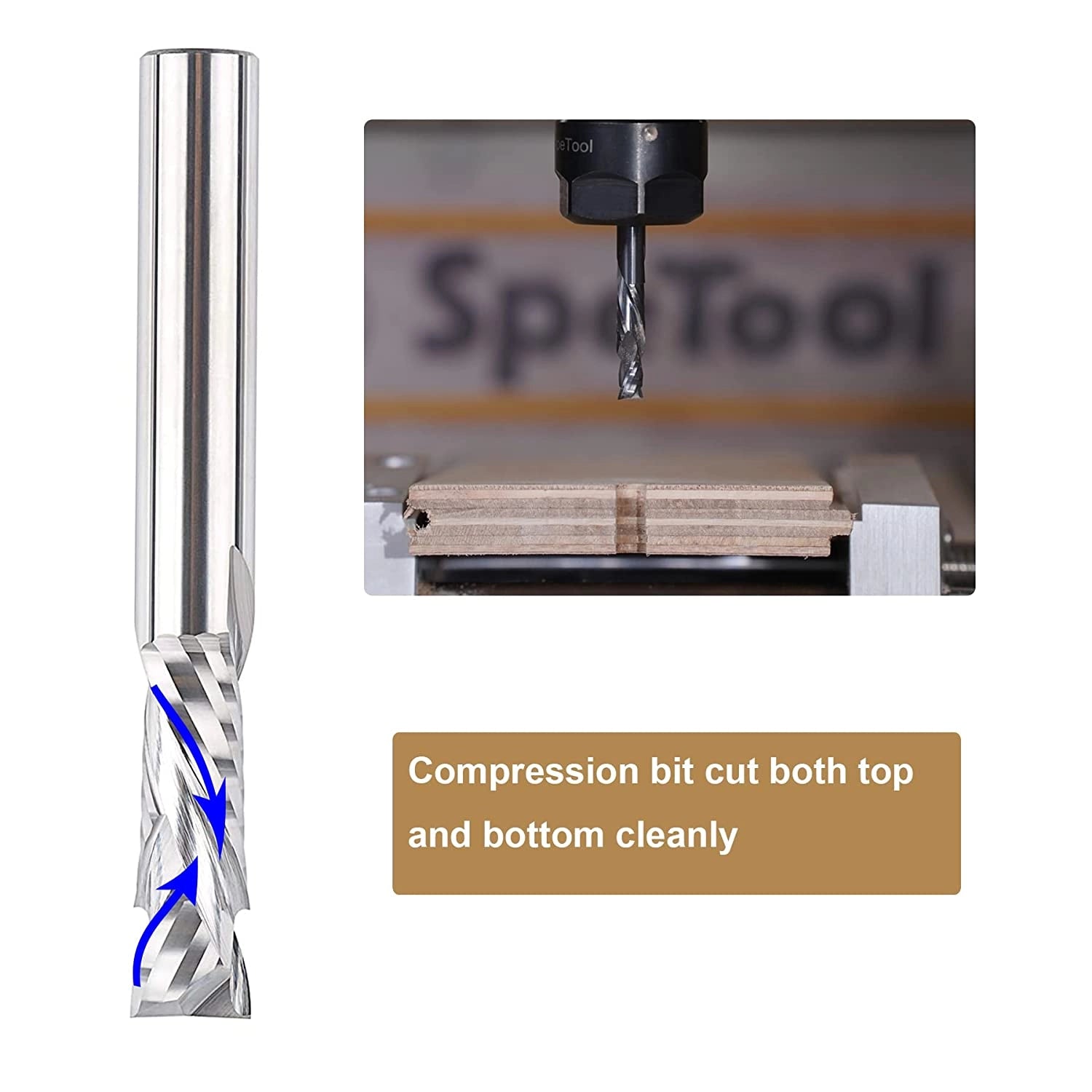

The Compression Cutter consists of an up cut and down cut helix. The top portion of the length of the cut has right-hand cutting teeth with a left-hand spiral. The lower portion of the length of the cut has right-hand cutting teeth with a right-hand spiral. This creates opposing cutting forces to stabilize the material removal process when cutting layered composites to prevent delamination, fiber pullout, and burs along the surface. Compression of the top and bottom of the workpiece keeps the layered bonded together.

Specially designed to provide an excellent finish. It can be used with handheld, table-mounted, and CNC routers.


Designed for cutting the following materials

  • MDF/HDF
  • Foam Board
  • Hardwood
  • Plastic
  • Softwood
  • Plywood



DOWNLOAD CNC SPEED/FEED FILE OR CHECK THE PAGE FEED & SPEED.

Safety Guidelines

BE CAREFUL. Always wear eye and ear protection along with dust masks. Avoid using bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter. Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters. Disconnect power when changing bits or making adjustments, and  always leave the power disconnected when not in use. Follow all safety recommendations of the power tool manufacturer. SpeTool Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification
of any product (including sharpening).

WARNING: Re-grinding of SpeTool products will produce dust of potentially hazardous ingredients. Always read and follow owner’s safety manual of all power machinery before using bits. Always use eye protection while using this or any carbide cutting product.

WARNING: SpeTool products can expose you to chemicals including lead and/or cobalt, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

WARNING: Drilling, sanding or machining wood products can expose you to wood dust, a ubstance known to the State of California to cause cancer. Avoid inhaling wood dust or use a mask or other safeguards for personal protection. For more information go to http://www.P65Warnings.ca.gov.

Autodesk fusion 360 logo
Spetool tool file database vectric
SpeTool-carevco-tool-database

CNC Software.tool Files Available

Fusion 360™, Vectric® & Carveco® CNC Tool File For Download, click here!

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
A***v

I worked with a cutter, it cuts gently, but I should not strain strongly, it starts to burn.

D
D***e

Perfect ,just need to try them to see if they are good

F
F***i

It is a fantastic only to see it deserves the showcase home. If case never funzionasse as described The place is featured. 6 and more stars
??????

B
B***C

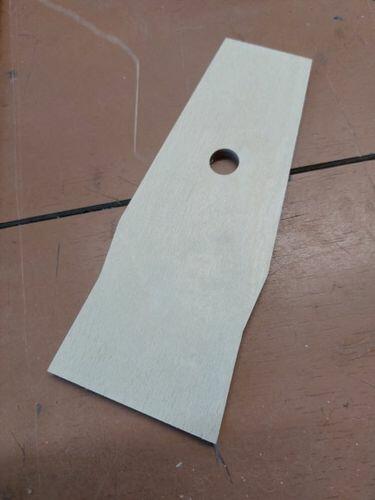

Tested, and it's make nice clean cut from both sides on 5mm birch plywood. 24000rpm, 800mm/s speed, cutted on one path. Tested 3.1-L17 compression bit. Thanks. Will buy more.

M
M***i

Look good. To Poland in delivery spliced. As far as quickly. Recommend
