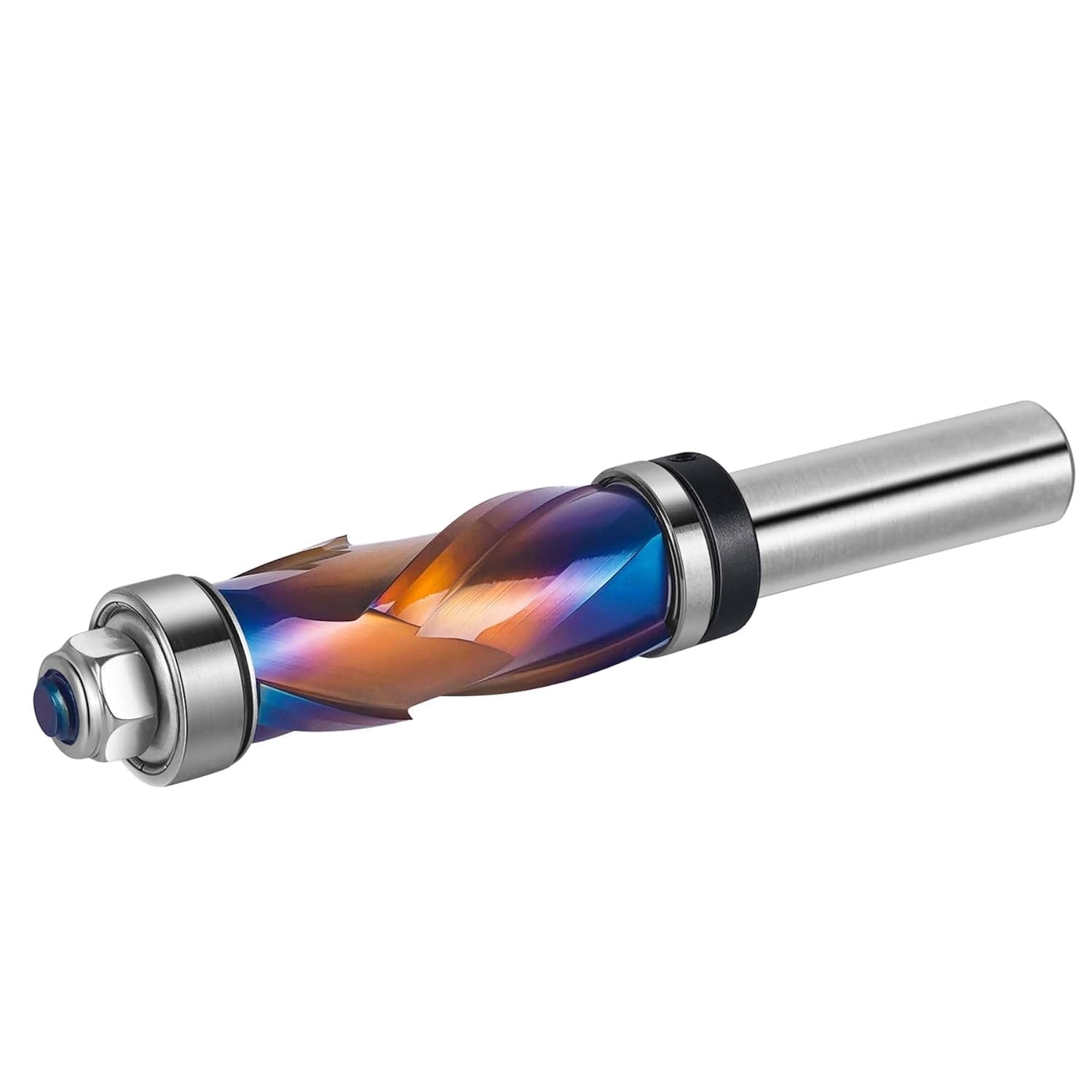

SpeTool W07026 Nano-B Coating Compression Flush Trim Router Bit 1/2" Shank, 3/4" Diameter, 1-3/4" Cutting Length, Top & Bottom Bearing, Coated Extra Long Bit for Template and Pattern Trimming
Ultimate Flush Trim Bits provide precise, clean trimming with durable spiral cutting edges designed to reduce tear-out and deliver smooth finishes. Ideal for use with templates on wood, plywood, MDF, and laminates, these bits ensure professional-quality results in both handheld and router tables applications.

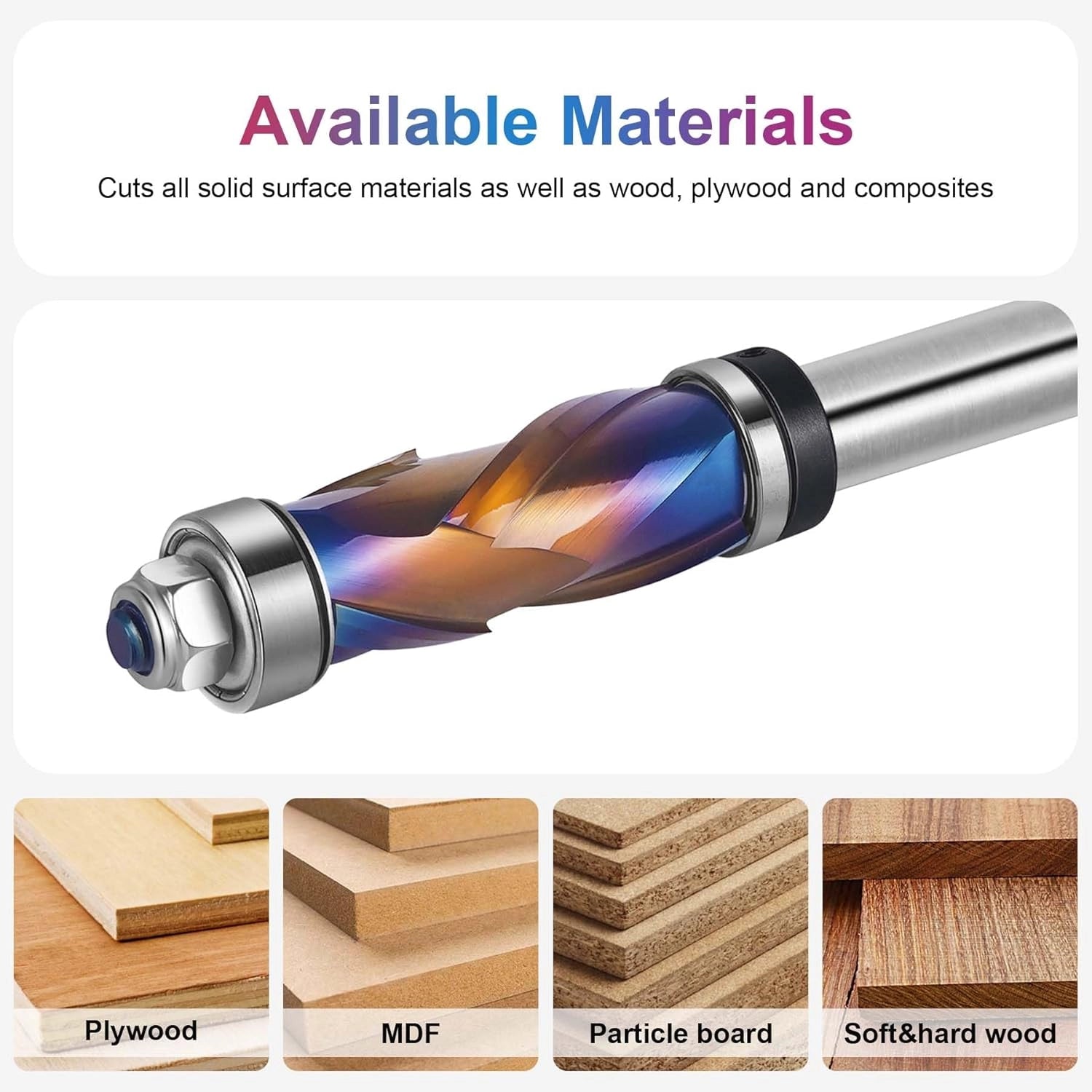

Excellent For Cutting:
- MDF
- Plywood
- Laminate
- Softwood
- Hardwood

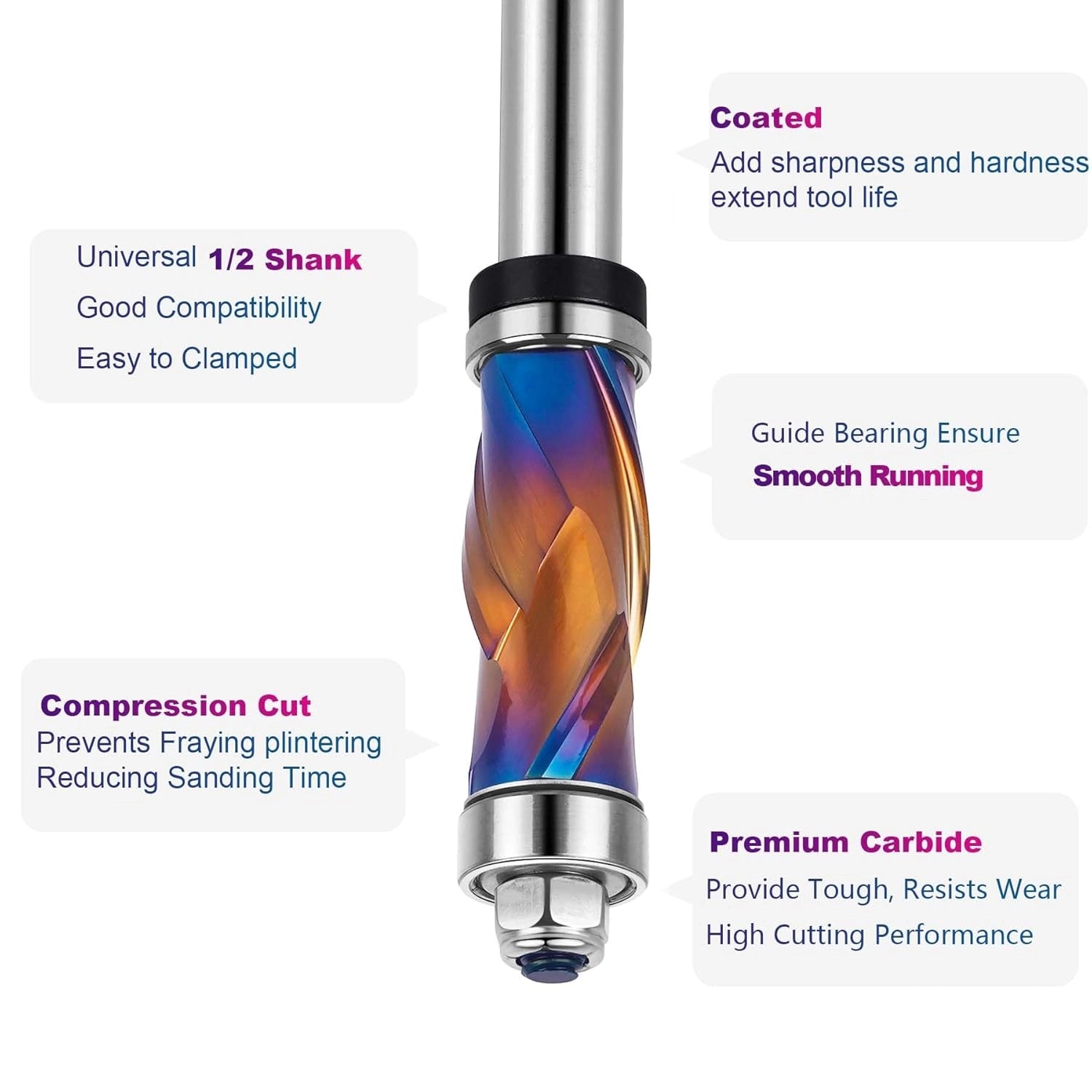

TOOL SPECS: Nano-B coated solid tungsten carbide, top & bottom bearings, compression spiral, 3/4" cutting diameter, 1/2" shank, 1-3/4" cutting length, suitable for handheld and table-mounted routers.
PRECISION EXTRA-LONG FLUSH TRIM: Engineered for professional woodworking, this bit’s 1-3/4" cutting length and 3/4" diameter provide smooth, accurate trimming for templates, patterns, and thicker stock.
DURABLE COATING FOR EXTENDED LIFE: SpeTool’s Nano-B high-performance coating delivers up to 2.5× longer life than uncoated bits, ensuring stable performance, reduced heat buildup, and consistently sharp cuts.

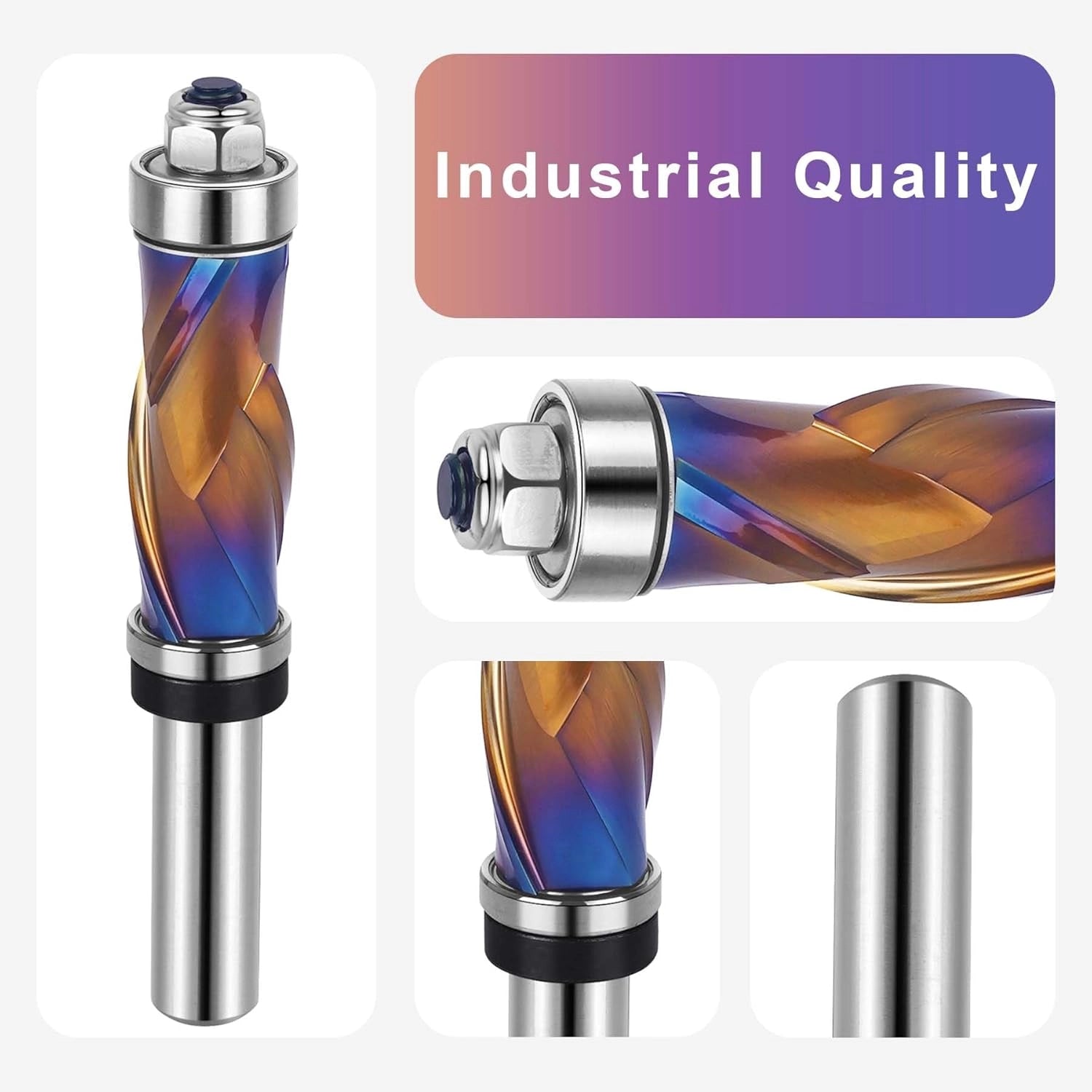

INDUSTRIAL-GRADE CONSTRUCTION: Solid tungsten carbide cutter paired with a super-strength steel shank provides exceptional hardness, durability, and edge retention for long-lasting professional results.
COMPRESSION SPIRAL DESIGN: Up & down spiral edges provide chip-free, smooth cuts on both top and bottom surfaces, minimizing tear-out even on laminated materials.
MAINTENANCE TIPS: Remove accumulated wood chips after each use or every 30 minutes of continuous processing to prolong tool life.
SAFETY NOTE: Read the user manual carefully to ensure proper operation and safety. Proper use maximizes performance and prevents accidents.
Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.
Smooth trim, zero tear-out.
Similar Size
*Customized sizes are acceptable
🔒 Safety & Warnings
At SpeTool, safety is our top priority. Please read the following precautions carefully before using any of our cutting, routing, or drilling products.
🛡️ Safety Guidelines
-
Always wear eye protection, hearing protection, and a dust mask while operating tools.
-
Avoid wearing loose clothing, gloves, or jewelry that could catch in moving parts.
-
Keep hands, hair, and body parts away from the cutting area at all times.
-
Never use dull or damaged bits. Replace worn tools immediately.
-
Do not remove or disable safety guards on your machinery.
-
Always feed material against the rotation of the cutting tool.
-
Disconnect power before changing bits or performing maintenance.
-
Follow the safety instructions provided by your power tool manufacturer.
Improper use, modification, or misuse of this product may result in serious injury. SpeTool is not responsible for damage or injury caused by unsafe practices.
⚠️ Health & Chemical Warnings
-
Re-sharpening or grinding SpeTool bits may release dust containing cobalt or other substances. Always use proper respiratory protection.
-
Wood dust generated during drilling, cutting, or sanding may pose a cancer risk. Avoid inhalation and use appropriate safety equipment.
-
This product may expose you to lead and/or cobalt, chemicals known to the State of California to cause cancer and reproductive harm.
🔗 Learn more about California Proposition 65
Stay safe. Work smart. Use protection.
For additional safety tips, consult your machine’s user manual or reach out to our support team.
CNC Feed/Speed (PDF)
| Products Type |
Products Type |
|---|---|
| Spriral Router Bits | Download |
| 2D & 3D Tapered Router Bits | Download |
| V Groove Router Bits | Download |
| O-Flute Router Bits | Download |
| Spoilboard Surfacing Router Bits | Download |
| Bowl & Tray Router Bits | Download |
| Aluminum & Metal Router Bits | Download |
Fusion 360 & Vectric & Carveco & Carbide 3D .tools file
|
Software |
Tool File |
|
Fusion 360 Tools File(Updated To 20251015) |
|
|
Vectric Tools File (Updated To 20251015) |
|
|
Carveco Tools File(Updated To 20251028) |
|
|
Carbide 3D Tools File(Updated To 20251028) |
Frequently Asked Questions
For template-follow trimming, ideal for wood, MDF, plywood, and laminates.
Many recommend double-bearing for flexibility with templates on top or bottom and better control.
Spiral designs give smoother cuts and reduce tear-out, especially for template routing.
Use multiple shallow passes and correct cutting direction.
Depends on template location: top-bearing for templates on top, bottom-bearing for templates below.
Correct feed direction, stable support, and a bit with the right diameter.
Bit length and bearing alignment matter; too much difference can affect accuracy.
Use a top-bearing bit for the first pass, then a bottom-bearing bit to finish.
Use protective tape or choose a bearing size that avoids overcutting.
Table-mounted gives more stability; handheld is versatile but requires steady hands.
