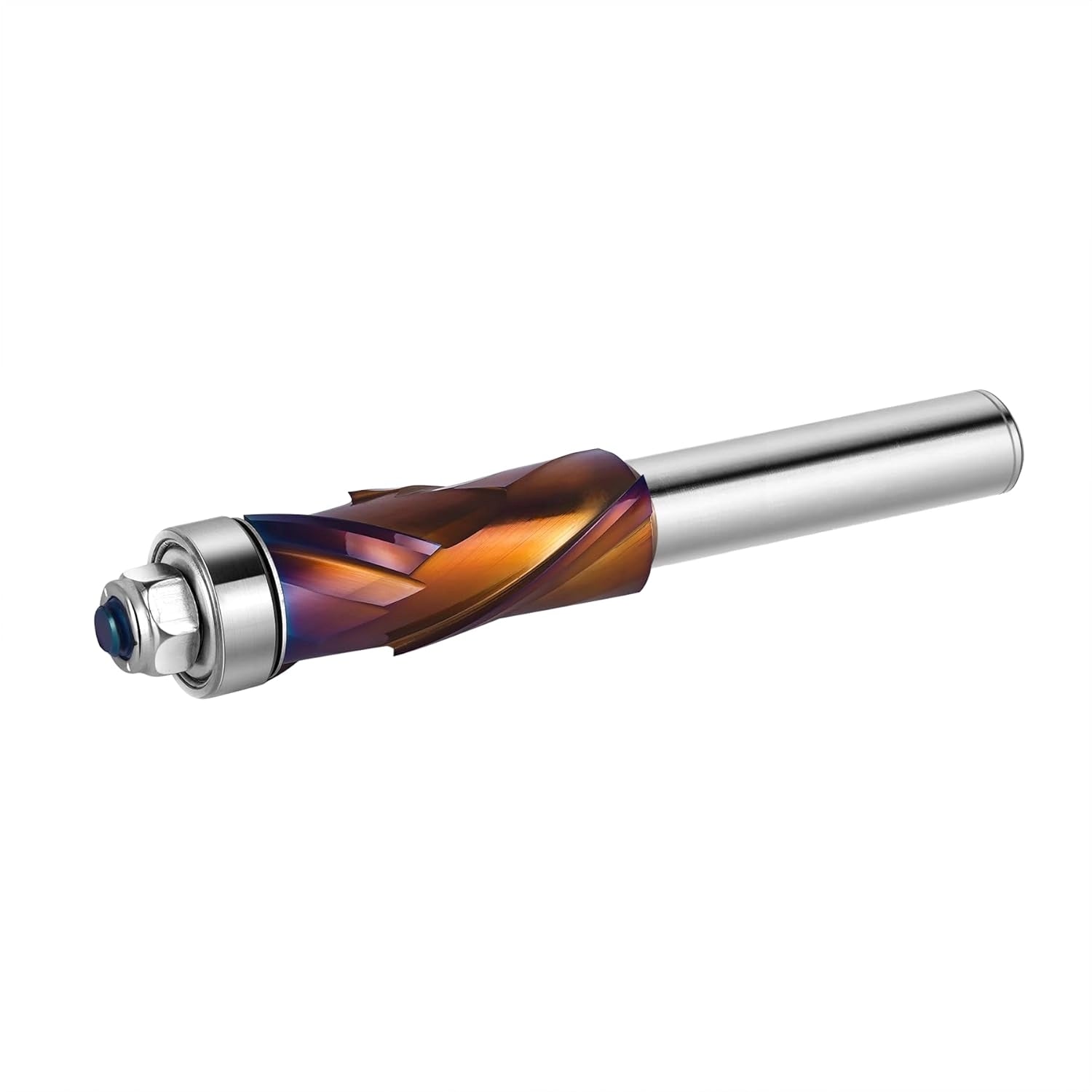

SpeTool W07041 Nano-B Coating 1/2" Shank Up & Down Compression Flush Trim Router Bit, Extra Long Bottom Bearing Template Bit for Wood, MDF, Laminate, Particle Board, 1-3/4" Cutting Length

SKU: WTUD2FL-D3/4-H1/2-Z-NEW
$81.99 USD
Sold out

Shipping calculated at checkout

Ultimate Flush Trim Bits provide precise, clean trimming with durable spiral cutting edges designed to reduce tear-out and deliver smooth finishes. Ideal for use with templates on wood, plywood, MDF, and laminates, these bits ensure professional-quality results in both handheld and router tables applications.

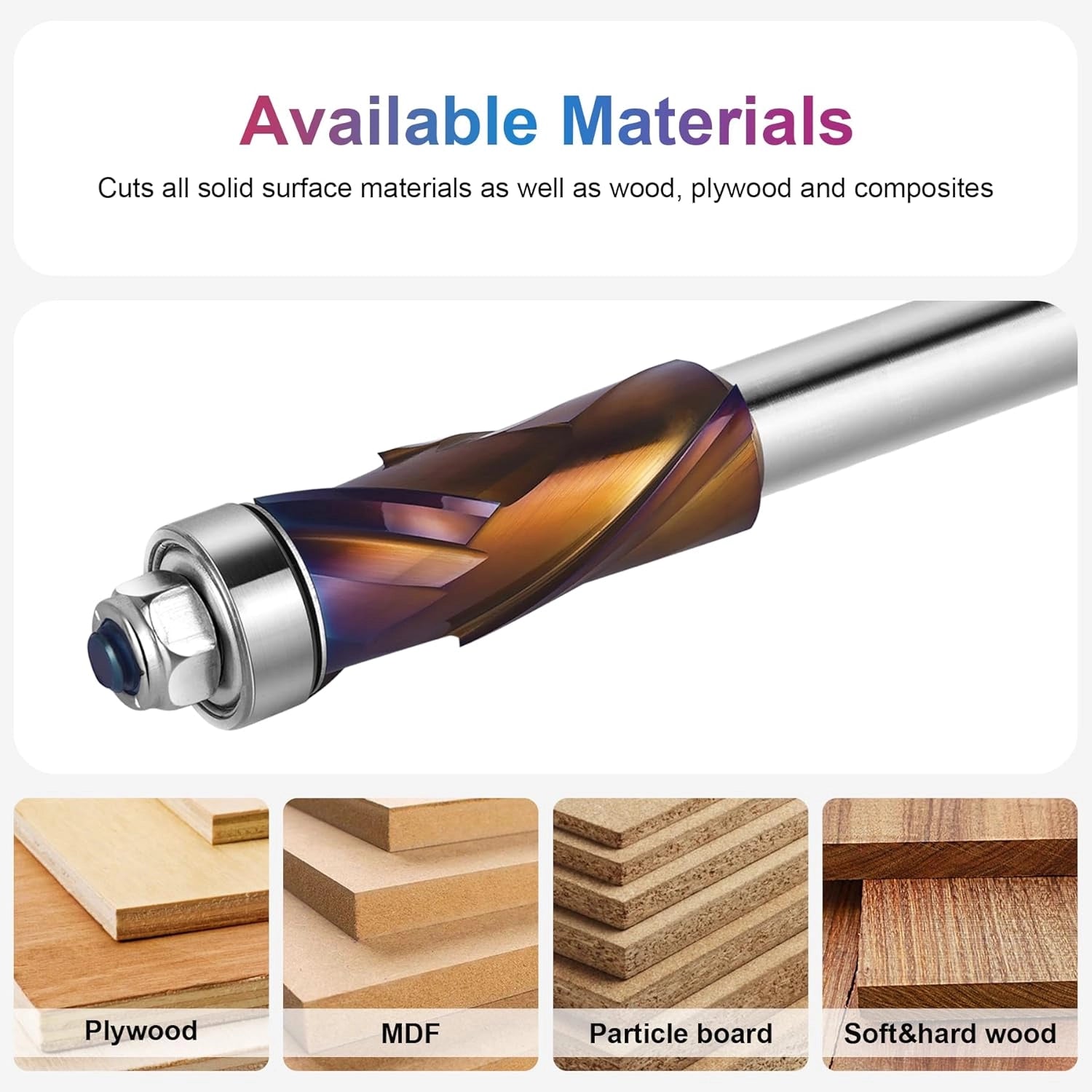

Excellent For Cutting:

  • MDF
  • Plywood
  • Laminate
  • Softwood
  • Hardwood

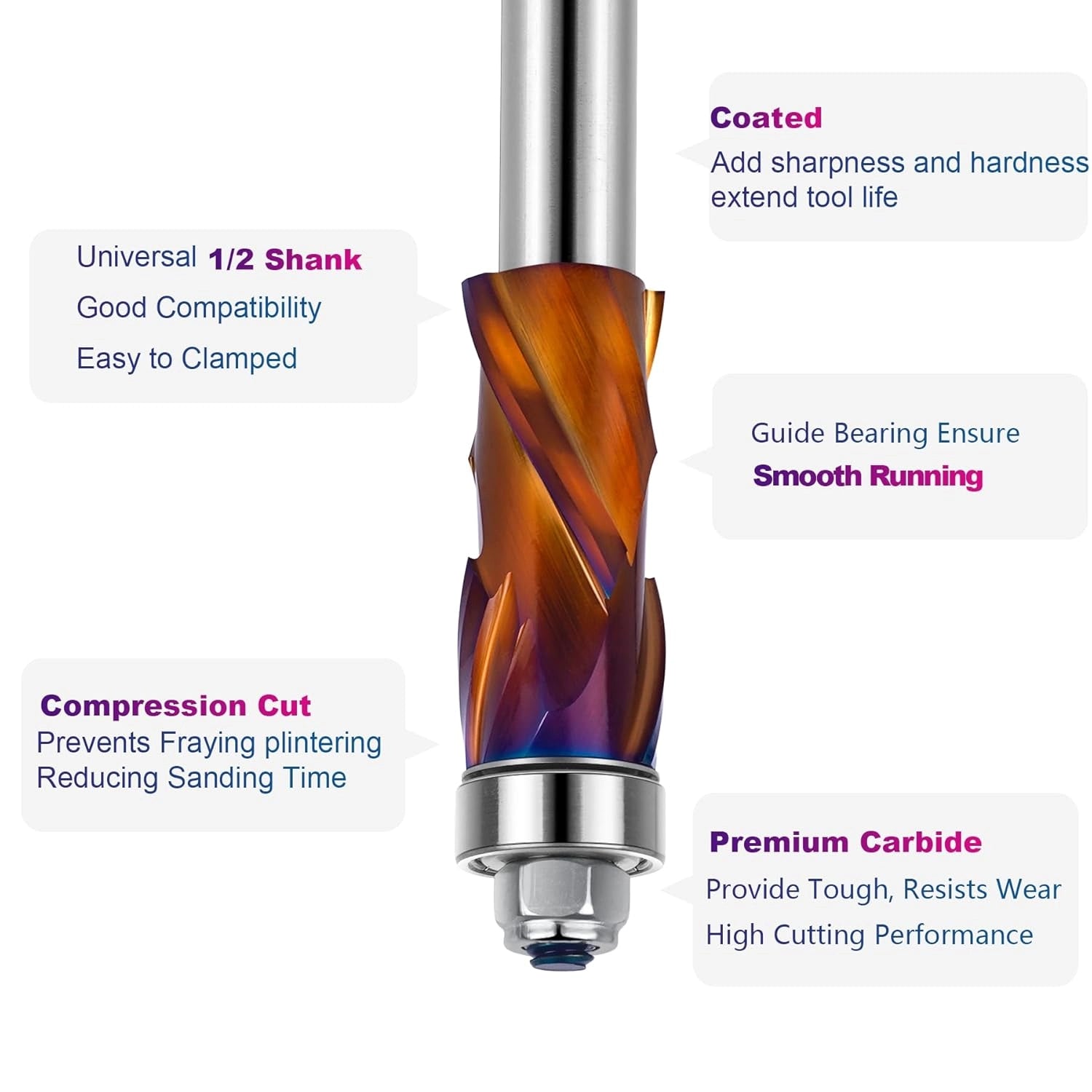

TOOL SPECS: Nano-B coated solid tungsten carbide, bottom bearing, up & down compression spiral, 3/4" cutting diameter, 1/2" shank, 1-3/4" cutting length, suitable for handheld and table-mounted routers.

PRECISION CUTTING FOR CLEAN RESULTS: Engineered for flush trimming, template work, and detailed shaping, the 3/4" diameter and 1-3/4" cutting length deliver smooth, accurate edges on laminated and solid wood surfaces.

DURABLE COATING FOR EXTENDED TOOL LIFE: SpeTool’s Nano-B high-performance coating extends bit life up to 2.5× longer than uncoated bits. Reduces heat buildup, maintains sharpness, and ensures consistent cutting performance even under heavy use.

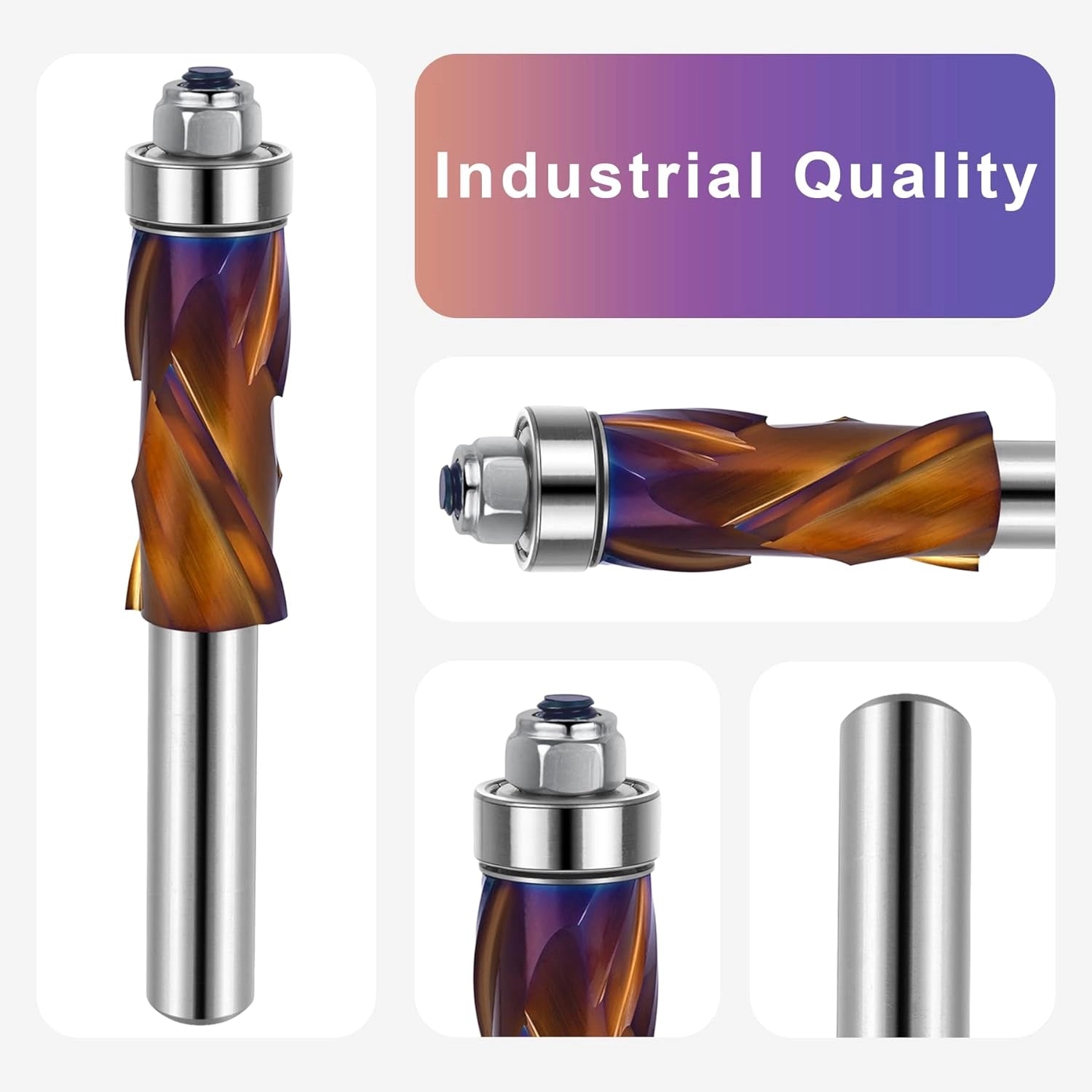

INDUSTRIAL-GRADE CONSTRUCTION: Made with a high-strength steel shank and solid tungsten carbide cutter for superior durability, toughness, and professional-grade results on wood, MDF, chipboard, melamine, and plywood.

COMPRESSION CUT WITH BOTTOM BEARING: Spiral up & down compression design delivers clean, chip-free edges on both top and bottom surfaces, while the bottom bearing provides precise guidance along templates for accurate routing.
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Smooth trim, zero tear-out.
TRIMMING ROUTER BITS

Designed for precision and long-lasting performance.
SpeTool 3/4 Dia 1/2 SHK Flush Trim Compression Top Bearing Router Bit

Upgrade your routing with Ultimate Flush Trim Bits by SpeTool.

Durable spiral cutters for professional-quality finishes.

Similar Size

Part No.

Cutting Dia.
(D)

 Cutting Height
(B)

Shank Dia.
(d)

Overall Length
(L)

Rotation

 Bearing Coating Rec. RPM
W07015 1/2" 1" 1/4" 2-4/5" Comp. Bottom 18,000
W07016 7/8" 1-3/16" 1/2" 3-1/2" Comp. Top 8,000
W07017 1/2" 1" 1/4" 2-5/8" Comp. Top 18,000
W07018 7/8" 1-3/16" 1/2" 3-3/4" Comp. Top 8,000
W07023 1/2" 1-1/4" 1/4" 3-1/4" Comp. Top & Bottom 18,000
*W07023-NBC 1/2" 1-1/4" 1/4" 3-1/4" Comp. Top & Bottom Nano-B 18,000
W07024 1/2" 1-1/4" 1/4" 2-7/8" Comp. Top 18,000
*W07024-NBC 1/2" 1-1/4" 1/4" 2-7/8" Comp. Top Nano-B 18,000
W07025 3/4" 1-3/4" 1/2" 3-5/8" Comp. Top 8,000
W07026 3/4" 1-3/4" 1/2" 4-1/3" Comp. Top & Bottom 8,000
*W07026-NBC 3/4" 1-3/4" 1/2" 4-1/3" Comp. Top & Bottom Nano-B 8,000
W07034 1/2" 1" 1/4" 2-3/4" Comp. Top & Bottom 18,000
*W07034-NBC 1/2" 1" 1/4" 2-3/4" Comp. Top & Bottom Nano-B 18,000
W07040 1/2" 1-1/4" 1/4" 3-1/4" Comp. Bottom 18,000
W07041 3/4" 1-3/4" 1/2" 4-2/5" Comp. Bottom 8,000
*W07041-NBC 3/4" 1-3/4" 1/2" 4-2/5" Comp. Bottom Nano-B 8,000
W07042 1/2" 3/4" 1/4" 2-1/2" Top 18,000
W07043 1/2" 1/4" 1/4" 2" Top 18,000

*Customized sizes are acceptable

Frequently Asked Questions

For template-follow trimming, ideal for wood, MDF, plywood, and laminates.

Many recommend double-bearing for flexibility with templates on top or bottom and better control.

Spiral designs give smoother cuts and reduce tear-out, especially for template routing.

Use multiple shallow passes and correct cutting direction.

Depends on template location: top-bearing for templates on top, bottom-bearing for templates below.

Correct feed direction, stable support, and a bit with the right diameter.

Bit length and bearing alignment matter; too much difference can affect accuracy.

Use a top-bearing bit for the first pass, then a bottom-bearing bit to finish.

Use protective tape or choose a bearing size that avoids overcutting.

Table-mounted gives more stability; handheld is versatile but requires steady hands.
