SpeTool W07024 Nano-B Coating 1/4" Shank Coated Compression Flush Trim Router Bit with Top Bearing, 1-1/4" Cutting Length, Ideal for Woodworking Template and Pattern Work

SKU: WTBUD2FL-D1/2-H1/4-Z
$54.99 USD
Sold out

Shipping calculated at checkout

Ultimate Flush Trim Bits provide precise, clean trimming with durable spiral cutting edges designed to reduce tear-out and deliver smooth finishes. Ideal for use with templates on wood, plywood, MDF, and laminates, these bits ensure professional-quality results in both handheld and router tables applications.

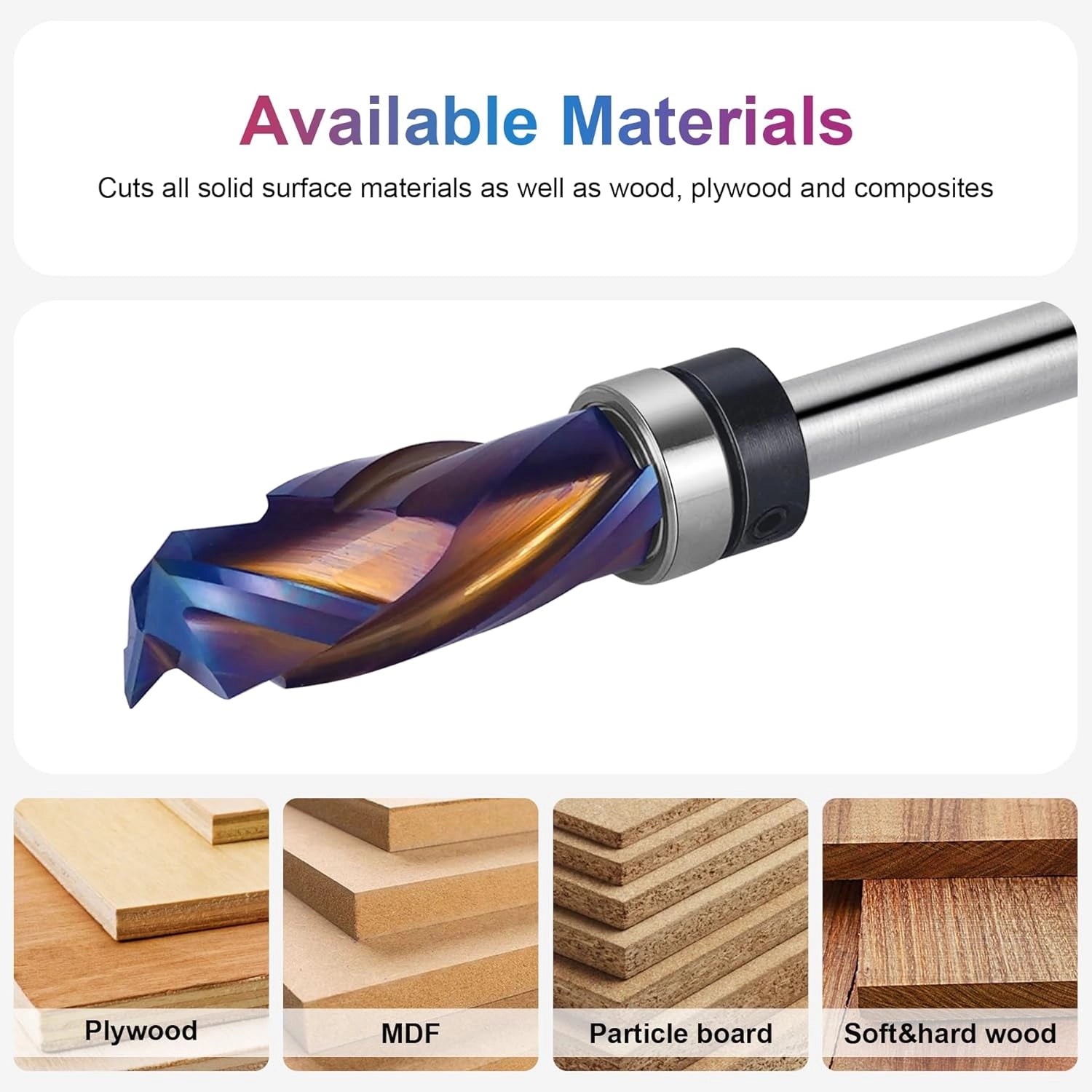

Excellent For Cutting:

  • MDF
  • Plywood
  • Laminate
  • Softwood
  • Hardwood

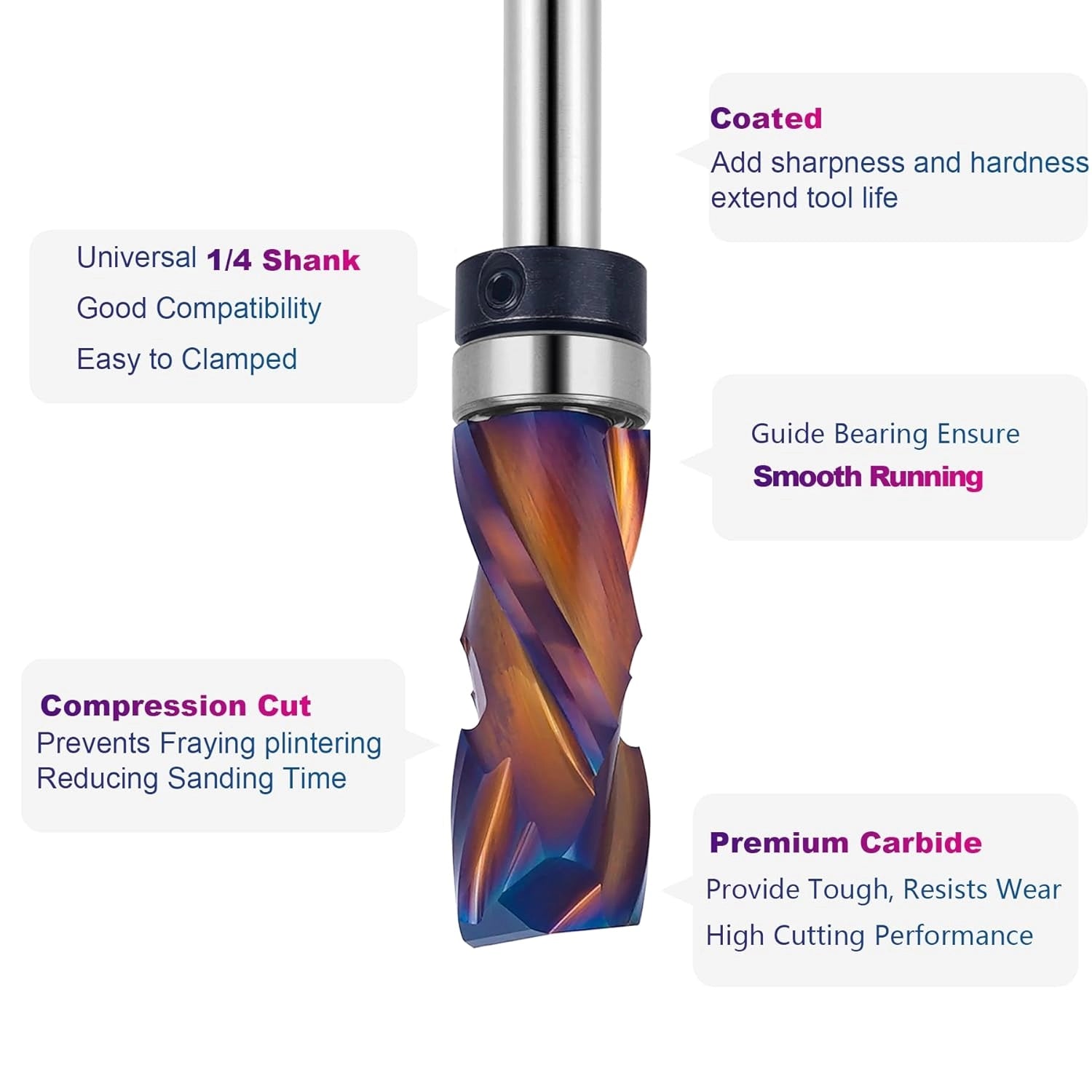

TOOL SPECS: Nano-B coated solid tungsten carbide, top bearing, compression spiral, 1/2" cutting diameter, 1/4" shank, 1-1/4" cutting length, suitable for table-mounted or handheld routers.

PREMIUM COATING: Features SpeTool’s Nano-B high-performance coating, extending bit life up to 2.5× longer than uncoated bits. Ensures superior durability, sharper edges, smoother cuts, and stable performance under heavy use.

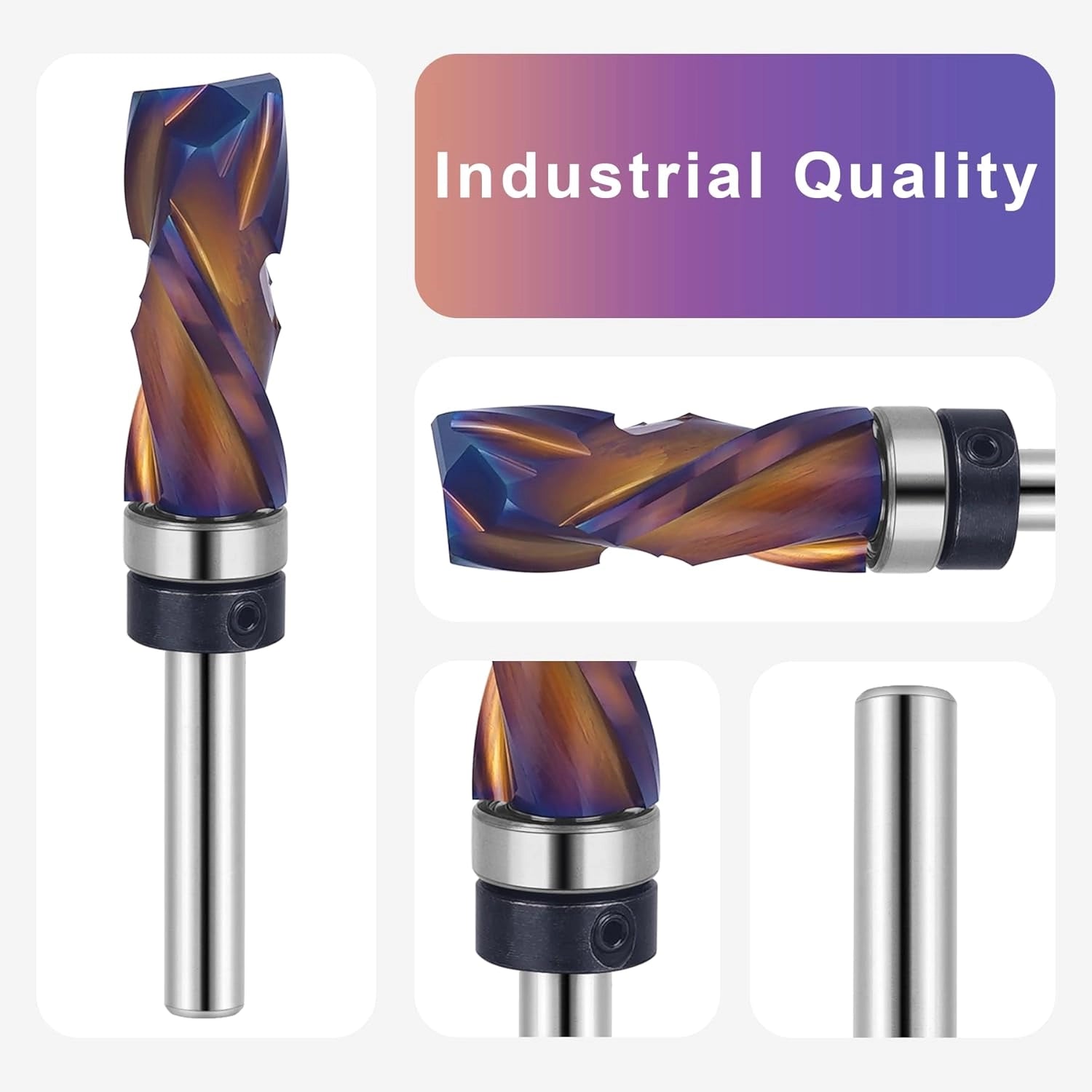

INDUSTRIAL-GRADE CONSTRUCTION: Made with a super-strength steel shank and solid tungsten carbide cutter for exceptional hardness, durability, and long-lasting professional performance.

DESIGN & APPLICATION: Top bearing and compression spiral design allow precise edge-following and chip-free flush trimming. Perfect for pattern and template work in woodworking.

TIPS & SAFETY: Remove accumulated wood chips after each use or after 30 minutes of continuous processing to extend tool lifespan. Read the user manual carefully to ensure proper operation and safety.
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Smooth trim, zero tear-out.
TRIMMING ROUTER BITS

Designed for precision and long-lasting performance.
SpeTool 3/4 Dia 1/2 SHK Flush Trim Compression Top Bearing Router Bit

Upgrade your routing with Ultimate Flush Trim Bits by SpeTool.

Durable spiral cutters for professional-quality finishes.

Similar Size

Part No.

Cutting Dia.
(D)

 Cutting Height
(B)

Shank Dia.
(d)

Overall Length
(L)

Rotation

 Bearing Coating Rec. RPM
W07015 1/2" 1" 1/4" 2-4/5" Comp. Bottom 14,000
W07016 7/8" 1-3/16" 1/2" 3-1/2" Comp. Top 14,000
W07017 1/2" 1" 1/4" 2-5/8" Comp. Top 14,000
W07018 7/8" 1-3/16" 1/2" 3-3/4" Comp. Top 14,000
W07023 1/2" 1-1/4" 1/4" 3-1/4" Comp. Top & Bottom 14,000
*W07023-NBC 1/2" 1-1/4" 1/4" 3-1/4" Comp. Top & Bottom Nano-B 14,000
W07024 1/2" 1-1/4" 1/4" 2-7/8" Comp. Top 14,000
*W07024-NBC 1/2" 1-1/4" 1/4" 2-7/8" Comp. Top Nano-B 14,000
W07025 3/4" 1-3/4" 1/2" 3-5/8" Comp. Top 14,000
W07026 3/4" 1-3/4" 1/2" 4-1/3" Comp. Top & Bottom 14,000
*W07026-NBC 3/4" 1-3/4" 1/2" 4-1/3" Comp. Top & Bottom Nano-B 14,000
W07034 1/2" 1" 1/4" 2-3/4" Comp. Top & Bottom 14,000
*W07034-NBC 1/2" 1" 1/4" 2-3/4" Comp. Top & Bottom Nano-B 14,000
W07040 1/2" 1-1/4" 1/4" 3-1/4" Comp. Bottom 14,000
W07041 3/4" 1-3/4" 1/2" 4-2/5" Comp. Bottom 14,000
*W07041-NBC 3/4" 1-3/4" 1/2" 4-2/5" Comp. Bottom Nano-B 14,000
W07042 1/2" 3/4" 1/4" 2-1/2" Top 14,000
W07043 1/2" 1/4" 1/4" 2" Top 14,000

*Customized sizes are acceptable

Frequently Asked Questions

For template-follow trimming, ideal for wood, MDF, plywood, and laminates.

Many recommend double-bearing for flexibility with templates on top or bottom and better control.

Spiral designs give smoother cuts and reduce tear-out, especially for template routing.

Use multiple shallow passes and correct cutting direction.

Depends on template location: top-bearing for templates on top, bottom-bearing for templates below.

Correct feed direction, stable support, and a bit with the right diameter.

Bit length and bearing alignment matter; too much difference can affect accuracy.

Use a top-bearing bit for the first pass, then a bottom-bearing bit to finish.

Use protective tape or choose a bearing size that avoids overcutting.

Table-mounted gives more stability; handheld is versatile but requires steady hands.
