SpeTool W07045 3/4" Compression Flush Trim Router Bit with Top Bearing, 1/2" Shank, Coated Carbide Spiral Template Router Bit

SKU: WTBUD2FL-D3/4-H1/2-Z
$88.99 USD

Envío calculado en la compra

Ultimate Flush Trim Bits provide precise, clean trimming with durable spiral cutting edges designed to reduce tear-out and deliver smooth finishes. Ideal for use with templates on wood, plywood, MDF, and laminates, these bits ensure professional-quality results in both handheld and router tables applications.

Excellent For Cutting:

  • MDF
  • Plywood
  • Laminate
  • Softwood
  • Hardwood

TOOL SPECS: Solid tungsten carbide construction with a top bearing design, 1/2" cutting diameter, 1/4" shank, 1-3/4" cutting length, and compression spiral cutting geometry. Designed for use in table-mounted and handheld routers with a 1/4" collet.

ADVANCED COATING: Premium wear-resistant coating extends tool life up to 2.5 times compared to uncoated bits. The coating reduces friction and heat buildup while maintaining sharp cutting performance for longer periods.

HIGH PERFORMANCE: Compression spiral design combines up-cut and down-cut action to deliver cleaner edges on both the top and bottom surfaces. Provides excellent chip evacuation, reduced tear-out, smoother cuts, and more efficient routing.

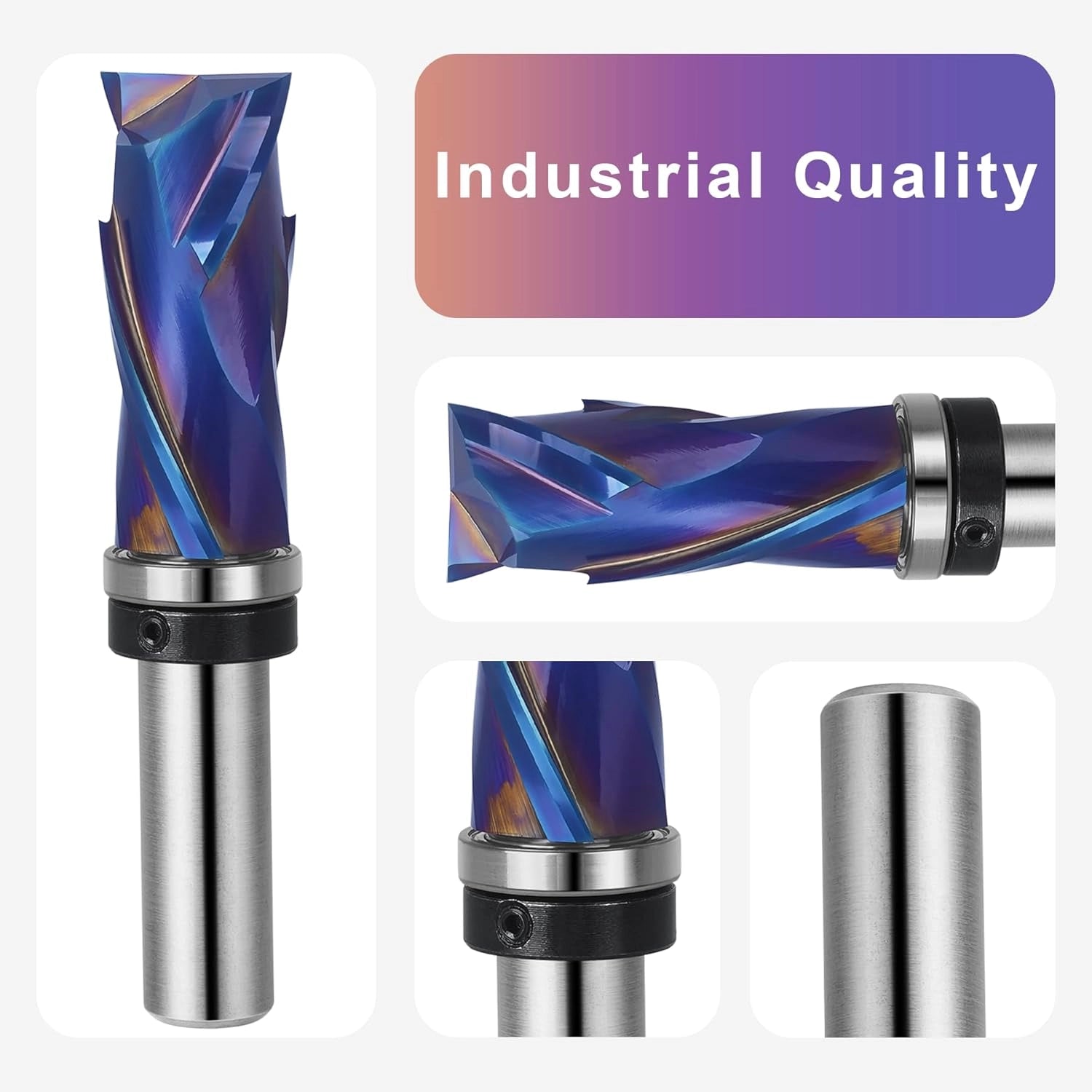

INDUSTRIAL QUALITY: Manufactured with an industrial-grade steel shank and solid tungsten carbide cutting edges for exceptional hardness, durability, and long-lasting performance in demanding woodworking applications.

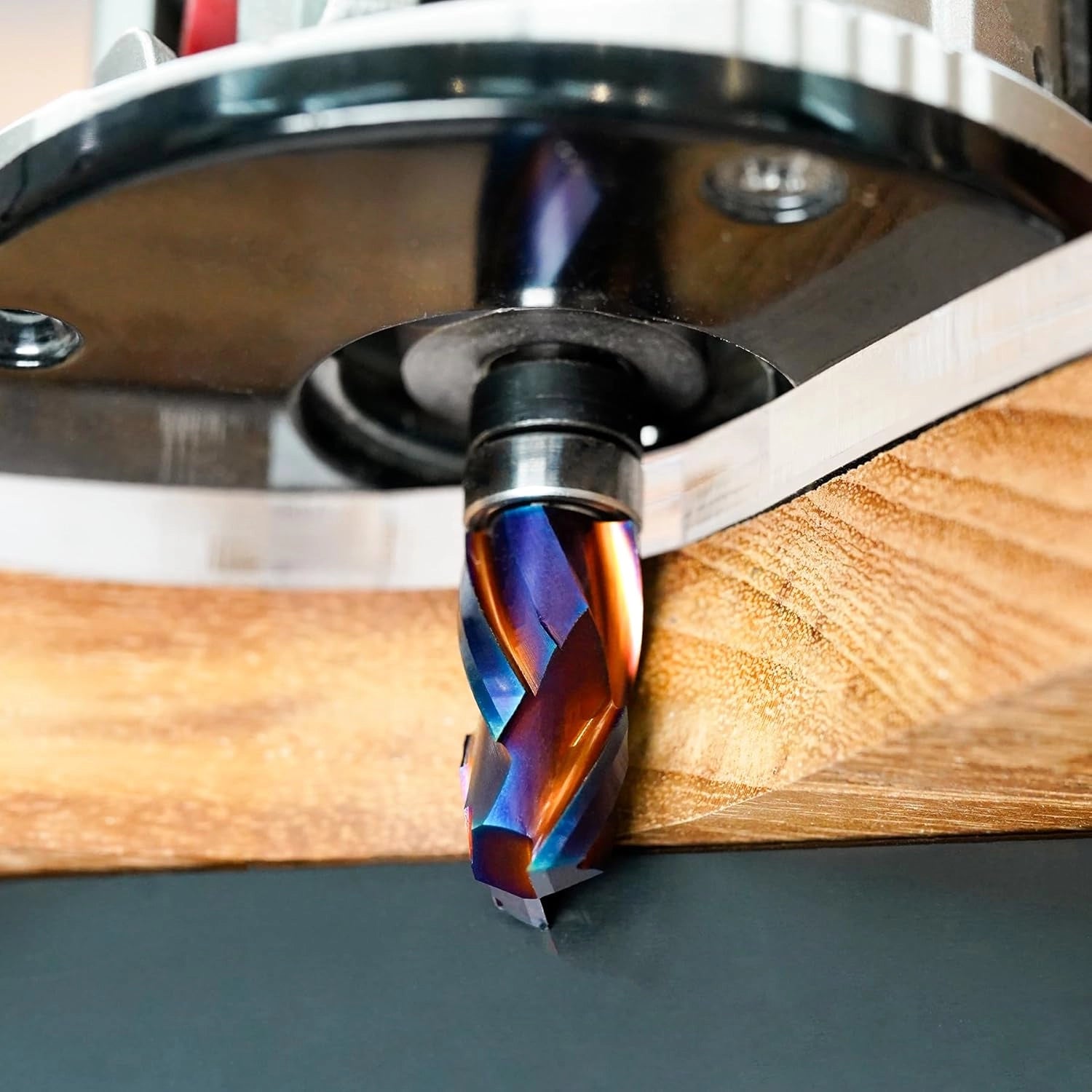

DESIGN OPTIONS: Precision top bearing follows templates and patterns accurately, making this bit ideal for flush trimming, template routing, duplicate part production, laminate trimming, and detailed woodworking projects.

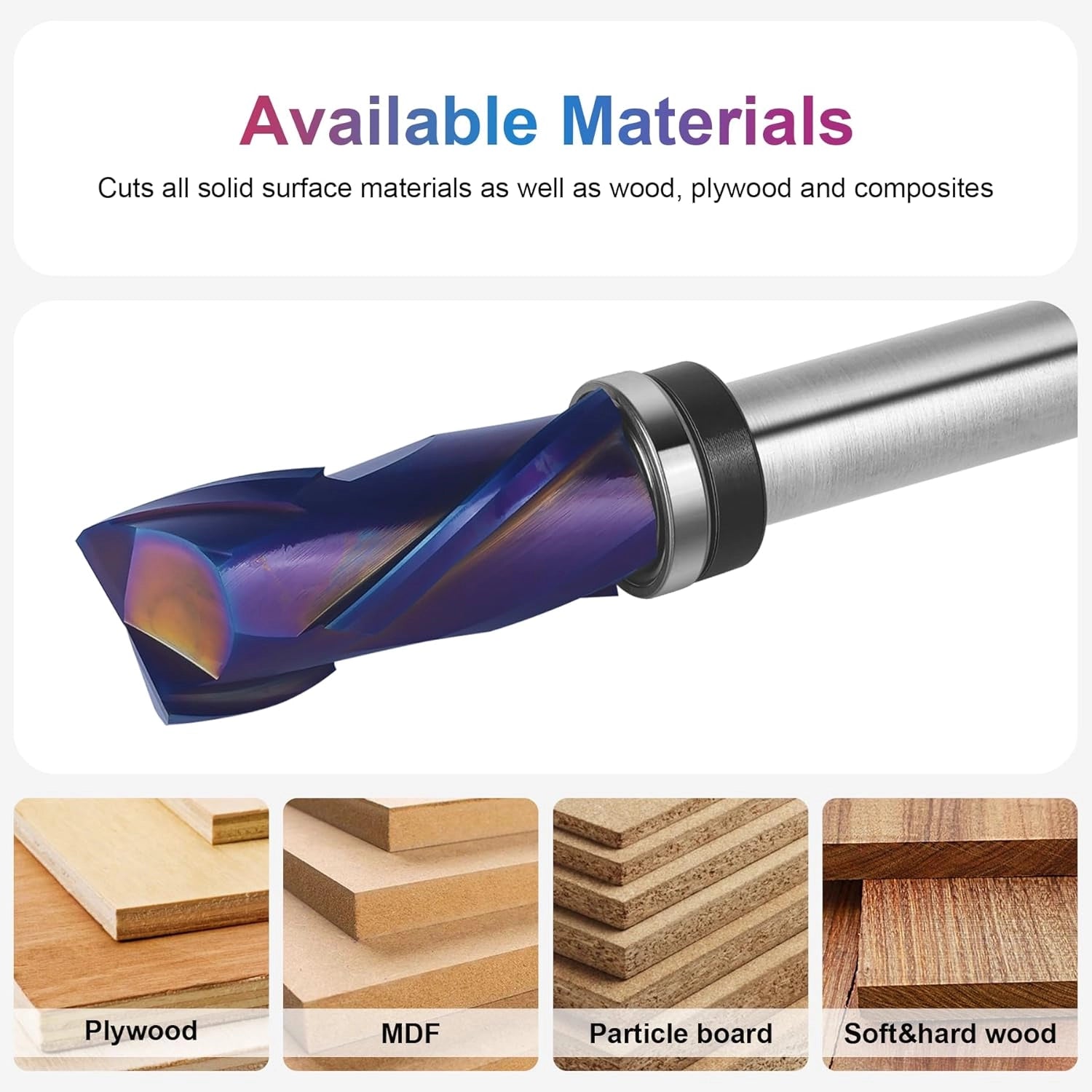

APPLICATIONS: Suitable for solid wood, plywood, veneered plywood, MDF, particle board, chipboard, melamine board, laminate, and other engineered wood materials.

TIPS: For optimal performance and extended tool life, regularly remove accumulated wood chips during operation and clean the bit after each use. Use appropriate feed rates and avoid excessive heat buildup when routing dense materials.
33 en existencias
Cantidad:
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Smooth trim, zero tear-out.
TRIMMING ROUTER BITS

Designed for precision and long-lasting performance.
SpeTool 3/4 Dia 1/2 SHK Flush Trim Compression Top Bearing Router Bit

Upgrade your routing with Ultimate Flush Trim Bits by SpeTool.

Durable spiral cutters for professional-quality finishes.

Similar Size

Part No.

Cutting Dia.
(D)

 Cutting Height
(B)

Shank Dia.
(d)

Overall Length
(L)

Rotation

 Bearing Coating Rec. RPM
W07015 1/2" 1" 1/4" 2-4/5" Comp. Bottom 18,000
W07016 7/8" 1-3/16" 1/2" 3-1/2" Comp. Top 8,000
W07017 1/2" 1" 1/4" 2-5/8" Comp. Top 18,000
W07018 7/8" 1-3/16" 1/2" 3-3/4" Comp. Top 8,000
W07023 1/2" 1-1/4" 1/4" 3-1/4" Comp. Top & Bottom 18,000
*W07023-NBC 1/2" 1-1/4" 1/4" 3-1/4" Comp. Top & Bottom Nano-B 18,000
W07024 1/2" 1-1/4" 1/4" 2-7/8" Comp. Top 18,000
*W07024-NBC 1/2" 1-1/4" 1/4" 2-7/8" Comp. Top Nano-B 18,000
W07025 3/4" 1-3/4" 1/2" 3-5/8" Comp. Top 8,000
W07026 3/4" 1-3/4" 1/2" 4-1/3" Comp. Top & Bottom 8,000
*W07026-NBC 3/4" 1-3/4" 1/2" 4-1/3" Comp. Top & Bottom Nano-B 8,000
W07034 1/2" 1" 1/4" 2-3/4" Comp. Top & Bottom 18,000
*W07034-NBC 1/2" 1" 1/4" 2-3/4" Comp. Top & Bottom Nano-B 18,000
W07040 1/2" 1-1/4" 1/4" 3-1/4" Comp. Bottom 18,000
W07041 3/4" 1-3/4" 1/2" 4-2/5" Comp. Bottom 8,000
*W07041-NBC 3/4" 1-3/4" 1/2" 4-2/5" Comp. Bottom Nano-B 8,000
W07042 1/2" 3/4" 1/4" 2-1/2" Top 18,000
W07043 1/2" 1/4" 1/4" 2" Top 18,000

*Customized sizes are acceptable

Frequently Asked Questions

For template-follow trimming, ideal for wood, MDF, plywood, and laminates.

Many recommend double-bearing for flexibility with templates on top or bottom and better control.

Spiral designs give smoother cuts and reduce tear-out, especially for template routing.

Use multiple shallow passes and correct cutting direction.

Depends on template location: top-bearing for templates on top, bottom-bearing for templates below.

Correct feed direction, stable support, and a bit with the right diameter.

Bit length and bearing alignment matter; too much difference can affect accuracy.

Use a top-bearing bit for the first pass, then a bottom-bearing bit to finish.

Use protective tape or choose a bearing size that avoids overcutting.

Table-mounted gives more stability; handheld is versatile but requires steady hands.
