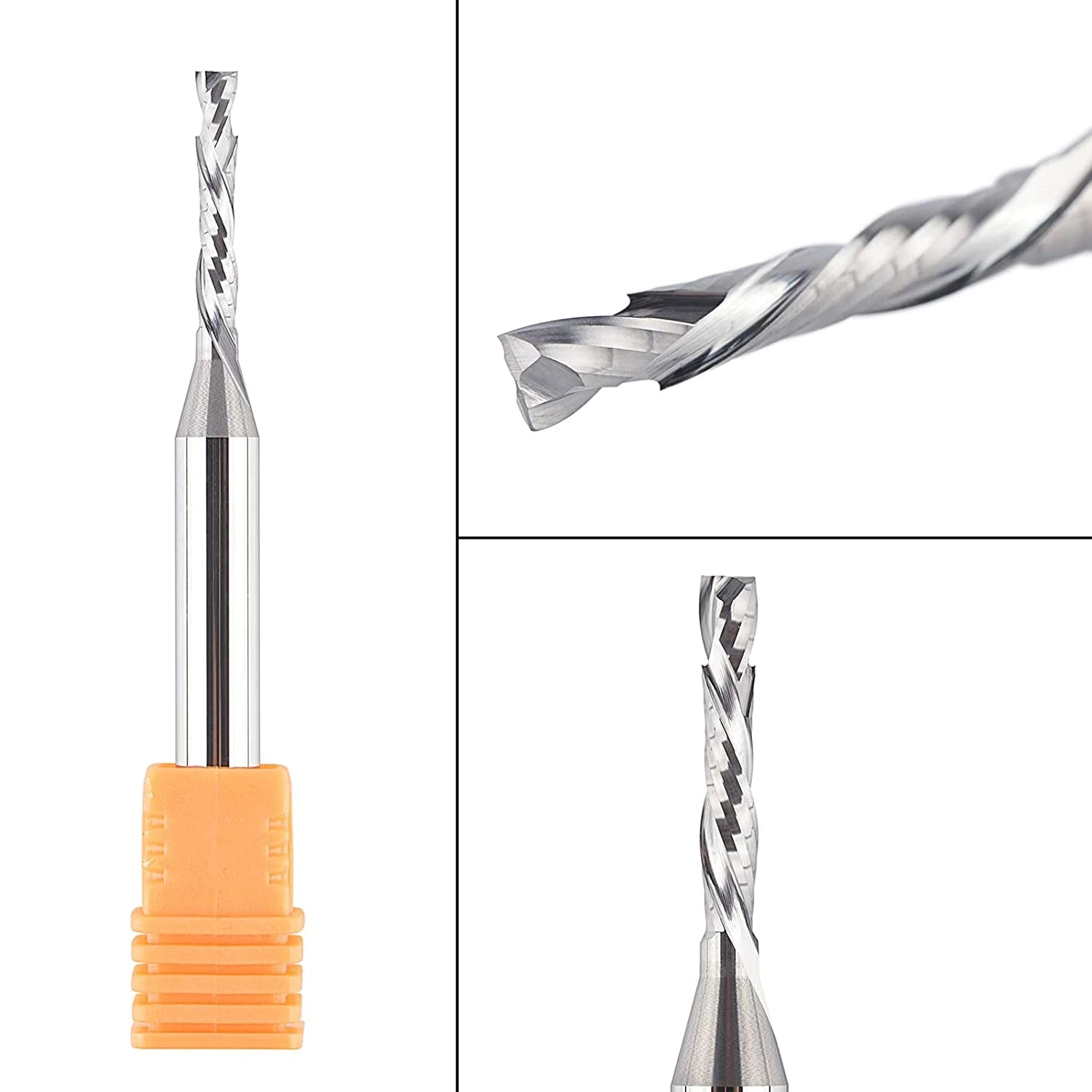

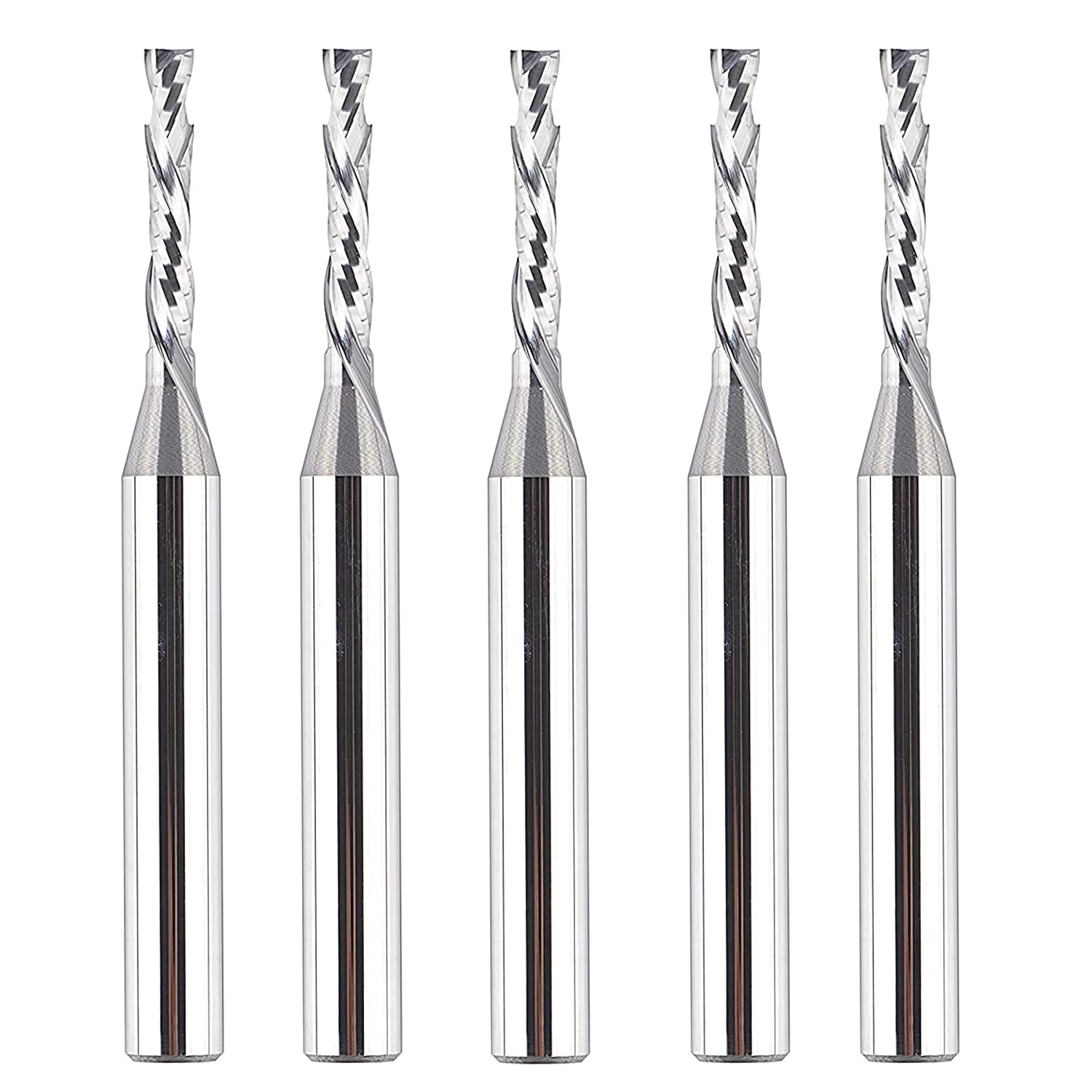

Get flawless cuts on both sides of your material. SpeTool’s compression bits combine up-cut and down-cut flutes for clean edges top and bottom, making them perfect for plywood, MDF, melamine, and laminated boards. Built with solid carbide for durability and CNC precision.
| Dirección de corte: | ARRIBA ABAJO |
| Diámetro de corte (CD): | 1/8" |
| Diámetro del vástago (SD): | 1/4" |
| Longitud de corte (CL): | 3/4" |
| Longitud total (OVL): | 2-1/2" |
| Material | Carburo |

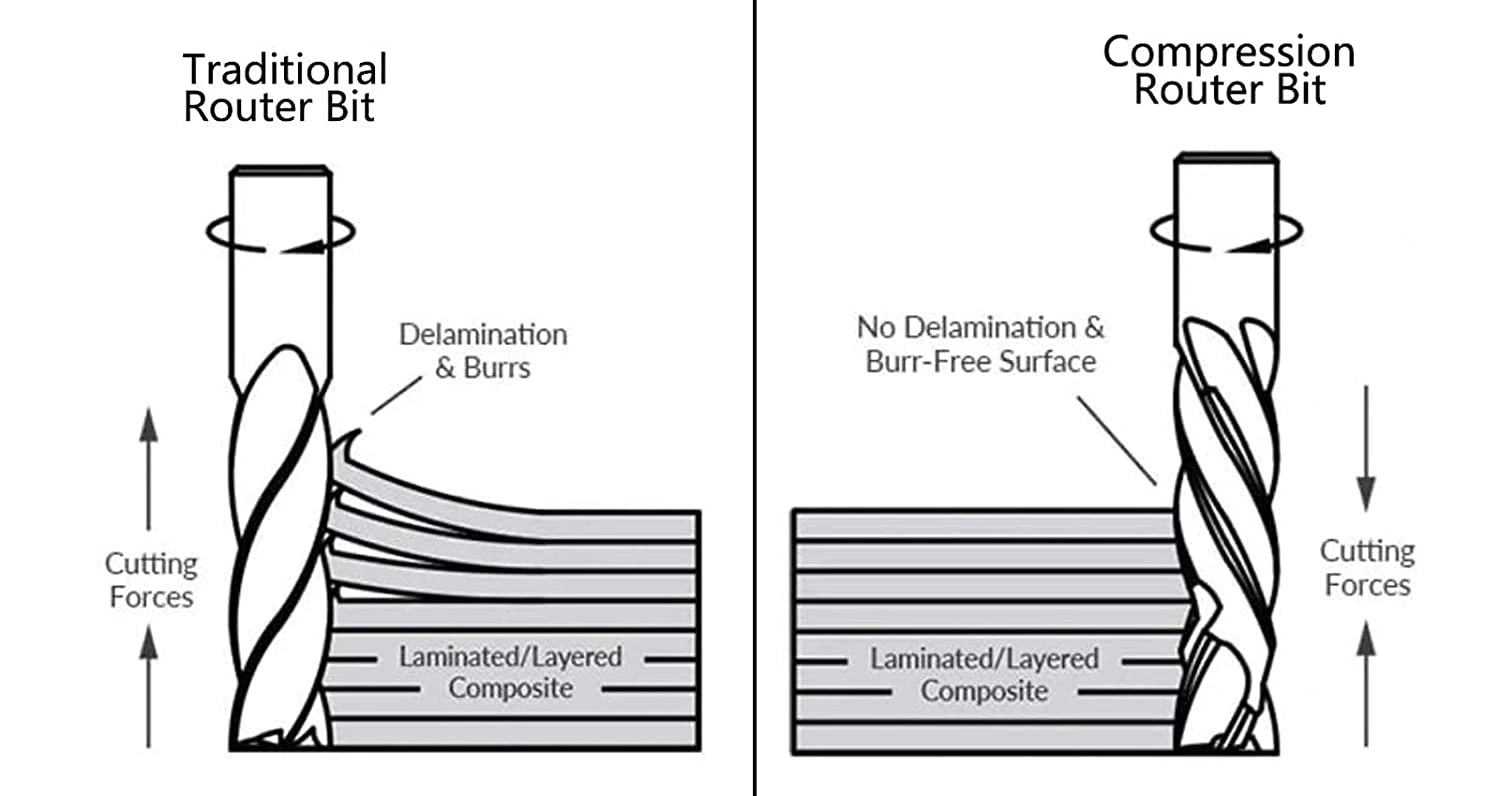

El cortador de compresión consta de una hélice de corte ascendente y descendente. La parte superior de la longitud del corte tiene dientes cortantes a la derecha con una espiral a la izquierda. La parte inferior de la longitud del corte tiene dientes de corte derechos con una espiral derecha. Esto crea fuerzas de corte opuestas para estabilizar el proceso de eliminación de material al cortar compuestos en capas para evitar la delaminación, la extracción de fibras y las fresas a lo largo de la superficie. La compresión de la parte superior e inferior de la pieza de trabajo mantiene las capas unidas.

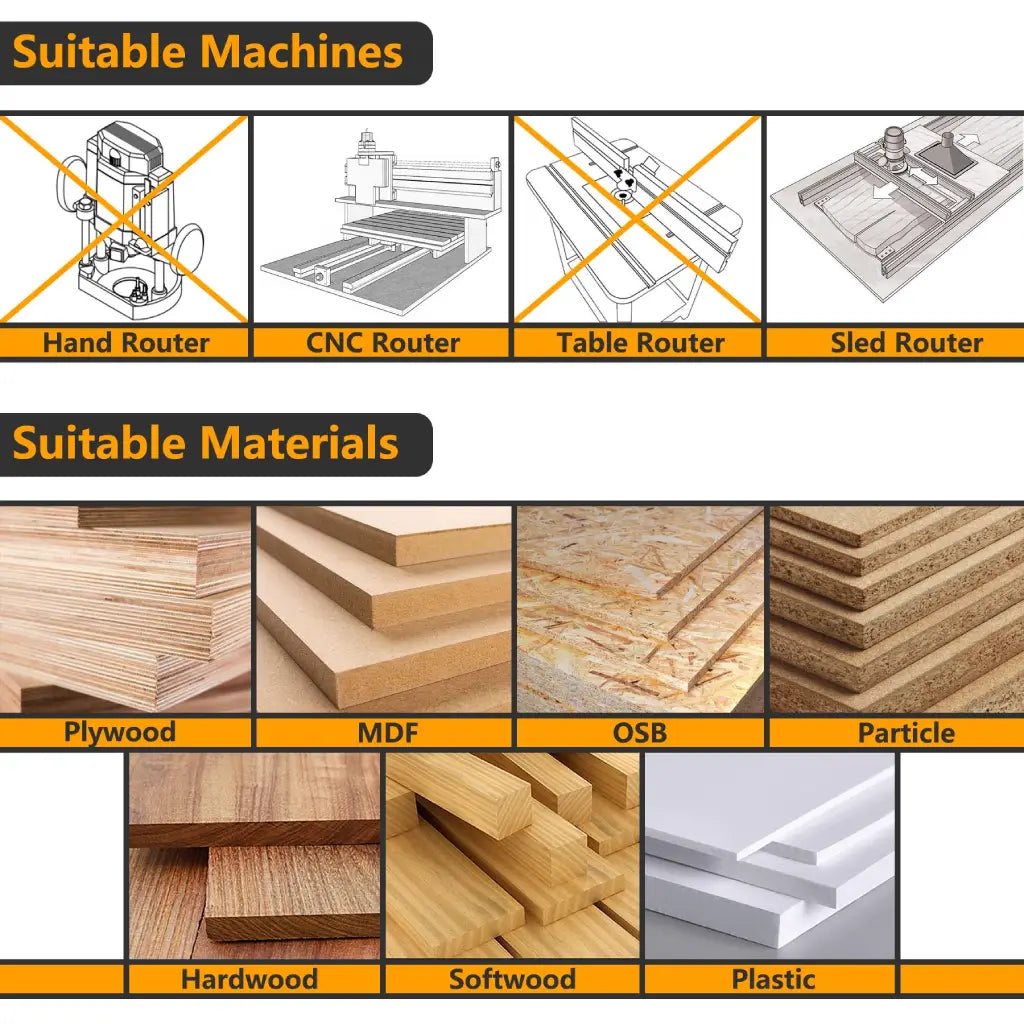

Especialmente diseñado para proporcionar un excelente acabado. Se puede utilizar con enrutadores CNC, de mesa y portátiles.
|
|
|
|
|
|
Payment & Security
Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.
| Part No. |
Cutting Dia. |
Cutting Height (B) |
Shank Dia. |
Overall Length |
Flute |
Coating | Rec. RPM |
|---|---|---|---|---|---|---|---|
| W02001 | 1/2" | 1-1/4" | 1/2" | 3" | 2 | 15,000 | |
| *W02001-SPE-X | 1/2" | 1-1/4" | 1/2" | 3" | 2 | TAC | 15,000 |
| W02002 | 3/8" | 1-1/4" | 1/2" | 3" | 2 | 15,000 | |
| *W02002-SPE-X | 3/8" | 1-1/4" | 1/2" | 3" | 2 | TAC | 15,000 |
| W02003 | 1/4" | 1" | 1/4" | 2-1/2" | 2 | 18,000 | |
| *W02003-SPE-X | 1/4" | 1" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
| W02004 | 1/8" | 3/4" | 1/4" | 2-1/2" | 2 | 18,000 | |
| *W02004-SPE-X | 1/8" | 3/4" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
| W02005 | 1/8" | 3/4" | 1/8" | 1-1/2" | 2 | 18,000 | |
| *W02005-SPE-X | 1/8" | 3/4" | 1/8" | 1-1/2" | 2 | TAC | 18,000 |
| W02006 | 1/2" | 1-1/2" | 1/2" | 4" | 2 | 15,000 | |
| *W02006-SPE-X | 1/2" | 1-1/2" | 1/2" | 4" | 2 | TAC | 15,000 |
| W02008 | 1/8" | 1" | 1/8" | 2" | 2 | 18,000 | |
| *W02008-SPE-X | 1/8" | 1" | 1/8" | 2" | 2 | TAC | 18,000 |
| W02010 | 1/4" | 1" | 1/4" | 2-1/2" | 2 | 18,000 | |
| W02011 | 1/4" | 1-1/4" | 1/4" | 3" | 2 | 18,000 | |
| *W02011-SPE-X | 1/4" | 1-1/4" | 1/4" | 3" | 2 | TAC | 18,000 |
| W02012 | 1/2" | 3" | 1/2" | 5" | 2 | 15,000 | |
| *W02012-SPE-X | 1/2" | 3" | 1/2" | 5" | 2 | TAC | 15,000 |
| W02013 | 3/8" | 1-1/4" | 3/8" | 3" | 2 | 15,000 | |
| W02014 | 3/16" | 1" | 1/4" | 2-1/2" | 2 | 18,000 | |
| *W02014-SPE-X | 3/16" | 1" | 1/4" | 2-1/2" | 2 | TAC | 18,000 |
*Customized sizes are acceptable
At SpeTool, safety is our top priority. Please read the following precautions carefully before using any of our cutting, routing, or drilling products.
Always wear eye protection, hearing protection, and a dust mask while operating tools.
Avoid wearing loose clothing, gloves, or jewelry that could catch in moving parts.
Keep hands, hair, and body parts away from the cutting area at all times.
Never use dull or damaged bits. Replace worn tools immediately.
Do not remove or disable safety guards on your machinery.
Always feed material against the rotation of the cutting tool.
Disconnect power before changing bits or performing maintenance.
Follow the safety instructions provided by your power tool manufacturer.
Improper use, modification, or misuse of this product may result in serious injury. SpeTool is not responsible for damage or injury caused by unsafe practices.
Re-sharpening or grinding SpeTool bits may release dust containing cobalt or other substances. Always use proper respiratory protection.
Wood dust generated during drilling, cutting, or sanding may pose a cancer risk. Avoid inhalation and use appropriate safety equipment.
This product may expose you to lead and/or cobalt, chemicals known to the State of California to cause cancer and reproductive harm.
🔗 Learn more about California Proposition 65
Stay safe. Work smart. Use protection.
For additional safety tips, consult your machine’s user manual or reach out to our support team.
| Products Type |
Products Type |
|---|---|
| Spriral Router Bits | Download |
| 2D & 3D Tapered Router Bits | Download |
| V Groove Router Bits | Download |
| O-Flute Router Bits | Download |
| Spoilboard Surfacing Router Bits | Download |
| Bowl & Tray Router Bits | Download |
| Aluminum & Metal Router Bits | Download |
|
Software |
Tool File |
|
Fusion 360 Tools File |
|
|
Vectric Tools File |
|
|
Carveco Tools File |
|
|
Carbide 3D Tools File |
A bit that combines up‑cut at the tip and down‑cut near the shank to deliver clean edges both top and bottom.
They prevent tear‑out on both surfaces—ideal for plywood, laminates, melamine, and MDF.
Yes—high‑quality compression bits are typically made of solid carbide for durability and sharpness.
Yes, they’re perfect for through‑cuts where both faces matter, such as cabinet panels or double‑sided veneer.
Better than straight bits—spiral flute design improves cutting action, though slower feed rates may be needed.
Your first pass must fully engage both up‑cut and down‑cut zones—typically half the diameter deep at least to activate both.
Yes, with handheld routers plus pilot bearings—they can be used for flush trimming and template following.
Compression bits are more expensive but last longer and reduce sanding/rework time—worth the investment.
Yes—they help minimize tear‑out even when grain direction is complex.
Many pros recommend rough cutting first, then finishing with compression bit for the perfect edge.
