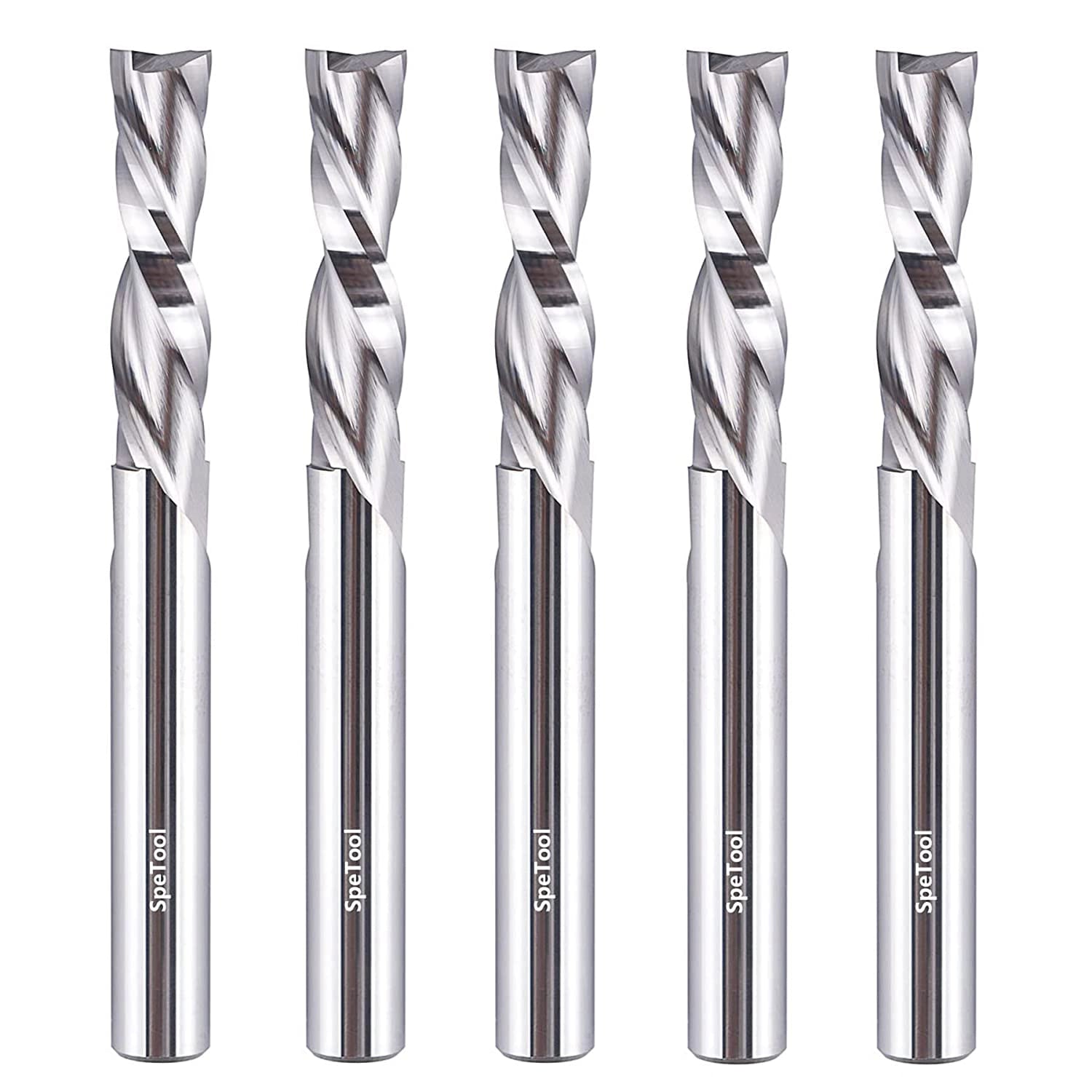

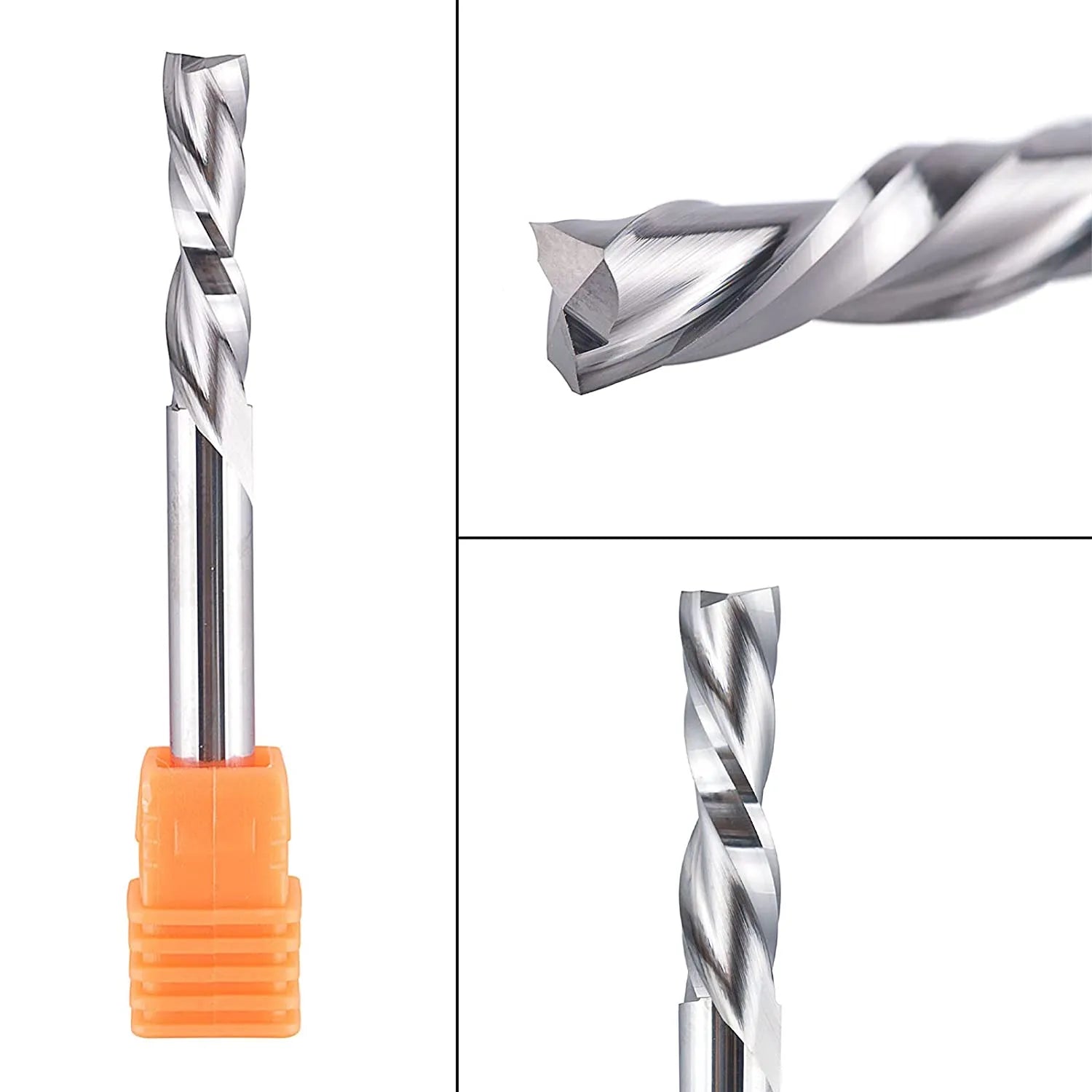

SpeTool W04004 SC Punta en espiral de 1/4" de diámetro x vástago de 1/4" x 1" de longitud de corte x 2-1/2" de largo Broca enrutadora de corte hacia abajo de 2 flautas
A down cut bits push chips downward, delivering smooth top surfaces with minimal tear-out — ideal for plywood, hardwood, and laminated boards. Made from solid carbide for durability and precision, they’re perfect for joinery, grooves, and clean-edge cuts where surface finish matters most.

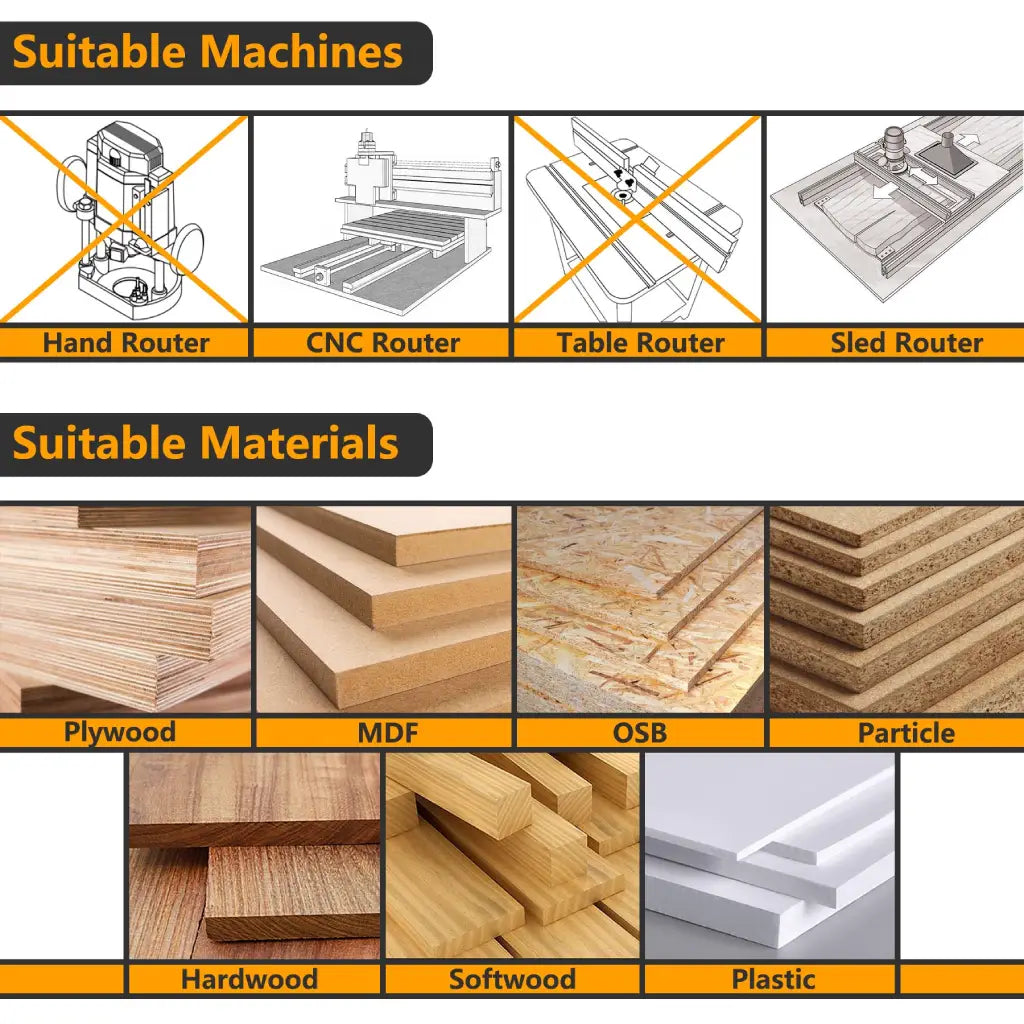

Excellent For Cutting:
- MDF/HDF
- Plywood
- Melamine
- Laminate
- Softwood/Hardwood
- Veneered Plywood
Especificación
| Dirección de corte: | ABAJO |
| Diámetro de corte (CD): | 1/4" |
| Diámetro del vástago (SD): | 1/4" |
| Longitud de corte (CL): | 1" |
| Longitud total (OVL): | 2-1/2" |
| Material: | Carburo |
Descripción general
Las herramientas en espiral de corte descendente se utilizan mejor para materiales más delgados que serán empujados hacia la plataforma de la máquina en lugar de levantarse con una espiral de corte ascendente. Esto puede ser particularmente útil cuando se utiliza sujeción por vacío, donde es crucial mantener el sello entre el material y el lecho de sacrificio. Estas herramientas se utilizan principalmente cuando se requiere un acabado de corte de alta calidad en la superficie superior de las piezas cortadas.
Especialmente diseñado para proporcionar un excelente acabado. Se puede utilizar con enrutadores CNC, de mesa y portátiles.
Diseñado para cortar los siguientes materiales.
|
|
|
|
|
|
Número de items:1
Cantidad:
Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.
Ready to Cut Like Never Before?
Similar Size
*Customized sizes are acceptable
🔒 Safety & Warnings
At SpeTool, safety is our top priority. Please read the following precautions carefully before using any of our cutting, routing, or drilling products.
🛡️ Safety Guidelines
-
Always wear eye protection, hearing protection, and a dust mask while operating tools.
-
Avoid wearing loose clothing, gloves, or jewelry that could catch in moving parts.
-
Keep hands, hair, and body parts away from the cutting area at all times.
-
Never use dull or damaged bits. Replace worn tools immediately.
-
Do not remove or disable safety guards on your machinery.
-
Always feed material against the rotation of the cutting tool.
-
Disconnect power before changing bits or performing maintenance.
-
Follow the safety instructions provided by your power tool manufacturer.
Improper use, modification, or misuse of this product may result in serious injury. SpeTool is not responsible for damage or injury caused by unsafe practices.
⚠️ Health & Chemical Warnings
-
Re-sharpening or grinding SpeTool bits may release dust containing cobalt or other substances. Always use proper respiratory protection.
-
Wood dust generated during drilling, cutting, or sanding may pose a cancer risk. Avoid inhalation and use appropriate safety equipment.
-
This product may expose you to lead and/or cobalt, chemicals known to the State of California to cause cancer and reproductive harm.
🔗 Learn more about California Proposition 65
Stay safe. Work smart. Use protection.
For additional safety tips, consult your machine’s user manual or reach out to our support team.
CNC Feed/Speed (PDF)
| Products Type |
Products Type |
|---|---|
| Spriral Router Bits | Download |
| 2D & 3D Tapered Router Bits | Download |
| V Groove Router Bits | Download |
| O-Flute Router Bits | Download |
| Spoilboard Surfacing Router Bits | Download |
| Bowl & Tray Router Bits | Download |
| Aluminum & Metal Router Bits | Download |
Fusion 360 & Vectric & Carveco & Carbide 3D .tools file
|
Software |
Tool File |
|
Fusion 360 Tools File(Updated To 20251015) |
|
|
Vectric Tools File (Updated To 20251015) |
|
|
Carveco Tools File(Updated To 20251028) |
|
|
Carbide 3D Tools File(Updated To 20251028) |
Frequently Asked Questions
A bit designed to push chips downward, resulting in a clean top surface with minimal tear-out.
- Down-cut: smooth top surface, rougher bottom
- Up-cut: clean bottom edge, risk of top tear-out
- Straight: general-purpose, less chip evacuation efficiency
Plywood, laminates, veneer, and finish-grade panels where a clean top surface is crucial.
When the top surface will be visible and needs to be perfectly clean (e.g., dados, grooves, or templates).
Not ideal. Downward chip compression can cause clogging and heat buildup in deep cuts.
They can if chip evacuation is poor. Use multiple shallow passes and proper feed rate to avoid it.
Make shallow passes and avoid pushing the bit too fast. Ensure your router is powerful enough.
Yes, especially when the template is on the top surface — it helps prevent tear-out along the template edge.
You can, but remember the chip direction will push back toward the workpiece, so dust collection and safety are key.
Poor chip ejection on deep cuts. Not ideal for cutting all the way through thick material.
