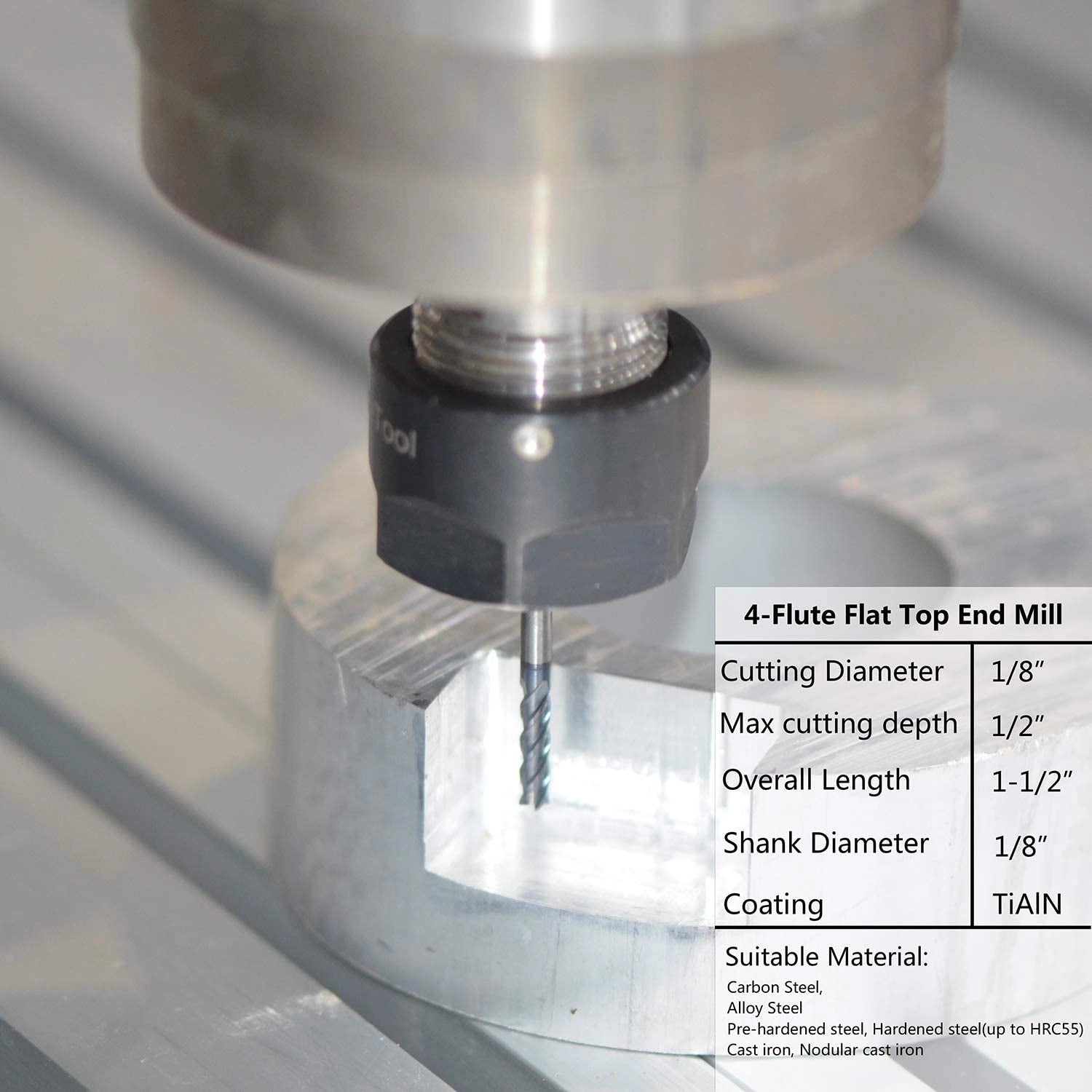

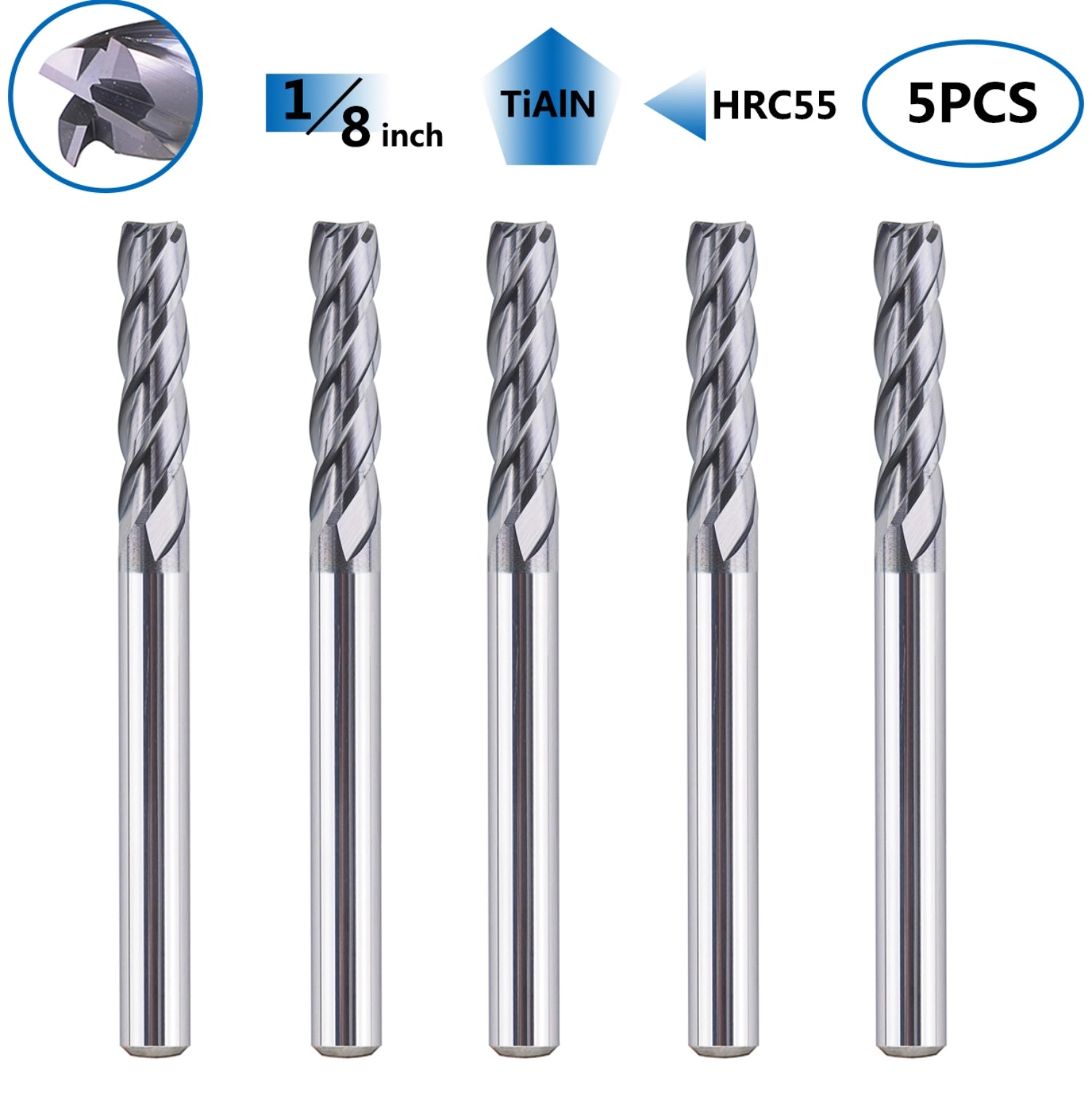

Specification:
|
Flute number
|
4
|
|
End Cut Type
|
Flat Top
|
|
Shank Diameter(SD)
|
1/8"
|
|
Cutting Diameter(CD)
|
1/8"
|
|
Cutting Length(CL)
|
1/2"
|
|
Overall Length(OVL)
|
1-1/2"
|
|
Coating
|
TiAlN
|
| Material |
Carbide |

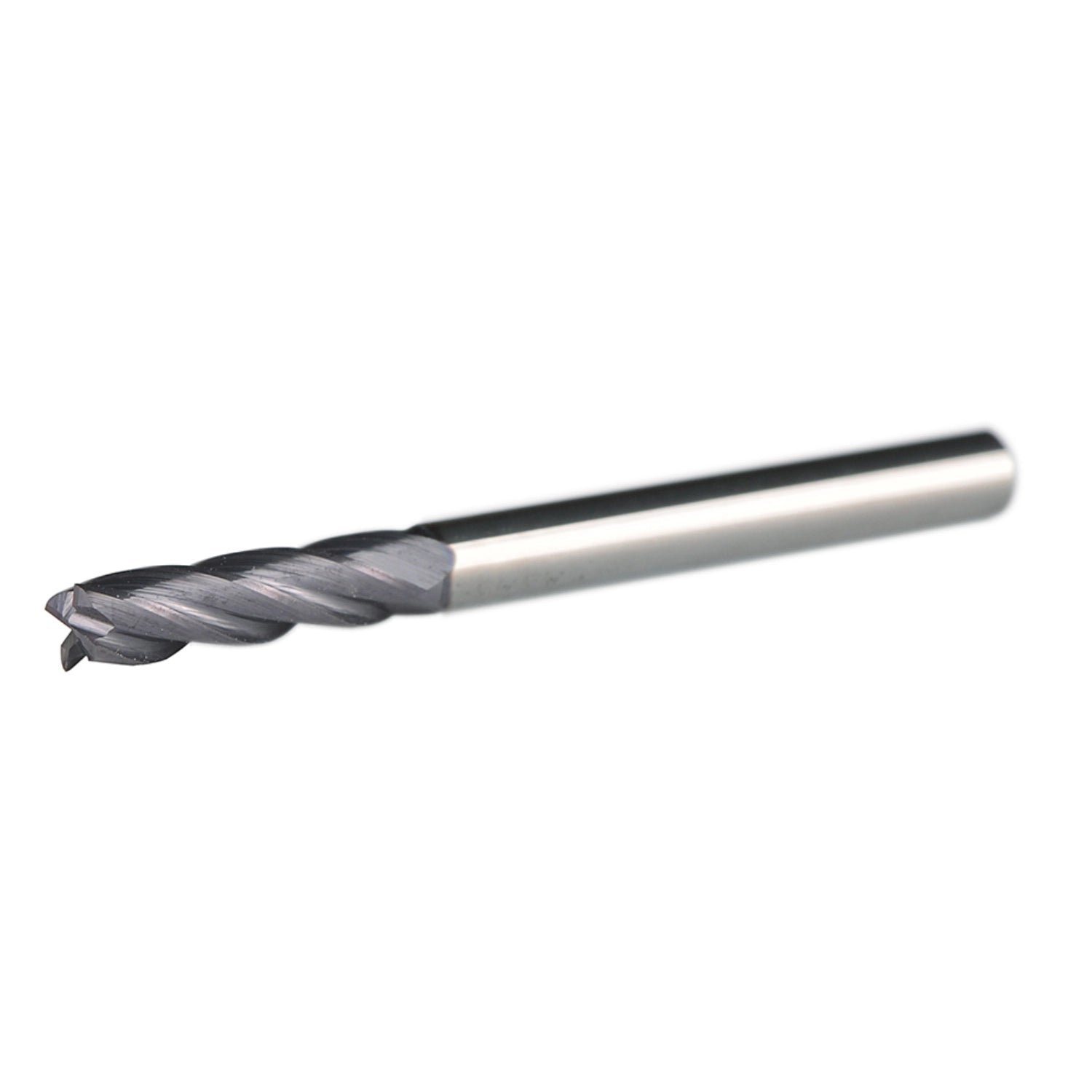

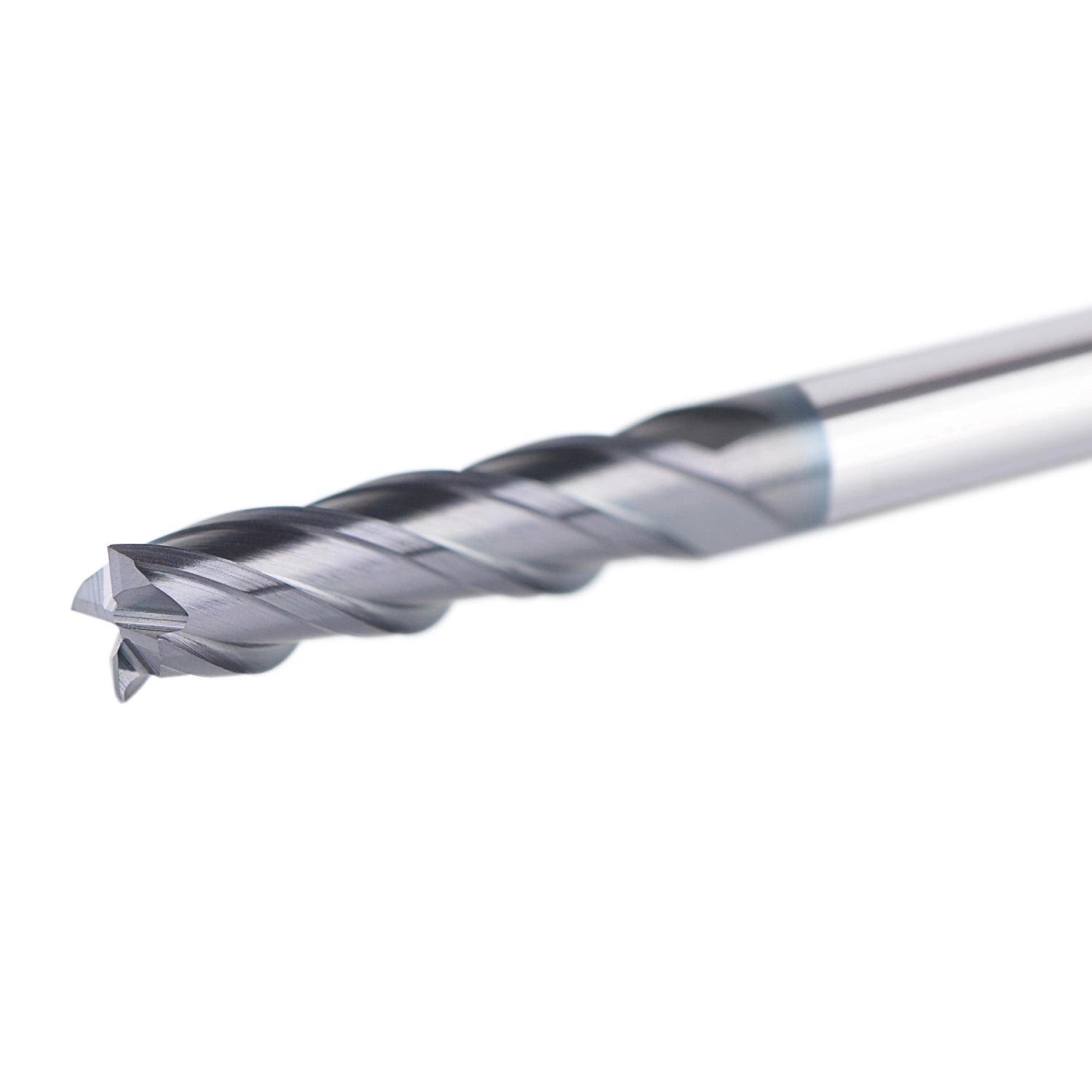

Overview:
For longer tool life and a better finish in general-purpose milling applications, these solid carbide end mills are harder, stronger, and more wear-resistant than high-speed steel and cobalt steel end mills. Their extreme hardness means they are brittle, so a highly rigid setup, such as a CNC machine, is necessary to prevent the end mill from breaking.
The TiAlN coated end mills dissipate heat better than other end mills, especially at high speeds. At high temperatures, the coating creates a layer of aluminum oxide that transfers heat to the chips, keeping the tool cool, even when used without lubrication.
Designed for cutting the following materials:
|
Cast Iron
|
Titanium
|
Steel: 40-50HRC
|
|
Carbon Steel
|
Chrome
|
Stainless Steel
|
|
Steel Weldments
|
Ferrous Metal
|
|
Safety Guidelines
BE CAREFUL. Always wear eye and ear protection along with dust masks. Avoid using bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter. Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters. Disconnect power when changing bits or making adjustments, and always leave the power disconnected when not in use. Follow all safety recommendations of the power tool manufacturer. SpeTool Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification
of any product (including sharpening).
WARNING: Re-grinding of SpeTool products will produce dust of potentially hazardous ingredients. Always read and follow owner’s safety manual of all power machinery before using bits. Always use eye protection while using this or any carbide cutting product.
WARNING: SpeTool products can expose you to chemicals including lead and/or cobalt, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
WARNING: Drilling, sanding or machining wood products can expose you to wood dust, a ubstance known to the State of California to cause cancer. Avoid inhaling wood dust or use a mask or other safeguards for personal protection. For more information go to http://www.P65Warnings.ca.gov.
