P01005 · DIY TABLE KIT INCLUDED

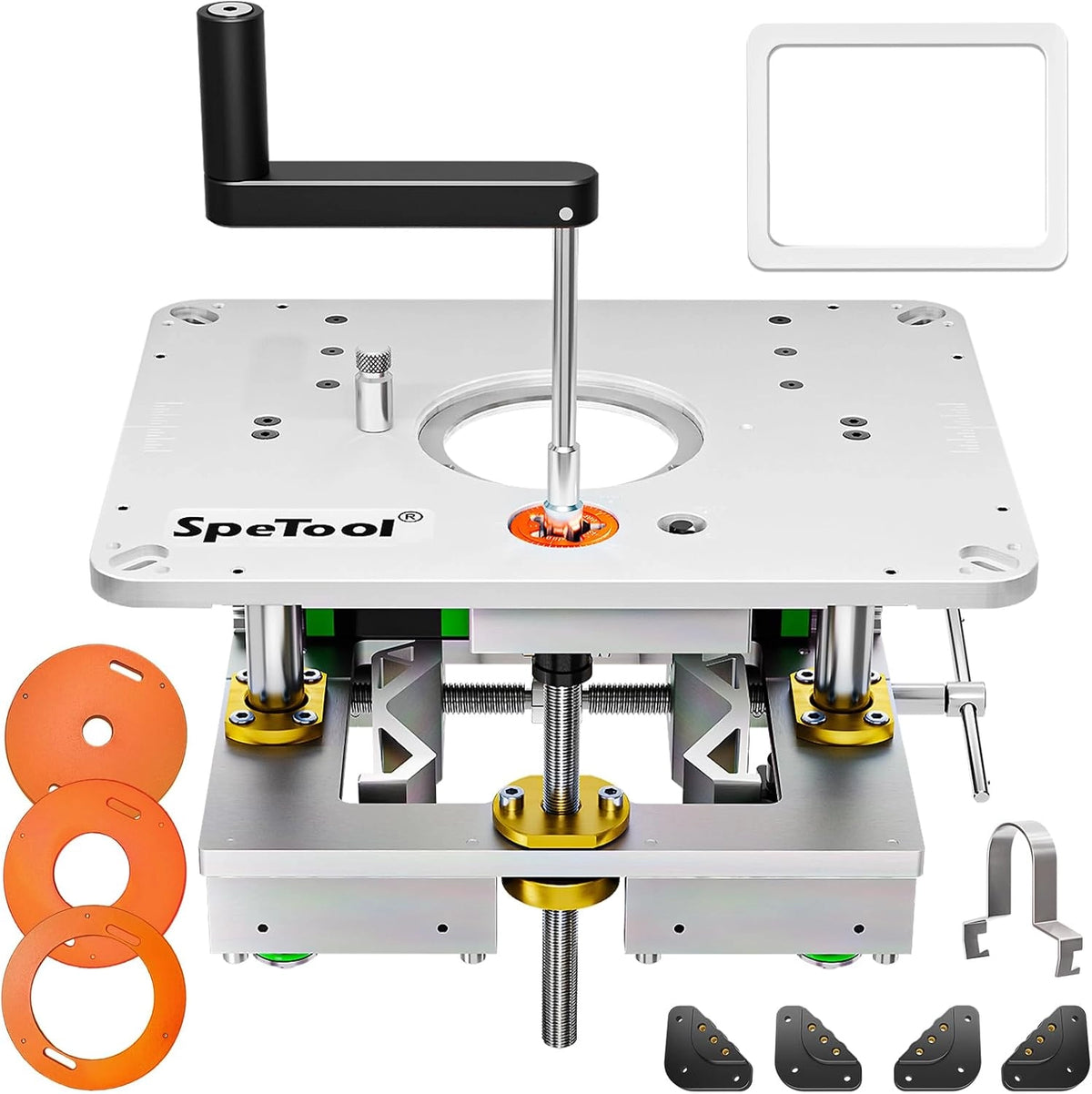

Router Lift Pro

More control. Less setup.

Fine height adjustment. Above-table leveling. Thoughtful upgrades for your next table project.

0.001" adjustment
increments
Above-table plate leveling
DIY kit included
$419.99
USD
Pre-order · Est. delivery: Nov 10 – Dec 3
Not compatible with Bosch RA1181 tables.
Check your fit before ordering
Before placing your order:

Verify your router model, table opening, and mounting-hole dimensions against the product specifications.

Bosch RA1181 router tables are not compatible.

Quantity:

American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay
01 THE RIGHT FIT COMES FIRST

Check your setup before you order.

Two measurements. One important clearance check.

Need the RA1181 version?
Insert plate
9-1/4" × 11-3/4"
Check opening and recess depth.
Motor diameter
65–107 mm
Confirm shape and clamping area.
Also check
Room below the table
Motor, lift and accessory clearance.
Check my setup

This guided check helps you identify what to measure. It cannot confirm complete compatibility.

02 THOUGHTFUL UPGRADES

What makes it Pro.

Redesigned details that make setup and adjustment easier to manage.

SpeTool P01005 redesigned linear guide mechanism
01 / MOVEMENT

Redesigned linear guides

A revised guide and slider arrangement, with machined bearing supports, is designed to support smooth adjustment and rigid guidance.

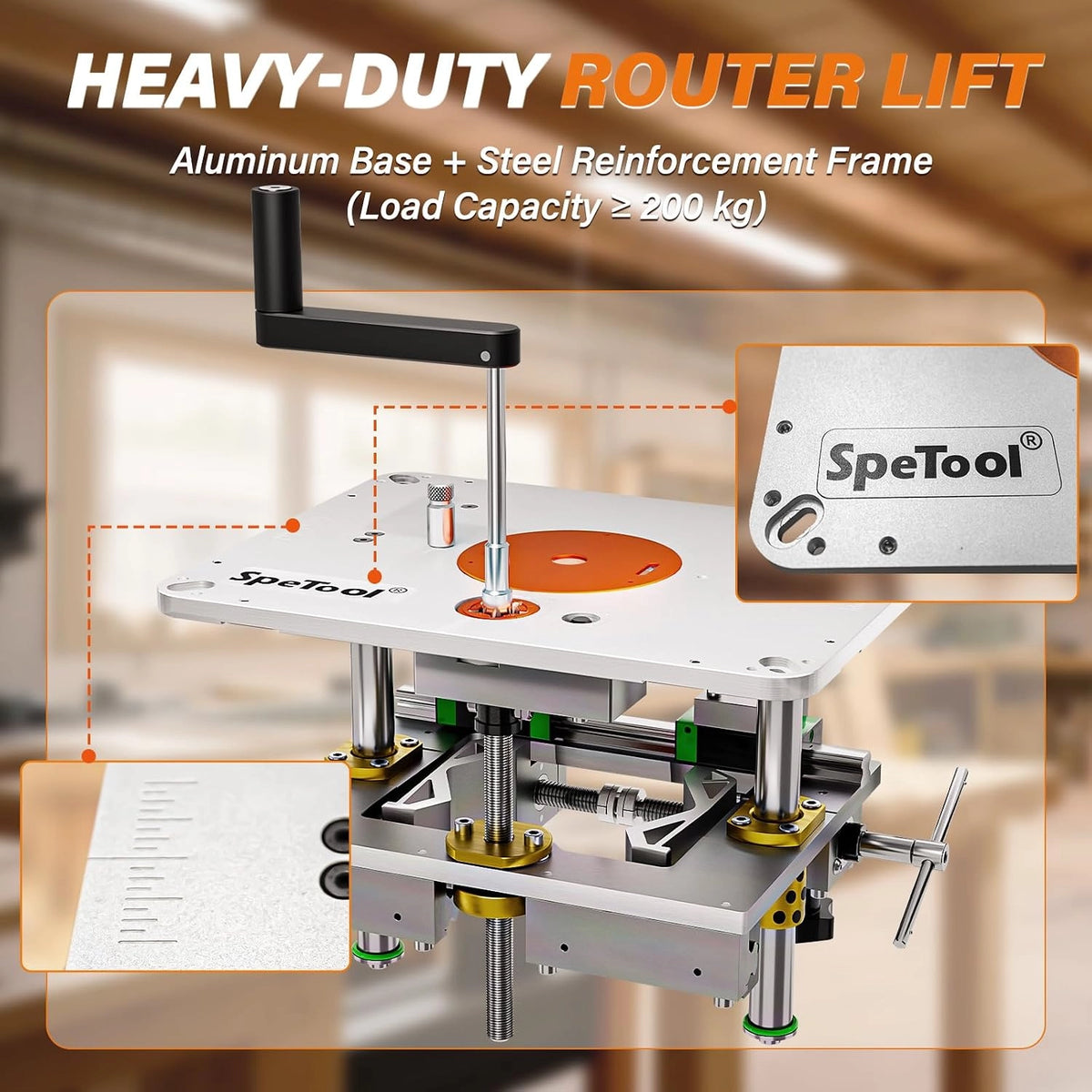

SpeTool P01005 reinforced router lift clamping system
02 / SUPPORT

Reinforced clamping

Updated mesh-pattern clamping blocks and a one-piece carriage connector. A square locking nut supports the height-lock mechanism.

SpeTool P01005 above-table leveling adjustment
03 / SETUP

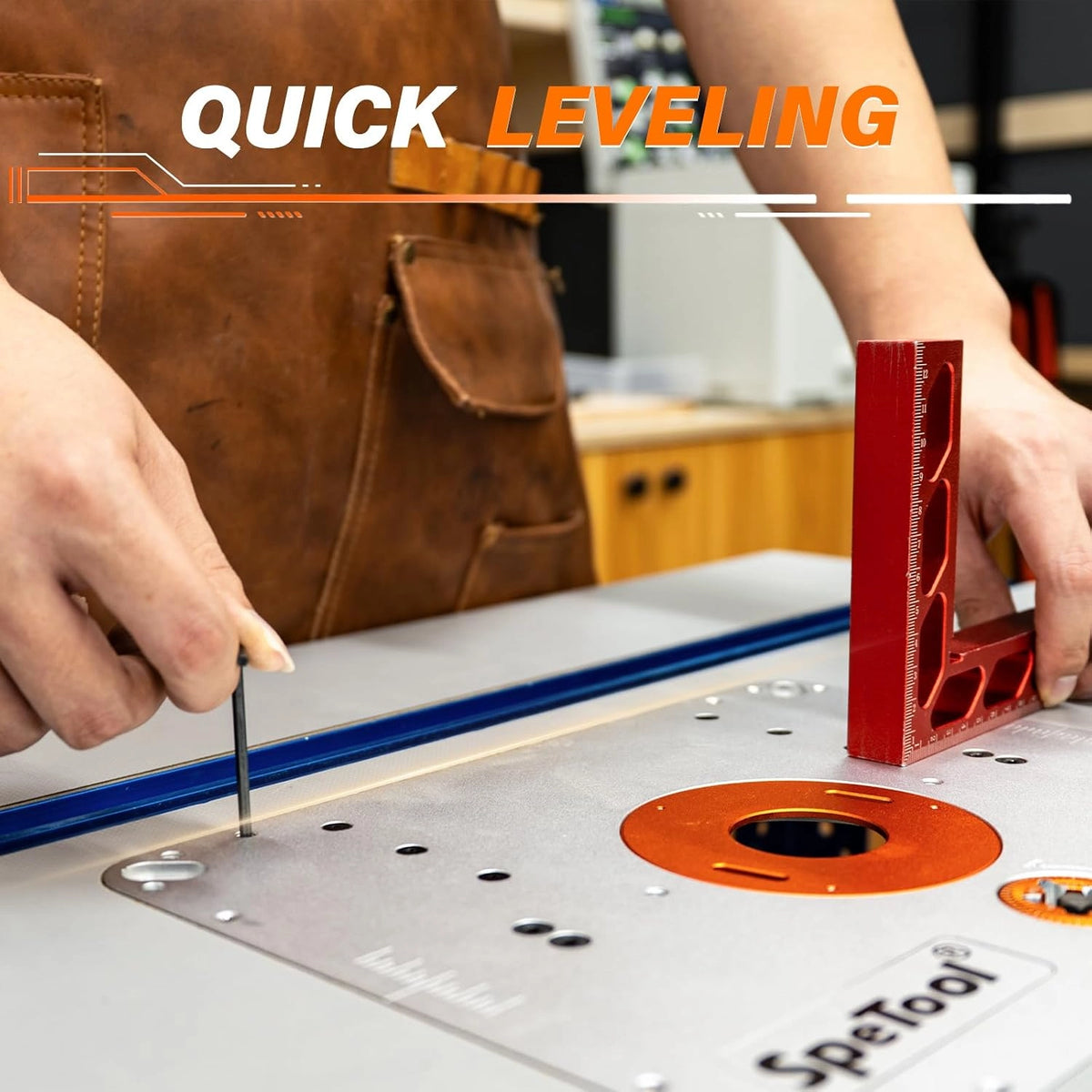

Above-table leveling

Bring the insert plate flush with your tabletop using accessible leveling screws. Less reaching below the table during setup.

03THE INSTALLATION

Install your Router Lift Pro.

From tabletop preparation to your first cut.

4 steps · 63-second video guide
SpeTool Router Lift Pro tabletop installation demonstration
A STEP-BY-STEP INSTALLATION GUIDE

Prepare the table.
Install with confidence.

Follow the four stages shown in the installation video.

Check the included mounting hardware and your table dimensions before installation. Disconnect all tools from power before setup.

Check your fit before installation

Router Lift Pro · Installation

CHAPTER 01 · 00:02

Prepare the tabletop

Position the opening template on the tabletop, drill at the corners, cut the opening, then clean the edges using a suitable top-bearing flush-trim bit.
SpeTool P01005 Router Lift Pro DIY router table installation kit
04 YOUR NEXT TABLE PROJECT

Upgrade your table. Or build your own.

The included DIY kit brings the installation essentials together.

  • Installation templates
  • Corner leveling components
  • Mounting hardware & installation guide
  • Three magnetic insert rings & removal tool

Check the current packing list before ordering. Dust collection is an optional accessory.

Explore the specifications
05 THE DETAILS

Specifications

Model P01005 · SP-RP-L-PRO
Insert plate 9-1/4" × 11-3/4"
Plate thickness / material 10 mm / aluminum

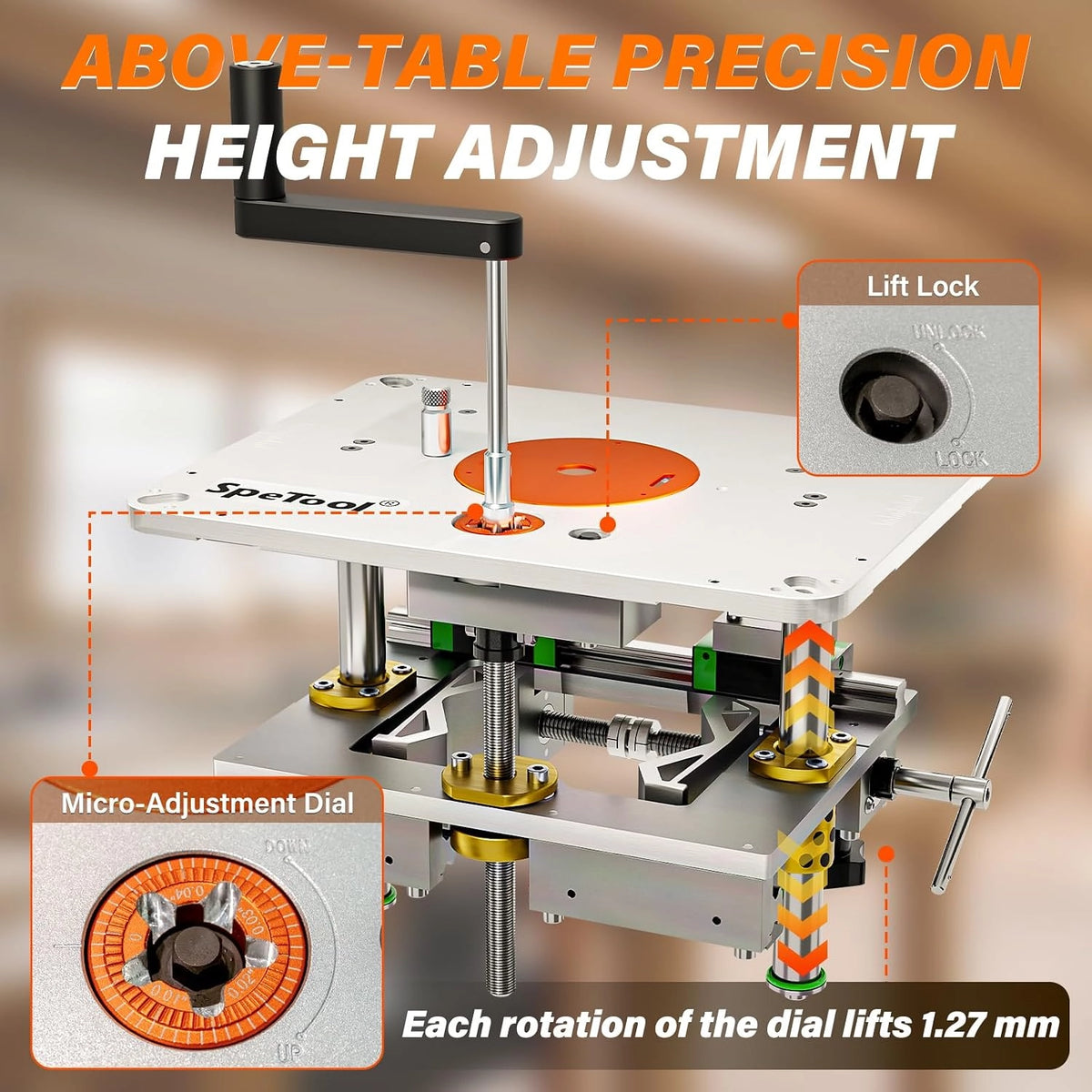

Minimum adjustment increment 0.001 inch
Adjustment screw 20 TPI
Travel per full turn 0.050 inch (1.27 mm)
Height adjustment range 0–101.6 mm (0–4 in)
Motor diameter 65–107 mm (official image specification)
Listed motor power 1.25–3.25 HP; check dimensions too

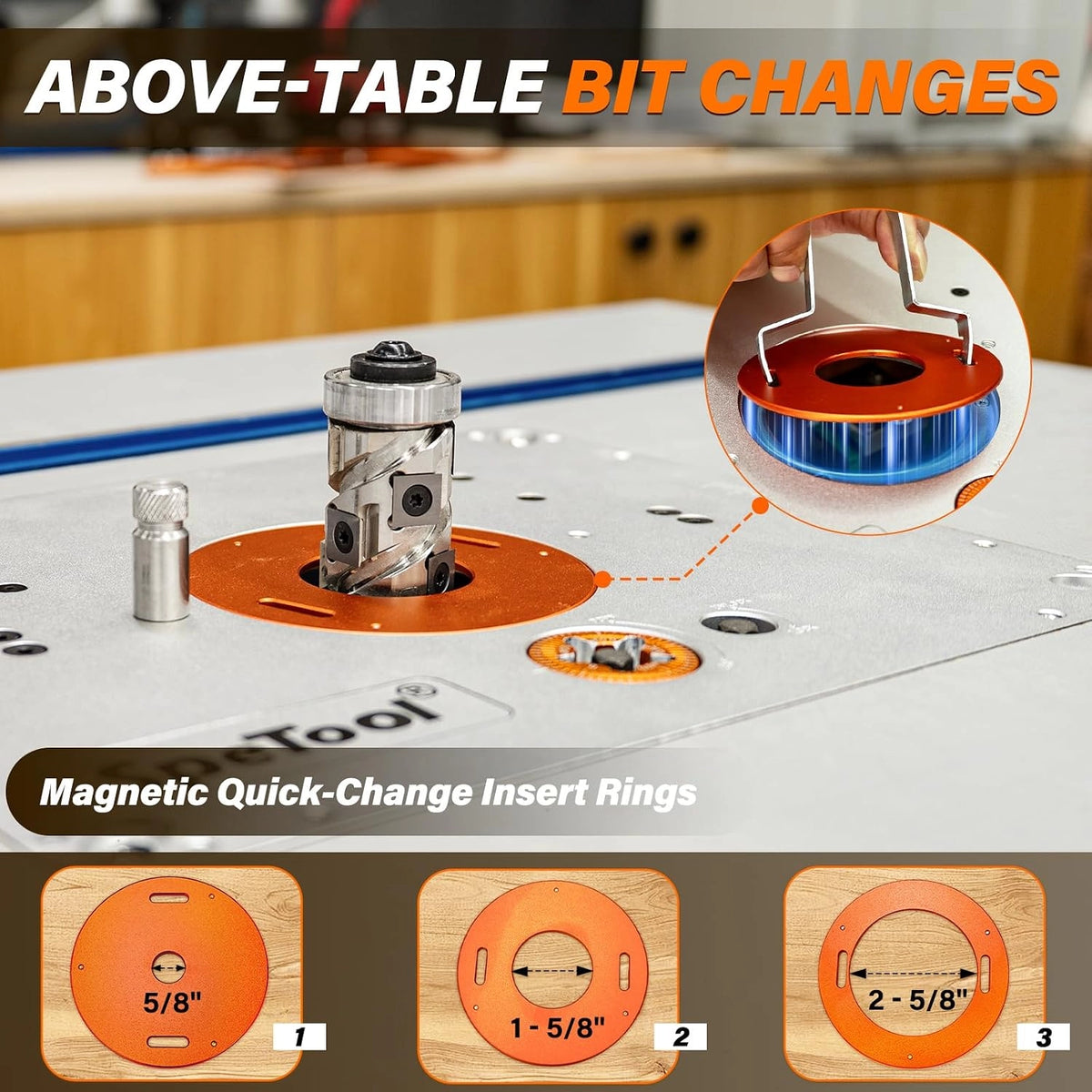

Insert rings Three magnetic rings
Plate leveling Above-table access
DIY installation kit Included

0.001" describes adjustment increments, not guaranteed cutting accuracy. Verify your complete setup before purchase.

06 BEFORE YOU ORDER

Good questions. Clear answers.

Will it fit my table?

Check the 9-1/4" × 11-3/4" plate dimensions, the opening and recess in your table, its mounting arrangement and the available clearance. This P01005 version does not fit Bosch RA1181 tables.

View the RA1181-compatible version

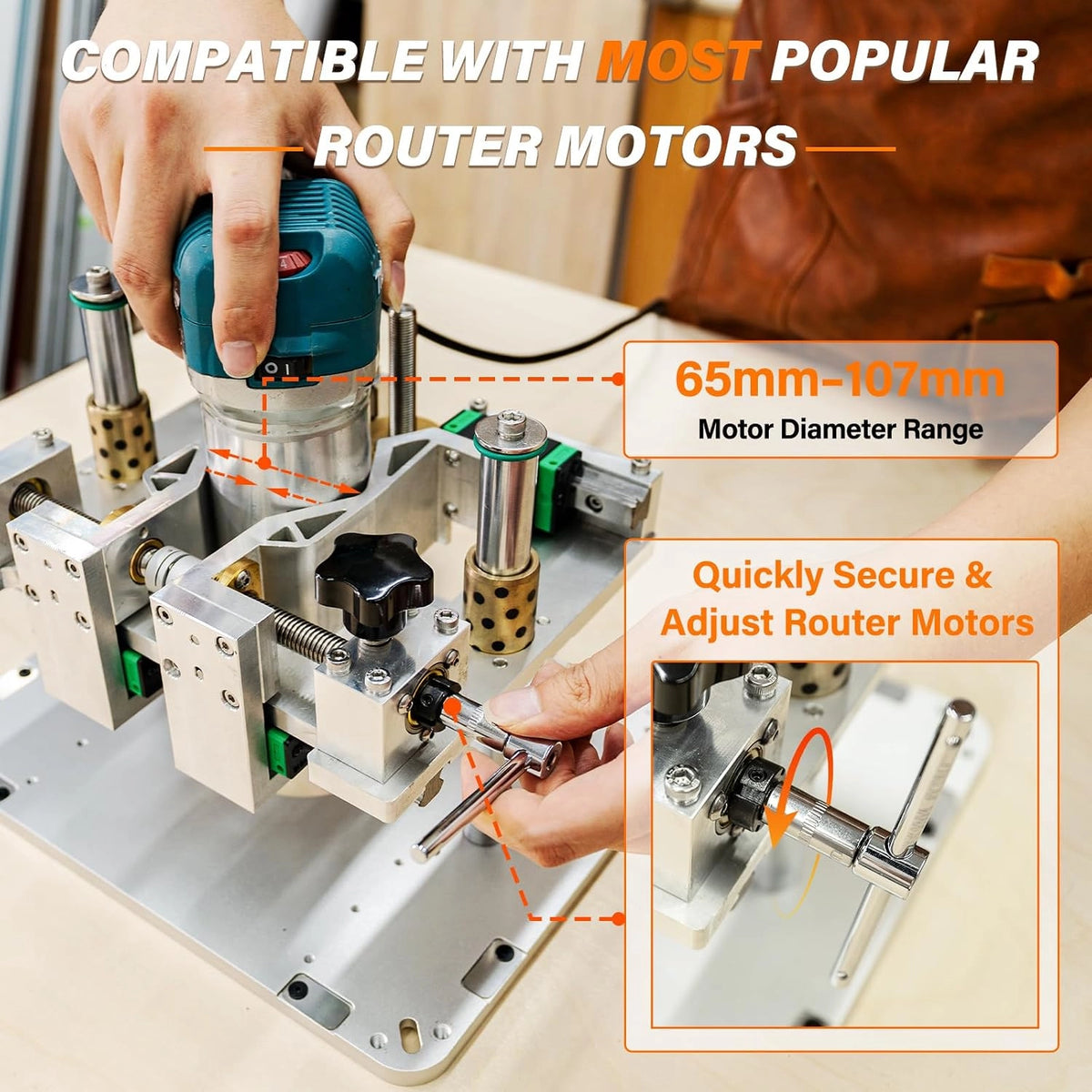

Will it fit my router motor?

The official product image specifies a motor diameter of 65–107 mm. Check the motor shape, clamping area and clearance as well as diameter. The listed 1.25–3.25 HP range alone does not establish compatibility. Contact SpeTool if your motor is near either limit.

Check your setup
What does 0.001 inch mean?

It is the listed minimum height-adjustment increment. It is not a guarantee of cutting accuracy or repeatability. Setup, bit condition and workpiece handling also affect results.

When will my pre-order arrive?

The estimated delivery window for the P01005 Router Lift Pro is November 10 – December 3, 2026. Please note that this is an estimated delivery timeframe, not a guaranteed arrival date. Actual delivery may vary depending on your location and shipping conditions. We will provide tracking information once your order has been shipped.

What is included for my DIY table?

Installation templates, corner leveling components, mounting hardware and an installation guide are listed for the DIY kit. Three magnetic insert rings and a removal tool are also listed. Refer to the current packing list before purchase.

Explore the DIY kit
Is dust collection included?

A compatible SpeTool dust collection kit is an optional accessory. It is not presented as included with this lift. Check the accessory's current product page for fit and contents.

A new release. Customer reviews will appear as they become available.
YOUR NEXT WORKSHOP UPGRADE

Ready for more control?

Pre-order now and save 10%. Estimated delivery: Nov 10 – Dec 3.
