SpeTool W01016 CNC 2D and 3D Carving 6.28 Deg Tapered Angle Ball Nose 1/64" Radius x 1/4" Shank x 1" Cutting Length x 2-1/2" Long 2 Flute SC ZrN Coated Upcut Router Bit

SpeTool Router Bits New Customer Discount

$18.69 USD

Shipping calculated at checkout

Sold Out

BUY 5 SAVE 8%
BUY 10 SAVE 15%
Discount applied in your shopping cart

For bulk requirements please click here!

USA, Canada, UK, Germany orders ship from local Amazon warehouses with Amazon's speed; others from China.

Specification:

Flute number

2

Shank Diameter(SD)

1/4"

Tip Radius (TR)

1/64"

Cutting Length(CL)

1"

Overall Length(OVL)

2-1/2"

Single Side Degree

6.28°

Coating

ZrN

Material  Carbide



Overview:

Specially designed for 2D and 3D CNC profiling and carving in plastic & wood with machines CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping.

Can be used with table-mounted and CNC routers.



 Designed for cutting the following materials:



  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • Acrylic
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Solid Surface
  • Composites
  • Composite Decking

DOWNLOAD CNC SPEED/FEED FILE OR CHECK THE PAGE FEED & SPEED.

Safety Guidelines

BE CAREFUL. Always wear eye and ear protection along with dust masks. Avoid using bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter. Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters. Disconnect power when changing bits or making adjustments, and  always leave the power disconnected when not in use. Follow all safety recommendations of the power tool manufacturer. SpeTool Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification
of any product (including sharpening).

WARNING: Re-grinding of SpeTool products will produce dust of potentially hazardous ingredients. Always read and follow owner’s safety manual of all power machinery before using bits. Always use eye protection while using this or any carbide cutting product.

WARNING: SpeTool products can expose you to chemicals including lead and/or cobalt, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

WARNING: Drilling, sanding or machining wood products can expose you to wood dust, a ubstance known to the State of California to cause cancer. Avoid inhaling wood dust or use a mask or other safeguards for personal protection. For more information go to http://www.P65Warnings.ca.gov.

SpeTool Tapered 2D 3D Router bits SpeTool Tapered 2D 3D Router bits

SpeTool Tapered Router Bits

Excellent For Fine Detailed CNC 2D/3D Carvings

Industrial Quality

Made of premium carbide according to strict industrial grade quality standards with high wear resistance and has long service life to ensure best performance
Spetool tapered 2d 3d router bits 2
SpeTool ZrN Coated Carving Router Bits

ZrN Coating

ZrN Coating excels through excellent corrosion and wear resistance. It is extremely tough and highly resistant against abrasive wear. Provide great performance and extend tool life

Sharp Cutting Edge

Sharp edge ensure good cutting effect,clean surface,no burr for excellent cutting finishing
SpeTool ZrN Coated Carving Router Bits Sharp Edge
Autodesk fusion 360 logo
Spetool tool file database vectric
SpeTool-carevco-tool-database

CNC Software.tool Files Available

Fusion 360™, Vectric® & Carveco® CNC Tool File For Download, click here!

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
THOMAS WHITE
Tapered ball mill

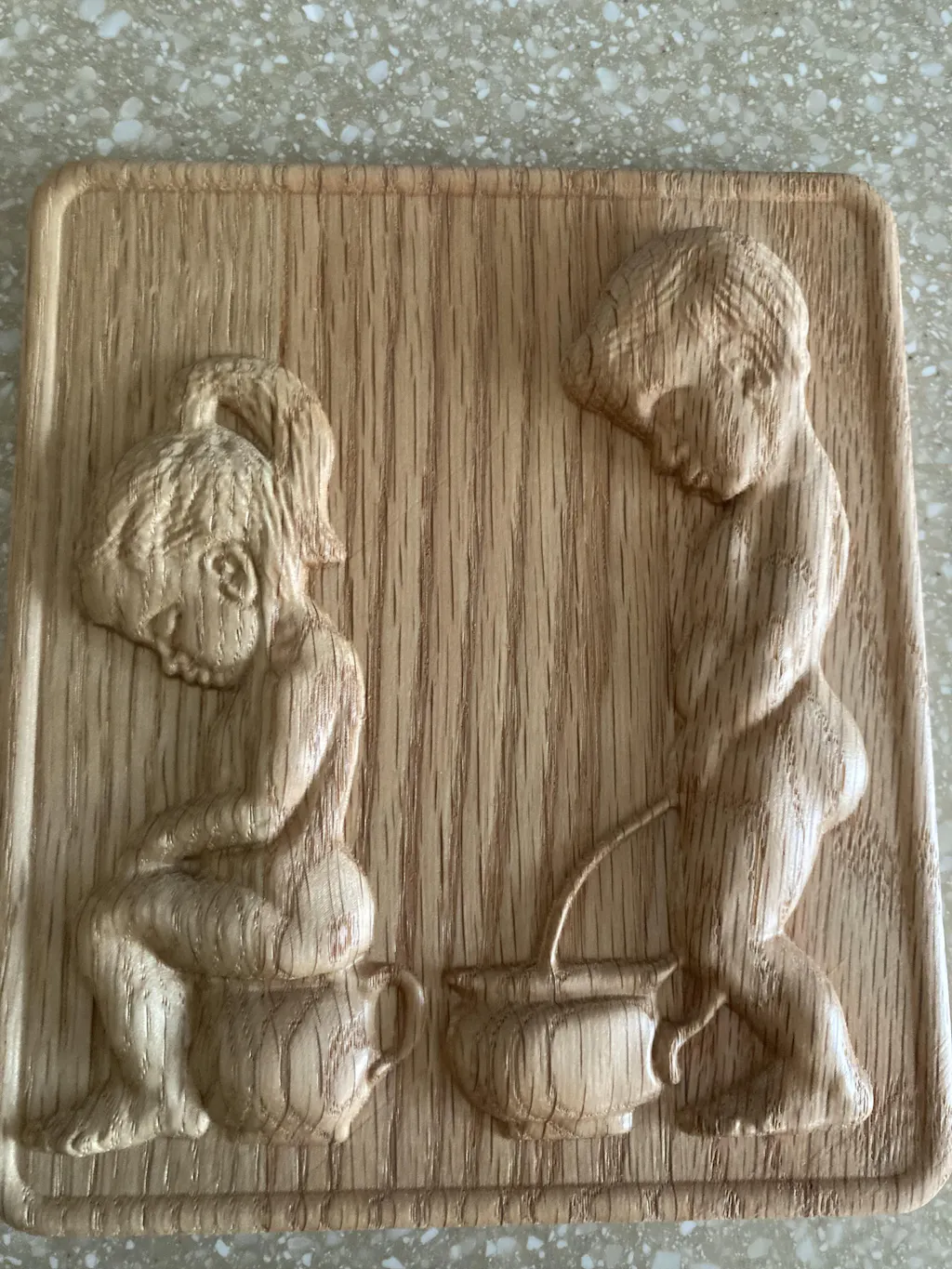

This tool worked perfectly on a 3D carve I did. Minimal handwork when finished

B
Bill Green, Mountain Craft Stringed Instruments
Very Good Value

Works just like the Amana at a much better price.

S
Siggma
Good long-life bit at good price.

Great 3D cutting bit. Also works great for VCarve work.

M
MJT
Worked perfectly for my job

This product worked great! I used it to machine out a broken tap. Ball end mills work much better than drills on removing the hard metal from a broken tap. Choose a ball end mill under the size of the threads and you can save your work...while removing the broken tap.

R
Robert C.

Great quality, good price, rapid delivery. Works well. I have purchased numerous items from seller and will continue to purchase more.
