Specification:
Shank Diameter(SD)
|
1/4"
|
Cutting Diameter(CD)
|
1/4"
|
Cutting Length(CL)
|
1"
|
Overall Length(OVL)
|
3"
|
Cutting Direction
|
Up
|
Material |
Carbide |
Overview:

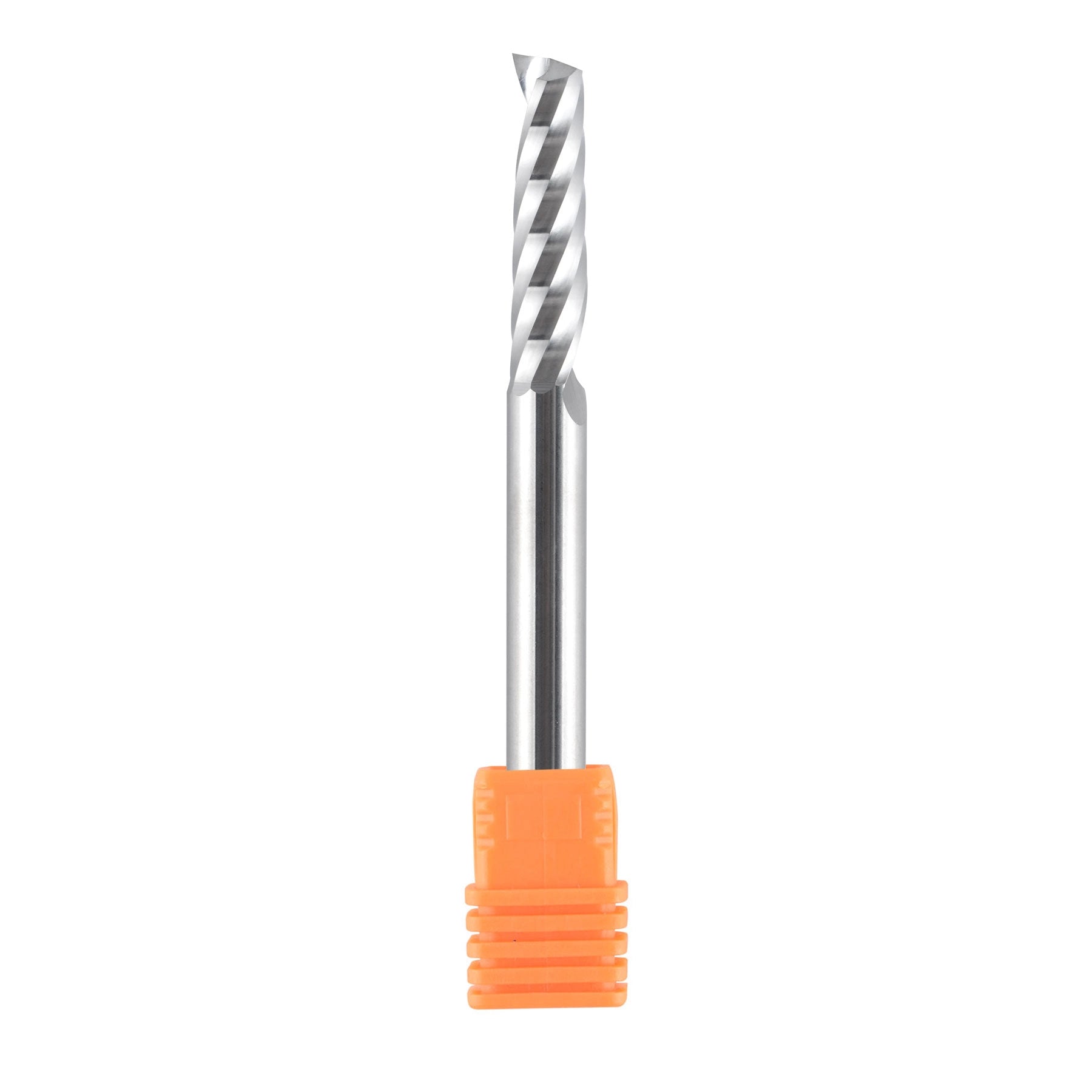

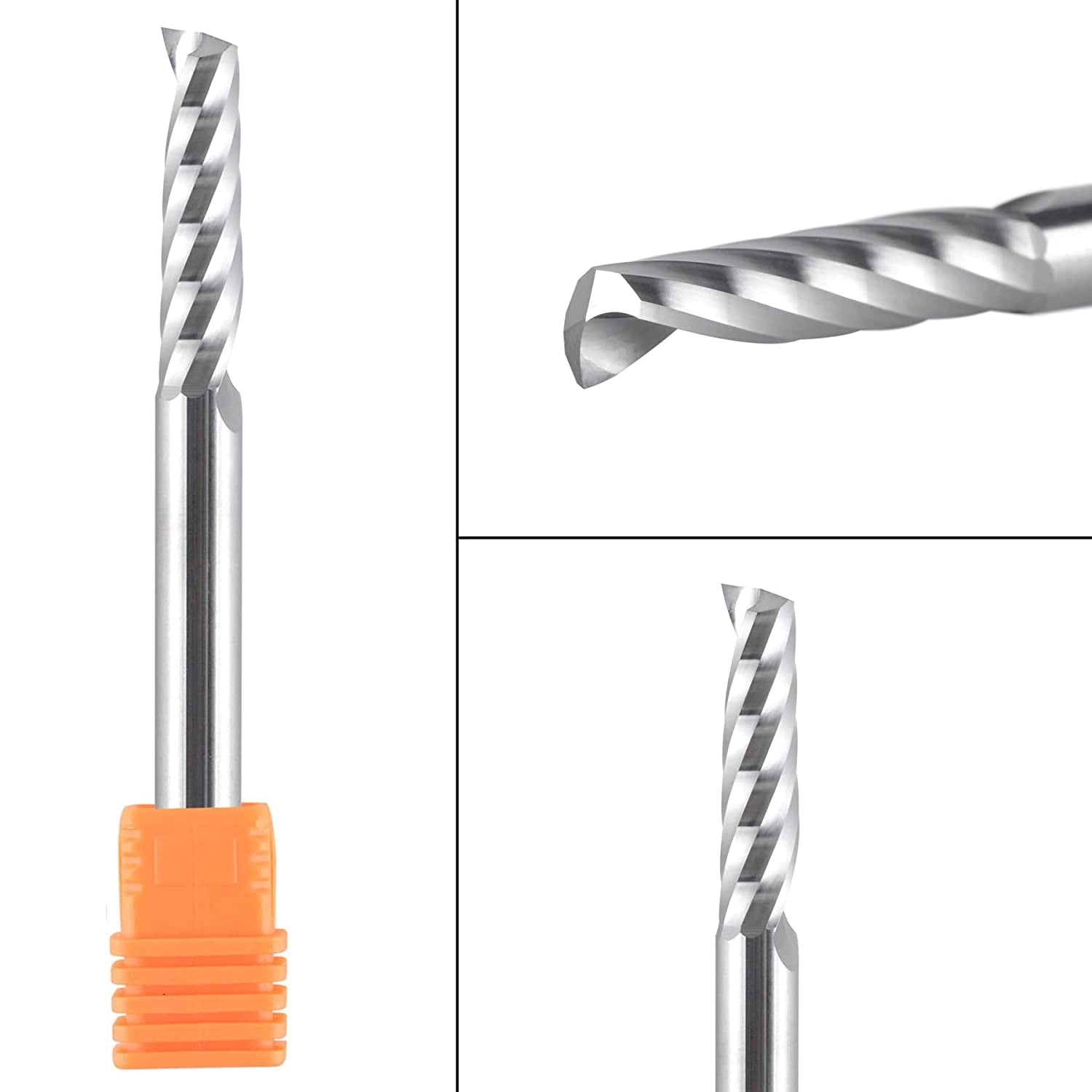

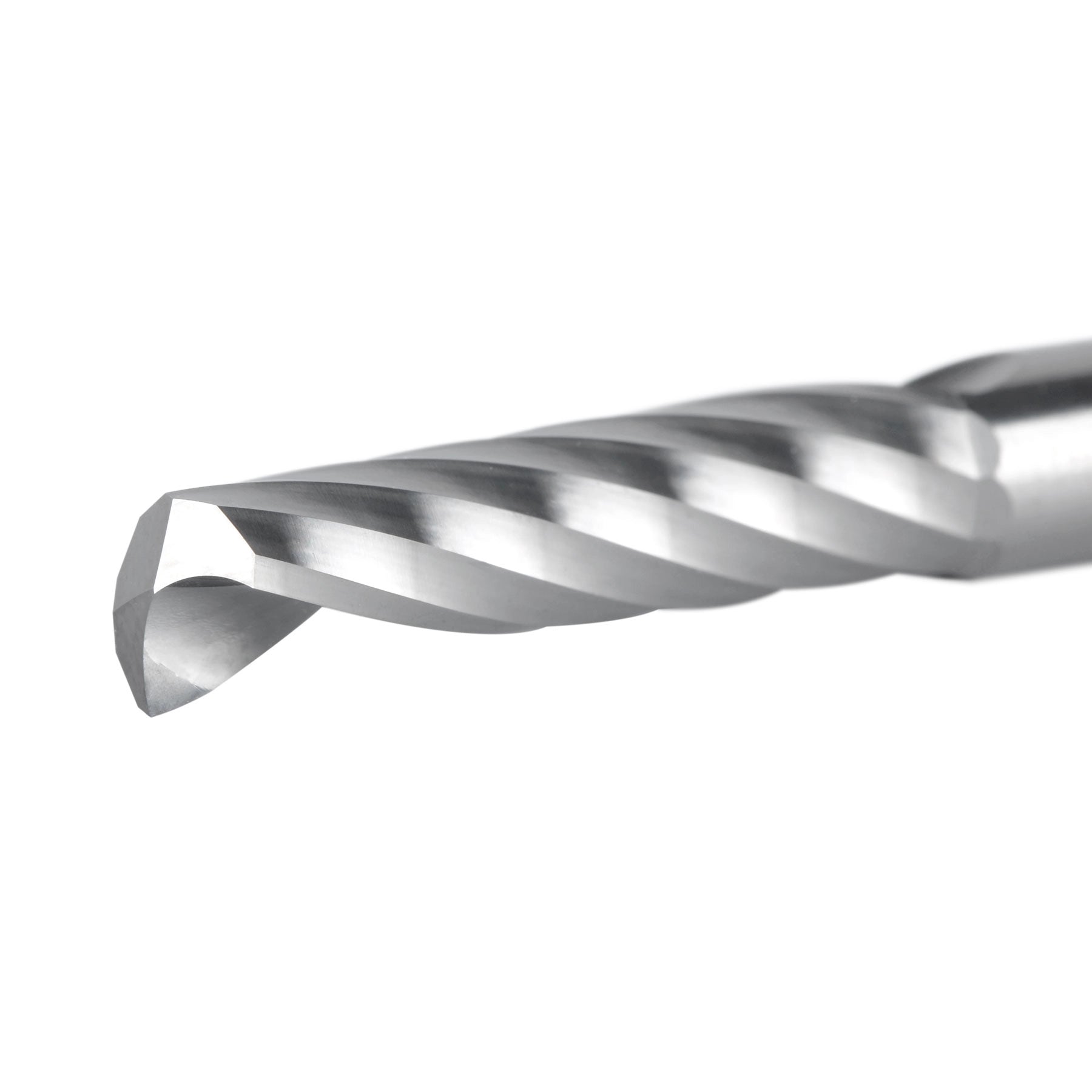

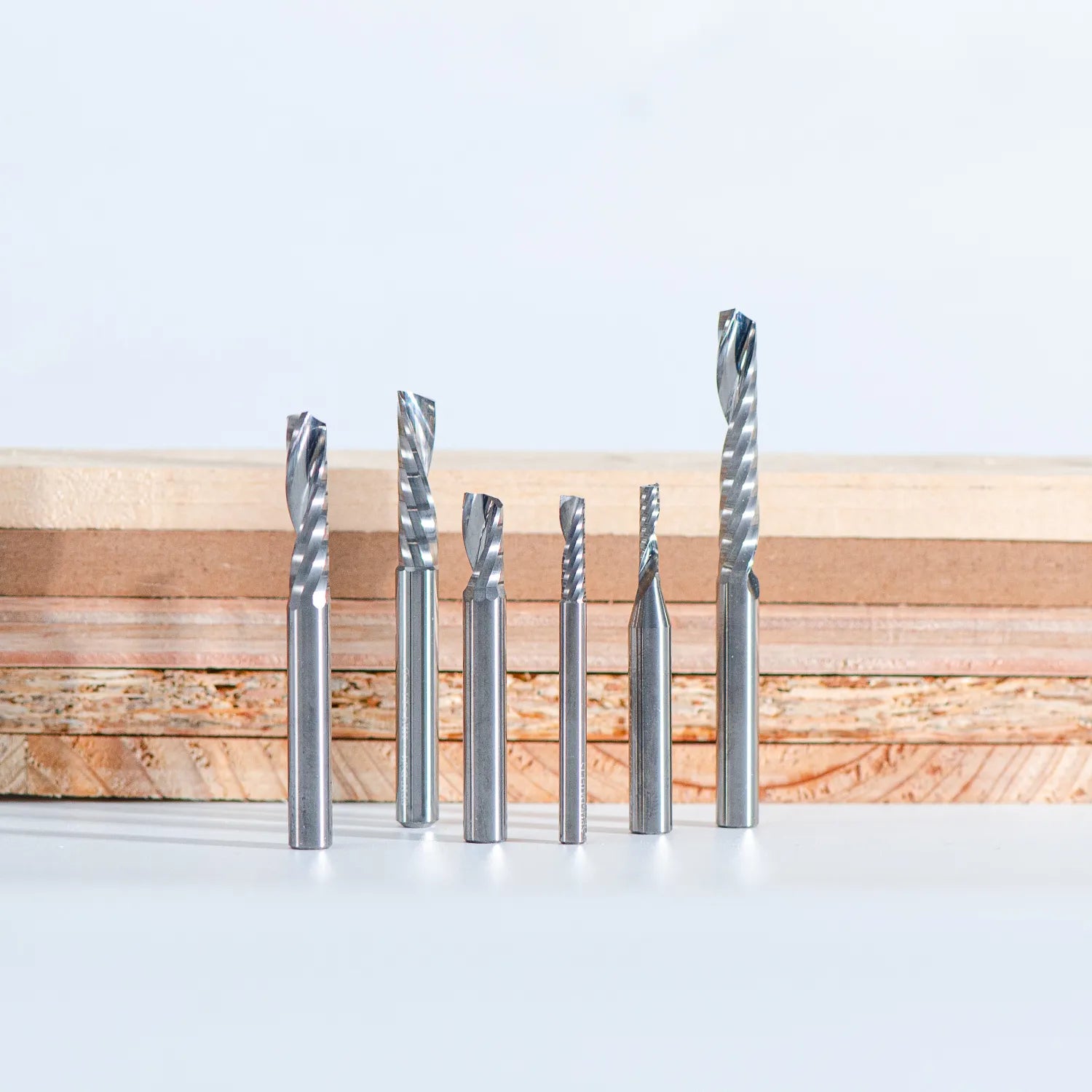

The O-Flute bits are designed for smooth finishes on solid surfaces and plastics such as ABS, acrylic, nylon, etc.
Can be used with handheld, table-mounted, and CNC routers.
Designed for cutting the following materials:
Safety Guidelines
BE CAREFUL. Always wear eye and ear protection along with dust masks. Avoid using bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter. Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters. Disconnect power when changing bits or making adjustments, and always leave the power disconnected when not in use. Follow all safety recommendations of the power tool manufacturer. SpeTool Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification
of any product (including sharpening).
WARNING: Re-grinding of SpeTool products will produce dust of potentially hazardous ingredients. Always read and follow owner’s safety manual of all power machinery before using bits. Always use eye protection while using this or any carbide cutting product.
WARNING: SpeTool products can expose you to chemicals including lead and/or cobalt, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
WARNING: Drilling, sanding or machining wood products can expose you to wood dust, a ubstance known to the State of California to cause cancer. Avoid inhaling wood dust or use a mask or other safeguards for personal protection. For more information go to http://www.P65Warnings.ca.gov.
