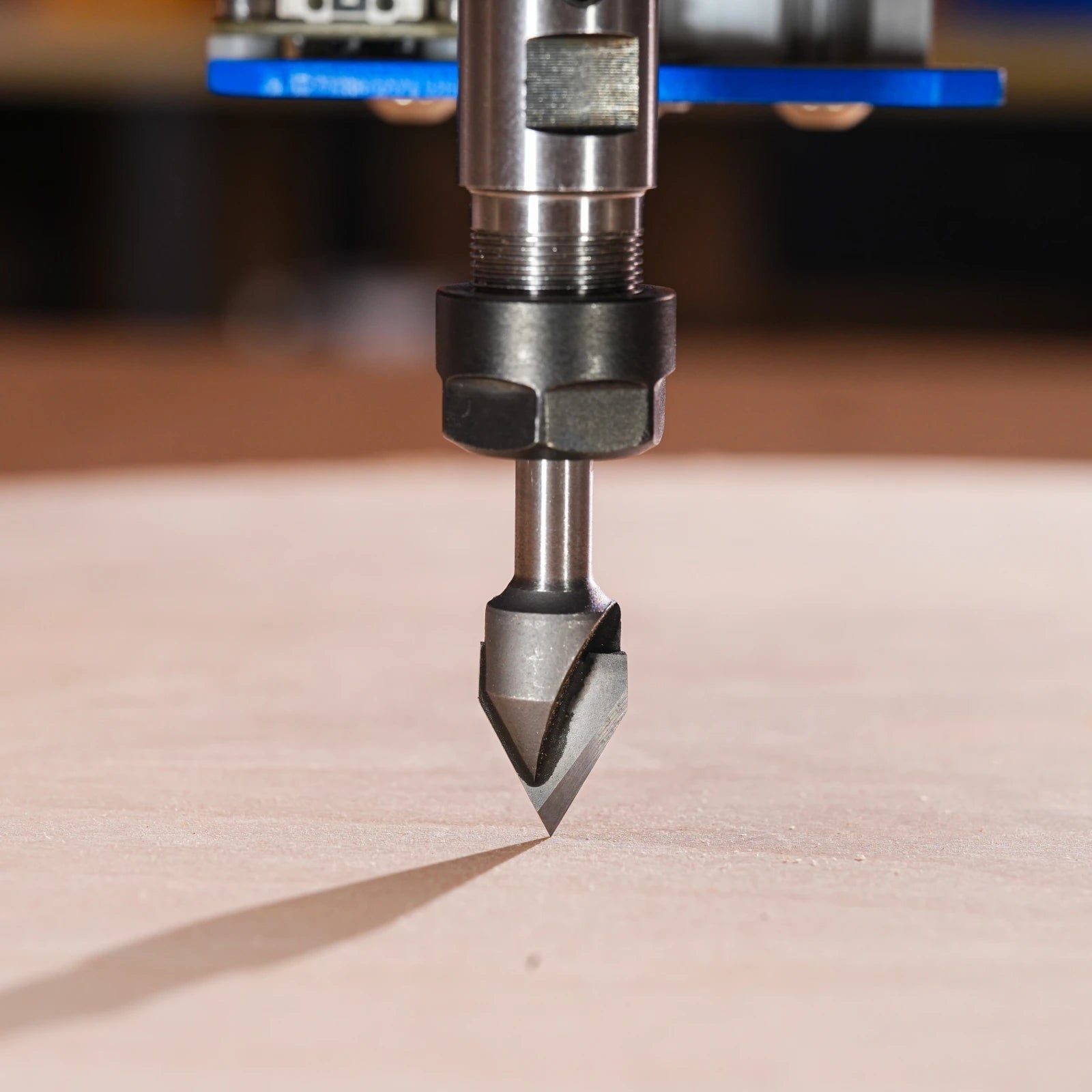

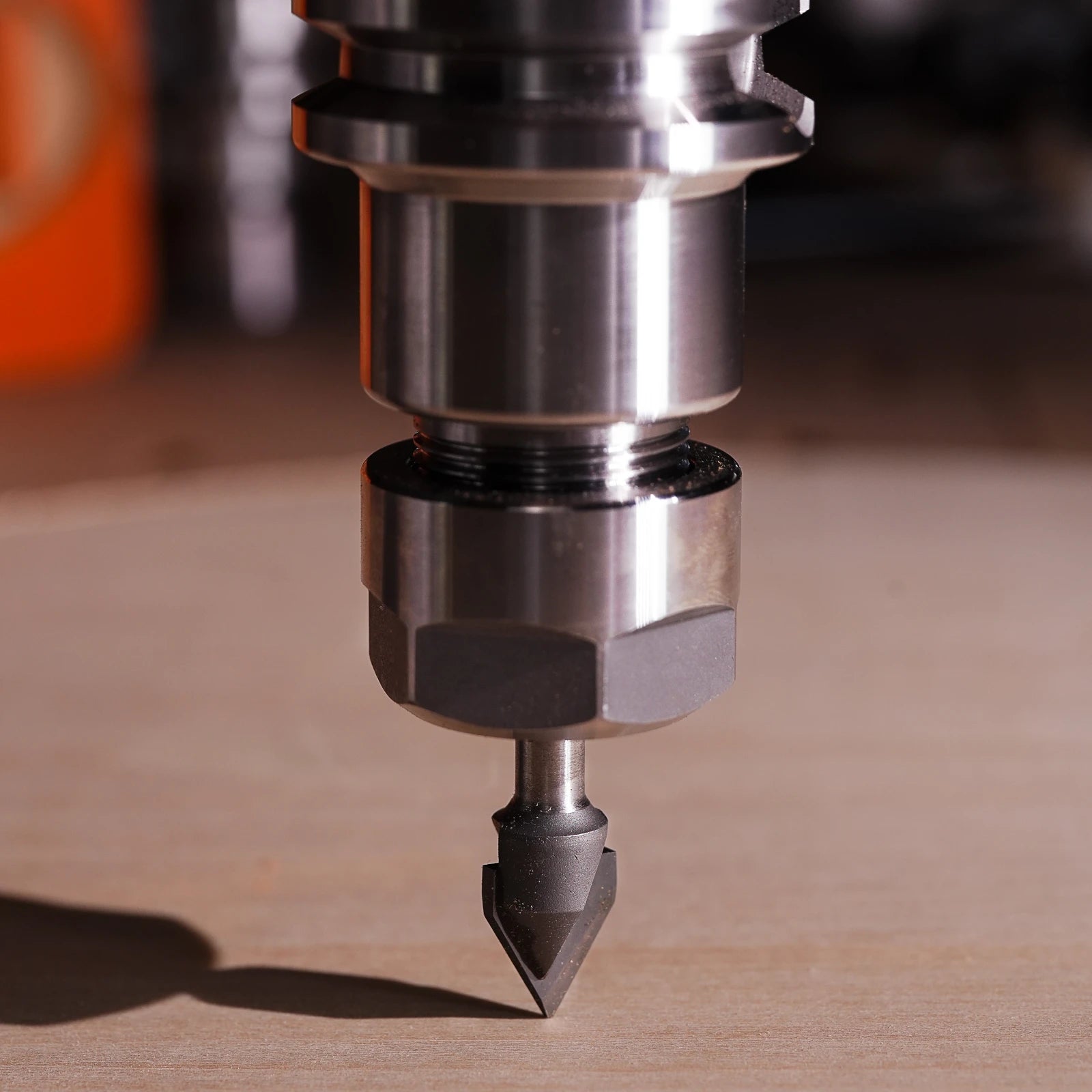

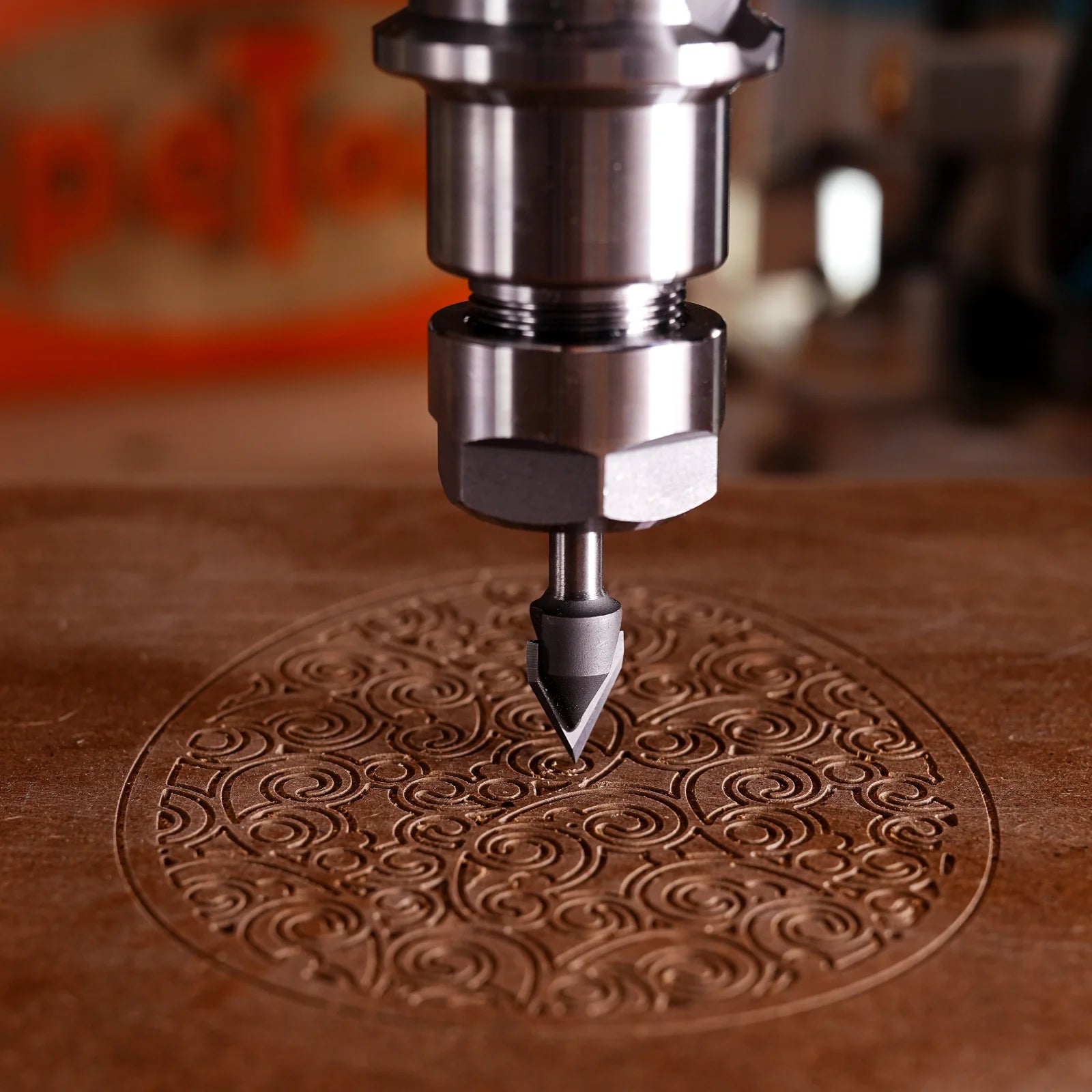

SpeTool Carbdie Tip V Groove CNC Engraving Bit Router Bit 60 Deg 1/2" Dia
SpeTool Carbdie Tip V Groove CNC Engraving Bit Router Bit 60 Deg 1/2" Dia

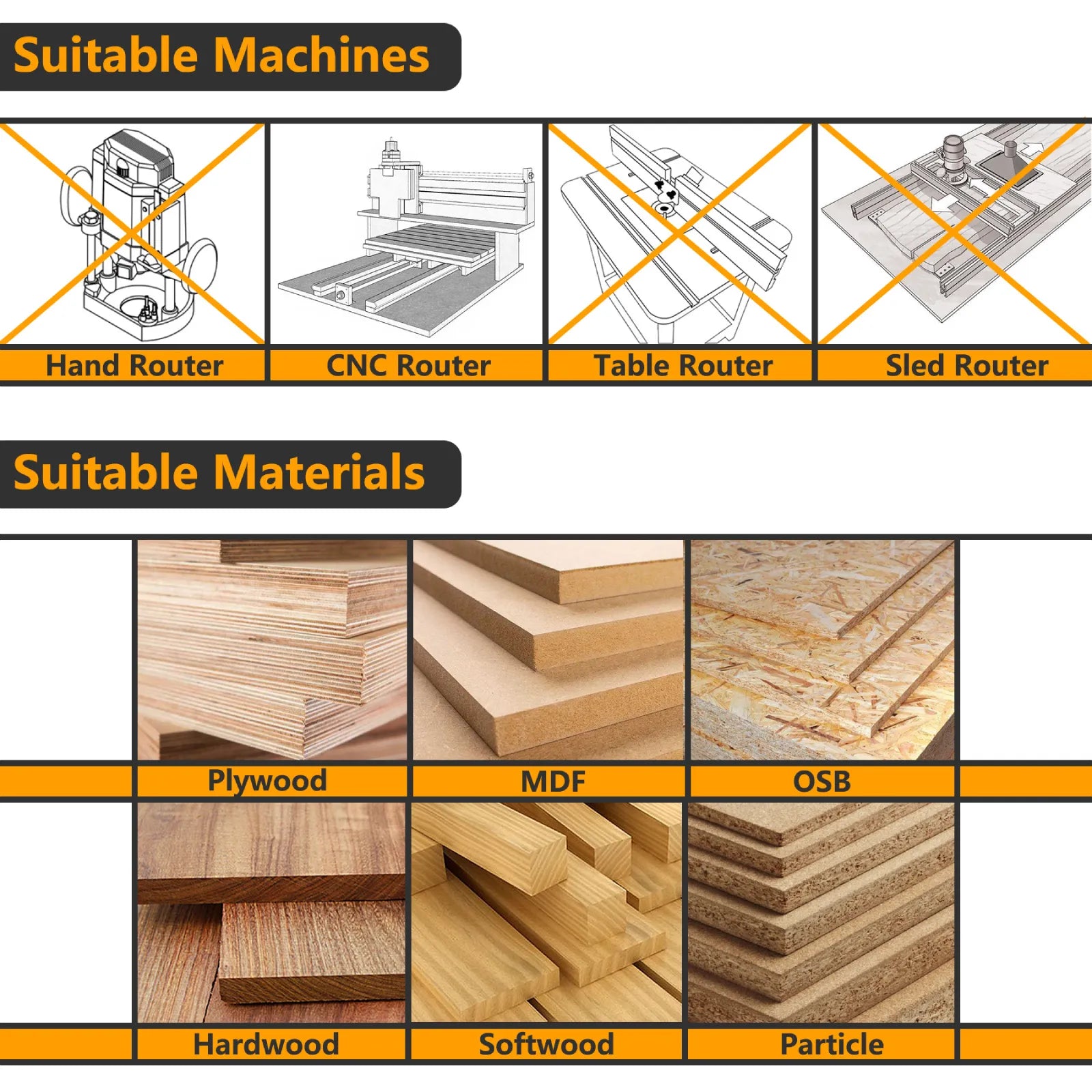

SpeTool V Bit suitable materials and machines
SpeTool Carbdie Tip V Groove CNC Engraving Bit Router Bit 60 Deg 1/2" Dia
SpeTool Carbdie Tip V Groove CNC Engraving Bit Router Bit 60 Deg 1/2" Dia
SpeTool Carbdie Tip V Groove CNC Engraving Bit Router Bit 60 Deg 1/2" Dia

SpeTool W06001 Carbide Tipped V Groove 60 Deg 1/2" Dia x1/4" Shank Router Bit

SKU: ECP2F-D1/2-60
$18.99 USD
Sold out

Shipping calculated at checkout

Precision-engineered carbide-tipped V-groove bits with dual flutes for clean, sharp cuts in wood, MDF, and laminates. Available in multiple angles (45°, 60°, 90°, 120°) for a wide range of decorative grooves, sign-making, chamfers, and joinery. Built for smooth performance, long tool life, and consistent results in CNC or table-mounted routers.

Excellent For Cutting:

  • Acrylic
  • Melamine
  • MDF/HDF
  • Plastic
  • Plywood
  • PVC Plastic
  • Laminate

TOOL SPECS: Carbide-tipped, 2-flute V-groove, 60° cutting angle, 1/2" cutting diameter, 1/4" shank.

PRECISE V-GROOVING & DURABLE PERFORMANCE: Designed for clean, accurate V-grooves, engraving, chamfering, and decorative accents.
Payment & Security
American Express Mastercard PayPal Visa Union Pay Apple Pay Google Pay Shop Pay Klarna Afterpay

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

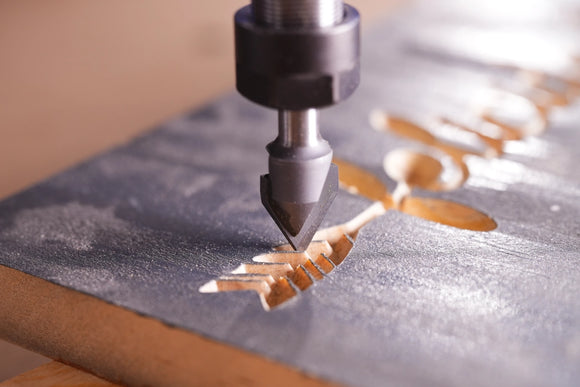

Cut cleaner, carve sharper—every angle covered

SpeTool V-Groove Carbide Router Bit Chamfer Bits for CNC Woodword

Sharp, durable, and ready for every creative cut.

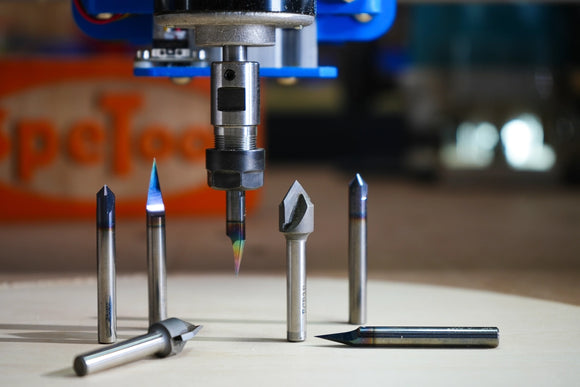

SpeTool V Groove bits

From fine detail to bold lines, one bit set does it all.

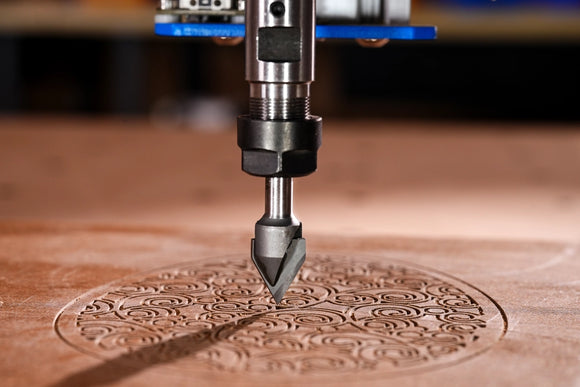

SpeTool V Groove Bits

Precision V-grooves that stand out and last longer.

Similar Size

Part No.

Cutting Dia.
(D)

Shank Dia.
(d)

Cutting Degree

(a°)

 Flute Rec. RPM
W06001 1/2" 1/4" 60° 2 18,000
W06002 1/2" 1/4" 90° 2 18,000
W06014 1/2" 1/4" 45° 2 18,000
W06020 1-1/4" 1/2" 120° 2 18,000

*Customized sizes are acceptable

Frequently Asked Questions

Great for cutting full 90° V-grooves, creating 45° chamfers, and accurately shaping miters—especially popular in sign carving and lettering.

It may be due to grain direction, bit dullness, or material quality. Some woodworkers recommend a climb cut on the second pass to remove fuzz.

Most V-bit tips have a tiny flat spot because the point moves very slowly and has minimal cutting action.

Try passing the router in the opposite direction (climb cut) after the initial cut.

Absolutely. They’re commonly used to engrave clean, precise signage using various angles for stylistic effects.

Options like 45°, 60°, 90°, and 120° allow for tailored groove width and depth—use smaller angles for fine detail and larger ones for wide, dramatic V grooves.

Yes. Shift the fence away from the cut on the second pass to avoid climb cuts and maintain safety and surface quality.
