SpeTool 1/4 SHK 60 Deg Carbide Chamfer End Mill V Groove Bit
SpeTool 1/4 SHK 60 degree v groove router bit
SpeTool V Bit suitable materials and machines
SpeTool 4 flute v groove bits for cnc
SpeTool 60 degree v carve bits
SpeTool v groove router cutter
SpeTool W06006 Solid Carbide V Groove 60 Deg 1/4" Dia x 1/4" Shank x 2" Long 4 Flute TiAlN Coated Router Bit

SpeTool W06006 Solid Carbide V Groove 60 Deg 1/4" Dia x 1/4" Shank x 2" Long 4 Flute TiAlN Coated Router Bit

SKU: ECP4F-1/4-60-FBA
Sale price$14.99 USD

Shipping calculated at checkout

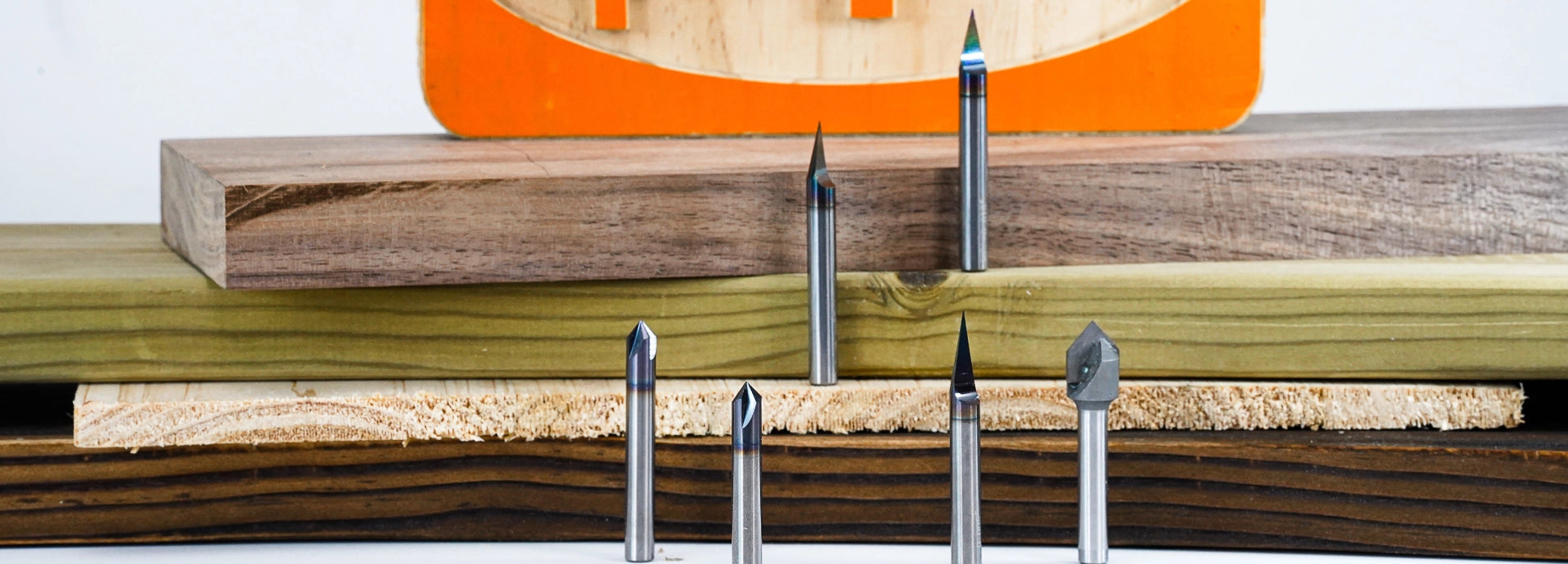

Solid carbide 4-flute V-groove bits for crisp, smooth cuts in wood, MDF, plywood, and laminates. Multiple angles (30°, 45°, 60°, 90°, 120°) cover fine detail to bold grooves. Durable, wear-resistant, and ideal for CNC or table-mounted routers.

Excellent For Cutting:

  • Hardwood
  • Plywood
  • Brass
  • Softwood
  • Melamine
  • Acrylic
  • MDF

TOOL SPECS: Solid carbide, 4 flutes, 60 Degrees, 1/4" cutting diameter, 1/4" shank, and 2" overall length for use in routers with a 1/4" collet.

Numbers of Item:1
63 in stock
Quantity:
Payment & Security
American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Sharper grooves, smoother finishes.

Similar Size

Part No.

Shank Dia.
(d)

Overall Length

(L)

Cutting Degree

(a°)

Flute Coating Rec. RPM
W06006 1/4" 2" 60° 4 TiAlN 18,000
*W06006-SPE-X 1/4" 2" 60° 4 TAC 18,000
W06007 1/4" 2" 90° 4 TiAlN 18,000
*W06007-SPE-X 1/4" 2" 90° 4 TAC 18,000
W06017 1/4" 2" 45° 4 TiAlN 18,000
*W06017-SPE-X 1/4" 2" 45° 4 TAC 18,000
W06021 1/4" 2" 30° 4 TiAlN 18,000

*Customized sizes are acceptable

Frequently Asked Questions

A V-Groove 4-Flute Router Bit is a cutting tool designed for engraving and creating V-shaped grooves in materials like wood, plastic, and aluminum. The "4-flute" refers to the number of cutting edges, which can influence the finish quality and cutting efficiency.

A 4-flute design offers a smoother finish and can handle higher feed rates due to reduced chip load per flute. This design is ideal for detailed engraving and lettering applications.

Solid carbide bits offer superior durability and wear resistance compared to carbide-tipped bits. They maintain sharpness longer, especially beneficial for high-precision tasks like engraving and sign-making.

Four-flute bits provide a smoother finish and can handle higher feed rates due to reduced chip load per flute. This design is ideal for detailed engraving and lettering applications.

Common V-groove angles are 30°, 45°, and 60°. A 45° angle is versatile for general engraving, while a 30° angle is sharper and better for fine details. Choose based on the depth and precision required for your project.

Titanium Aluminum Nitride (TiAlN) coating enhances the bit's heat resistance and reduces friction, leading to longer tool life and better performance in high-speed applications.

Yes, these bits can be used with handheld routers, but ensure the router is stable and the material is securely clamped to prevent movement during cutting.

Customer Reviews

Based on 27 reviews
100%
(27)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rick Bell

I've only used it once and did a great job on some 3/4" lettering.

T
Tom White
60 deg bit

Very disappointed in the way the tip is sharpened. Not enough relief so the tip does not cut well.

B
Bill Patzold
Good Product

Very useful

M
Mr S. Newport
Quality

Great product and fast delivery

A
A K Z
Smooth on deep and intricate

Excellent 60 degree v-bit for my CNC. Smooth cuts and running at 150 IPM
