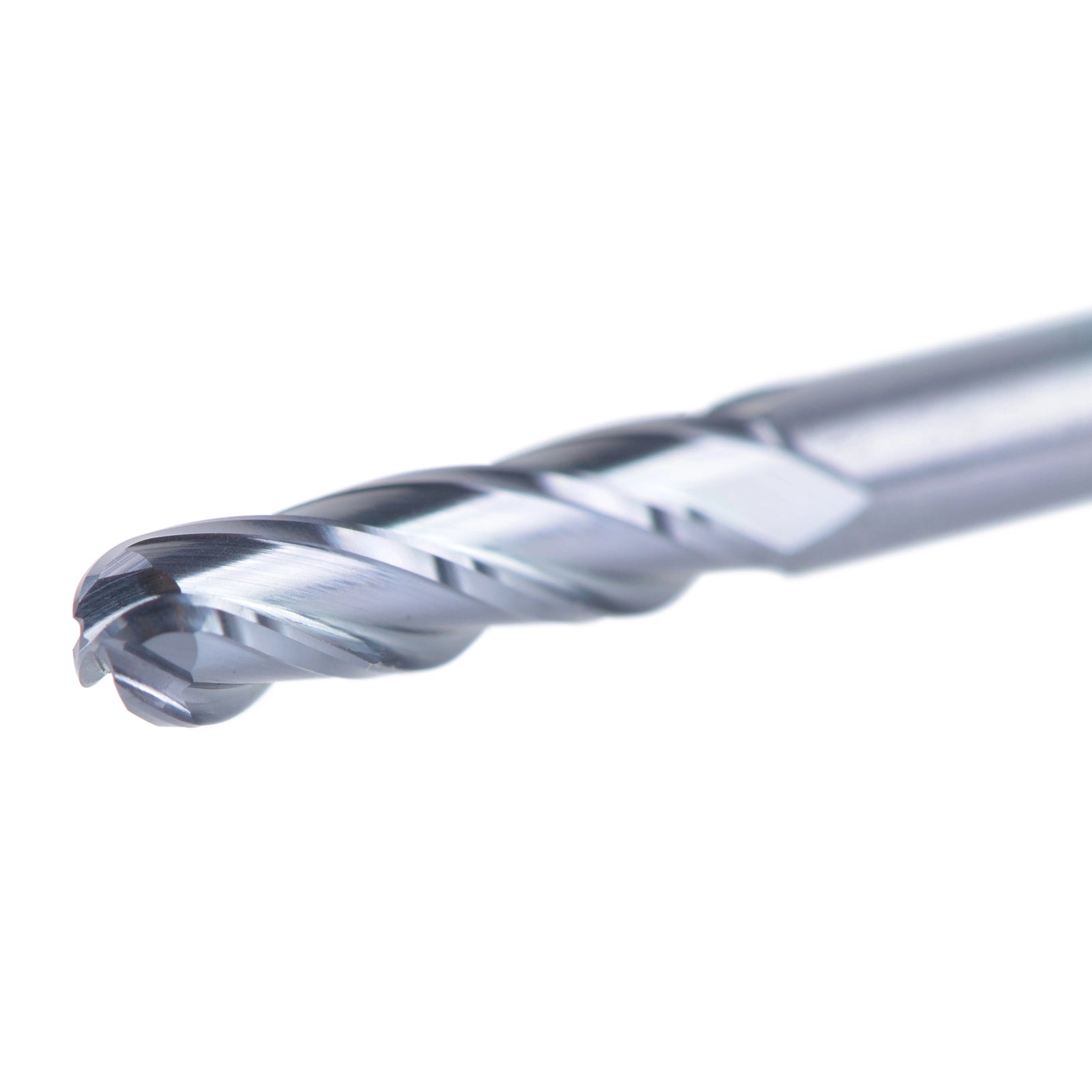

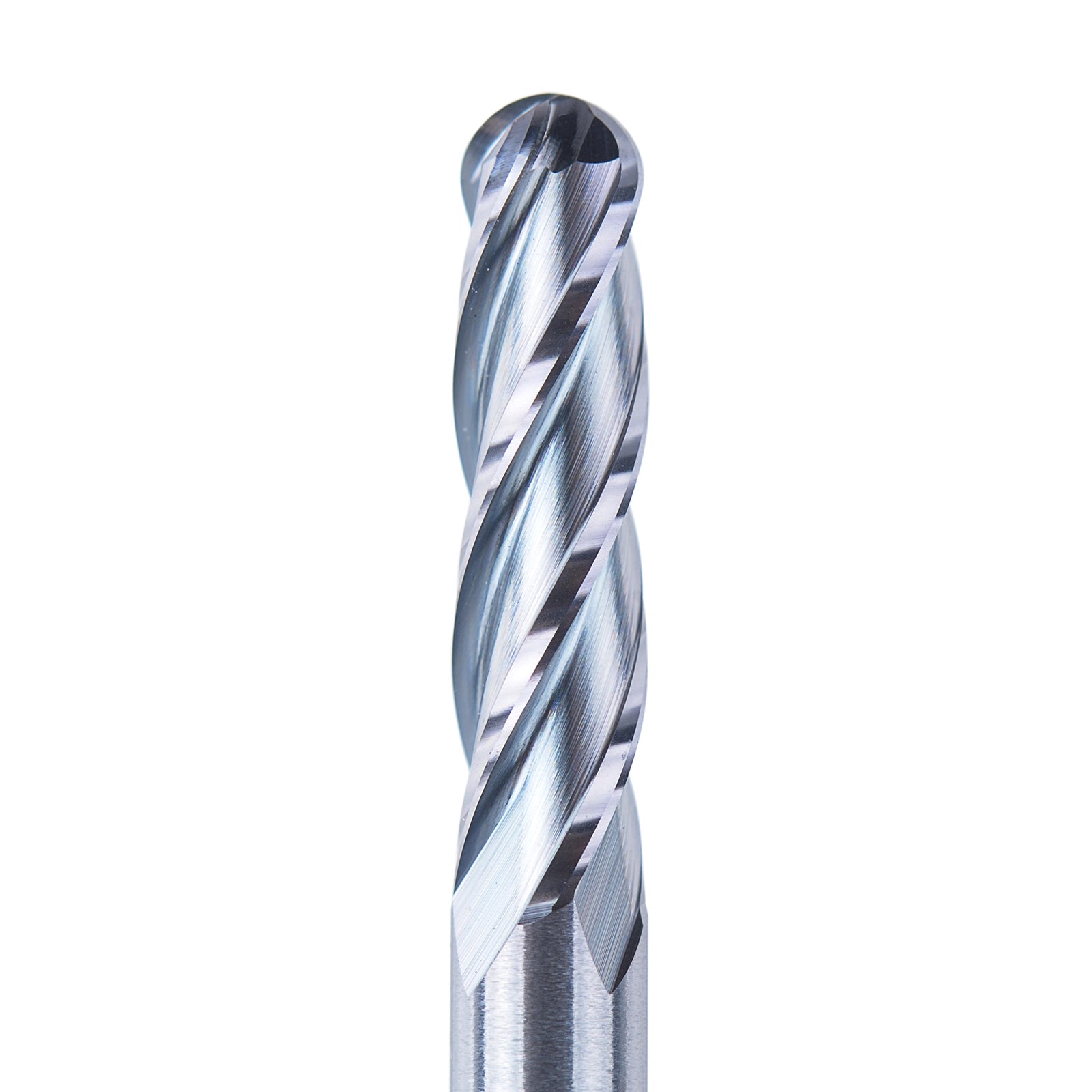

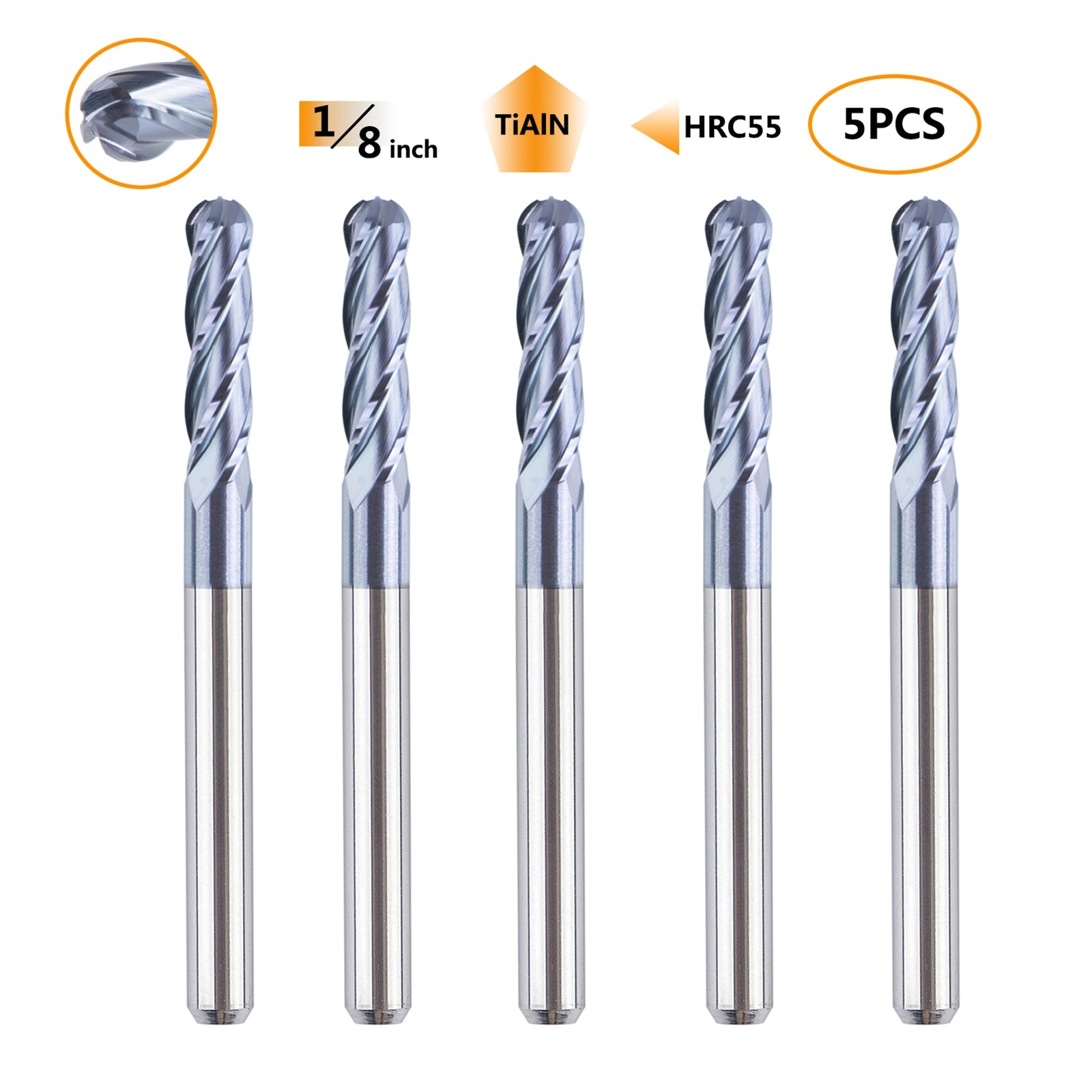

SpeTool M03003 5Pcs CNC SC Spiral for Steel, Stainless Steel with TiAlN Coating 4-Flute 1/8" Dia x 1/8" Shank x 1/2" Cutting Length x 1-1/2" Long Ball Nose Up Cut End Mills

SKU: P4B-1/8-5Pcs-FBA
$24.99 USD
Sold out
Payment & Security
American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Your payment details are securely processed. We never store or have access to your credit card information, ensuring complete privacy and safety.

Local delivery
Free shipping
90-day Refund
365-Day Warranty

Specification:

Flute number

4

End Cut Type

Ball Nose

Shank Diameter(SD)

1/8"

Cutting Diameter(CD)

1/8"

Cutting Length(CL)

1/2"

Overall Length(OVL)

1-1/2"

Coating

TiAlN

Material

 Carbide



Overview:

For longer tool life and a better finish in general-purpose milling applications, these solid carbide end mills are harder, stronger, and more wear-resistant than high-speed steel and cobalt steel end mills. Their extreme hardness means they are brittle, so a highly rigid setup, such as a CNC machine, is necessary to prevent the end mill from breaking.

The TiAlN-coated end mills dissipate heat better than other end mills, especially at high speeds. At high temperatures, the coating creates a layer of aluminum oxide that transfers heat to the chips, keeping the tool cool, even when used without lubrication.



Designed for cutting the following materials:



Cast Iron

Titanium

Steel: 40-50HRC

Carbon Steel

Chrome

Stainless Steel

Steel Weldments

Ferrous Metal
